KY130 Portable Hydraulic Drilling Rig/Rock Blasting Geotechnical Equipment
Product Description
China rotary drilling rig manufacturer! Mining drilling rig model KY130 blast hole rotary drilling rig!
Multi-function Open-Air crawler blast hole drilling rig , a type of Rotary DTH Drilling Rig. It is maily used for drilling blast hole on rock in the stone quarry plant.
Powerful and reliable engine of crawler blast hole rotary drilling rig KY130
Adopt famous 4-cylinder diesel engine as driving force which has advantages of large power, small volume, small vibration and reliable operation.
Adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter three-stage filter. That strengthens the crawler rock drill’s adaptability to severe environment and lengthened the diesel engine’s service life.
New Drilling boom of crawler blast hole rotary drilling rig KY130
Optimally designed luffing mechanism and round drilling boom with the advantages of neoteric structure and easy maintenance greatly improves the drilling hole’s coverage area. That also makes low-order horizontal hole drilling available.
Powerful feed mechanism and rotating system of crawler blast hole rotary drilling rig KY130
The new rotating system is composed of orbit hydraulic motor and planetary gearbox. That provides the crawler rock drill with strong torque reserve and reduce the sticking drilling rate.
The feed mechanism driven by high power hydraulic motor can generate 20 KN lifting power. Adjust the pressure regulating valve on the control valve can got the favorable driving power which is required by the working condition.
Safe and Stable Travelling System of crawler blast rotary drilling rig KY130
This machine has low gravity center and big ground clearance, and can easily travel on bumpy road. It is driven by special wheel motor. That brings it strong grade-ability and low failure rate.
Equipped with advanced auto-balance and brake system, makes the crawler rock drill travel stably and also greatly reduce its impact force to ensure the drive safety.
Special anti-lock device greatly improves the crawler rock drill’s reliability.
Vehicle-mounted diesel engine provides strong power, so the crawler rock drill can freely travel without air compressor.
Technical Parameter
Specification of Mining Crawler Rock Drilling rig KY130(KG930A/B)
Model | KY140 | KY130 | KY125 | KY120 | KY100 |
Rock hardness | F=6-20 | F=6-20 | F=6-20 | F=6-20 | F=6-20 |
Hole diameter(mm) | 105-140 | 105-140 | 80-115 | 105-120 | 80-105 |
Drill depth(m) | 25 | 25 | 25 | 25 | 20 |
Pressure (Mpa) | 1.0-2.4 | 1.0-2.4 | 0.7-1.4 | 1.0-1.4 | 0.5-0.7 |
Air consumption (M3/min) | ≥15 | ≥15 | ≥13 | ≥13 | ≥12 |
Rotating speed (Km/h) | 0-63 | 0-70 | 0-65 | 0-65 | 0-65 |
Lifting capacity (KN) | 20 | 18 | 17 | 17 | 15 |
Drill rod specification(mm) | 76×3000 /89×3000 | 76×3000 /89×3000 | 64×3000 /76×3000 | 64×3000 /76×3000 | 60×2000 |
Gradeability | 30° | 30° | 30° | 30° | 30° |
Ground clearance(mm) | 320 | 320 | 290 | 254 | 254 |
Walking speed (km/h) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Drill arm rising angles (°) | -15~+50 | -15~+50 | -25~+50 | -35~+60 | -35~+60 |
Drill arm swing angle (°) | ±45 | ±45 | ±45 | - | - |
Carriage swing angle(°) | ±50 | ±50 | -45~+100 | -11.5~+36.5 | -11.5~36.5 |
Carriage pitch angle (°) | 180 | 180 | -50~+135 | -118.5~+23.5 | -118.5~+23.5 |
Carriage Compensation(mm) | 1200 | 1200 | 900 | 900 | 900 |
Overall Dimension (L*W*H)(mm) | 5850×2250 ×2020 | 5600×2340 ×2550 | 4000×2270 ×2050 | 5100×2030 ×2020 | 4100×2030 ×2020 |
Total Weight (Kg) | 5500 | 5500 | 3300 | 3300 | 3200 |
Note: | Pneumatic -hydraulic | Pneumatic -hydraulic | Pneumatic -hydraulic | Pneumatic -hydraulic | Pneumatic -hydraulic |
Detailed Images

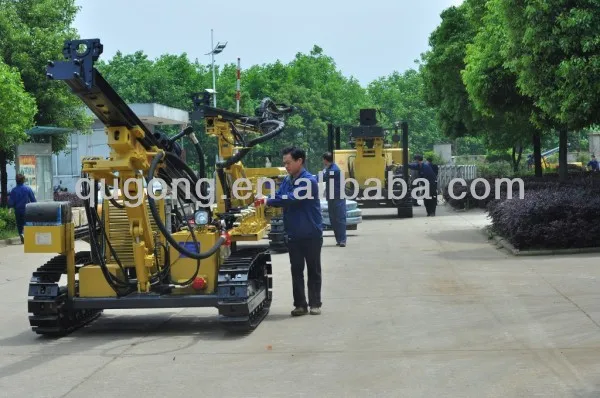

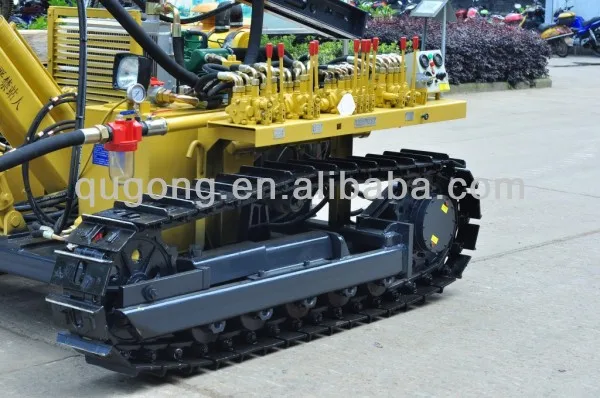

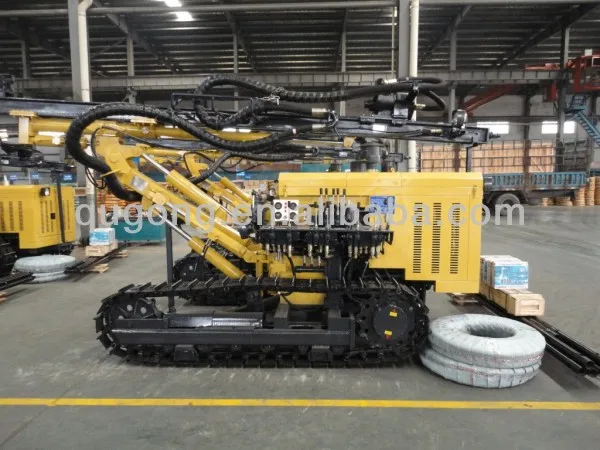

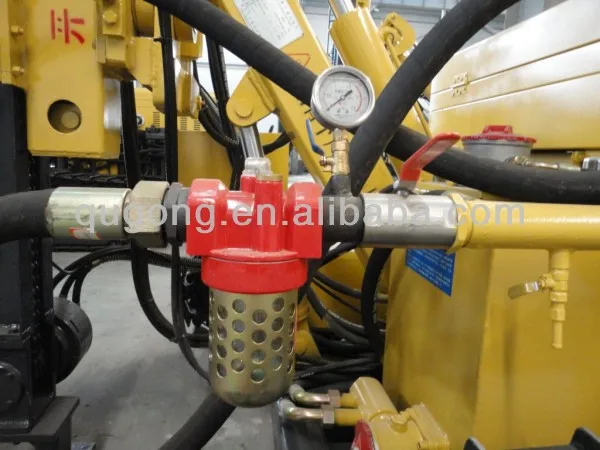

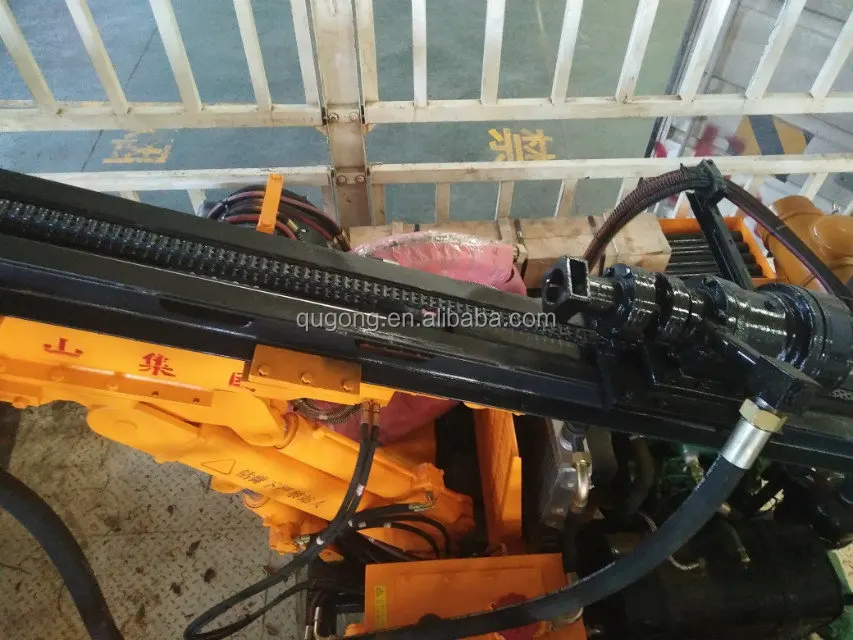

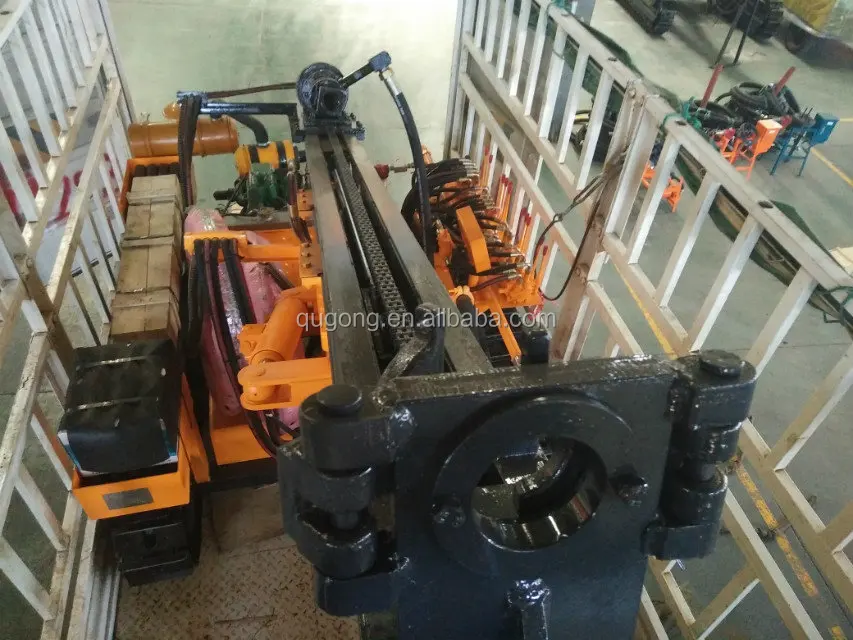

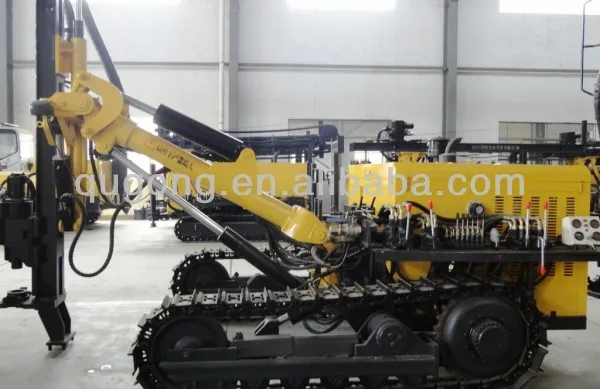

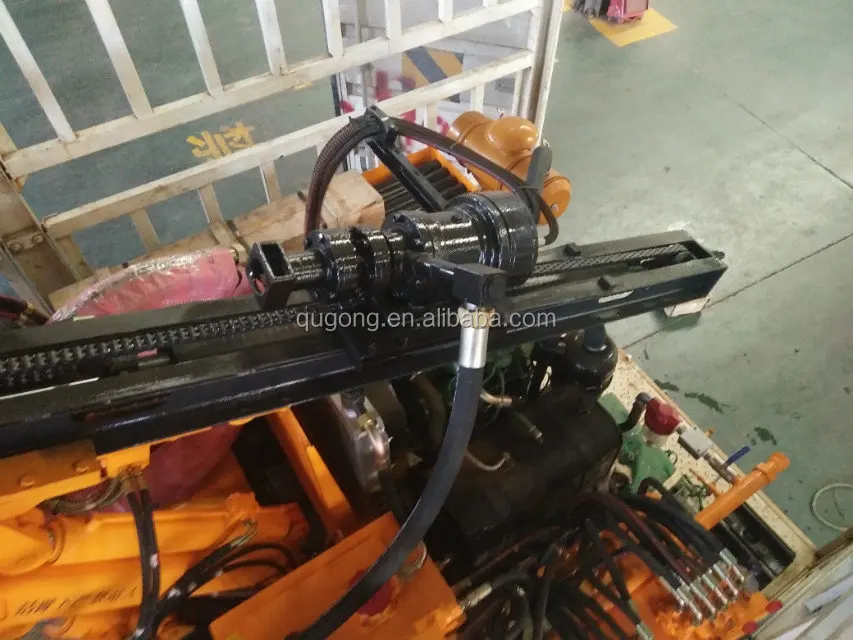

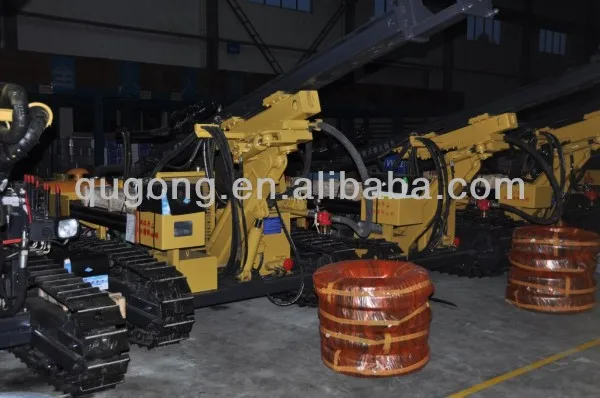

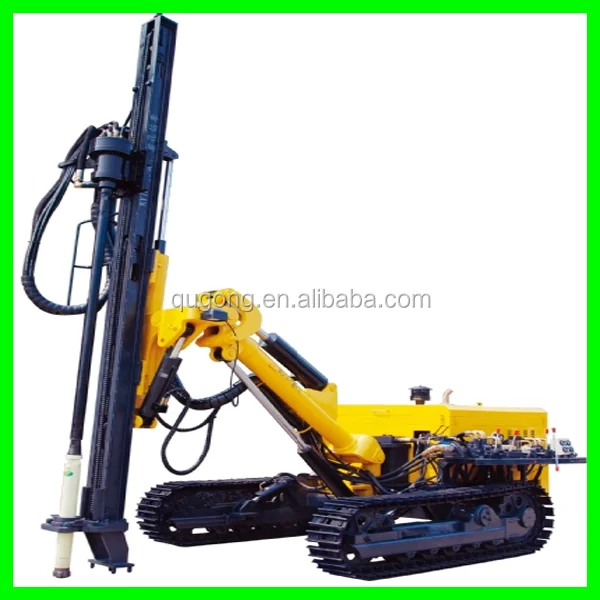

KY130 rotary crawler portable rock drilling rig photos
Accessories

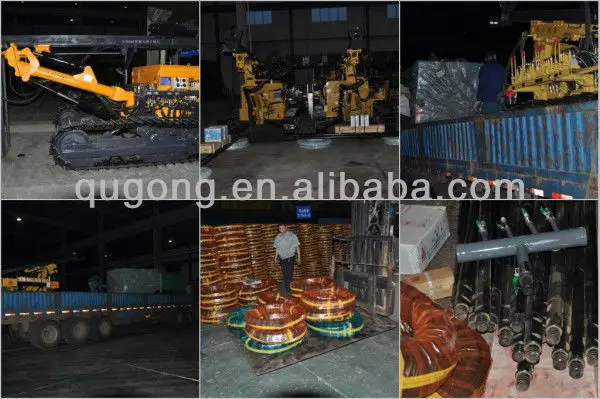

Packaging & Shipping
Standard container, nude packs or in bulk.
Our Services
After-sale Service
1. During the quality guarantee term if any quality problem with the equipment we responsible for free maintenance or parts replacement.
2. We supply a permanent free technical support to all customers.
3. Our equipments would through integration testing before delivery, ex factory pass rate would reach 100%. We can also supply you photos to prove it's really assembling in Kaishan factory but not by some small counterfeit workshop.
