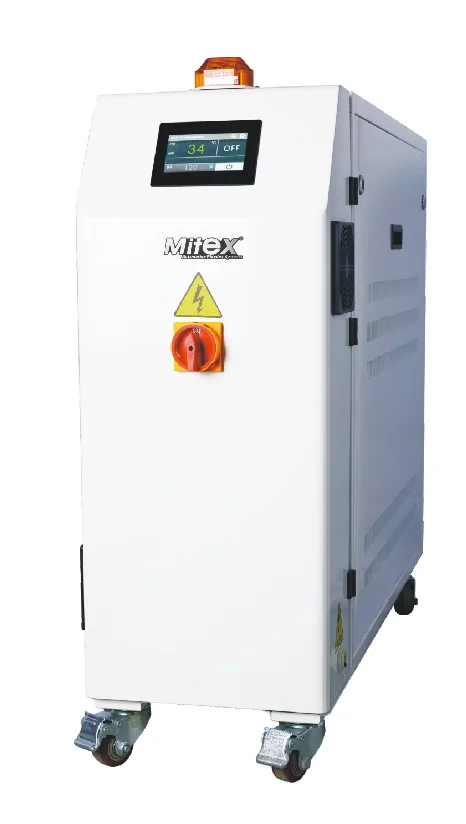

Плесень терморегулятор машина

Product Overview

Description

Features of MTC  series mold thermoregulator machine



1.P.I.D. multi-stage temperature control system can maintain a mould temperature with accuracy of ±0.3°C.

2.Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise moulds and mould loop with minor diameter to achieve precise temperature control and high efficient heat exchange.

3.Multiple safety devices including power phase error protection, pump overload protection, overheat protection and low level protection that can automatically detect abnormal performance and indicate this via visible alarm/error code.

4.The heating temperature can reach 150°C.

5.Equipped with high pressure protection, safety pressure relieving, automatic water supplying and air exhausting.

6.Water manifolds and Teflon hose are optional.

• Power source phase deficient protection


• Circuit breaker


• Pump reversal protecting and indicating lamp


• Pump over load protecting and indicating lamp


• Water shortage protecting and indicating lamp


• Over heat protecting and indicating lamp


• By-pass pressure lose circuit


• Cooling compulsory


• Temperature deviation alarm and indicating lamp


• Break down alarm buzzer

       ADDITIONAL EQUIPMENT FOR OPTION

• Thermocouple to connect to outside wiring


• Large type of water filter


• Protection switch for prove the electric leakage


• Protection switch for prove the abnormal voltage


• Teflon hose

 Specification

Model	MTW-1510W
Power supply	380V  50/60HZ
highest Working temp.	150°C
Lowest working temp	+3°C~10°C
Medium	water
Heater Power	9KW
Cooling Capacity	5400Kcal/h
Cooling Method	direct cooling
Accuracy of temp. control	±0.5°C
Pump power	1 hp
Max. flow rate 50HZ	165L/min
Max. power consumption	9.5KW
Cooling water pressure need	Direct cooling/4.5KG
pipe size of supply water	1/2″PT
Pipe Size of hot water	4inlet 4outlet 3/8″PT
Dimensions	670*290*700mm
net weight	70KG

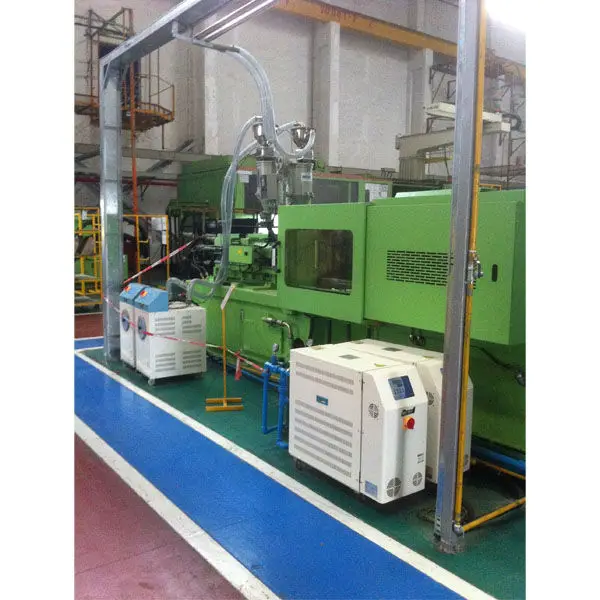

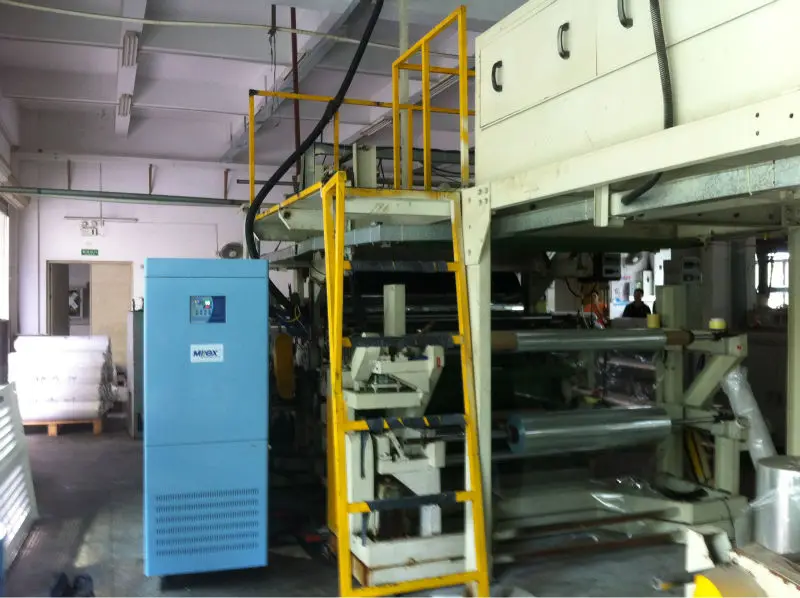

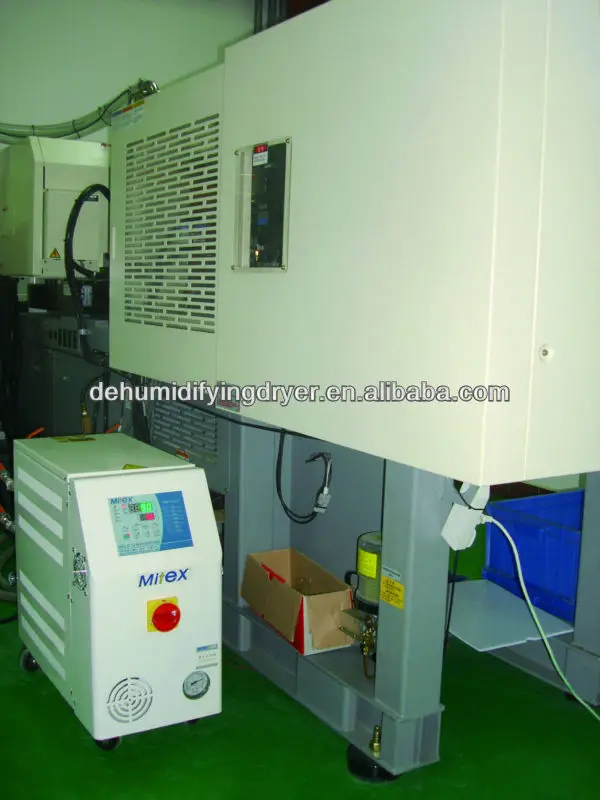

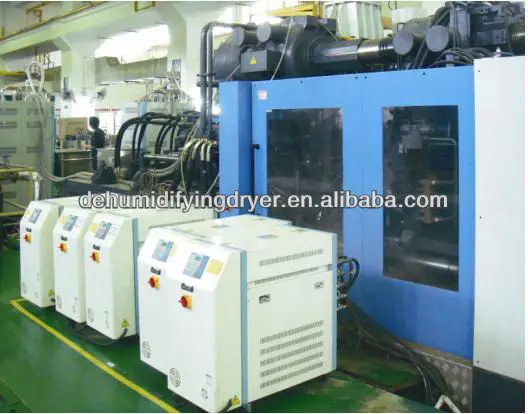

Cases of Thermoregulator

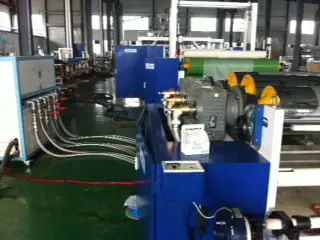

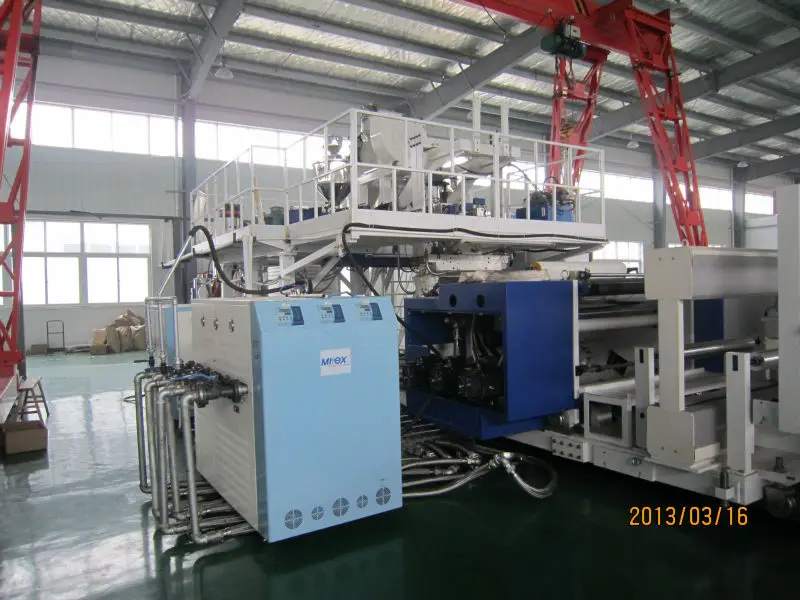

Cases of thermoregulator control of extruder roller



We are a manufacturer specialized in produce plastic auxiliary machinery,contact us for more information.
