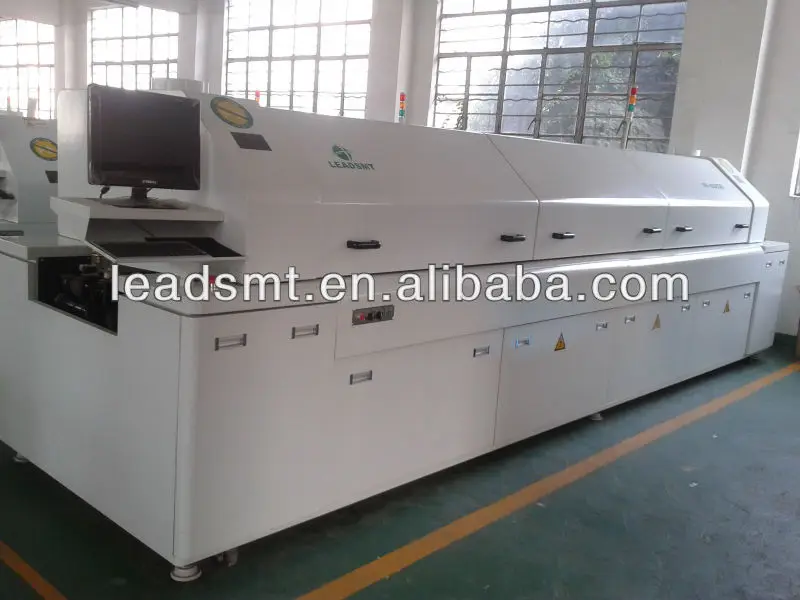

SMT solder reflow oven machine, welding machine

Product Overview

Description



Reflow Oven: High-density insulation system, Energy efficiency, Computer Lead-Free Reflow Oven, Honorary present.





Windows XP operation software with Chinese and English alternative. Whole system under integration control can analyze and display the failure. All production data can be saved completely and analyzed.



PC& Siemens PLC controlling unit with stable performance; high precision of profile repetition can avoid product loss attributed by abnormal running of the computer.



Unique design of the thermal convection of the heating zones from 4 sides provides high heat efficiency;



Between 2 joins zones can avoid the temperature interference; It can shorten the temperature difference between big-size and small component and meet the soldering demand of complex PCB.

Forced air cooling or water cooling chiller with efficient cooling speed suits all different kinds of lead-free soldering paste.



Low power consumption (8-10 KWH/hour) to save the manufacture cost.

With complete alarms system ,failures can be listed on the PC interface .



Model	RF-8810
Dimensions(mm)	4800x1100x1650
Weight	1800kg
Heating zone	up8\\bottom8
Heating Length	3160 mm
Cooling zone	2(cooling zone length :600mm)
Exhaust Volume	10M3/min x2
Power	3 Phase 380VAC 50/60Hz
Start Power	36kw
Run Power	7kw
Warm-up Time	Approv: 15min
Temperature Range	Room temperature~350°C
Temperature Control	PID+SSR
Temperature Precision	(Top zone)±1°C   (Bottom zone)±1°C
Deviation On PCB	±2°C
Temperature keeping system	3
Abnormal Alarm	Temperature abnormal
Conveyor Width	450mm
Components height	PCB 40mm
Conveyor Direction	L to R
Conveyor Height	900±20mm
Conveyor Speed	0~2000mm/min
