High Quality Liquid Dosing Pump

Product Overview

Description

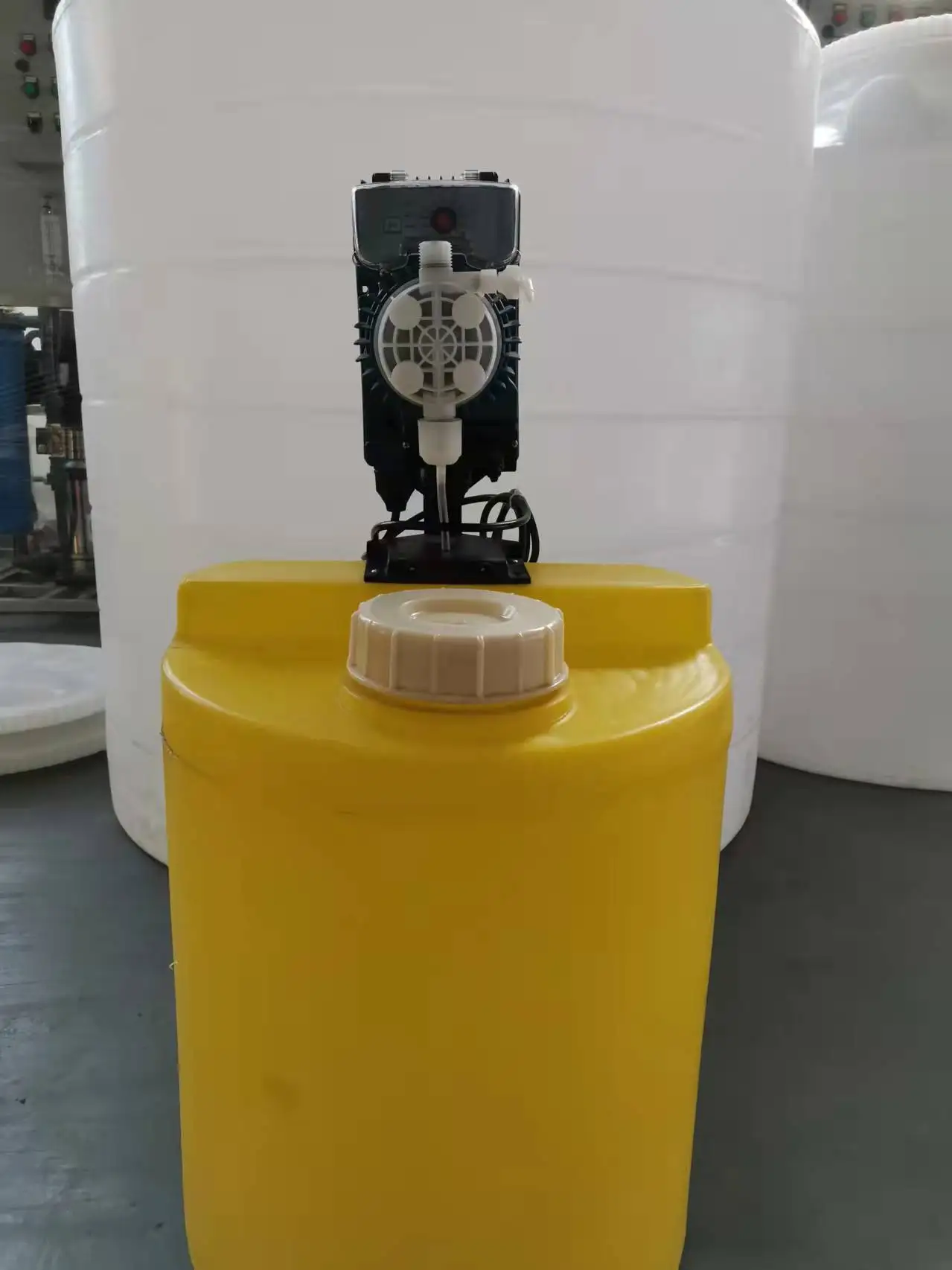

Dosing Pump for RO Plant in Water Treatment

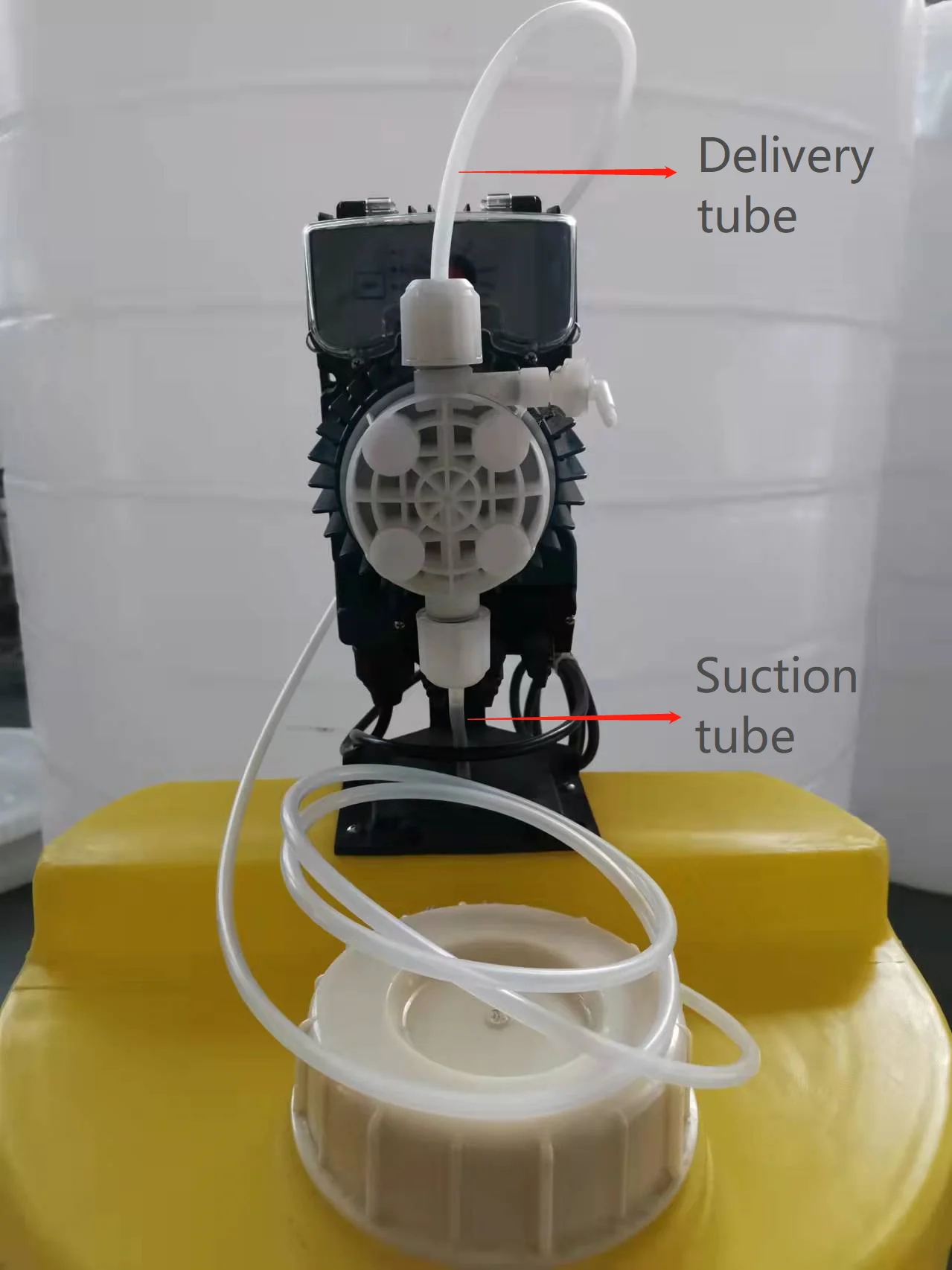

Instruction of  Liquid Dosing Pump



The innovative AKS series electronic metering pumps is a result of working closely

with our world-wide customers.



These multifunctional metering pumps maintain the high reliability that is synonymous

with SEKO quality.



Dosing Pump is mainly used in RO plant for water treatment field, working with the matched dosing tanks. We always add chemicals like Antiscale or Flocculant ,in case that the membranes are blocked by large particles in the water.



Pump features on APG series

Proportional dosage
Analogue dosing pump with constant
flow rate manually adjustable,
proportional flow rate according to an
external analogue (4÷20 mA) or
digital pulse signal (e.g. from water meter).
n Control dial (percentage and "n" value in multiplication mode)
n 6 position adjustable switch:
– 3 in division mode (1, 4, 10 = n)
– 1 in multiplication mode (n=1)
– 1 for proportional 4÷20 mA signal
– 1 for constant functionality
n “pacing” function adjustable by dip switch



Specification of Liquid Dosing Pump



Model	Pressure (Bar)	FlowRate (L/H)	Max Frequency (Stroke/Min)	Stroke Capacity (CC/Stroke)	Connections  In/Out(mm)	Consumption (W)
500	20	0.4	120	0.06	4/7	12.2
	16	0.8		1.11
	10	1.2		0.17	4/6	20
	6	1.5		0.21
600	20	2.5	120	0.35	4/6 Inlet	20
	18	3		0.41	4/7 Outlet
603	12	4	160	0.42	4/6	20
	10	5		0.52
	8	6		0.63
	2	8		0.83
800	12	7	320	0.36	4/6	40
	10	10		0.52
	5	15		0.78
	1	18		0.94
803	5	20	300	1.11	8/12	40
	4	25		1.39
	2	40		2.22
	1	54		3

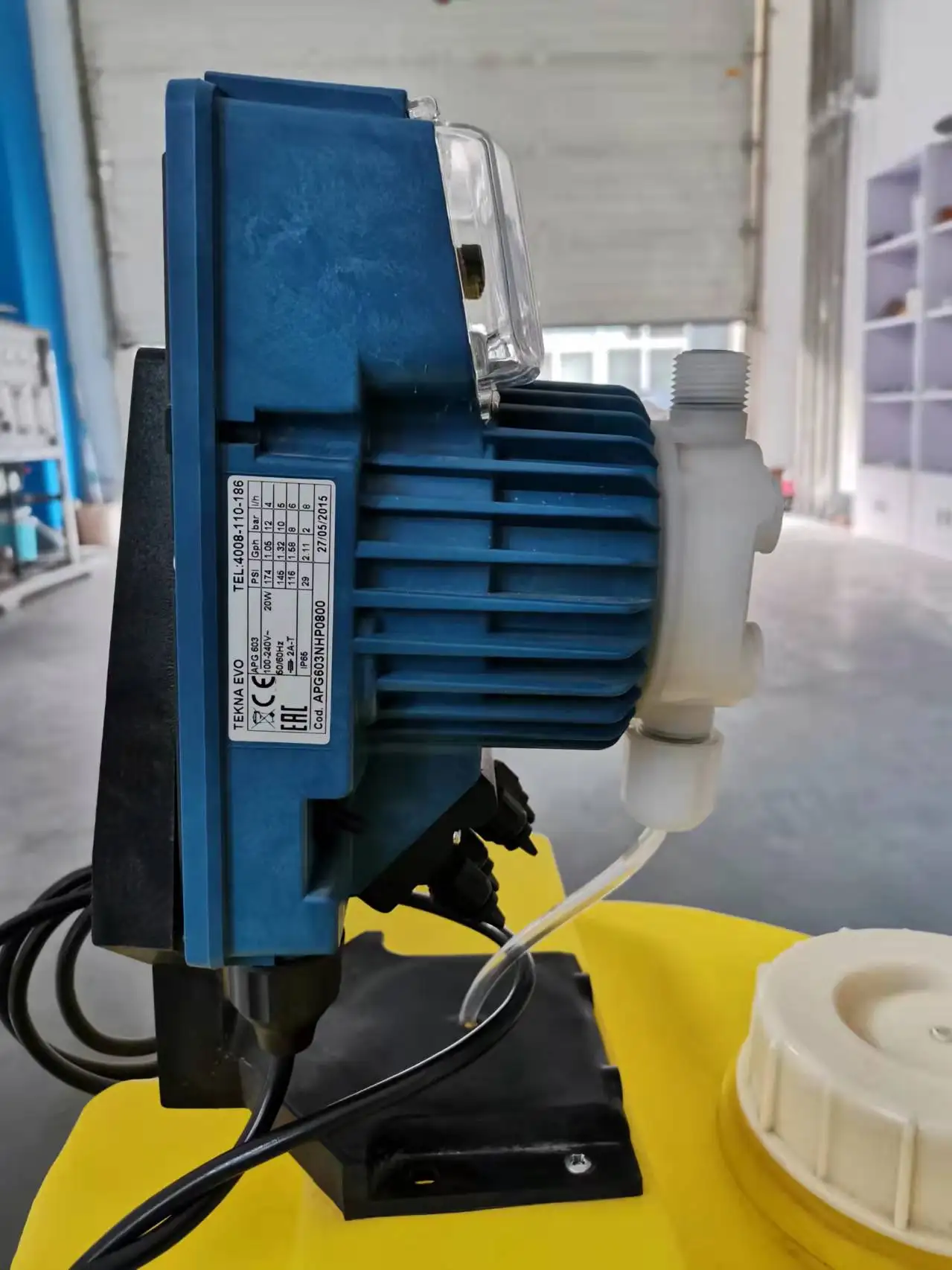

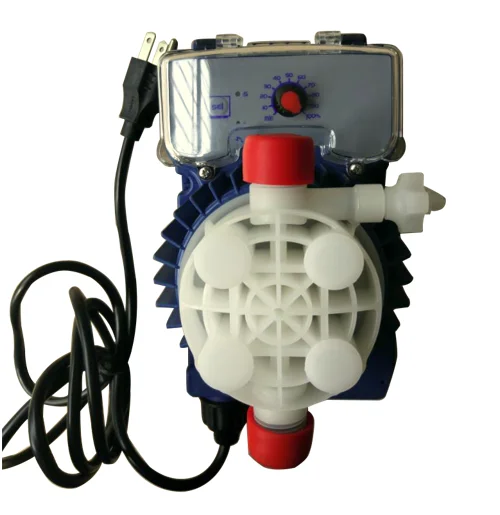

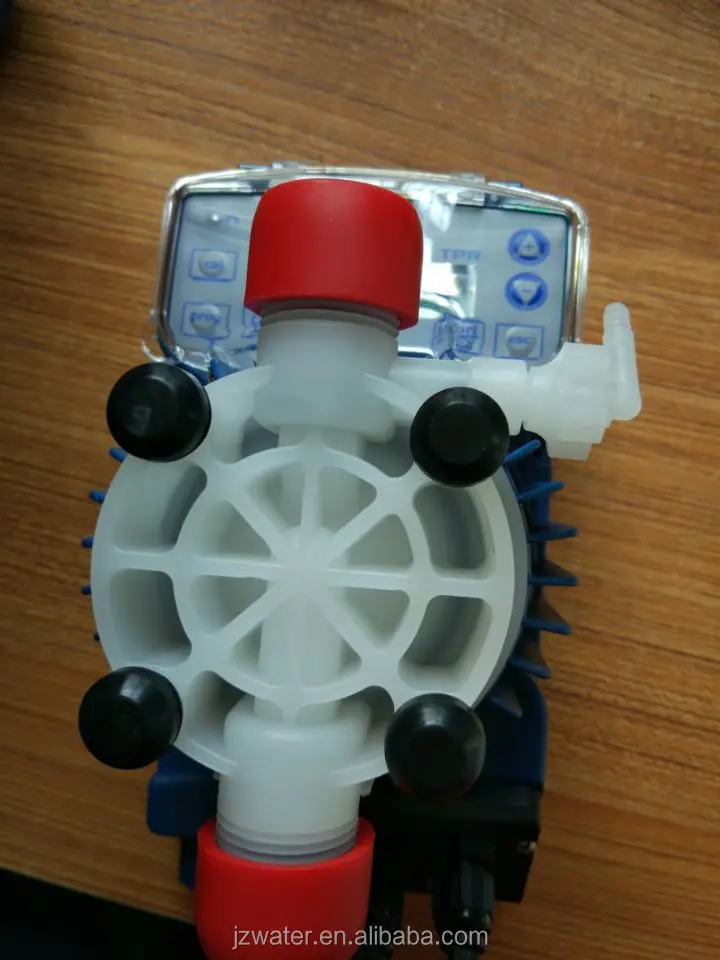

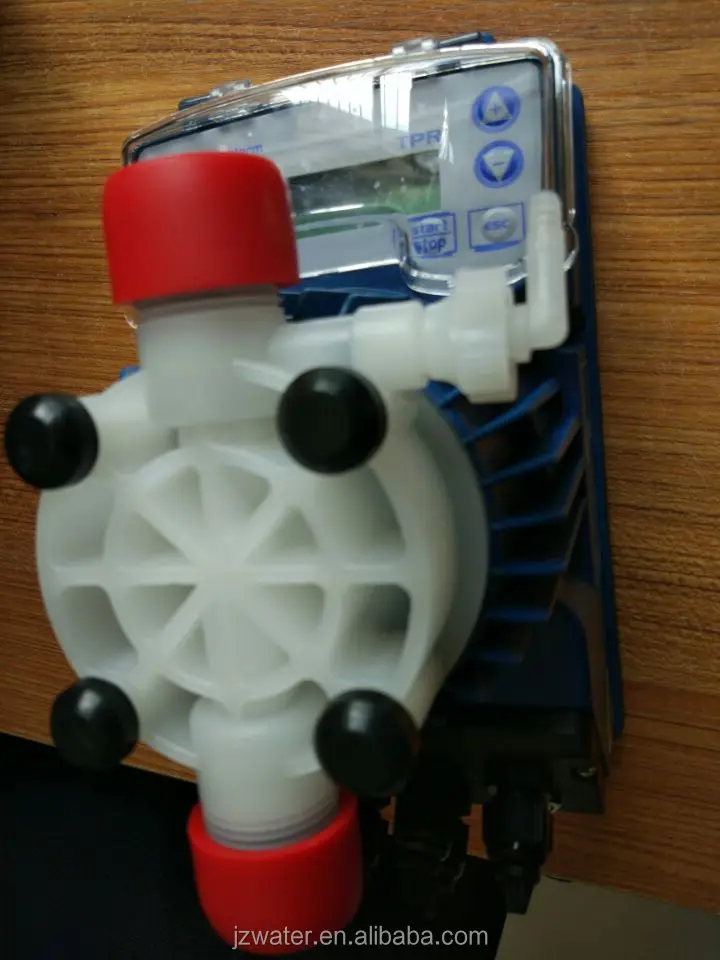

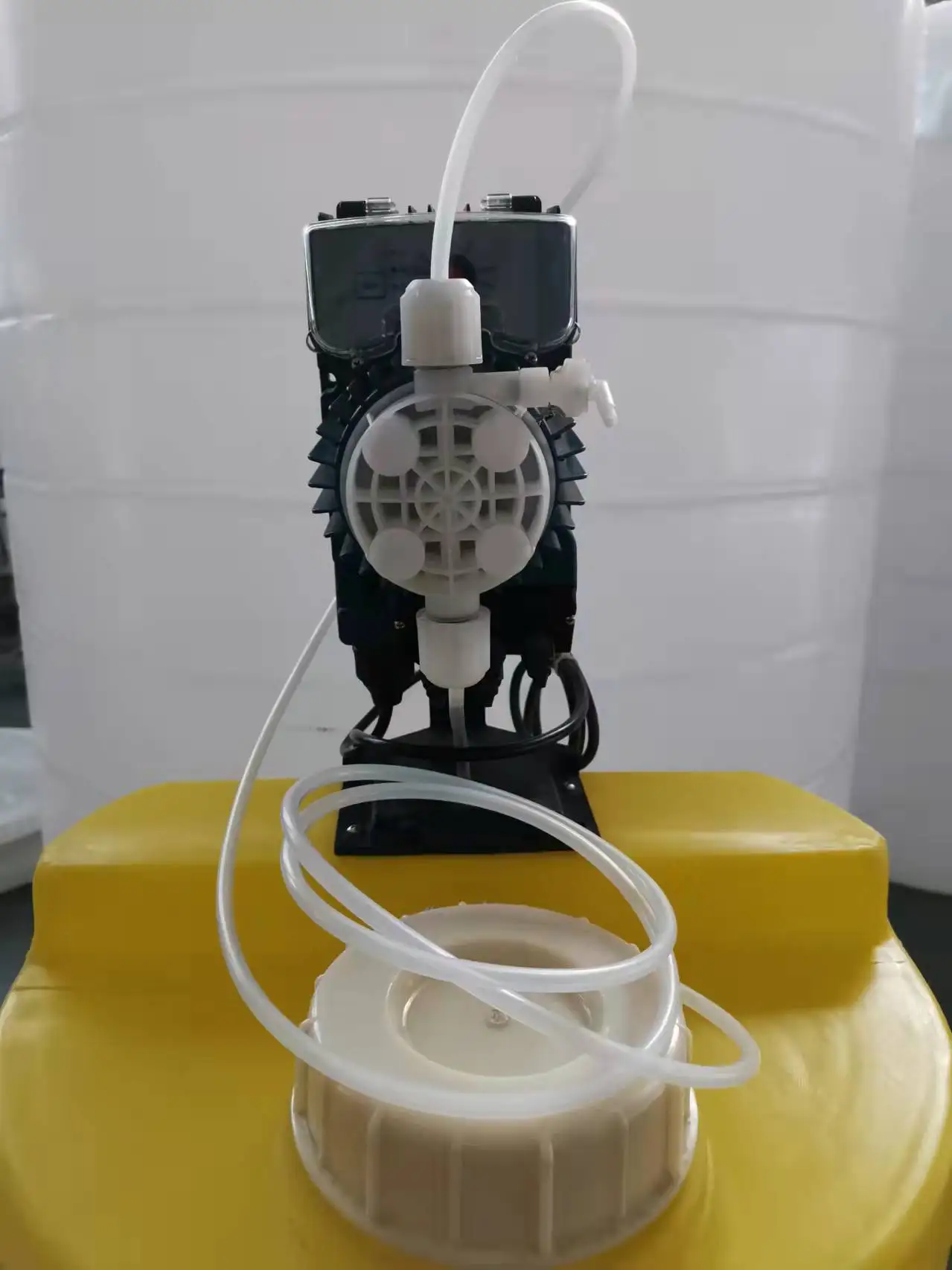

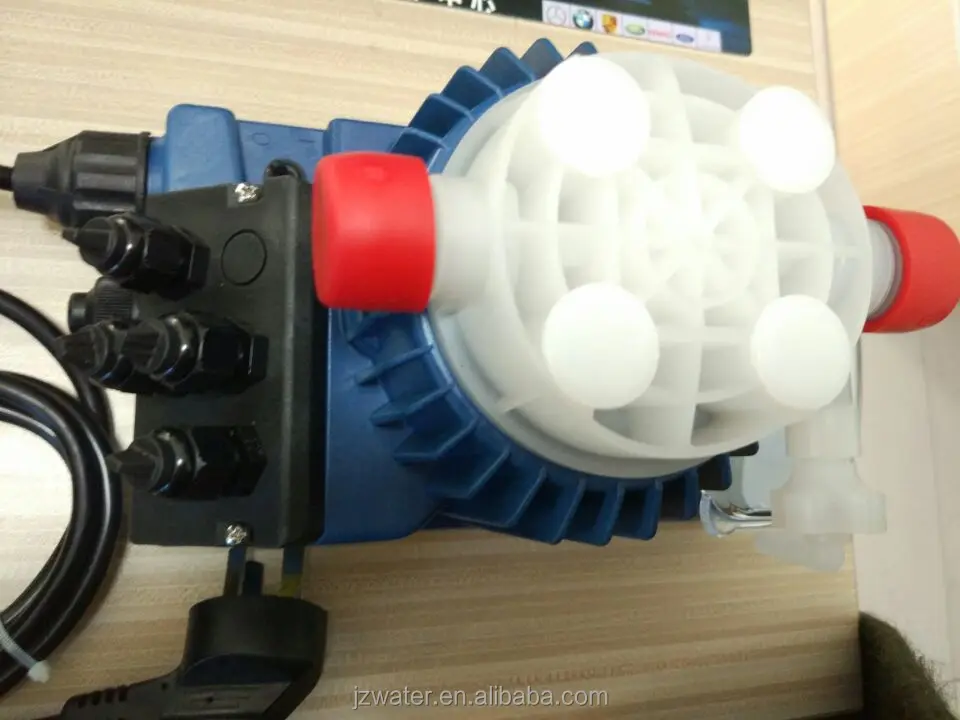

Pictures of Liquid Dosing Pump

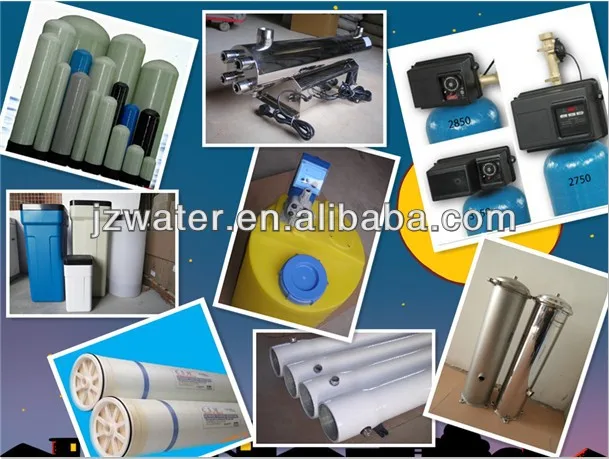

 Our Main Accessories for water treatment

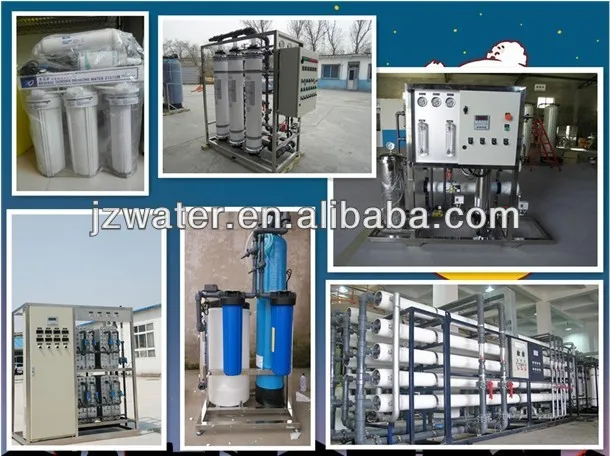

Our Hot Sell Water treatment Equipment

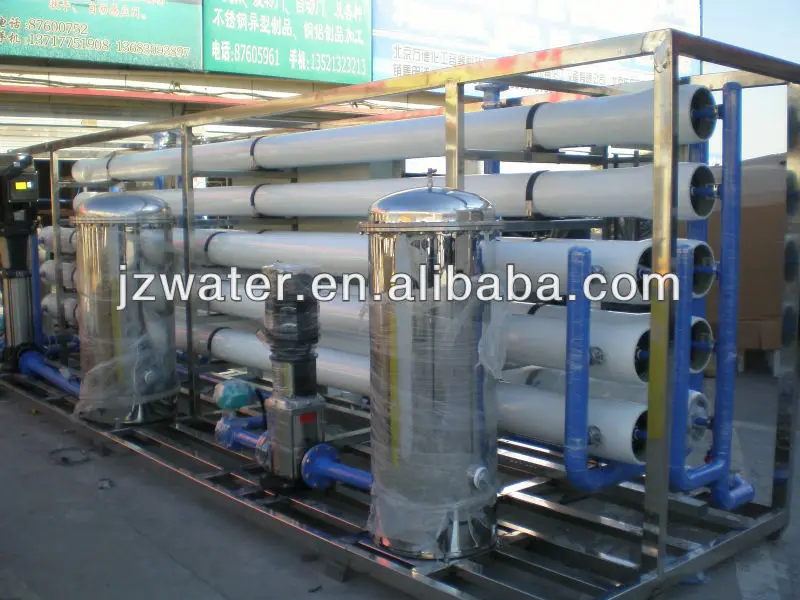

40T/H RO Plant :

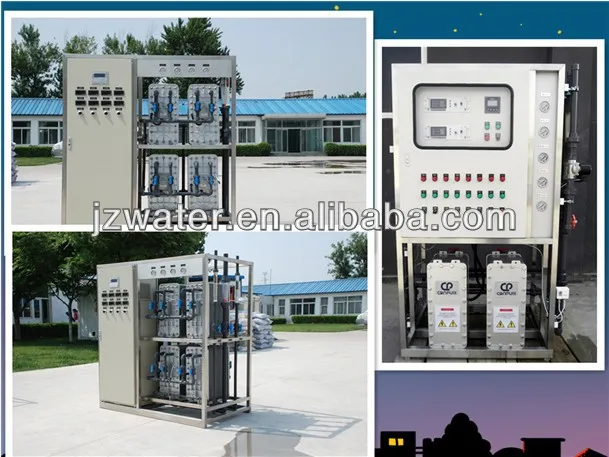

EDI for Ultrapure Water:

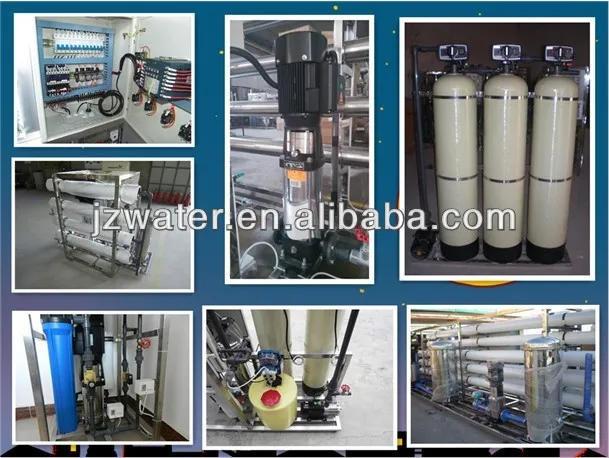

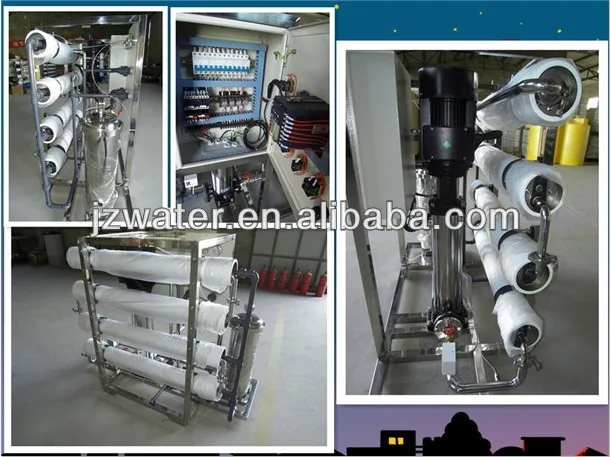

Details of RO Plant :

Packing and Transportation of Water Treatment Equipment

Our Agent Certificate







We are dedicated to develop the clean water in China and abroad. By importing

advancedtechnology and accessories, we assure the good quality of products and

complete equipment providing consummate after-sales service. We will help and

solve your problem at the first right time and offer clean and health water for you.





All the equipments is high quality components designation and 100% factory tested before shipment. 1-YearManufacturer's warranty Years of trouble free service offered. So any problem, any question, please do not hesitate to contact me, and I will help you to solve your problem within 24 hours.



Withhighly-quality purified water treatment plant and accessories,the quality is absolutely guaranteed. By the way, we always offer spare accessories that easy loss by free. So you can choose our equipments or accessories with zero worry and no risk.



     Best quality+ Thoughtful service=100% trust



Any Needs,Please contact Us :)
