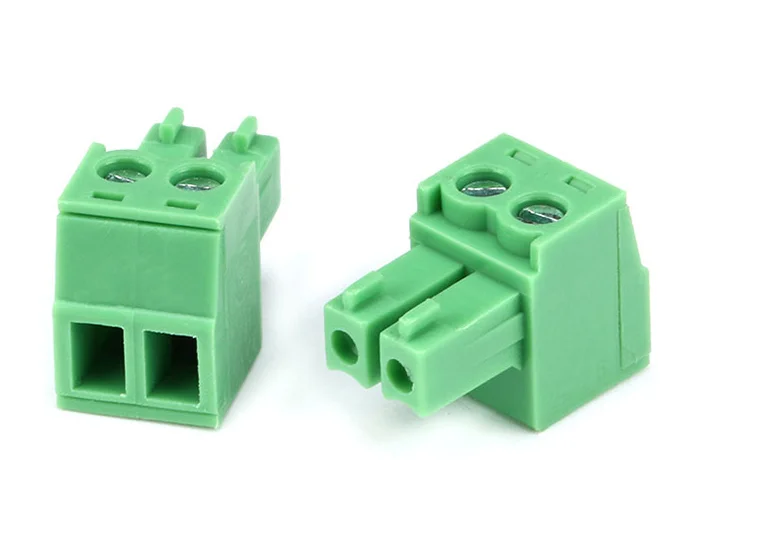

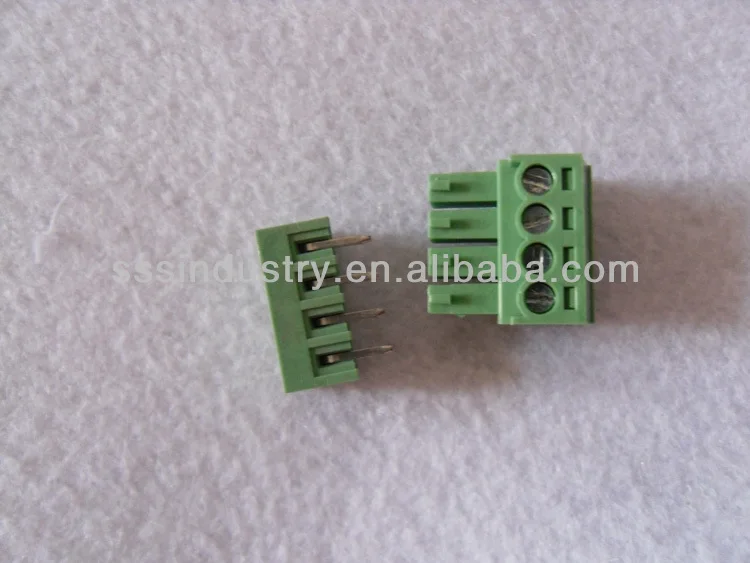

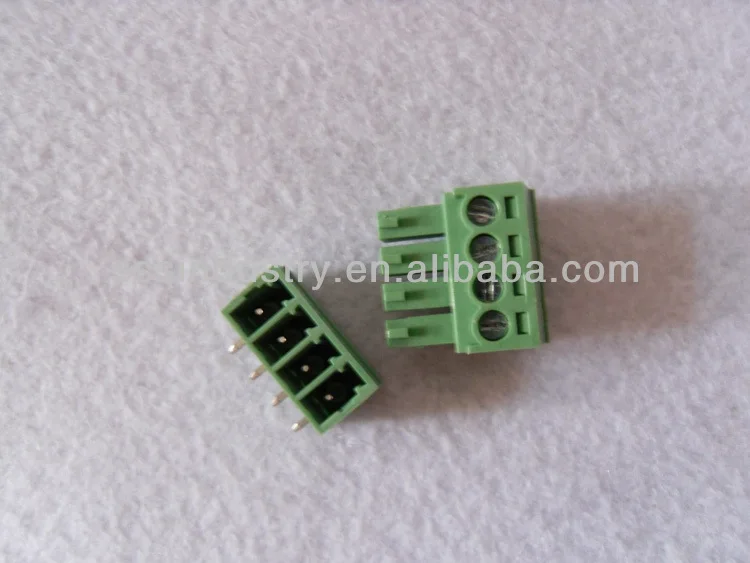

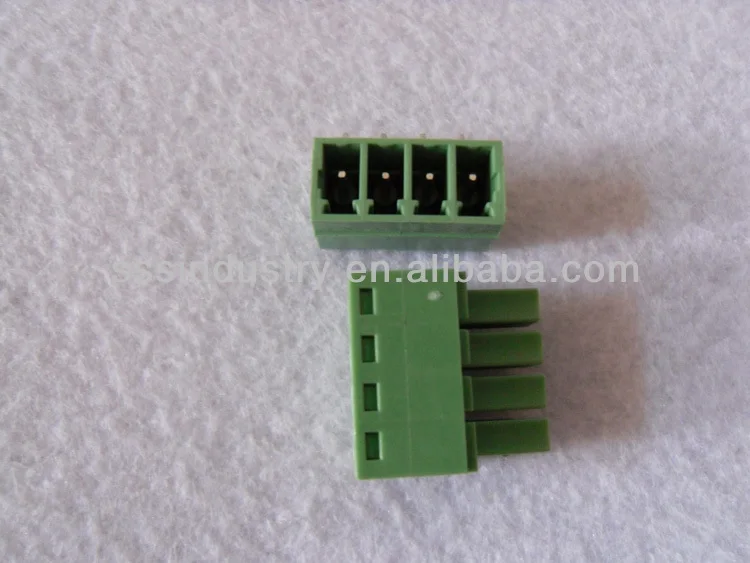

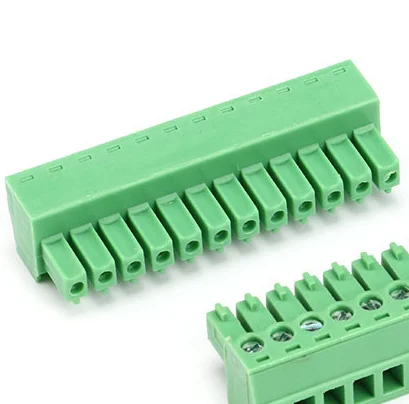

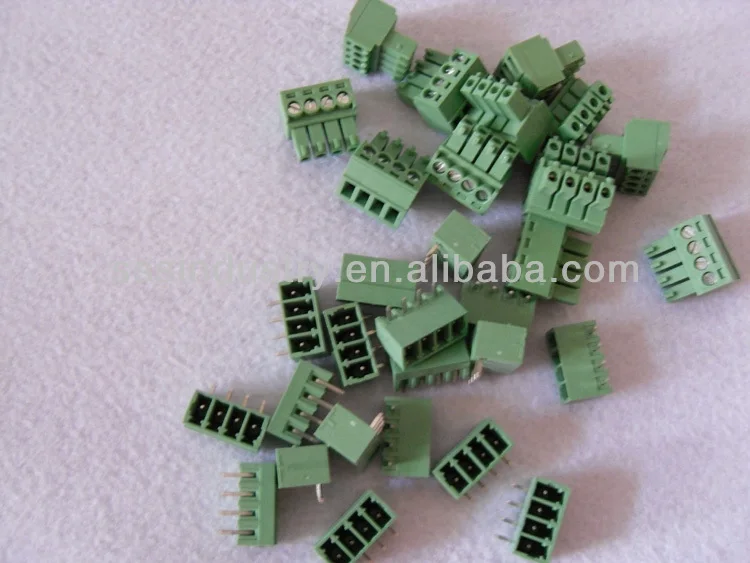

Connector Pluggable KF2EDG 3.5MM 2/3/4/5/6/7/8/9-24P Terminals

300V/8A spacing 3.5MM straight pin 2P-24P
Pitch: 3.5mm, 3.81mm
Material and plating
Contact Material: Phosphor Bronze
Pin header: Brass, Tin plated
Plastic parts: PA66, UL94V-0
Electrical Performance
Rated voltage: 300V
Rated Current: 8A
Contact resistance: 20m
Insulation resistance: 5000M/1000V
Withstanding Voltage: AC1500V/1Min
Using Wire: 18AWG 1mm
Mechanical behavior
Temperature range:-40C ~ +105 C
Instantaneous temperature: +250C 5S
Stripping Length :5-6mm
