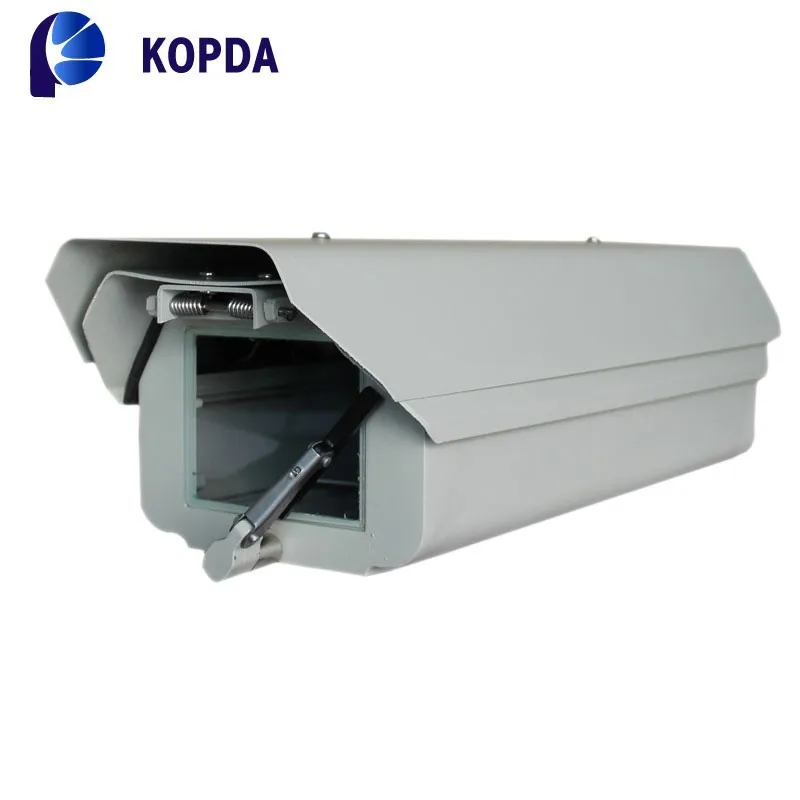

outdoor IP66 cctv camera housing with heater & blower & wiper

Size:

A 376(14.80”) ; B 324(12.75”);C 39(1.54”);D 136(5.35”);E 104(4.07”)

Feature:

 Professional outdoor housing for fix and varifocal lens CCD cameras.

 Aluminum Material.

 Build in Heater,Sun-shield and Wiper.

 Demisting, defrosting.

 Sun-shield can reduce internal temperature 3°C~5°C.

 There are bottom cable entry, maximum cable diameter of 13mm.

Model NO.	KD-H012KW
Voltage	24VAC/110VAC
Power	Heater:10W,24VAC/110VAC/220VAC;Fan:2.2W 12V DC
Working temperature	-25 °C~60°C
Material	Aluminum alloy
Window size	74*68mm(2.91”*2.68”)
inner size	174*90*72.5mm
Temperature control	Heater: 0°C~-5°C turn on; 0°C~5°C turn off; Fan; 40°C turn on; 35°C turn off
Package Weight	2.2kg
Box Size	45*16*16.5 cm

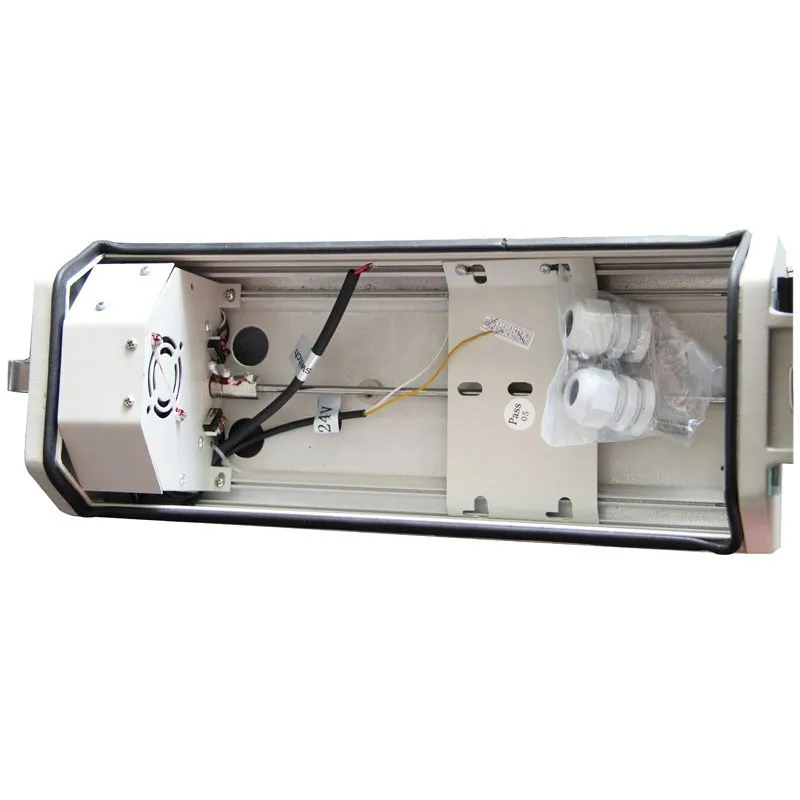

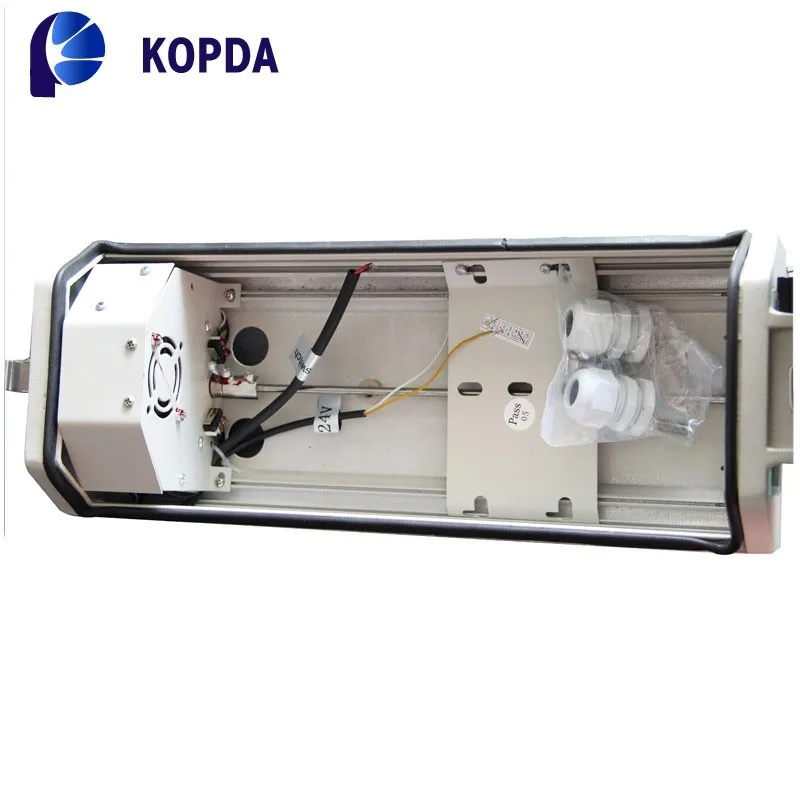

Detailed Images
