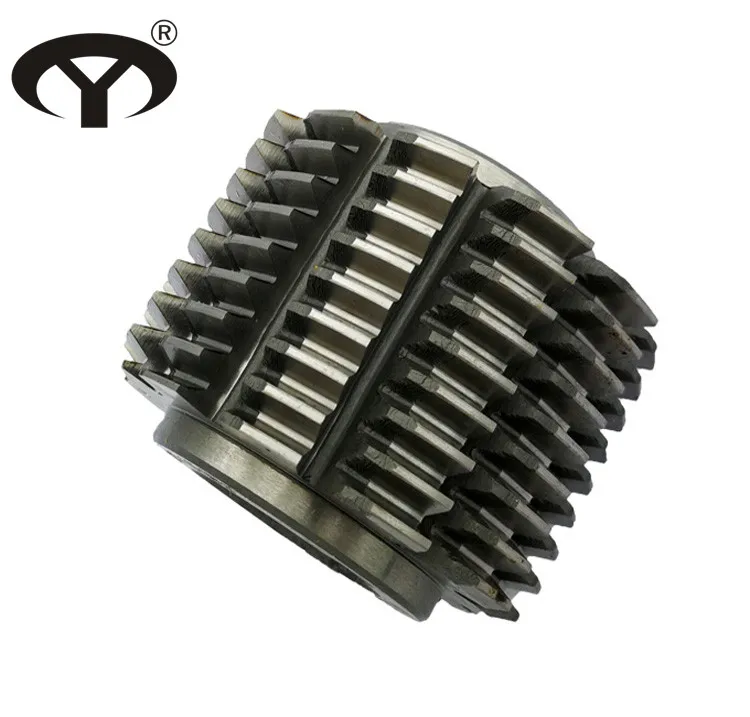

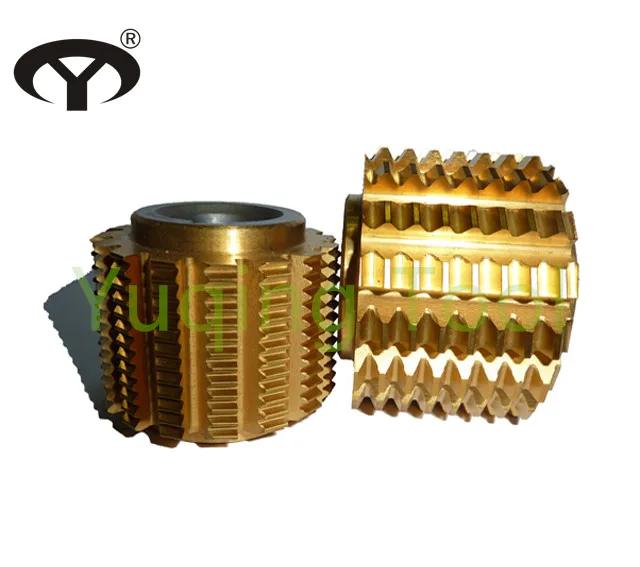

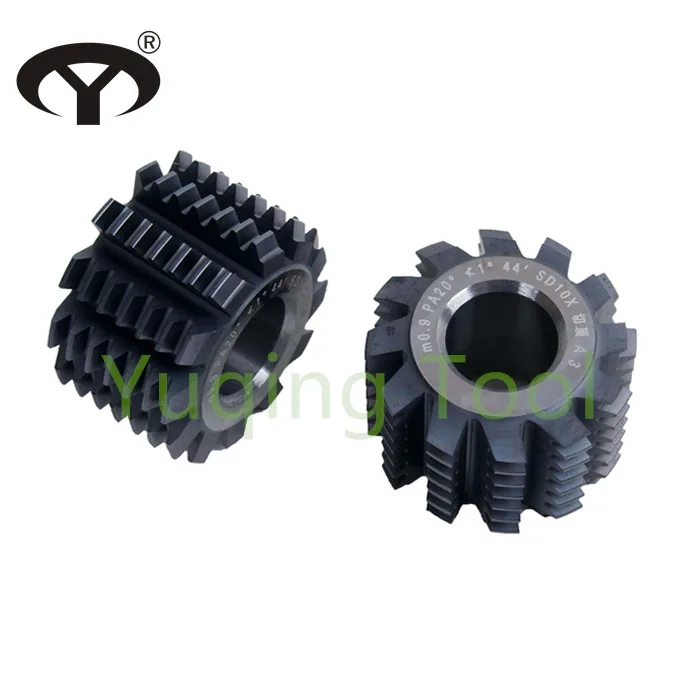

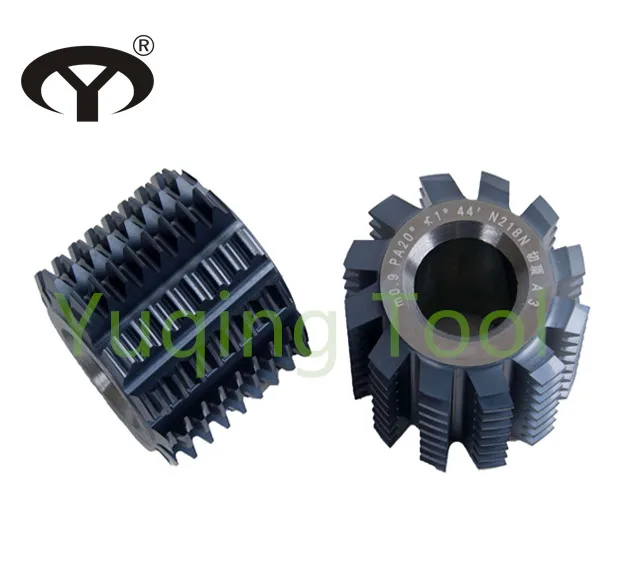

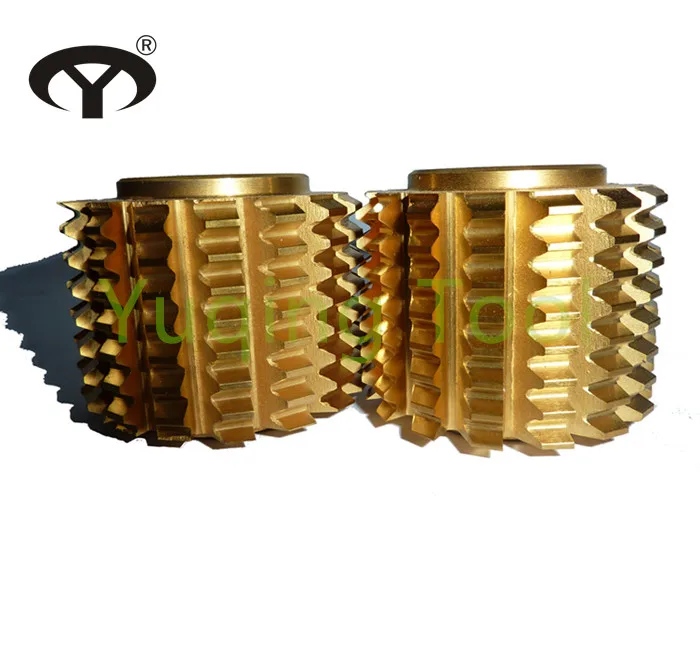

HSS M2 Module m0.8 micron gear hob cutter with TIALN/AP

Product Overview

Description

HSS Module m0.8 micron gear hob cutter with TIALN/AP



Specification table of module micron gear hob with TIALN AP:



Module	Outside Dia.	Overall Length	Hole Dia.
0.10	25	10	8
0.12
0.15
0.20
0.25
0.30		15
0.35
0.40
0.50
0.60		20
0.70
0.80
0.30	32	15	13
0.35
0.40
0.50
0.60		20
0.70
0.80
0.90
1.00





Fine pitch topping hobs can be ordered by customers.



Hole dia.of 10mm can be selected for fine pitch gear hobs with 32mm outside dia.





















Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.





Production process of HSS M2 micron small module gear hob cutter with TIALN/AP:





Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
