W1.5x1220Z Pan and Box Brake, TTMC Factory Made Bending Machines
- Category: Sheet Folding Machine >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1544062174):
Product Overview
Description
Product Overview

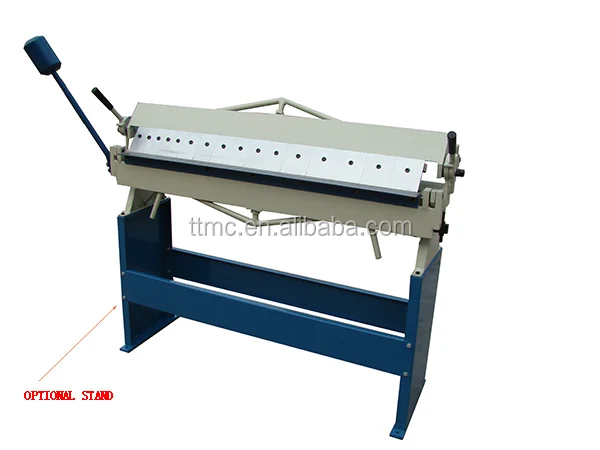

TTMC W1.5x1220Z Heavy Duty Folding Machine
TTMC 48 Inch sheet metal folding machine, 16Ga capacity.
Welded steel structure
Segment bending fingers for box pan brake
Bends up to 135° across the brakes entire 1220mm length even at full capacity.
Includes 16 hardened fingers of varying lengths to make many sizes of boxes and pans.
Counterweight apron lift assist reduces your effort when bending at full capacity.
Finger setback adjustment lets you adjust for the thickness of the material.
Counterweight apron lift assist reduces your effort when bending at full capacity.
Finger setback adjustment lets you adjust for the thickness of the material.
Recommended for: Hobbyists, light sheet metal fabricators, or educational institutions.

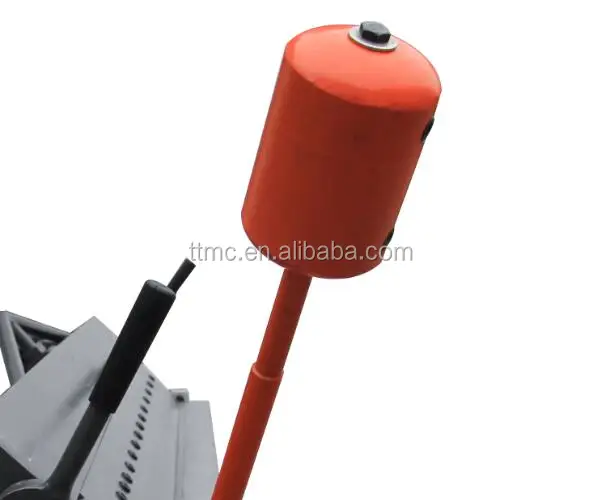

Standard Balance Hammer
PRODUCT SPECIFICATIONS
TTMC Pan Box Brake Series
SKU | 373121 | 373122 | 373123 | 373124 |
Model | W1.5x610Z | W1.5x915Z | W1.5x1220Z | W1.5x1260A |
Bending width | 610mm | 915mm | 1220mm | 1260 |
Bending thickness | 1.5mm | 1.5mm | 1.5mm | 1.5 |
Bending Angle | 0-135 ° | 0-135 ° | 0-135 ° | 0-135 ° |
Packing size (cm) | 85x37x56 | 117x40x58 | 158x45x65 | 158x45x65 |
N.W.(kg) | 51 | 106 | 166 | 150 |
G.W.(kg) | 64 | 123 | 184 | 174 |
