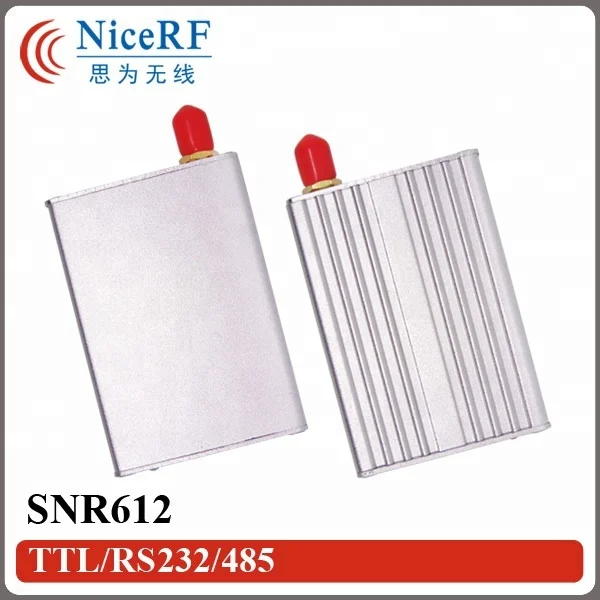

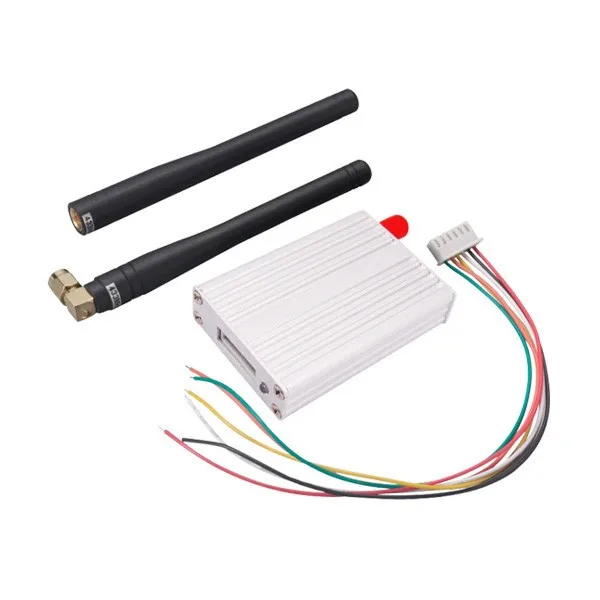

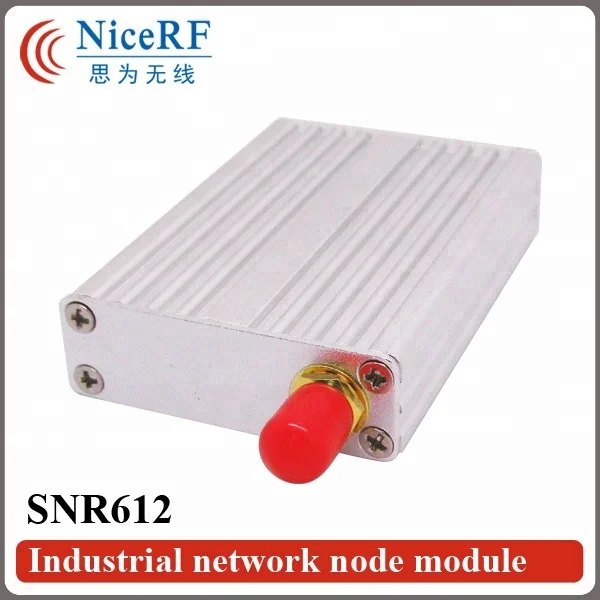

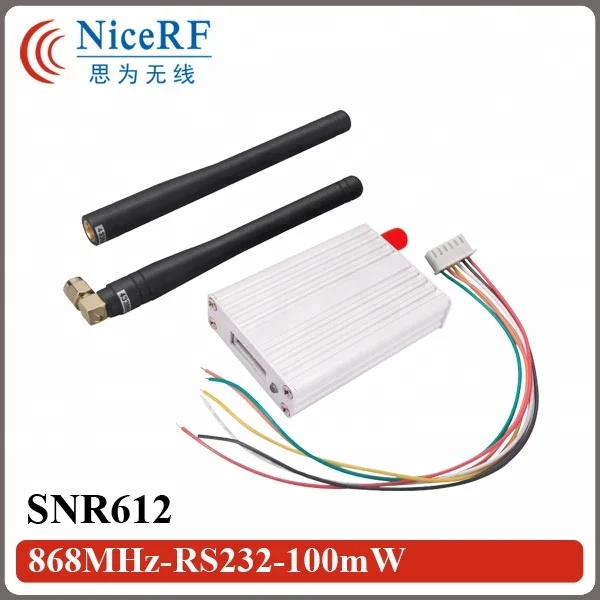

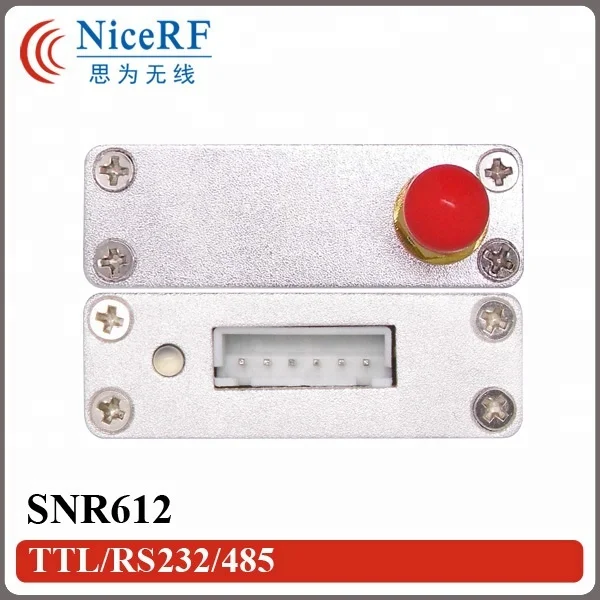

500mW long range rf wireless network repeater module with TTL / RS232 / RS485 in 433MHz | 868MHz

Product Overview

Description



2016 NiceRF 500mW long range rf wireless network repeater module with TTL / RS232 / RS485 in 433MHz | 868MHz

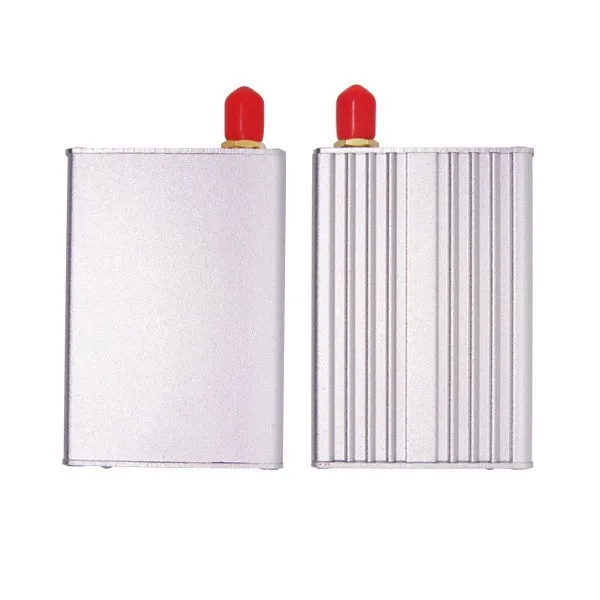

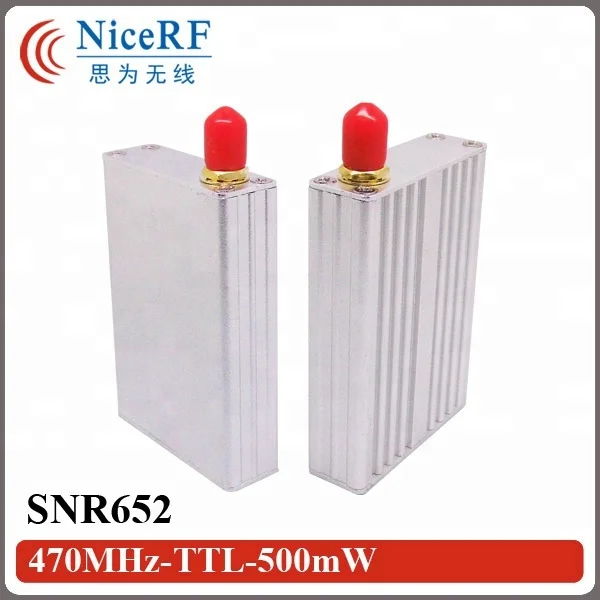

SNR652 is highly integrated, medium power network node module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 500mW output power to ensure longer RF range and high link quality. SNR652 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make SNR652 wildly deployed in many fields and applications.











Feature:
*3000m RF line-in-sight distance @1.2kbps
*433/470/868/915 MHz
*40 channels
*4 bytes net ID
*2 bytes node ID
*Multiple air data rate
*GFSK modulation
*Antenna match automatically and bi-direction switch control
*Support Serial port parameter setting

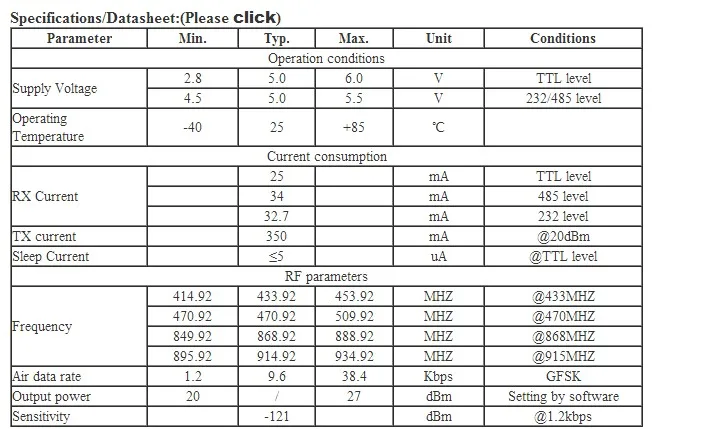

*Sensitivity: -121 dBm
*Max output power: 500 mW
*Voltage:2.8 ~ 6.0 V
*Temperature:-40 ~ +85 °C

Application:
*Remote telemetry
*Auto meter reading
*Security systems
*Data logger
*Wireless data communication
*Building residential automation and security
*Healthy monitoring
*Wireless PC peripherals
*Access Control System
*Robot control
