Rutile Welding Electrodes AWS A5.1 E6013
- Category: >>>
- Supplier: Qingdao Reatech Industries Ltd.
Share on (1547260853):
Product Overview
Description
Rutile Welding Electrodes AWS A5.1 E6013
Product Description
The most common used Rutile Welding Electrodes AWS A5.1 E6013
1. Model No.: Welding Electrode AWSE6013(J421, J38.12)
2. Available size: 2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm
3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.
4. Delivery time: Within 15 days after confirmation
5. Application: The E6013 welding electrode are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery.
Details Specification for Rutile Welding Electrodes AWS A5.1 E6013
Chemical Composition of Deposited Metal (%)
| C | Mn | Si | S | P |
Guaranteed value | ≤0.12 | 0.3~0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Typical value | 0.07 | 0.4 | 0.25 | 0.019 | 0.025 |
Sizes, Length & Recommended Current (AC/DC)
Diameter (mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Length (mm) | 300 | 300 | 350 | 400 | 400 |
Current (A) | 40~70 | 50~90 | 90~130 | 130~210 | 170~230 |
Mechanical Properties of Deposited Metal
| Rm (Mpa) | ReL(Mpa) | A(%) | KV2(J) | KV2(J) |
Guaranteed value | σb≥420 | σs ≥ 330 | δ5 ≥ 17 | (normal temperature) | -(0°C) |
Typical value | 460~540 | ≥ 340 | 18~26 | 50-80 | ≥ 47 |
Quality Control
Packaging & Shipping

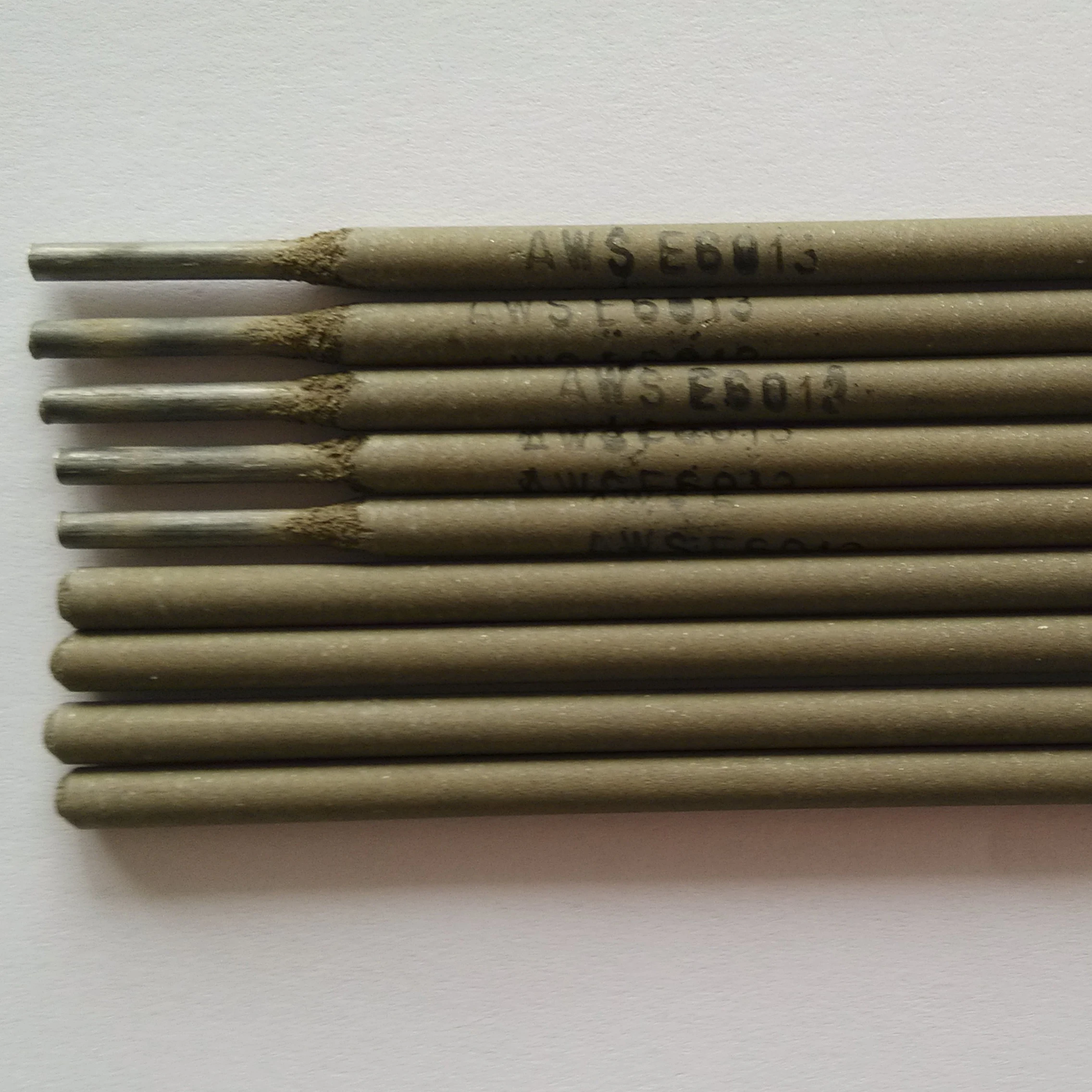

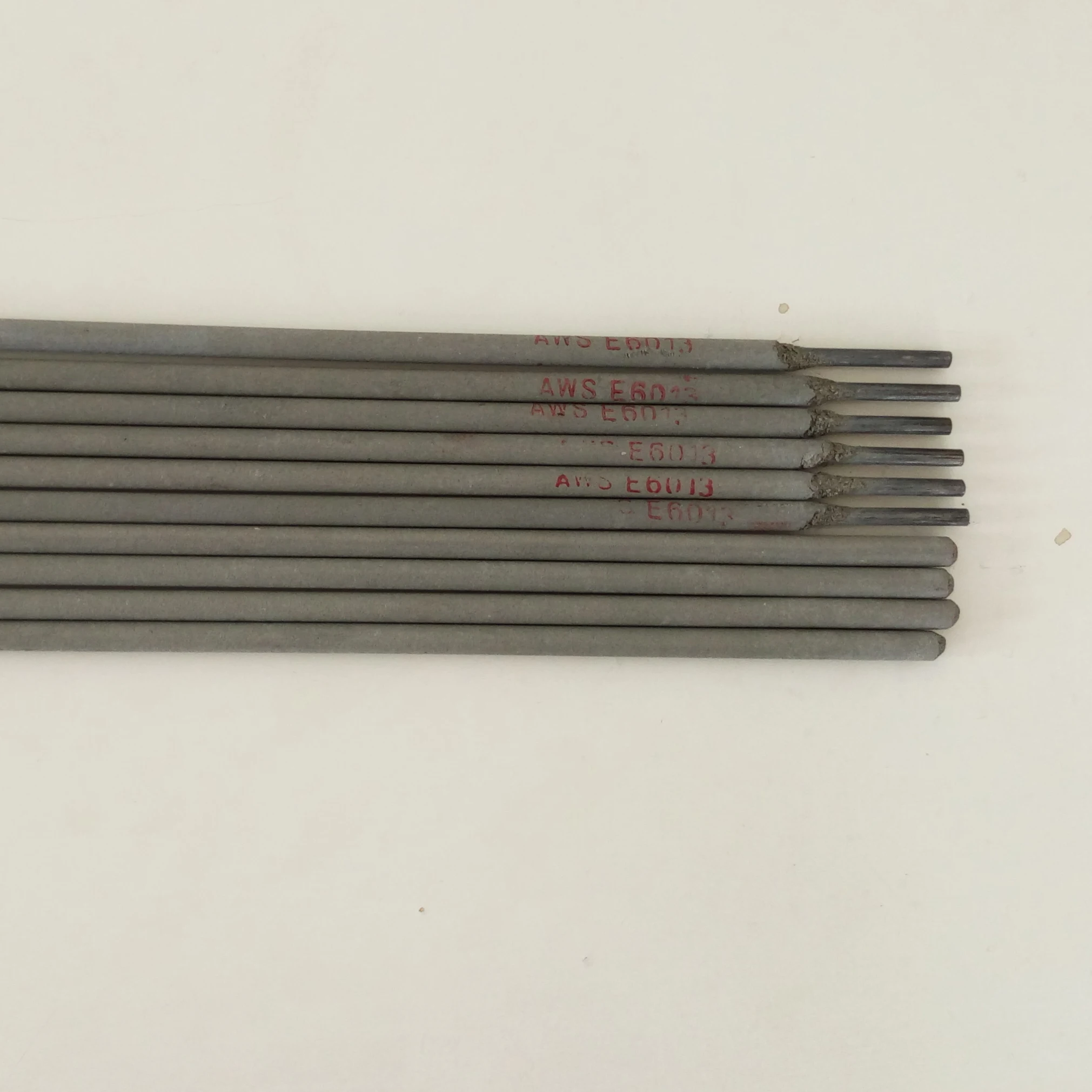

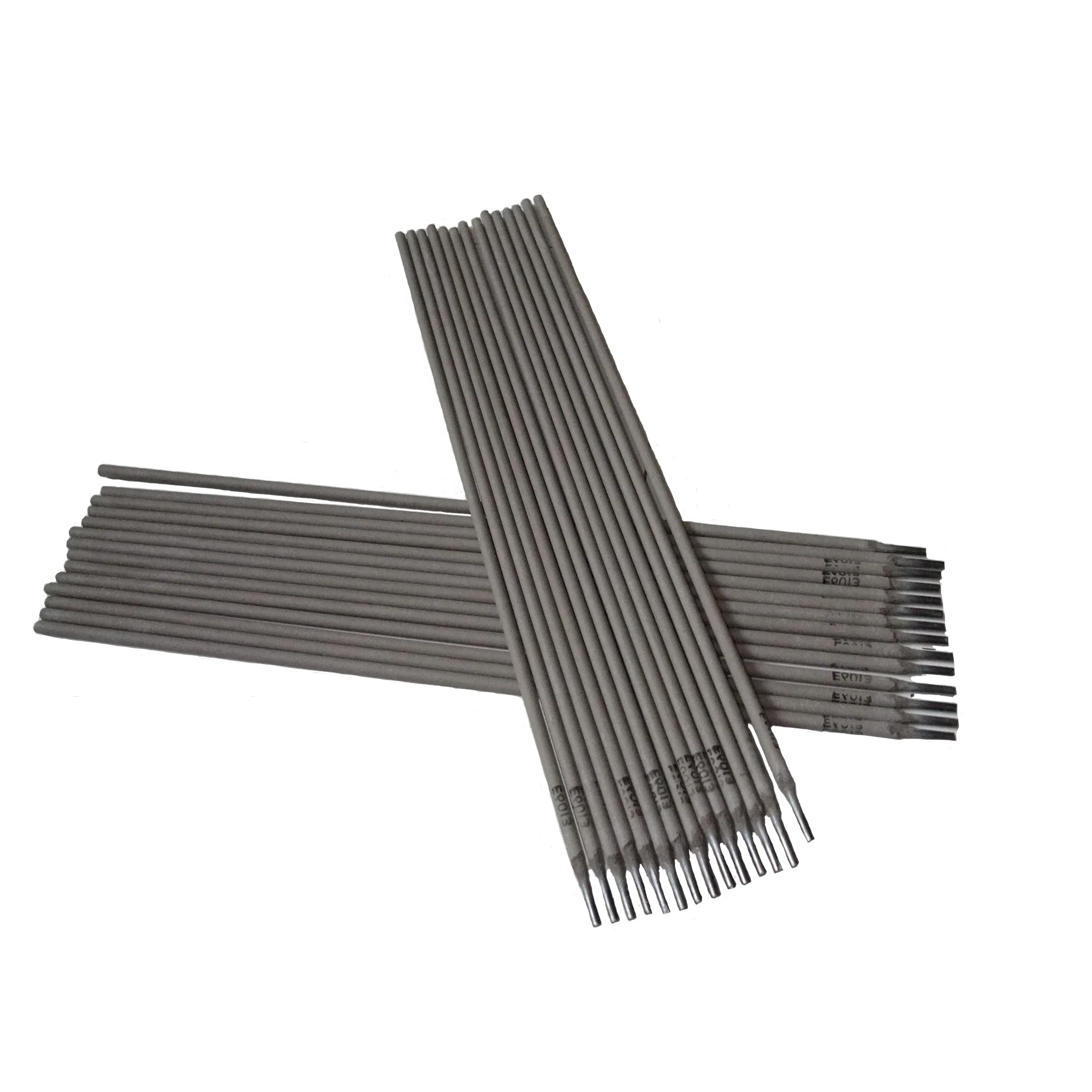

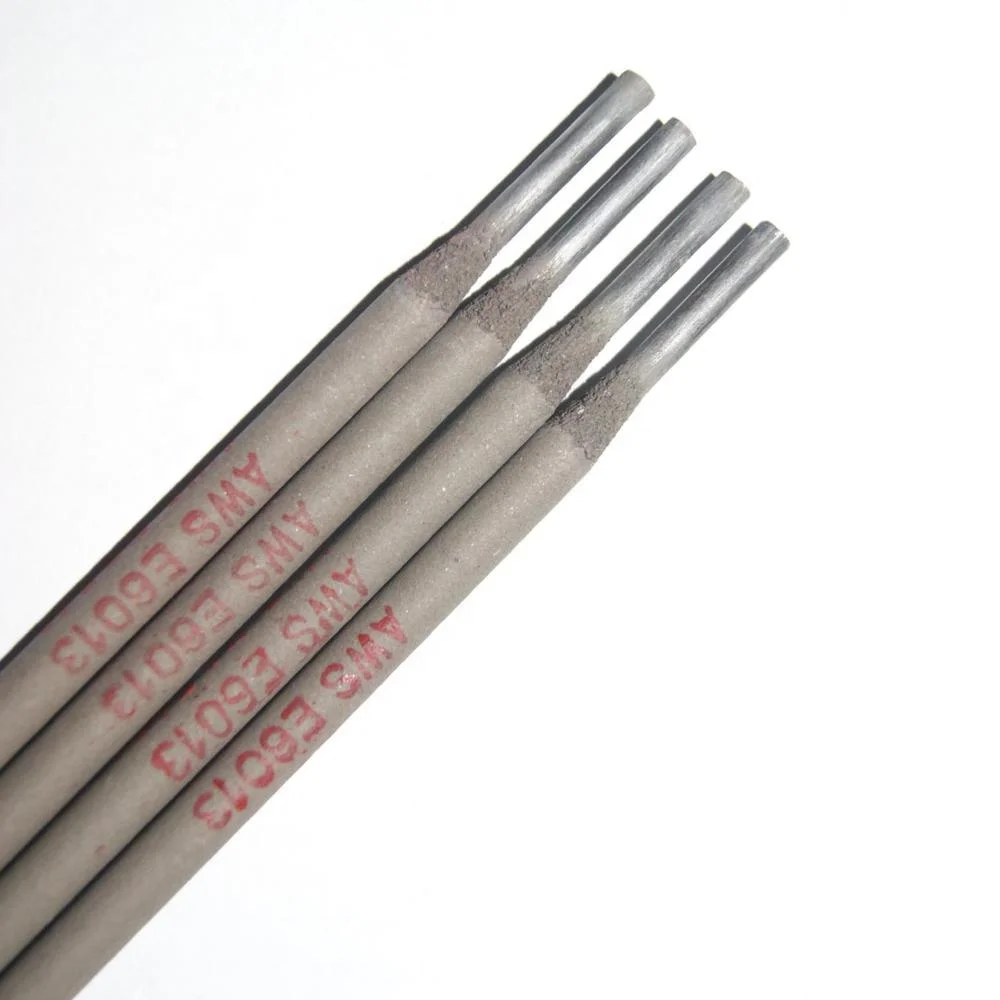

Rutile Welding Electrodes AWS A5.1 E6013 Product and Packing Pictures
Certificates

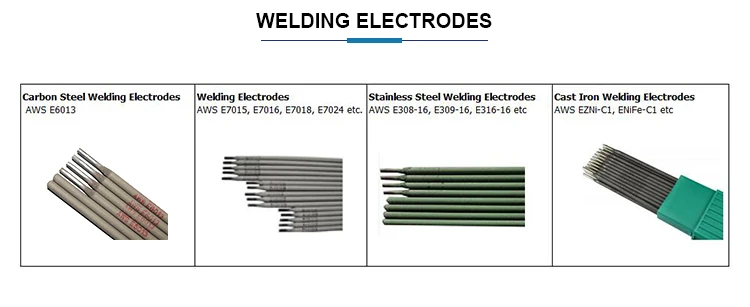

Other Products
 | Model No.: Low Hydrogen Welding Electrode AWS E7018 Available size:2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request. Application: It is used on both AC and DC in all position and suitable for welding important structures made of low alloy steel. |
 | Stainless Steel Welding Electrodes Model No.: E308-16, E309-16, E312-16, E316-16 Available size:2.5x300mm, 3.2x350mm, 4.0x400mm, 5.0x400mm Packing: 1kg or 2kgs or 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request. |
 | Model No.: EZNi-C1, EZNiFe-C1 Available size:2.5x300mm, 3.2x350mm, 4.0x400mm, 5.0x400mm Packing: 1kg or 2kgs or 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request. |
 | MIG Welding Wire, TIG Welding Wire CO2 MIG Welding Wire, Flux Cored Welding Wire, Submerged Welding Wire, Stainless Steel Welding Wire, Aluminum Welding Wire
|
