magnetic rear 4 eyes parking sensor HB01 4 TF0

Product Overview

Description

magnetic front 4 eyes parking sensor SHB01-4-TF0





Advantage:

1. 2 years aftersales warranty

2. Replaceable sensor design optional

3. Sample available

4. Fast delivery



Technical Specification:

Description	Min	Type	Max	Unit
Power voltage for S series	10	24	35	V  DC
Power voltage for H&E series	9.6	12	15	V  DC
Operating current			150	mA
Operating temperature	-20		80	°C
Operating frequency	39.3	40	40.7	KHz

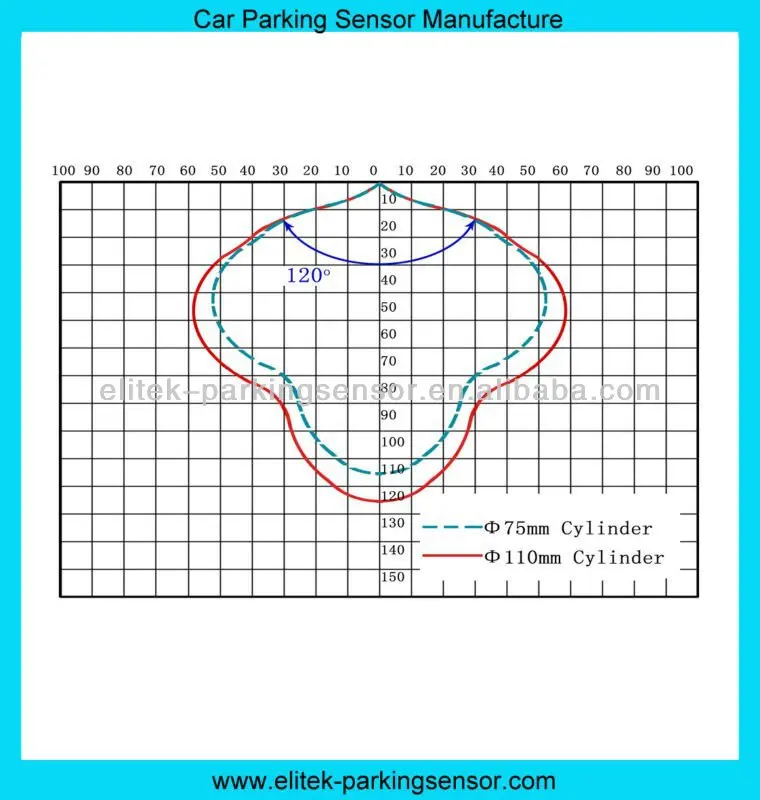

Horizontal detection angle		120		°
Vertical detection angle		60		°
Distance detection accuracy		1		cm
Detection range	0.05	0.9	2.5	m
Buzzer sound volume	75		105	dB
RF Frequency		433		MHz



 Model No.:     SHB01-4-TF0

1) Car Premium Front 4 Parking Sensor System, fit for all passenger cars;
2) Sensor detection range: 0cm~2.5m;
3) Display range: 40cm~2.5m;
4) Advanced self-diagnosis with error indication;
5) All weather design, plastic housing;
6) 4*TF0 double angle sensor,18.5mm plastic flat, 15cm+2.5m cable;
7) Precision accuracy: CM;
8) BUZ01, standalone "hi-low-off" option buzzer;
9) Power Input: 9.6~15V DC;
10) Industrial cables and connectors, Microchip MCU.

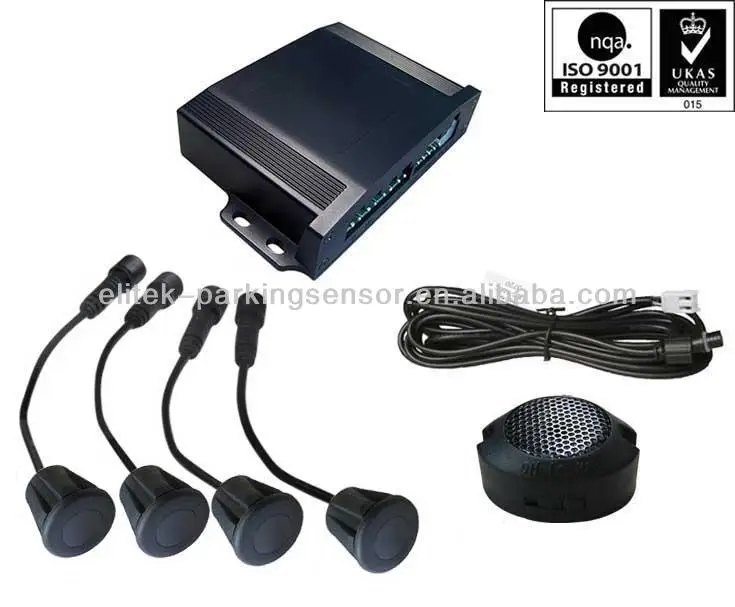

Packing Module:

OE Style Control box,socket with lock	1PCS
Waterproof twist connector sensors	4PCS
15cm with twist connector sensor cables 2.5m	4PCS
Buzzer 2.5m cable	1PCS
LED display 5m  cable	1PCS
Power harness with Fuse  1.5 m length	1PCS
Owner’s manual	1PCS
Hole saw (18.5/21.5/22mm optional)	1PCS
Accessory pack	1PCS

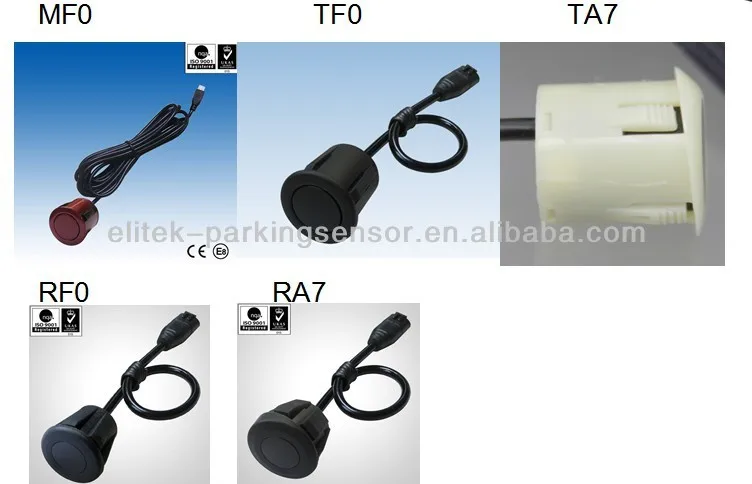

Sensor Option:



 Sensor Detection:

Package:
