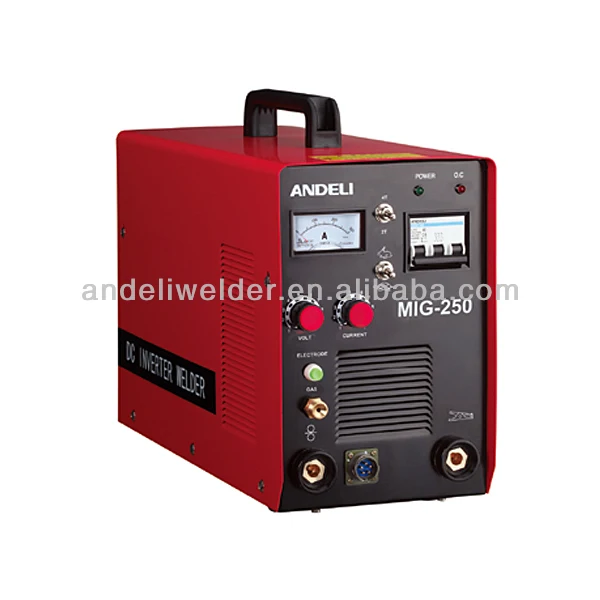

Hot Selling!! IGBT Inverter CO2 Pulse TIG MIG MMA Welding Machine MIG 250

Product Overview

Description





Hot Selling!! IGBT Inverter CO2 Pulse TIG MIG MMA Welding Machine MIG-250





Why choose us?





1. 20 years - Andeli Group Co.,Ltd is founded in 1993. 2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE. 3. 300 cooperating companies - We have over 300 cooperating companies. 4. 3000 workers - We have over 3000 workers. 5. USD150,000,000 - The total assets is USD150,000,000. 6. 235,000 square meters - The area of Andeli is 235,000 square meters. 7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……



Application:



1. Suitablefor welding metal plate with thickness above 0.8mm



2. Low cost but with high effciency



3. Both output current and voltage could be adjustable to satisfy different welding reuqirement



4. Small splashing,great penetration



5. Two options of wire feeder: built-in or separated



Specification:



Inverter CO2 Gas Shielded Welding Machine  (Y: All in one, F: Separate Machine )
Model	MIG-200Y	MIG-250Y	MIG-200F	MIG-250F
Type	IGBT
Rated input voltage (V)	single phase AC220 ±15%	three phase AC380 ±15%	single phase AC220 ±15%	three phase AC380 ±15%
Rated frequency (Hz)	50/60
Rated input current (A)	23.5	10.5	23.5	10.5
Output current (A)	180	220	180	220
Output voltage (V)	23	25	23	25
Duty cycle (%)	60	60	60	60
Efficiency (%)	85	85	85	85
Power factor	0.93	0.93	0.93	0.93
Diameter of wire (m)	0.8	1.0	0.8	1.0
Type of wire feeder	built-in	built-in	separated	separated
Net weight of machine(KG)	33.7	35.2	11.9	13.7
Gross weight of machine packing(KG)	40	41.3	13	14.8
Gross weight of accessories packing (KG)	-	-	16.3	16.3
Dimension of machine (mm)	630×315×695	630×315×695	500×210×370	500×210×370
Dimension of packing- machine (mm)	660×370×750	660×370×750	560×270×460	560×270×460
Dimension of packing-wire feeder (mm)	-	-	555×435×410	555×435×410
including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, MIG torch×1pcs,
additional accessories for MIG-200F/MIG-250F: double drive wire feeder×1pcs, control cable×5meters



Package Included:

1* MIG-200Y Wedling Machine

1* English User Manual

1* Earth Clamp

2* Cable Joint

3 Meter* Grounding Cable

1* Pressure Regulator

1*Binzel Mig Torch



Product Detils :





01.  100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Saip exclusive using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.



02.  ANDELI is the only stick with the most advanced   of the amorphous structure transformer  200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.



03.  Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.



04.  From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.



05.  Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.



06.  Super-size capacity of the radiator,to improve welding efficiency by more than 26%.



07.  Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, saip want to manufacturing the best welding.



08.   ANDELI electric welding machine production in line with international safety standards, each welder has a grounding design.



More Display :





Main Components of Different (our welding machine and the other):
