Сделано в Китае 700BHN сварные белые железные хокки CB50N для майнинга и защиты от износа

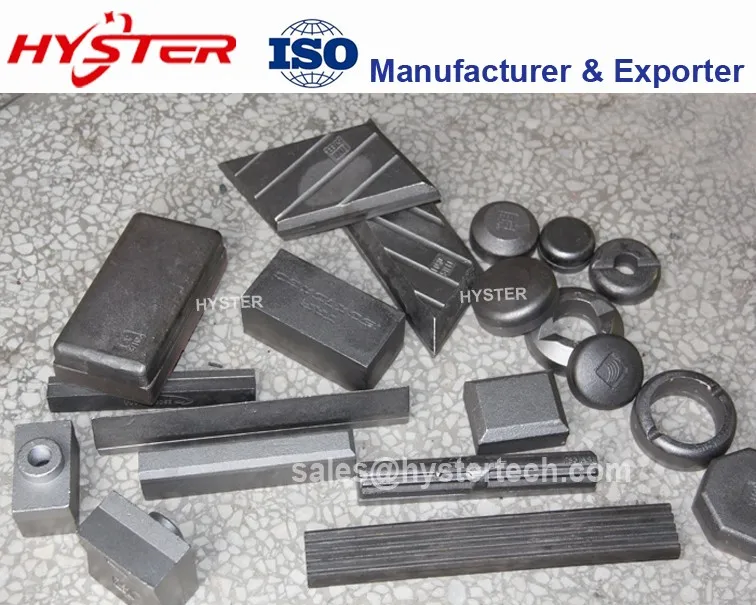

Following are our laminated wear blocks:

Types---the most common ones are:

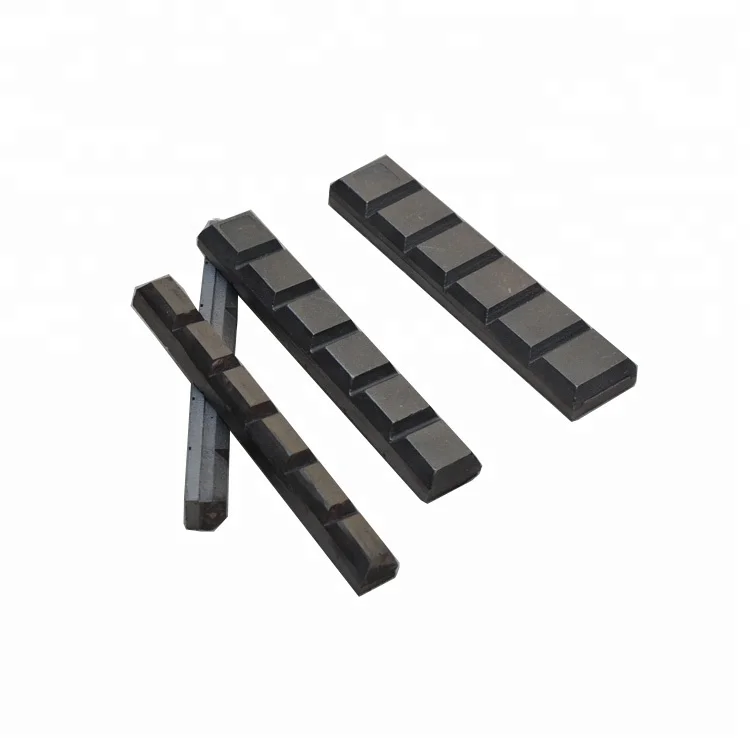

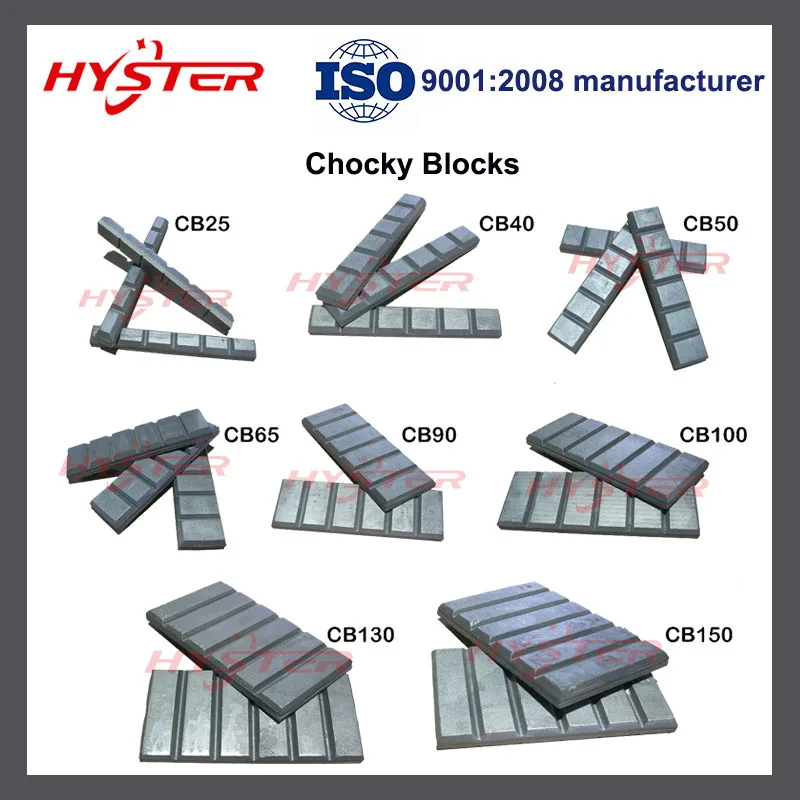

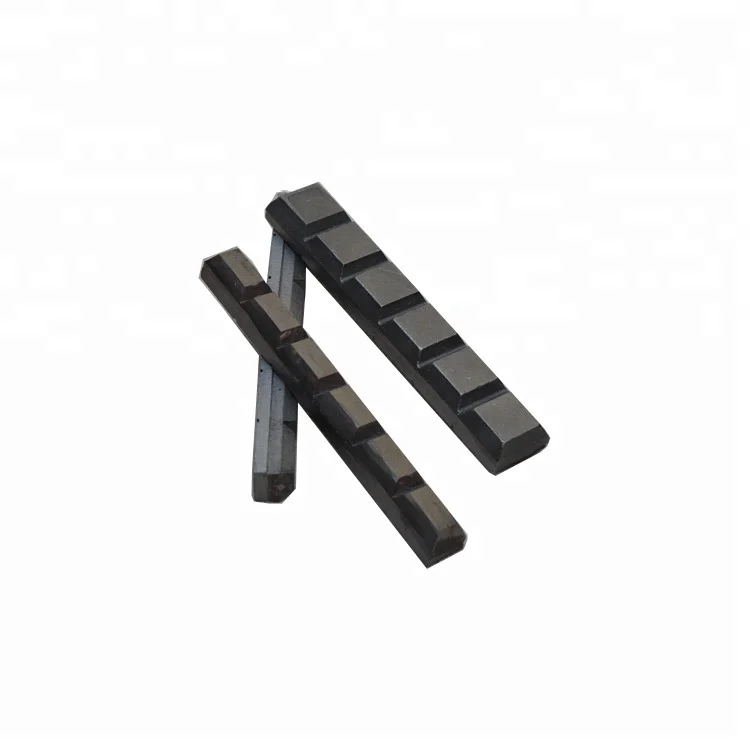

  1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
  2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
  3) Shaped wear bars
  4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
  5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
  6) Bi-metallic wear plates
  7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
  8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
  9) Elbow wear blocks
  10) Other sizes and shapes
  11) Multi-function gradient cutter tooth
  12) Rockbox liners
  13) Micro-ledges

PLEASE CONTACT US IF YOU HAVE CUSTOMIZED DRAWINGS AND DESIGNS, THANKS!

HYSTER WEAR SYSTEM

Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.

Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.

Hyster NiHard--Abrasion and high impact resistant product. It is often cast into billets and liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations.

Hyster Tungsten Carbide—High standard abrasion resistant product. It is often used where the application has no impact force or very slightly impact.

Features and Benefits

Reduced Maintenance

• Protects any high wear area, eliminating the need for frequent rebuild or replacing wear plate

• Lasts longer than other wear protection

• Excellent alternative to hard facing which can lead to cracking of major structural components Increased Productivity

• Reduced maintenance ensures maximum machine availability

• Wide variety of shapes and sizes allows small areas to be protected, minimizing the affect on penetration and material flow

Lower Operating Cost

• Can be fit to flat or curved surfaces, eliminating the need to have wear plate formed to fit

• Bucket life is significantly increased, minimizing repair and new bucket orders

Typical Data Numbers(usage life comparison):

>white iron wear blocks life is 50% greater than that of Ni Hard Irons.

>At least 7 times longer than A.R. type steels 360/400 BHN

>5 times the wear rate of Manganese Steel

>3 times the wear rate of Tapco Weld Hardfacing

>4 times the wear rate of Astralloy-Vulcan

>16 times the wear rate of Carbon Steel

>3 times the wear rate of 500 BHN A.R. Plate
