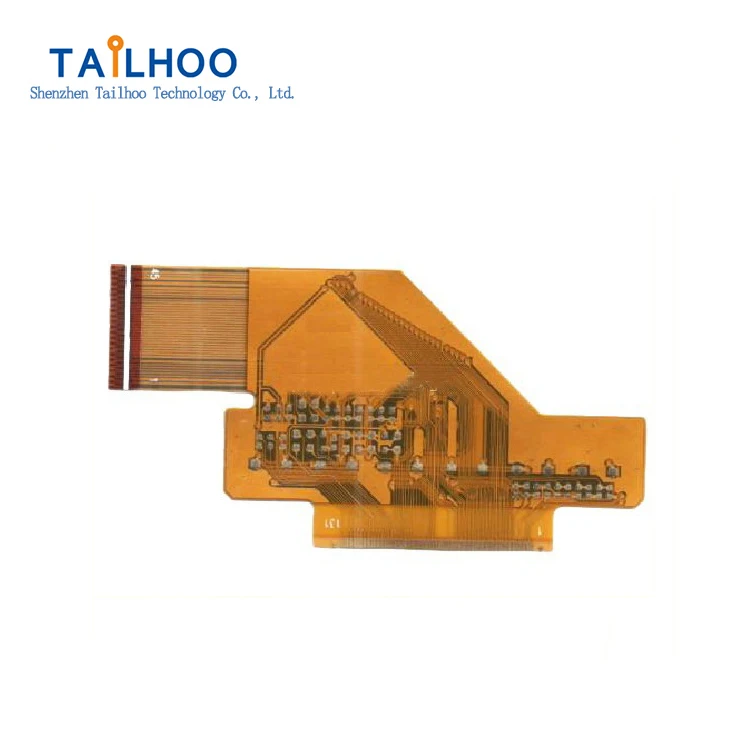

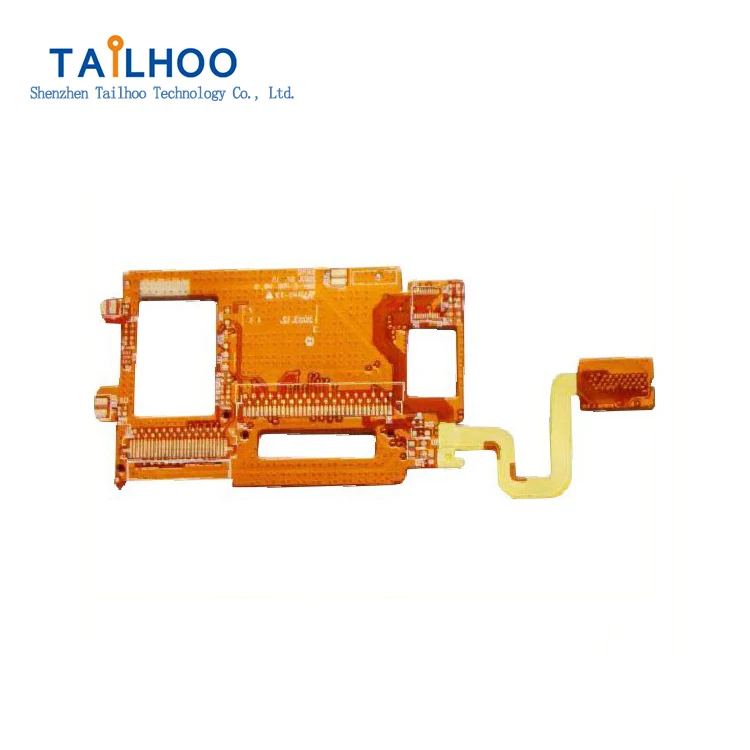

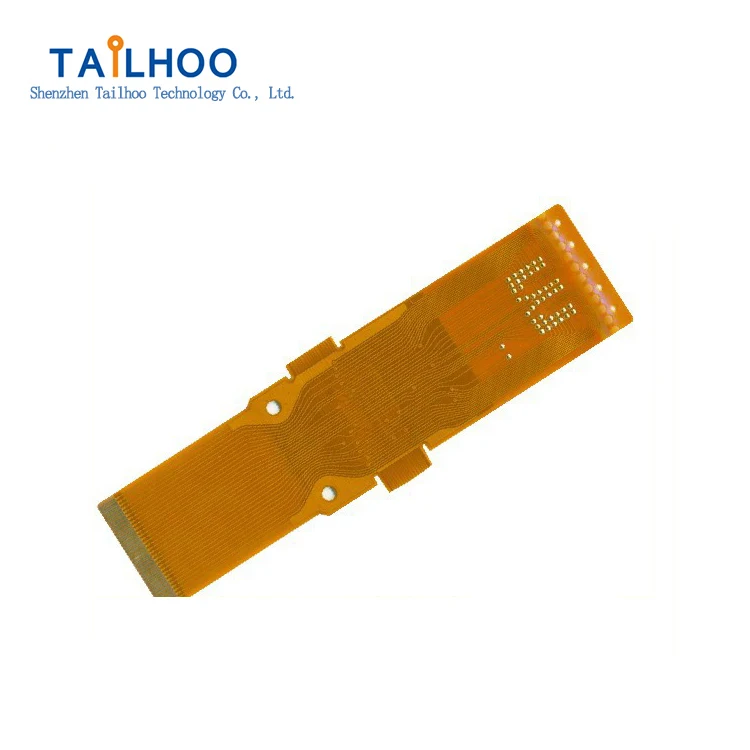

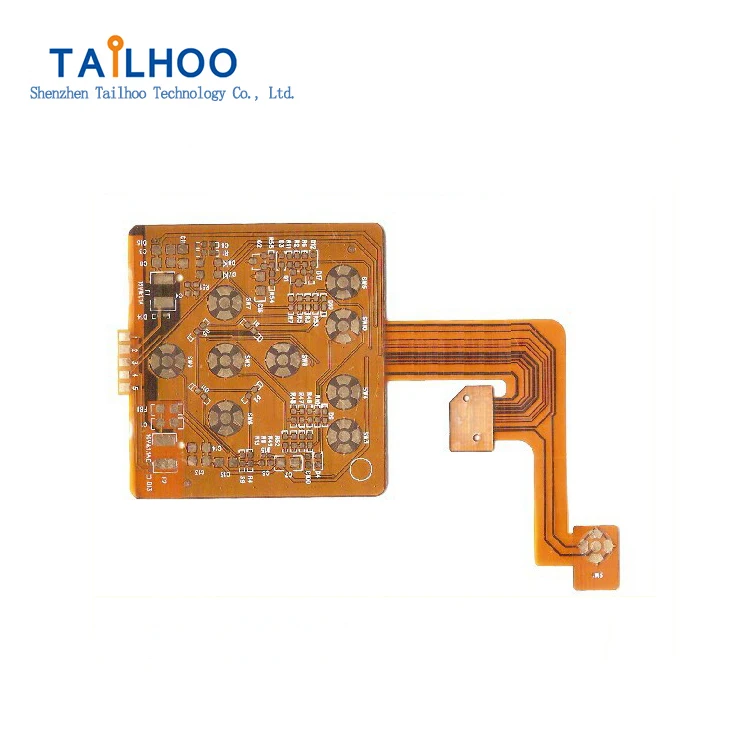

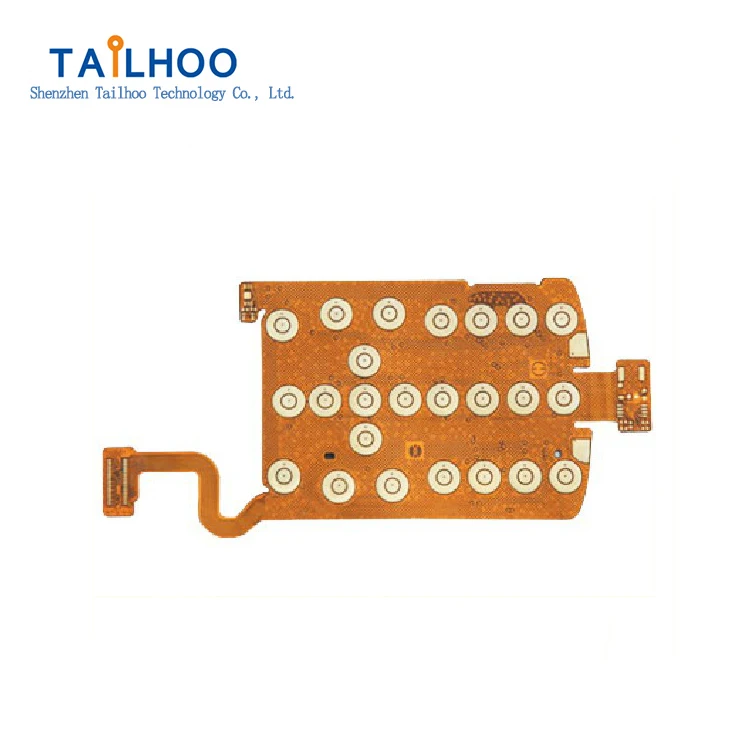

Flexible pcb, flexible pcb, fpcb manufacture
Welcome To Shenzhen Tailhoo Technology Co., Ltd
Company Information
Company Profile:
Shenzhen Tailhoo Technology Co.,Ltd is a professional pcb Manufacturer, based on Bao'an District Shenzhen.
We have complete production lines with full equipments, including pcb drilling hole machine, printing machine, solder mask machine, silkscreen machine, automatic pcb soldering machine, x-ray machine, laser engraving machine, pcb recycling machine, router machine, pcb cutting machine,v-cut machine, pcb SMT assembly machine, washing machine etc.
We are rich experiences in pcb manufacture, component source/purchase, pcb assembly pcba and electronic design services. and we can make single sided pcb, double sided pcb, multilayer pcb and provide high quality pcba assembly services.
Our mission is to reach your requirements with the high quality standards in fast lead time.
We will try our best to become your best one-stop electronic development solution provider.
Our Services
With Our Professional Departments, We Can Offer:
- PCB Design
- PCB Manufacture: PCB file or Gerber file needed
- PCB PCBA SMD SMT Assembly: Bom list needed
- Electronic Design
- Reverse Engineering - PCB Copy, PCB Clone, IC Decode
- Components Procurement
- PCB PCBA Finished Product Test
- Mass-Production
- Prodcution Contract Manufacturing
- NDA - Non-Disclosure Agreement
Product Description
Our PCB Manufacturing Capability:
| Item | Specification | |
| 1 | Numbr of Layer | 1-16 Layers (standard) |
| 2 | Material | FR4, Aluminum, FPC |
| 3 | Surface Finish | HASL(LF), Gold plating, Enig,Immersion gold, Immersion Tin, OSP |
| 4 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
| 5 | Copper Thickness | 1/2 oz min;12 oz max |
| 6 | Solder Mask | Green/Black/White/Red/Blue/Yellow |
| 7 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
| 8 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
| 9 | Min.Hole Diameter for punching | 0.9mm(35mil) |
| 10 | Biggest panel size | 610mm*508mm |
| 11 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
| 12 | Conductor Width(W) | 0.05mm(2mil)or;+/-20% of original artwork |
| 13 | Hole Diameter(H) | PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil) |
| 14 | Outline Tolerance | 0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching |
| 15 | Warp & Twist | 0.70% |
| 16 | Insulation Resistance | 10Kohm-20Mohm |
| 17 | Conductivity | <50ohm |
| 18 | Test Voltage | 10-300V |
| 19 | Panel Size | 110×100mm(min);660×600mm(max) |
| 20 | Layer-layer misregistration | 4 layers:0.15mm(6mil)max;6 layers:0.25mm(10mil)max |
| 21 | Min.spacing between hole edge to circuity pattern of an inner layer | 0.25mm(10mil) |
| 22 | Min.spacing between board ouline to circuitry pattern of an inner layer | 0.25mm(10mil) |
| 23 | Board thickness tolerance | 4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil) |
| 24 | Impedance Control | +/-10% |
| 25 | Different Impendance | +-/10% |
Diy flexible pcb, flexible pcb, fpcb manufacture Products:
PCB Production Process:
Our Factory Machines And PCB Production Line:
SMT Process:
FAQ
Q1: What is the main kinds of PCB and PCBA service?
A: Industrial Devices/Medical Equipments main board/Communicative Devices/wireless Devices/ Comsumer electronics Devices.
Q2: Are you a factory or trade company?
A: We are a PCB PCBA OEM one stop service Factory.
Q3: How many SMD lines do you have?
A: 8 lines, equipment from Japan, YAMAYA brand.
Q4: If I need PCB copy or PCB design, or PCB re-design?
A: With our professional teams. with full experiences, we can provide good services for you:
a, PCB schematic file;
b,Specific function description;
c,Two or more working samples;
d,Any details informations you can provide.
Any PCB or PCBA , welcome to enquiry!
If you send us your Gerber Files, PCB specifications and Bom list, we will quote it for you asap.
We will try our best to provide competitive price and good quality products for you.
Try us! Thanks.
