MJ6125 circular saw & moulder, two functions woodworking machine
- Category: >>>
- Supplier: Weihai Zhongqiao Machinery Co. Ltd.
Share on (1554647634):
Product Overview
Description

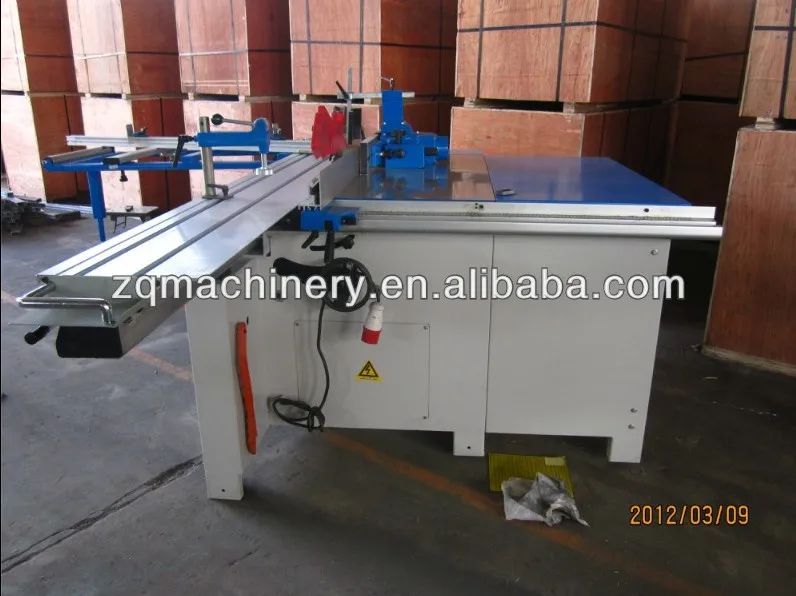

MJ6125 Circular saw with spindle moulder machinery
1, Circular saw, sliding table is 2600mm
2, saw blade can be adjusted by 45-90 degree
3, it combines three functions: circular saw, moulder(or named shaper, miller, Some places call it to be toupie or router) and scorer

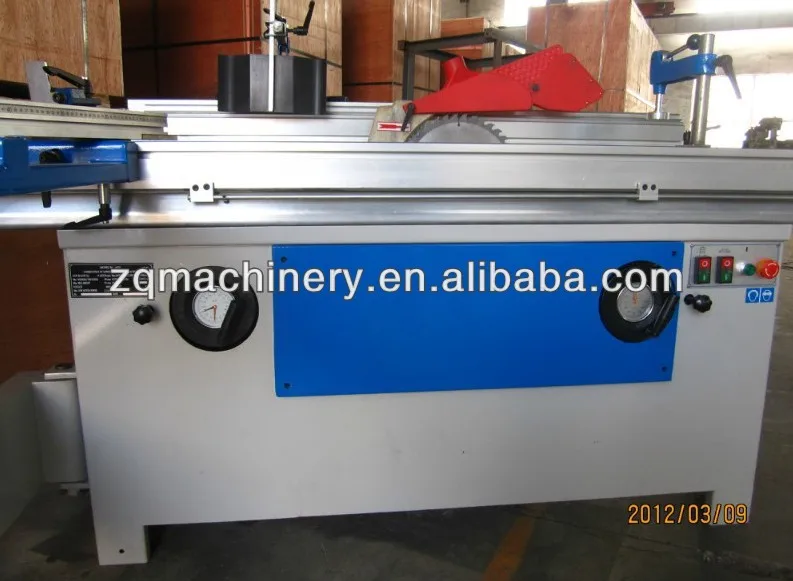

Woodworking circular saw with spindle moulder machinery
1.1 Circular saw | |
Saw blade diameter | Φ305mm |
Arbor diameter | Φ30mm |
Blade speed | 3500r/min |
Shaft stop time | ≤9sec |
Max. Cut height(with guard) |
|
At vertical position | 90mm |
Max. Cross cut width | 2800mm |
Suction collector | Φ100mm |
Up hood suction collector | Φ40mm |
Motor power | 2.2kw 380v 50Hz |
| |
1.2 Moulder | |
Shaft diameter | Φ30mm |
Max. Shaft protrusion height from table | 115mm |
Shaft stop time | ≤9sec |
Useful shaft working length | 85mm |
Tool retractable to table underside | Max .Φ140mm |
Max. Height of retractable tool | 40mm |
Spindle rotation speed | 1750/3500/6700r/min |
Use vertical milling guide hood: | |
Cutter rotate Max.diameter | Φ180mm |
Suction pipe diameter | Φ100mm |
Use shaping hood |
|
Cutter rotate Max.diameter | Φ140mm |
Suction pipe diameter | Φ100mm |
Motor power | 2.2kw 380v 50Hz |
Square table size | 520*1080mm |
| |
1.3 Scorer | |
Blade specification | MVF-120-24(Φ22mm) |
Rotate speed | 7000r/min |
|
|
1.4 others |
|
Machine weight | 498kg |
Overall dimension | 2817*2610*1187mm |
Wood cutting and wood shapping machinery PACAKGING
THE MACHINES WE SUPPLIED:
WOOD COMBINATION MACHINE,
WOOD EDGE BANDER,
WOOD SHAPER,
WOOD PLANER,
WOOD THICKNESSER,
WOOD DOUBLE SIDE PLANER & THICKNESSER,
WOOD SPINDLE MILLER,
WOOD CIRCULAR SAW MACHINE,
WOOD SLIDING TABLE SAW MACHINE,
WOOD BAND SAW MACHINE,
WOOD FINGER JOINTER,
WOOD FOUR SIDE SHAPER,
WOOD COPYING LATHE
