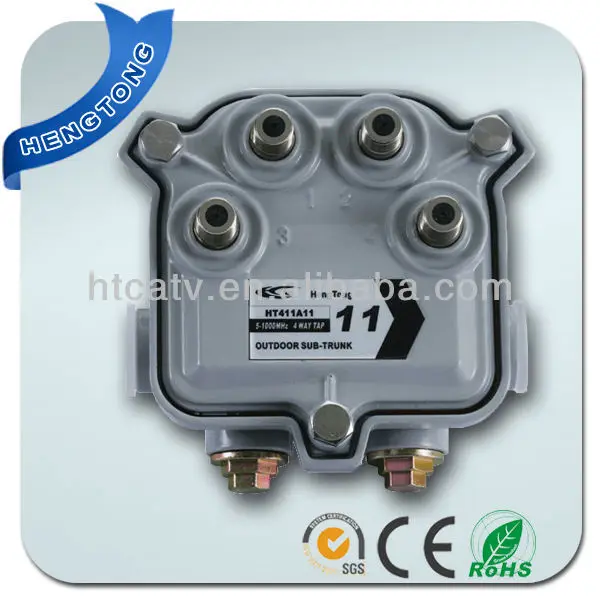

catv cable tv HDTV 4 way tap

Tap Value

dB

8

11

14

17

20

23

26

29

32

Insertion Loss

In-Out

(-dB Max)

Frequency(MHz)

5~10

-

3.2

1.6

1.0

0.6

0.5

0.5

0.4

0.4

11~300

-

3.0

1.7

1.0

0.7

0.7

0.6

0.5

0.5

301~400

-

3.2

1.9

1.3

0.9

0.9

0.8

0.5

0.5

401~450

-

3.5

2.0

1.4

1.1

1.0

0.9

0.7

0.7

451~600

-

3.7

2.2

1.5

1.2

1.1

1.0

0.8

0.8

601~750

-

4.1

2.6

1.8

1.5

1.4

1.3

1.2

1.2

751~900

-

4.5

3.0

2.2

1.7

1.7

1.5

1.4

1.4

901~1000

-

4.9

3.5

2.5

2.0

2.0

1.8

1.7

1.6

Tap Loss

In-To-Tap

(±1.5dB)

5~10

8.0

11.0

14.0

17.0

20.0

23.0

26.0

29.0

32.0

11~750

8.0

11.0

14.0

17.0

20.0

23.0

26.0

29.0

32.0

751~900

8.0

11.5

14.0

17.0

20.0

23.0

26.0

29.0

32.0

901~1000

8.0

11.5

14.5

17.0

20.0

23.0

26.0

29.0

32.0
