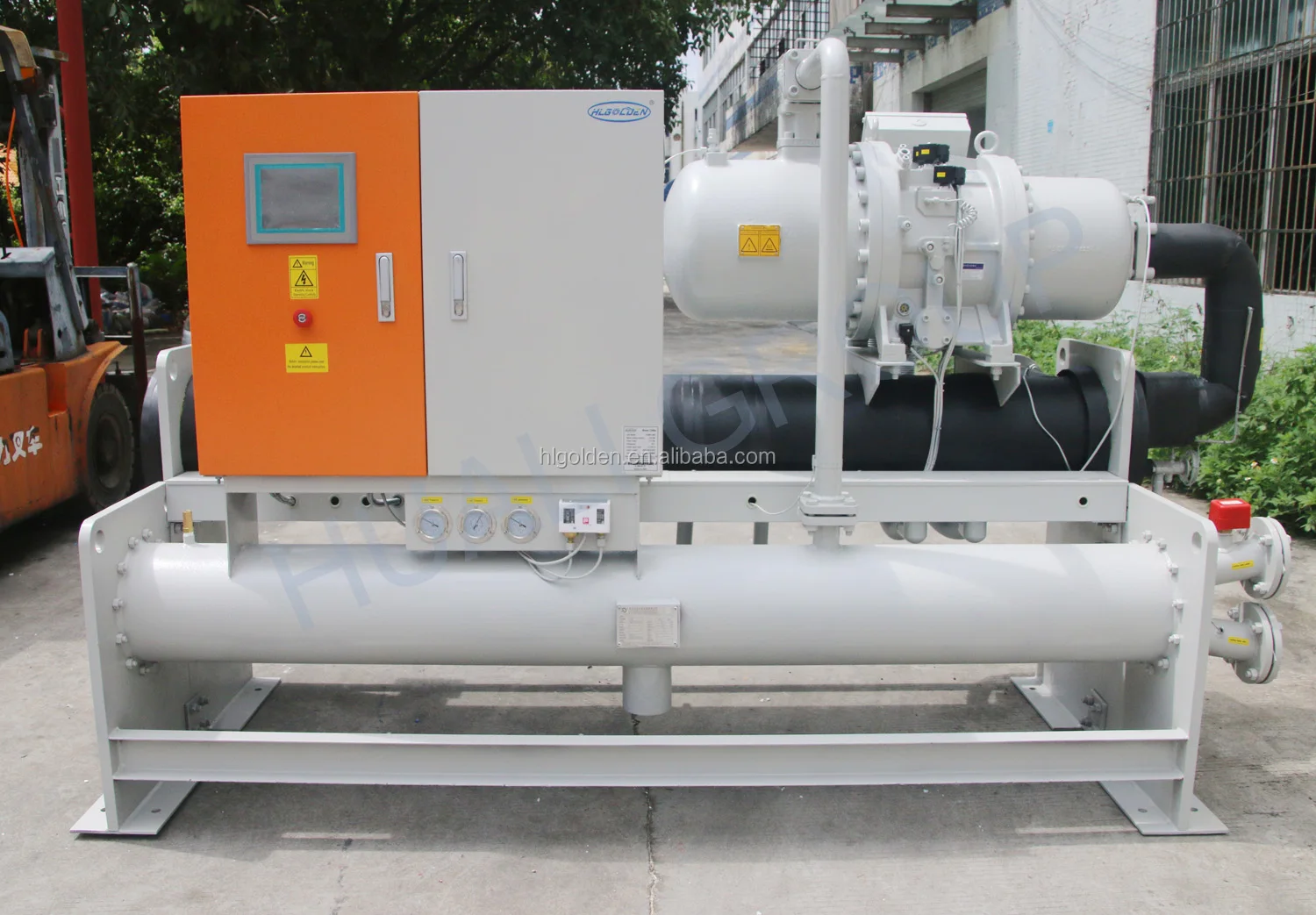

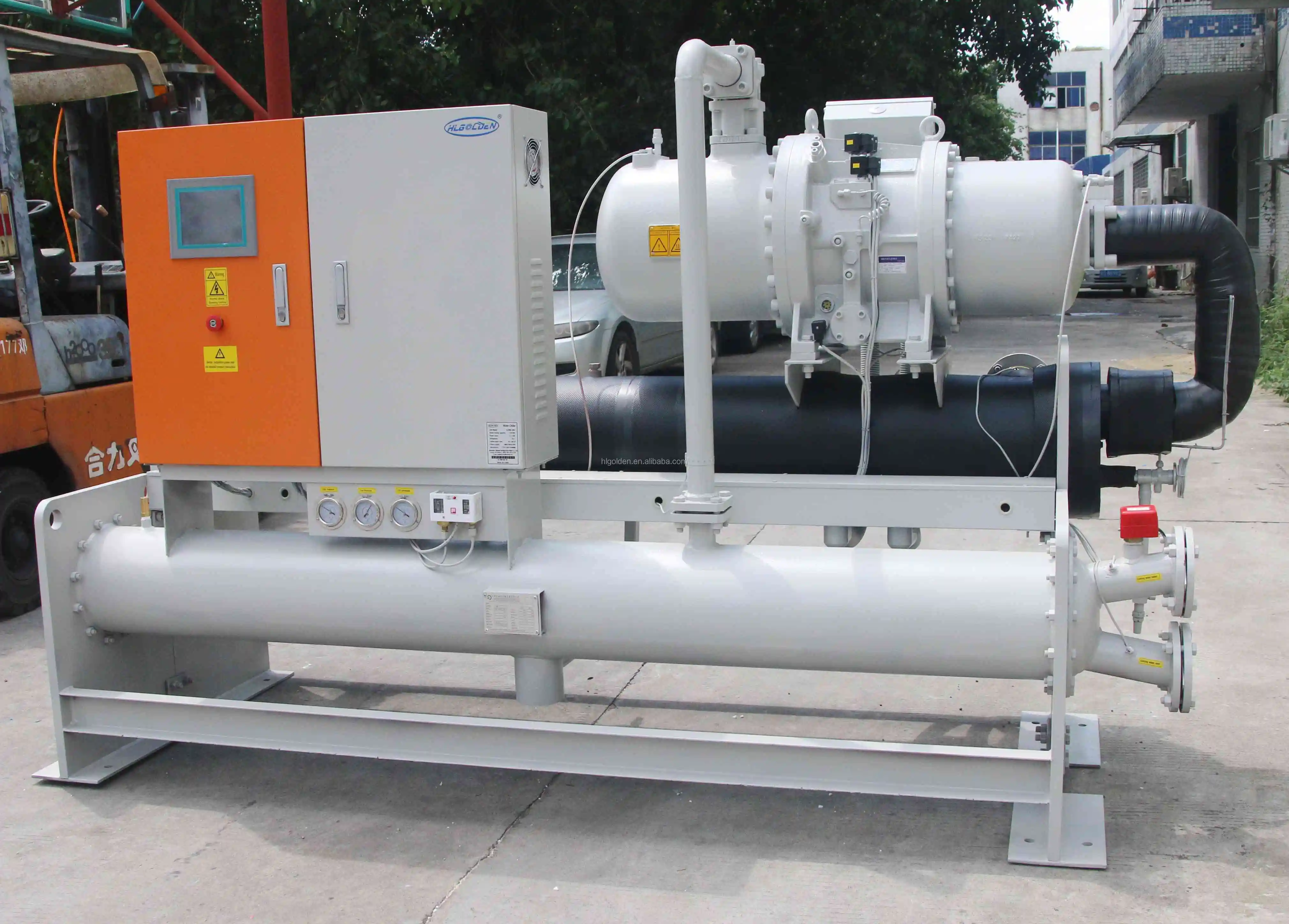

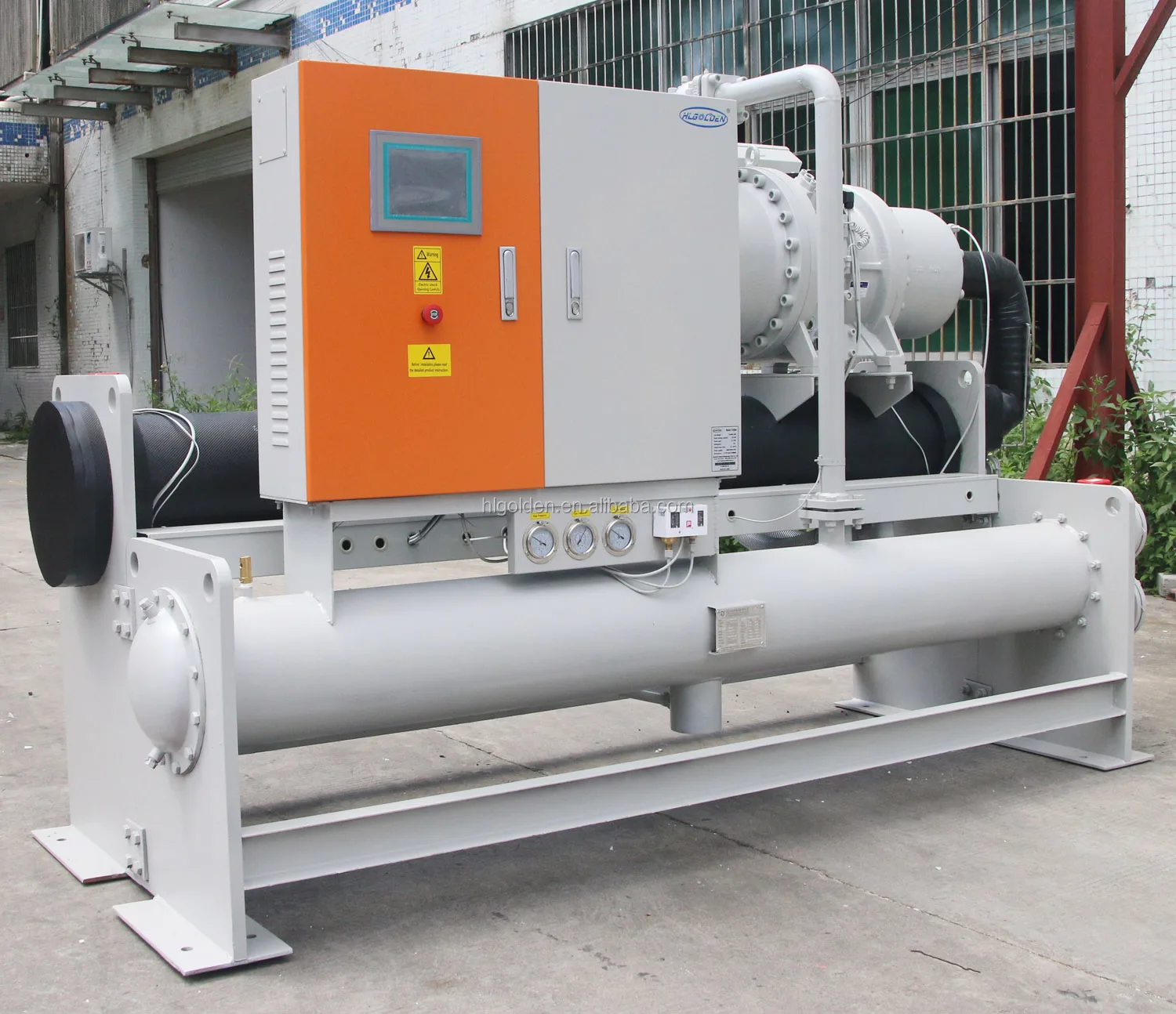

Water Chiller With Screw Type Compressor Industrial Water Cooling Chiller

Product Overview

Description



New Design Screw Compressor Water Cooling Chiller





Injection Industry

Golden chiller can accurately control the temperature of mold which can improve the quality and production rate.



Electronic Component Industry

Golden chiller can stabilize the molecular structure of electronic component inside. This can improve the FTQ and product time.



Machinery Industry

Golden chiller can cool down the oil for the machine and stabilize the oil temperature and pressure. It’ll extend the useful life of oil. And it can also improve mechanical lubrication efficiency.



Electroplating Industry

The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth of electroplate and production efficiency.



Food & Drink Processing Industry

The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool it down through food grade stainless steel heat exchanger.

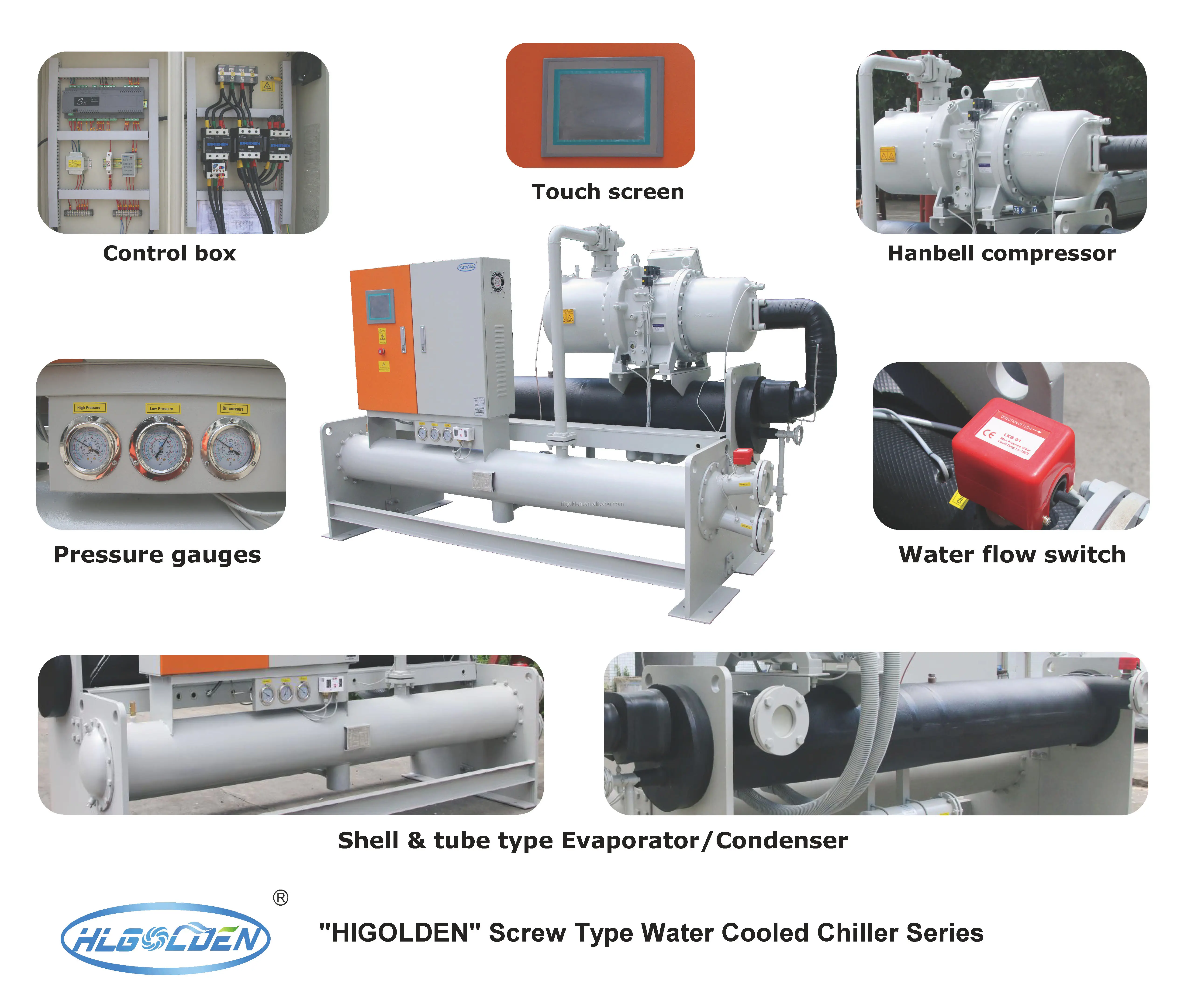

1. The machine uses Copeland, or Danfoss, Mitsubishi compressor imported from Europe, American ;

can guarantee reliable running, high efficiency, low noise, power saving and long using life;

2. Microcomputer intelligent temperature controller, high precision digital display, t

he water temperature control accuracy can reach ±1°C. Temperature range is 3-50°C, can set at any temperature within this range;

3. Open type stainless steel thick incubator with built in automatic water adding and automatic temperature control;

4. Water chilling unit condenser is shell and tube type ,uses inner grooved copper tube, reasonable design

assures high heat exchange efficiency;

5. Electrostatic plastic sprayed outer shell, Europeanized design, elegant outlook;

the outer panel is of easy dismantlement, to guarantee convenient usage and maintenance.

6.Refrigerant:R22/R407c/R410a/R134, client can choose the refrigerant/gas.



Note: If you need Chiller, Water Chiller, Water Cooling Chiller etc, our products could meet your requirements.

And Customized units are welcome like 415V/3Ph/50Hz, 220V/3Ph/60Hz, 440V/3Ph/60Hz etc.







Model     HLWW~			090S	125S	165S	220S	240S	280S	325S	350S	390S	460S
Rated Cooling Capacity		×1000Kcal/h	78.9	107.6	141.2	187.4	205.7	242.3	280.2	303.4	333.9	397.4
		KW	92	125	164	218	239	282	326	353	388	462
		USRT	26.1	35.6	46.7	62.0	68.0	80.1	92.7	100.3	110.4	131.4
lnput power		KW	22.1	29.2	36.6	48.8	53.2	59.9	69.4	75.6	84.1	97.7
Comp. Current (A)			39.2	51.6	64.7	86.4	94.1	105.9	122.7	133.8	148.8	172.8
Refrigerant			R22/R407C
Power Supply			3φ-380V-50HZ
Safety Protection			Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection.
Number of Refrigeration Circuit			1
Capacity Control (%)			0, 66, 100			0, 50, 75, 100
Refrigerant Charge (kg)			17	24	30	40	44	52	59	65	71	86
Condenser			Shell and Tube Type
Water Side Max Pressure (MPa)			1
Dia. of Pipe to Condenser (inch)			2"	2-1/2"	3"	3"	3"	3"	4"	4"	4"	5"
Cooling Water Flow  (m3/h)			19.6	26.5	34.5	45.9	50.3	58.8	68.0	73.7	81.2	96.3
Condenser Water Pressure drop (kPa)			41	47	45	53	52	52	50	50	50	51
Evaporator			Shell and Tube Type
Water Side Max Pressure (MPa)			1
Dia.of Pipe to Evaporator (inch)			2"	2-1/2"	3"	3"	3"	3"	4"	4"	4"	4"
Chilled Water Flow (m3/h)			15.8	21.5	28.2	37.5	41.1	48.5	56.0	60.7	66.8	79.5
Evaporator Water Pressure drop (kPa)			22	28	32	35	45	55	61	66	63	43
Running Noise dB(A)			73.1	73.7	74.8	79	79.2	79.6	80.4	81.5	83.1	84.2
Total weight (kg)			880	910	1080	1220	1390	1510	1620	1730	1830	2140
Running Weight(kg)			970	1010	1220	1380	1530	1670	1780	1870	2020	2390
