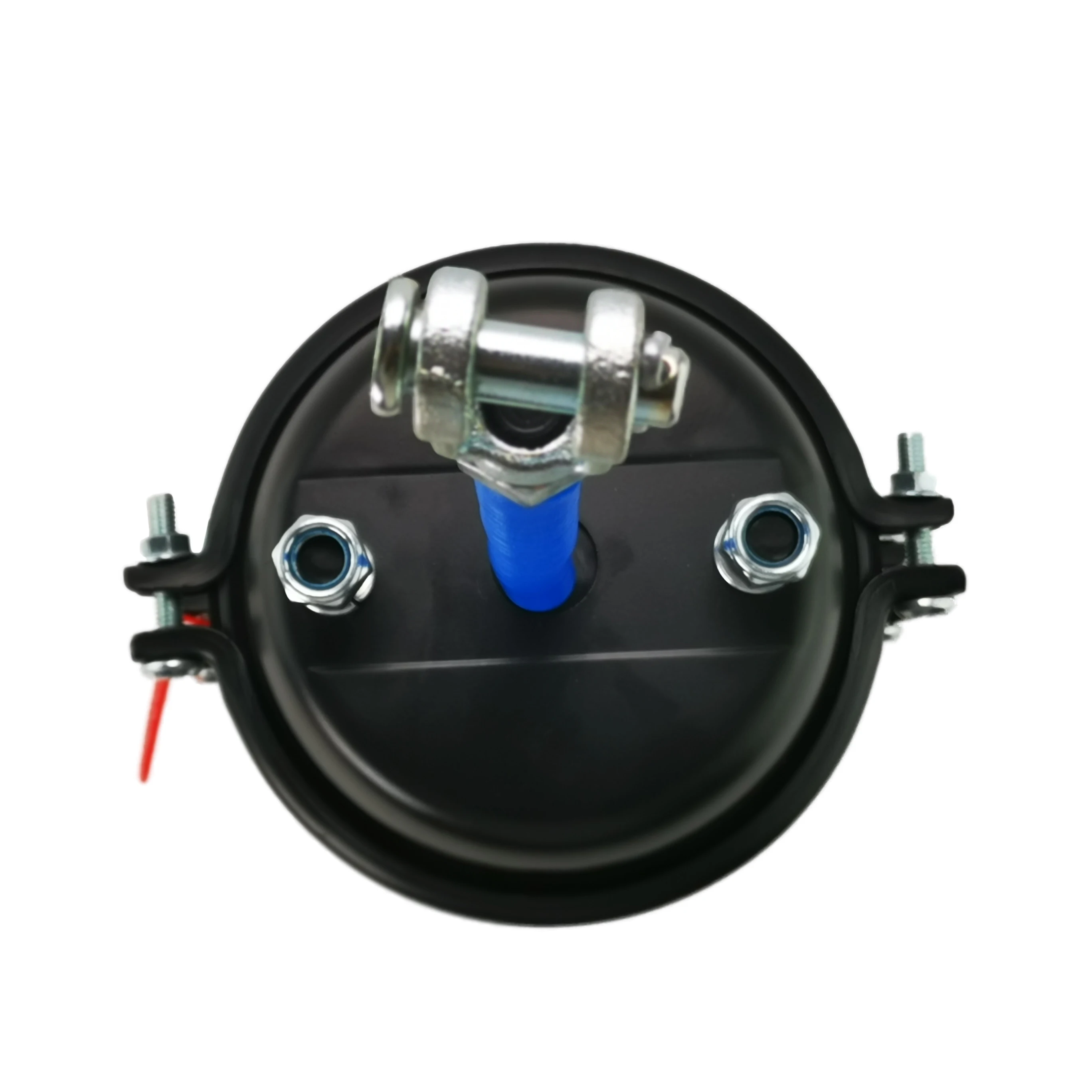

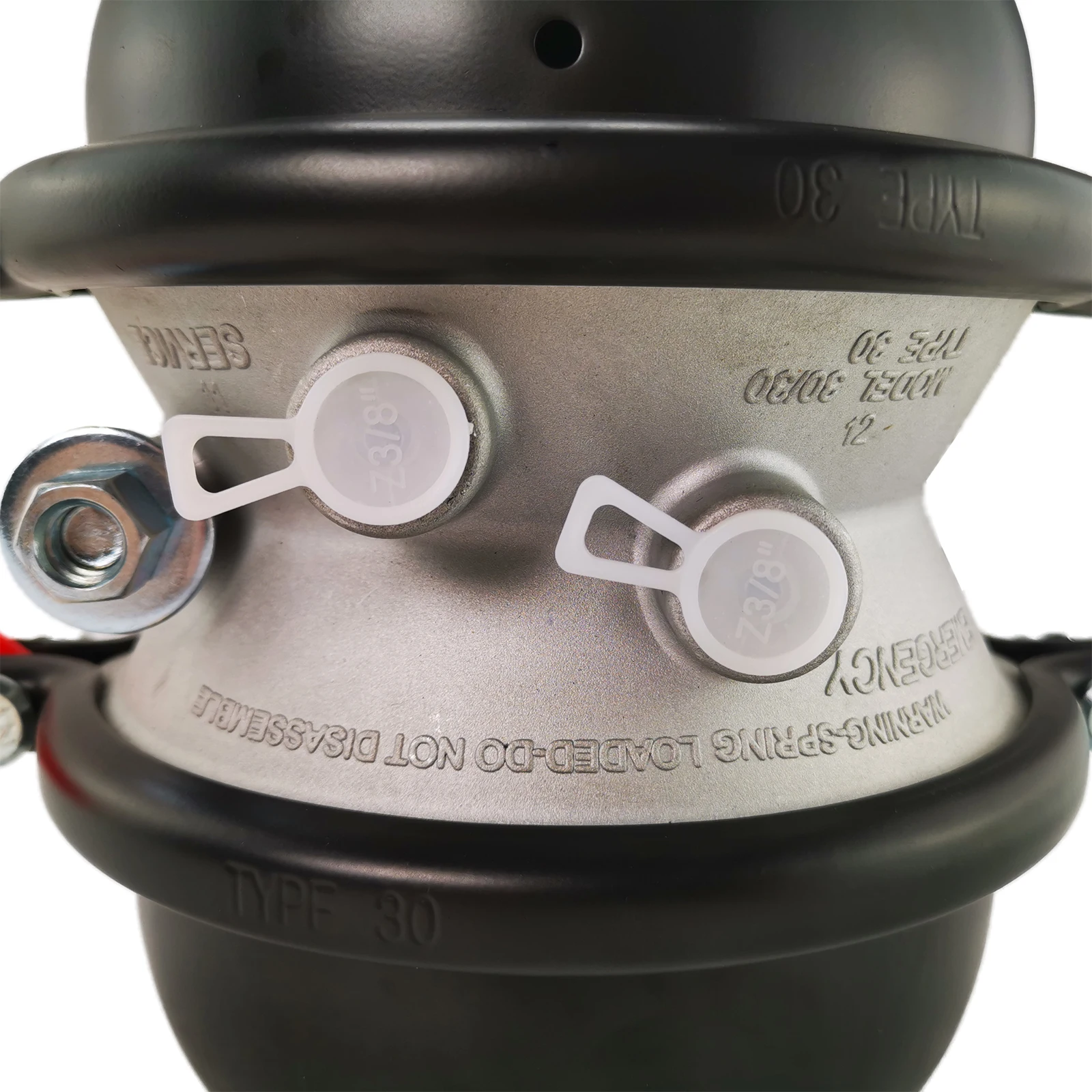

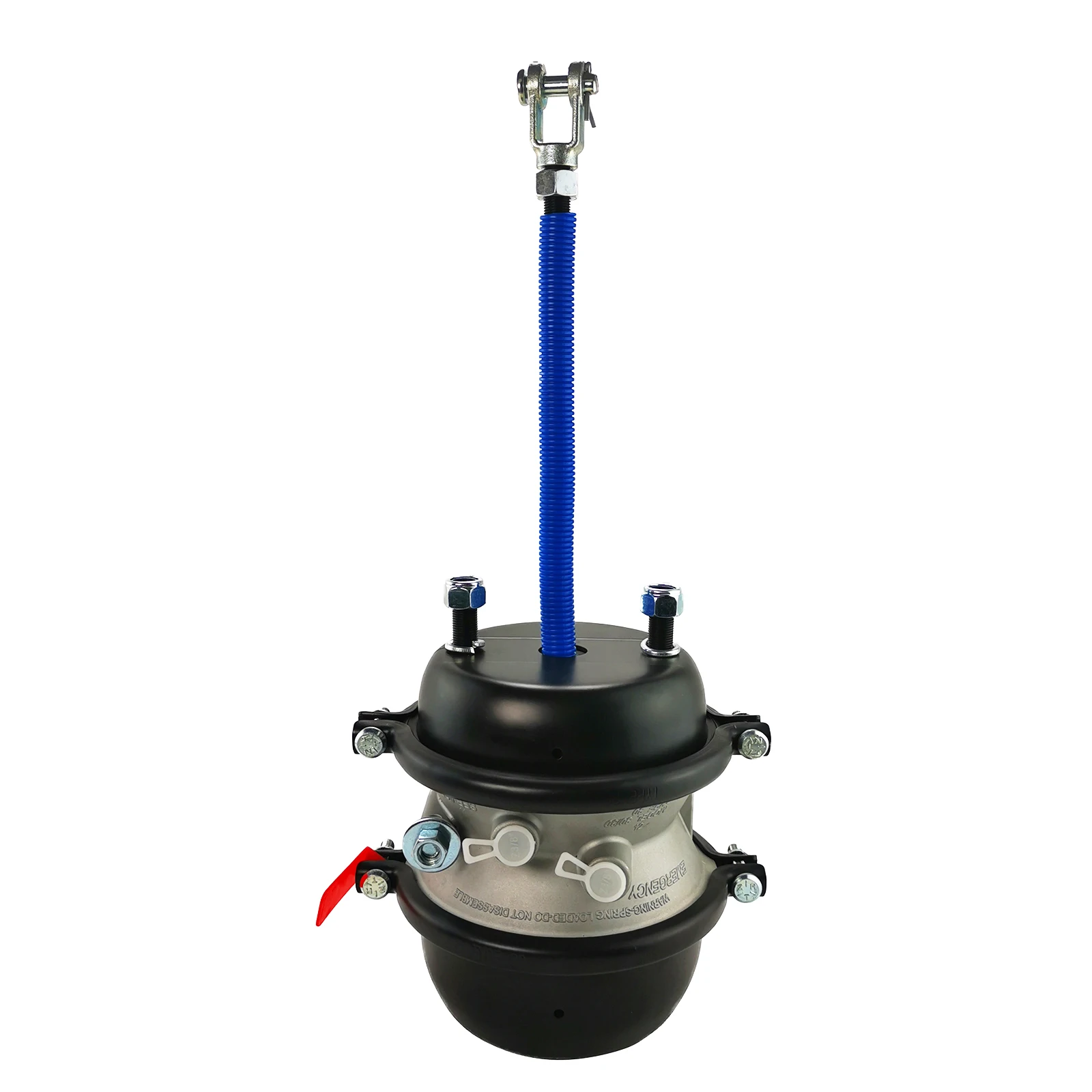

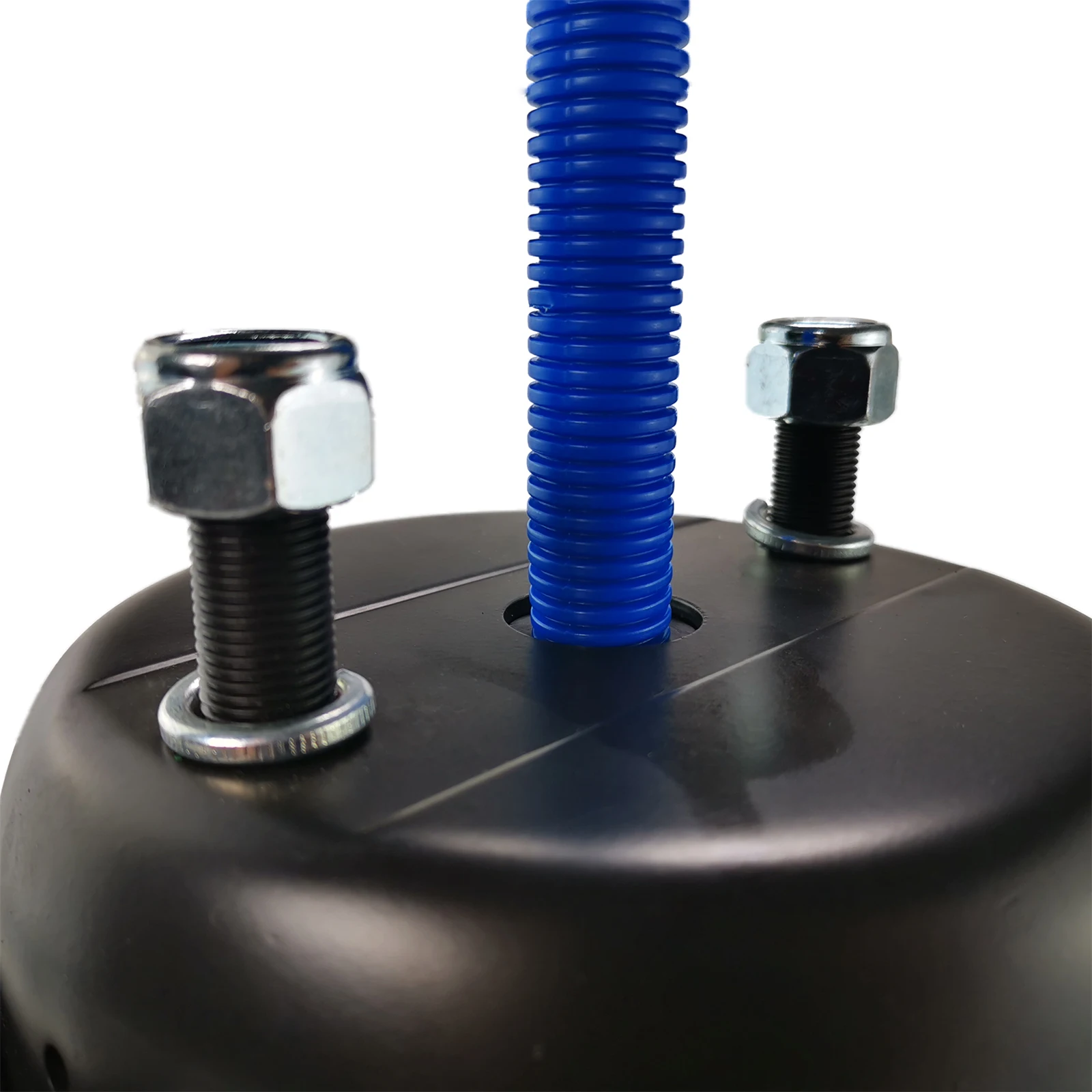

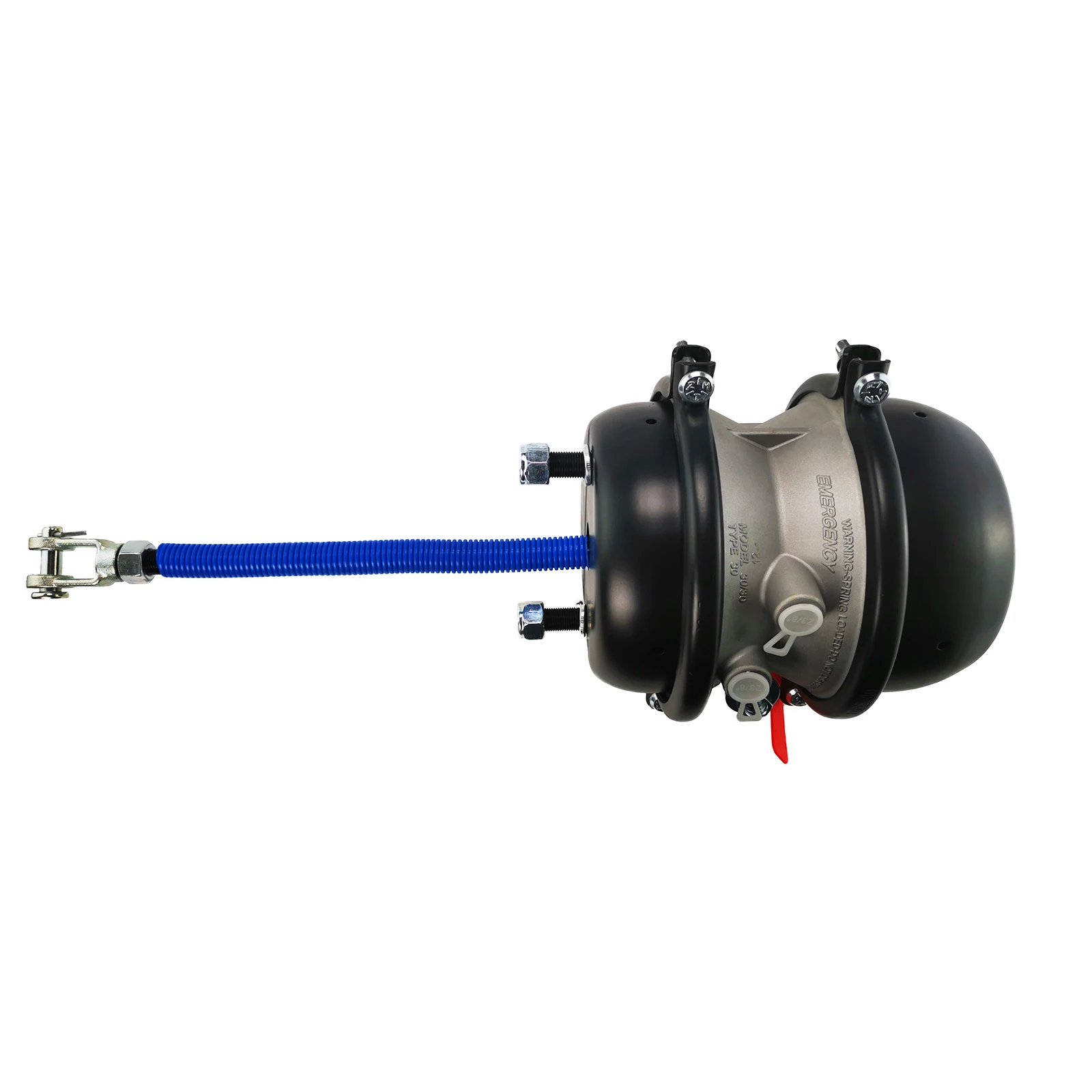

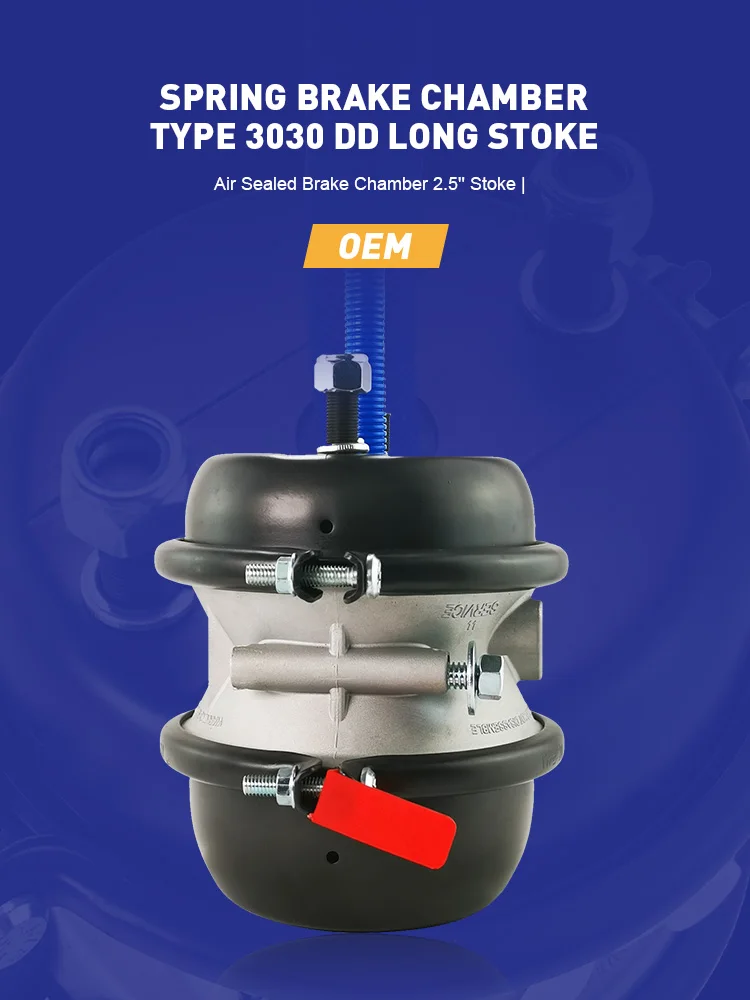

Грузовик и полуприцеп T24/24,T24/30,T30/30 Одиночная или двойная Пневматическая тормозная камера/усилитель тормоза

Product Overview

Description



Δ  Our factory is specialized in manufacturing Air Brake Chamber and other trailer parts;

Δ  We can manufacture Air Brake Chamber T24,T30,T24/24,T24/30,T30/30……;

Δ  General Stroke:64 mm,Deep Stroke Air Brake Chamber is Optional.

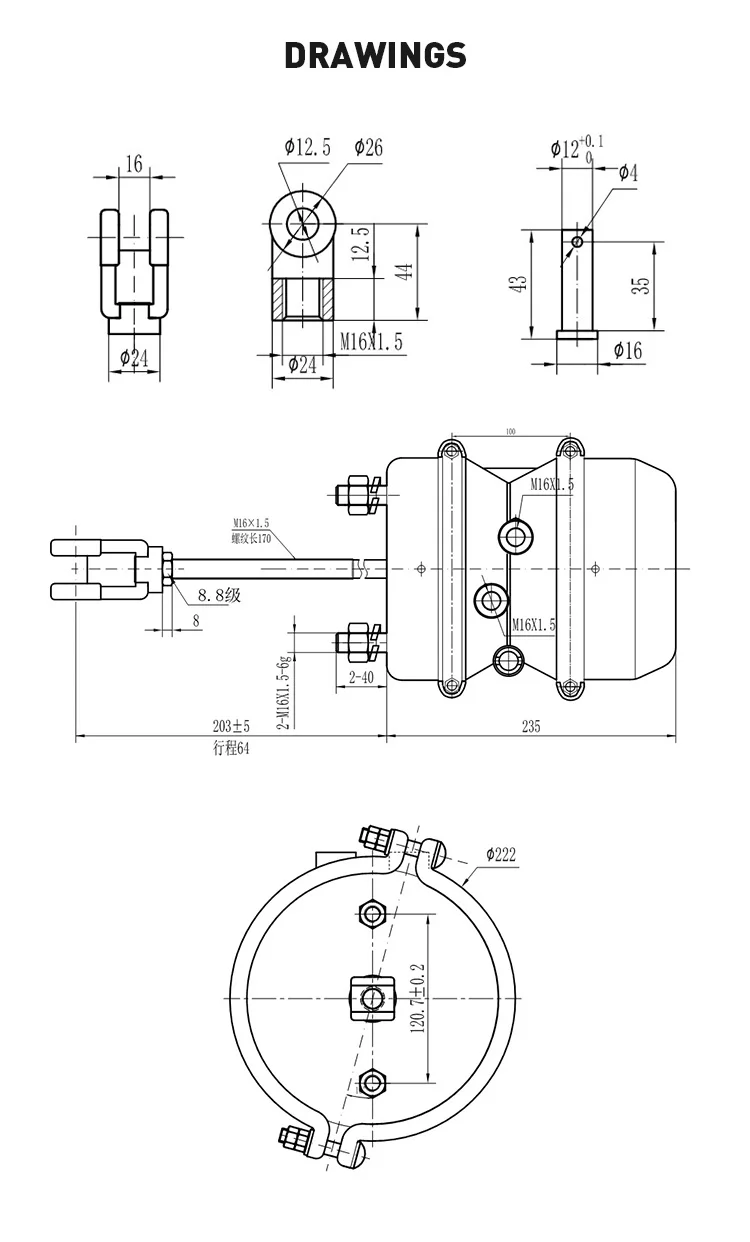

 BYF Air Brake Chamber Specification

Type	Stroke	Pushrod Thread Length	Pushrod Thread	Air Inlet Thread	Mounting Bolt Thread	Mounting Inluded Angle	Weight
T-24	64	207	5/8"-18UNF2A	3/8"-NPTF	5/8"-11UNC2A	45°	4Kgs
T-30	64	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-11UNC2A	45°	4.6Kgs
T-24/24	64	207	5/8"-18UNF2A	3/8"-NPTF	5/8"-11UNC2A	45°	8Kgs
T-24/30	64	207	5/8"-18UNF2A	3/8"-NPTF	5/8"-11UNC2A	45°	8Kgs
T-30/30	64	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-11UNC2A	45°	9Kgs



	Chamber Volume(Litre)   (Measure Pressure:700kpa)		Parking Chamber Hold-off Pressure & Parking Chamber Force Output
Type	Service Chamber	Parking Chamber
T-24	0	1.08 L	400Kpa→5.58KN	700Kpa→9.8KN
T-30	0	1.48 L	400Kpa→7.3KN	700Kpa→12.8KN
T-24/24	1.04 L	1.16 L	537Kpa→4.98KN
T-30/30	1.32 L	1.78 L	500Kpa→6.11Kn

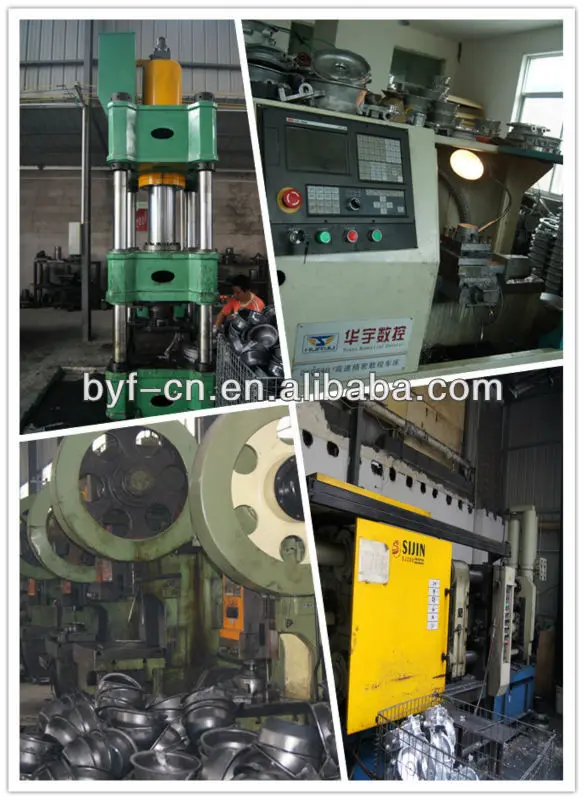

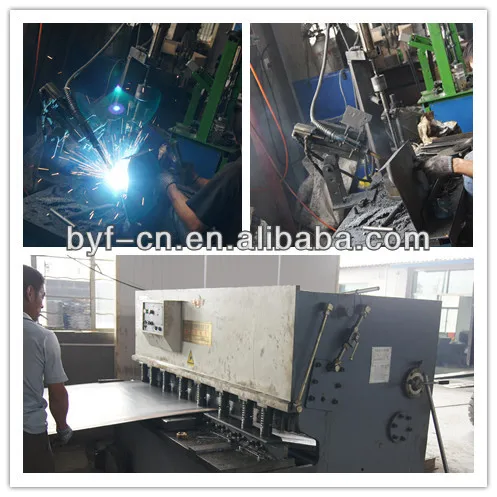

Brake system manufacture process



(Do not disassemble the brake chamber for repair by yourself as it may cause safety problem)



Brake system parts list

Air brake chamber,Brake drum, Hub, Brake shoe & lining, S Camshaft, Manual & Automatic Slack Adjuster, Bearings, Dust Cover, Hub cap, Return spring, Brake spring, Adjuster spring, Bolt & Nut, Seal, Rebuild Kit for S Camshaft & Brake Roller, etc.
