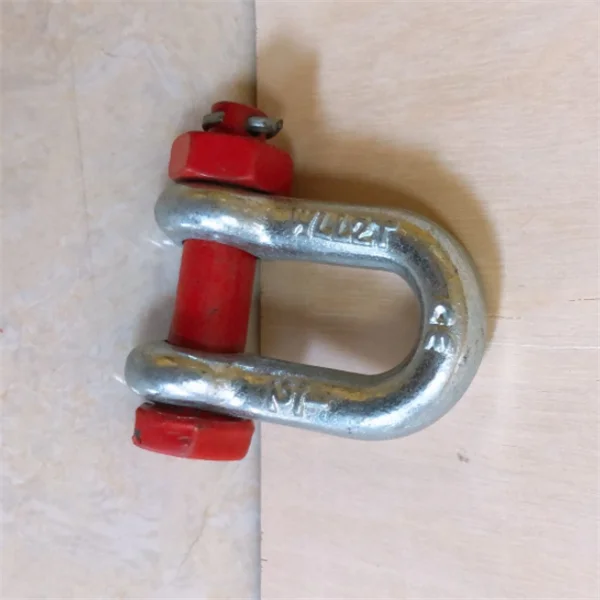

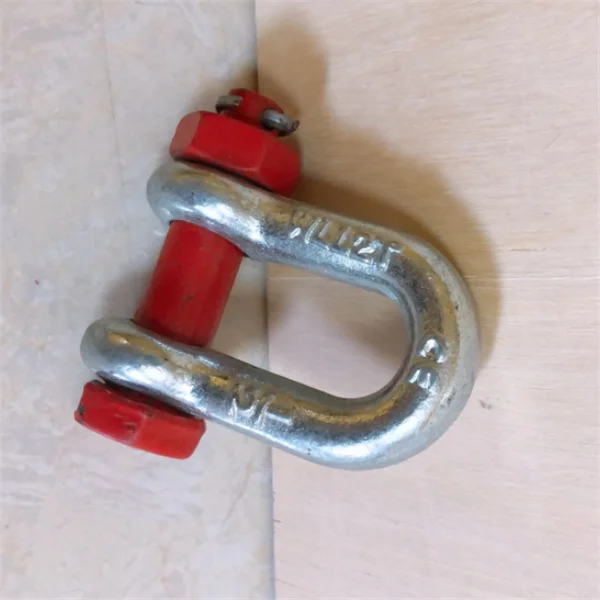

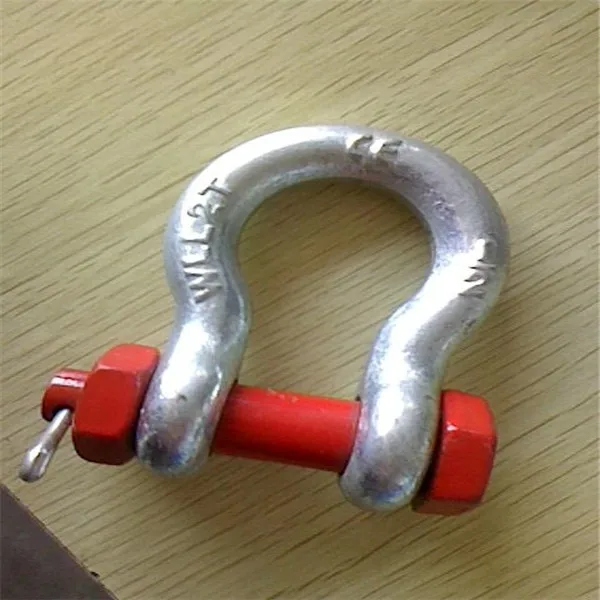

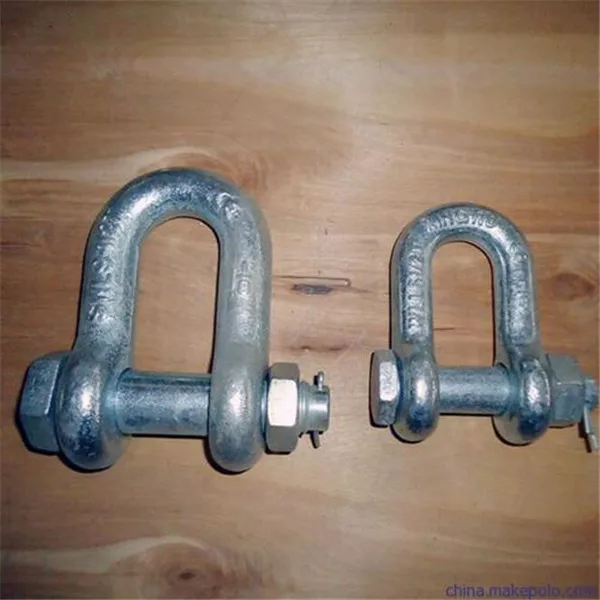

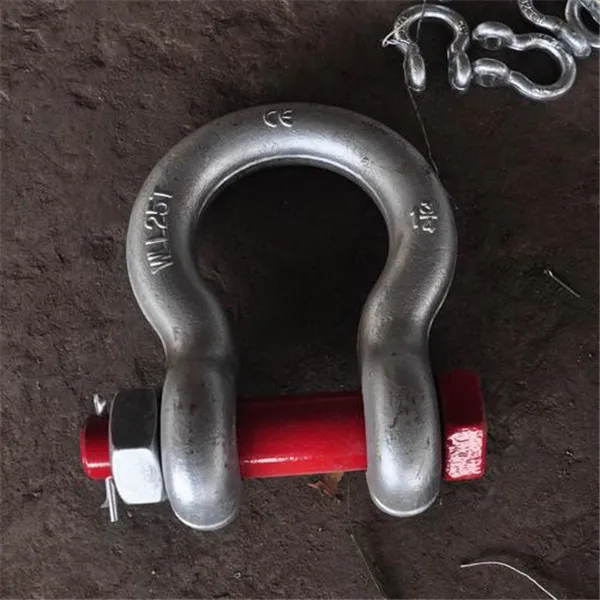

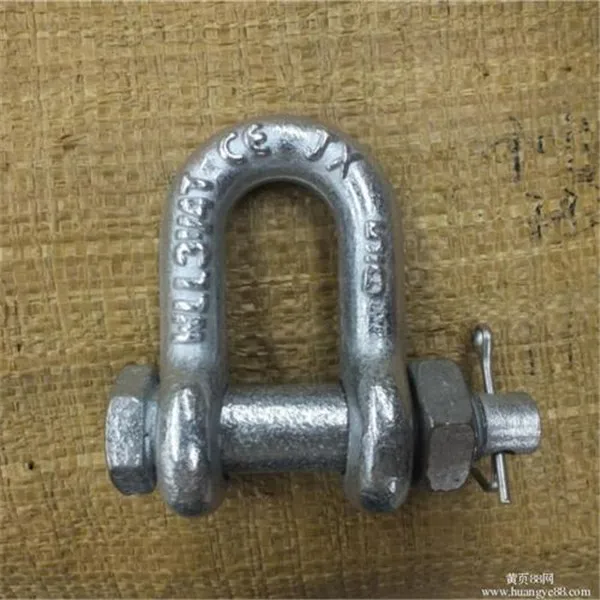

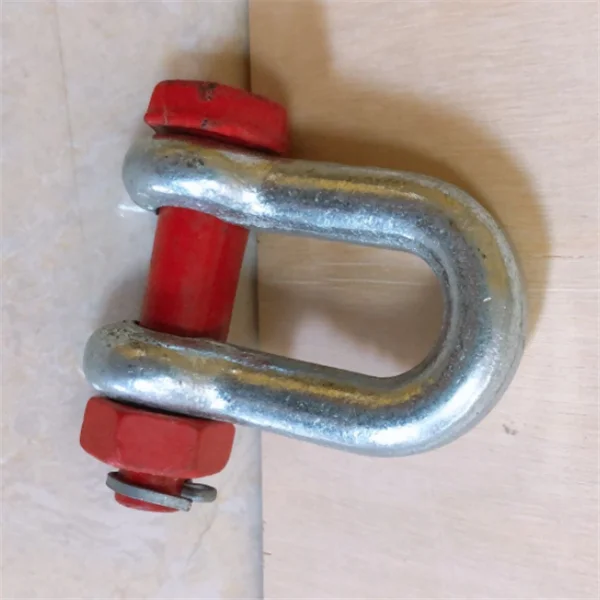

u.s. bolt type anchor shackle chain shackle clevis shackle

Product Overview

Description

                bolt type anchor shackles or chain shackle clevis shackle



 1) Standard: US  G2150



 2) Customer design: our experienced engineer team can develop  the products and

                  manufacture in accordance with samples, drawings or only ideas



 3) Delivery: by sea, by air or by express service



 4) Price term: FOB or CIF



 5) Packaging: Gunny bag,   carton



 6)For more info about shackle, please email us for full catalogue

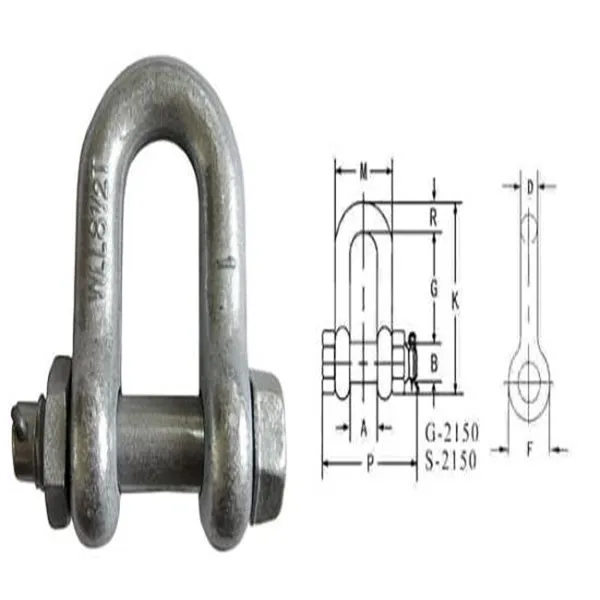

Nomiinal Size in	Working load Limit tons	A	B	C	D	E	F	G	H	I	Weight each kgs
1/4	1/2	11.9	7.85	6.35	15.5	19.1	40.4	24.6	39.6	6.35	0.06
5/16	3/4	13.5	9.65	7.85	19.1	25.4	48.5	29.5	46.2	7.85	0.1
3/8	1	16.8	11.2	9.65	23.1	31	58.5	35.8	55	9.65	0.15
7/16	1-1/2	19.1	12.7	11.2	26.9	36.1	67.5	41.1	63.5	11.2	0.22
1/2	2	20.6	16	12.7	30.2	41.4	77	46	71	12.7	0.34
5/8	3-1/4	26.9	19.1	16	38.1	51	95.5	58.5	89.5	16	0.67
3/4	4-3/4	31.8	22.4	19.1	46	60.5	115	70	103	20.6	1.14
7/8	6-1/2	36.6	25.4	22.4	53	71.5	135	81	120	24.6	1.74
1	8-1/2	42.9	28.7	25.4	60.5	81	151	93.5	135	25.4	2.52
1-1/8	9-1/2	46	31.8	28.7	68.5	91	172	103	150	31.8	3.45
1-1/4	12	51.5	35.1	31.8	76	100	191	115	165	35.1	4.9
1-3/8	13-1/2	57	38.1	35.1	84	111	210	127	183	38.1	6.24
1-1/2	17	60.5	41.4	38.1	92	122	230	137	196	41.1	8.39
1-3/4	25	73	51	44.5	106	146	279	162	230	54	14.2
2	35	82.5	57	51	122	172	312	184	264	51	21.2
2-1/2	55	105	70	66.5	145	203	377	238	344	66.5	38.6
3	85	127	82.5	76	165	216	429	279	419	89	56









...
