Product Overview
Description
Poultry Farming Beam

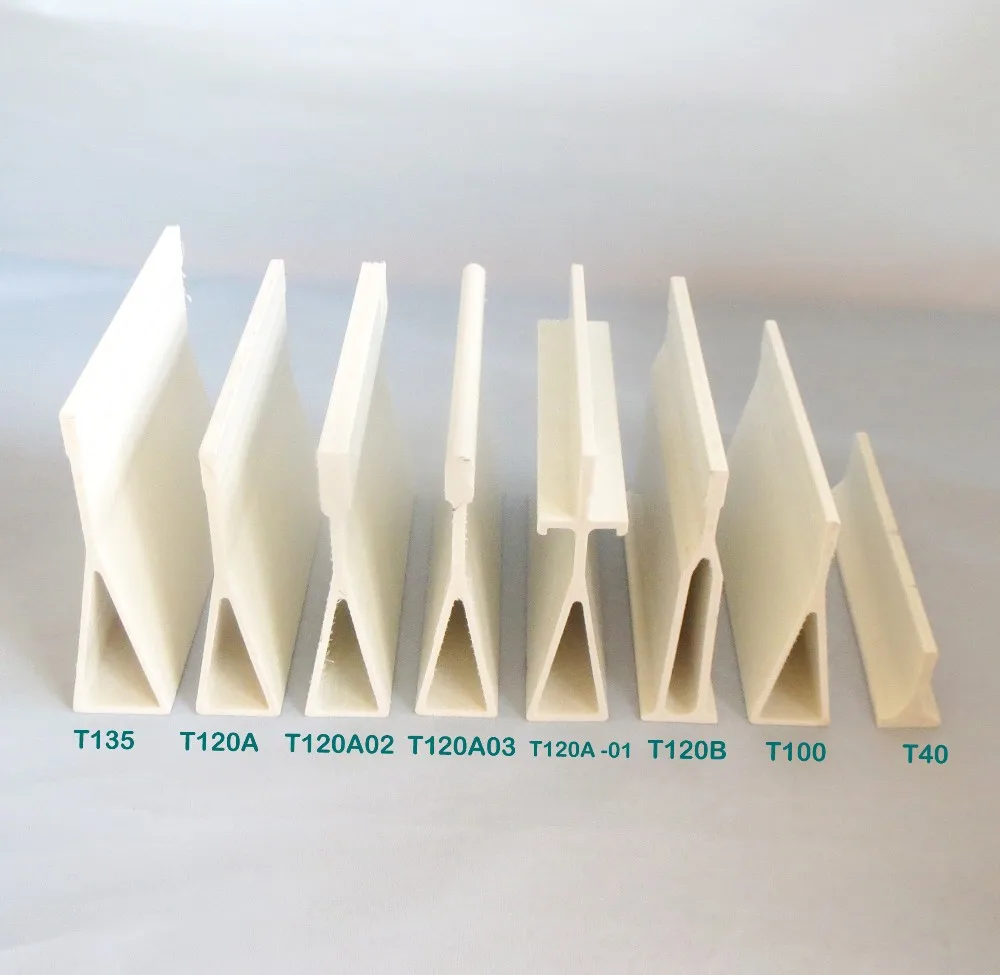

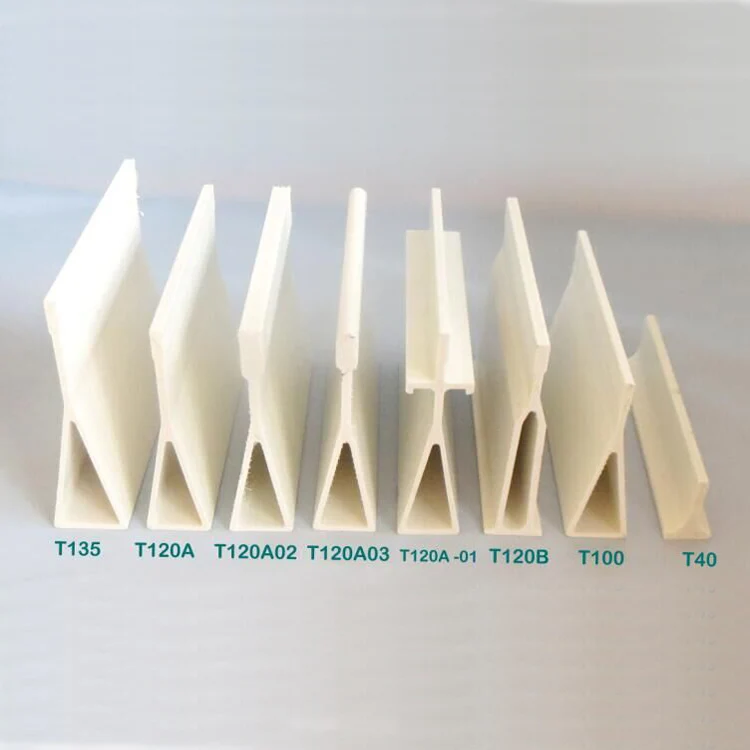

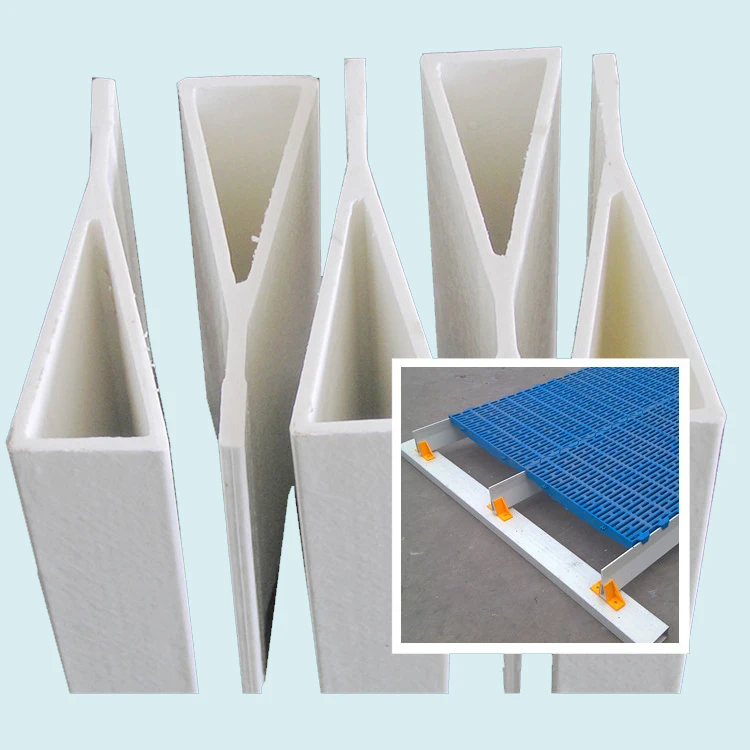

1. Fiberglass Triangle Support Beam
1-100mm, 120mm, 135mm, 150mm high beams samples are available.
2-No limitation for length.
3-Plastic bracket for beams fitting are available.
4-Popular for pig & poultry farming.
Product | ART NO. | dimension(mm) | weight(kg/m) |
fiberglass beam | T100 | 100*32*5.5mm | 1.15 |
T120A | 120*32*5.5mm | 1.38 | |
T120A02 | 120*32*10mm | 1.68 | |
T120A03 | 120*32*10mm | 1.59 | |
T120A-01 | 120*32*5.5mm | 1.55 | |
T120B | 120*30*5.5mm | 1.56 | |
T135 | 135*36.8*5.6mm | 1.48 | |
T150 | 150*45mm | 1.78 |
Fiberglass triangle beam is popular for pig or poultry floor supporting:
Fiberglass support beam could withstand the highly corrosive environment of pig house(or poultry house) while also carrying big load bearing.
Wood, steel and aluminum were the other materials considered in the design of a new support beam, however, none of those materials offered the strength or corrosive resistant that pig/poultry farm needed in their flooring system.

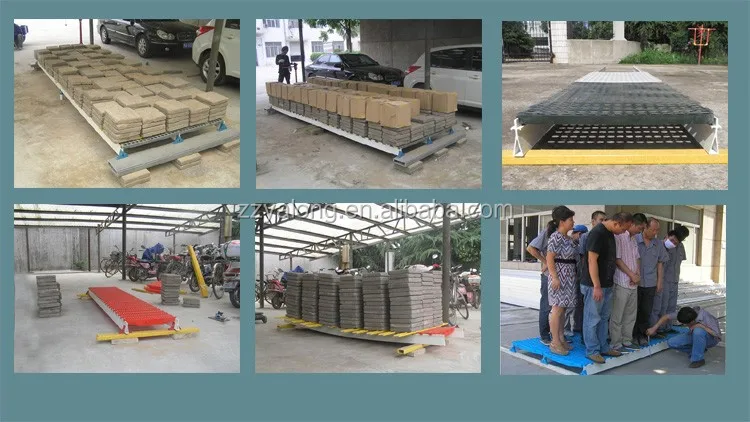

Load Test In Factory

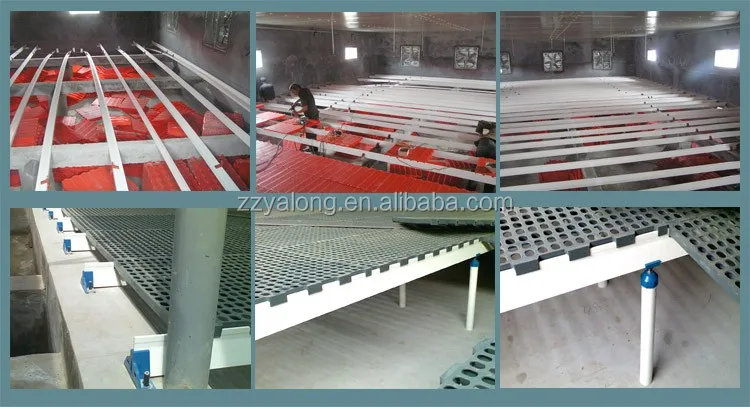

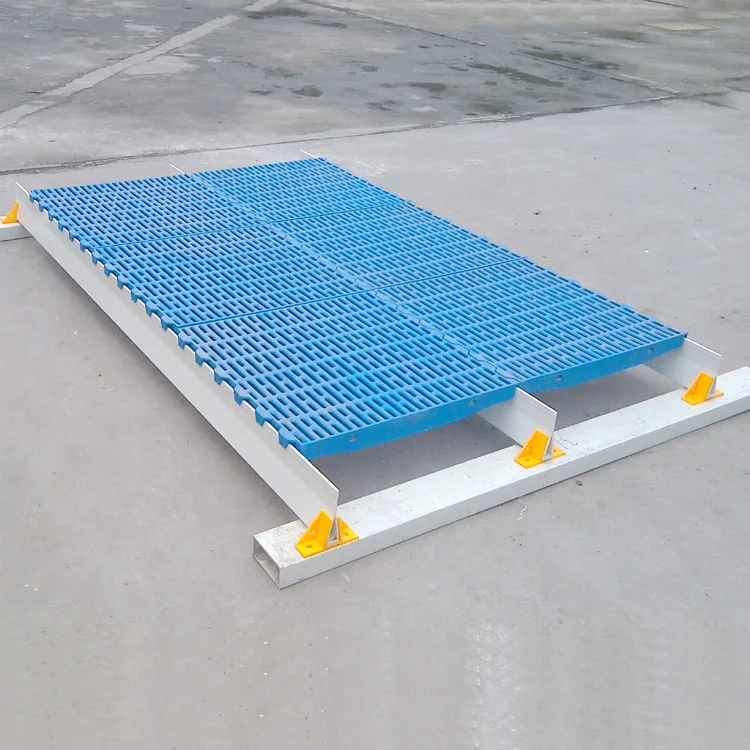

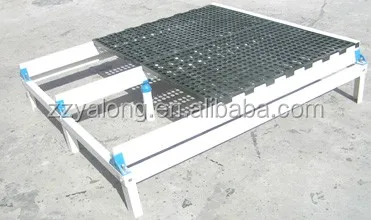

Slat Floor Beam and Bracket In Site

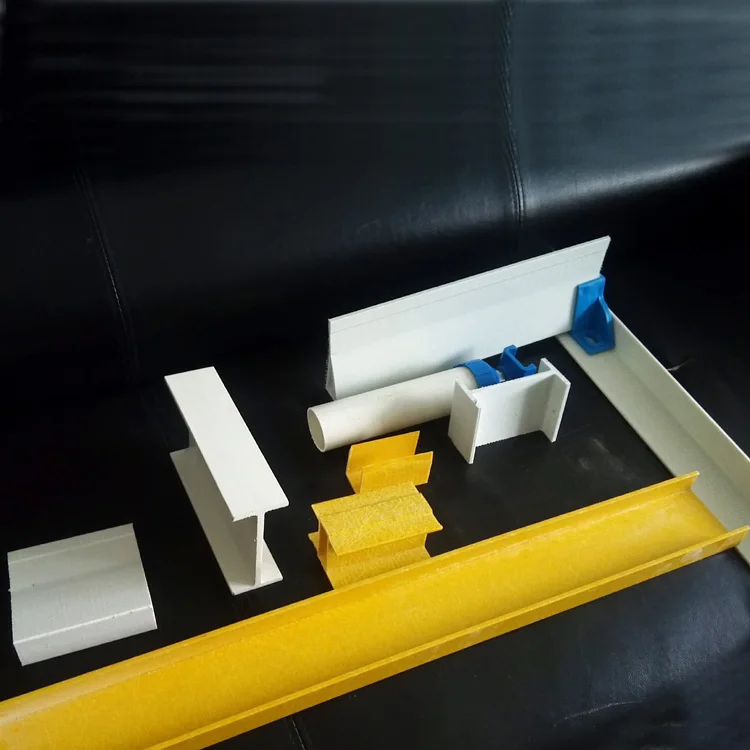

2. Plastic Support Brackets

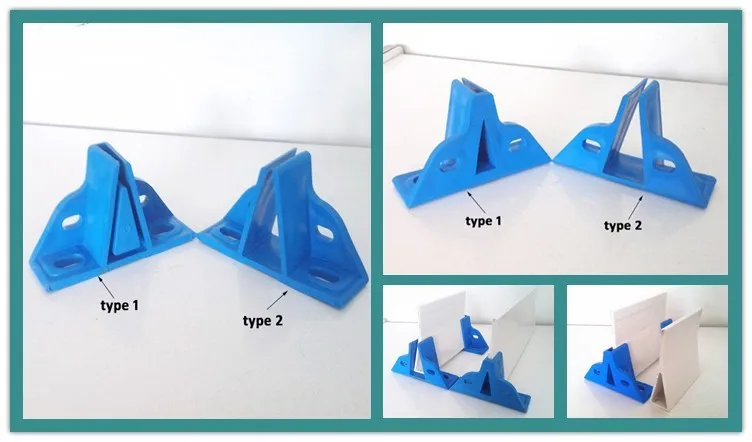

Bracket 01 (two types for choosing)

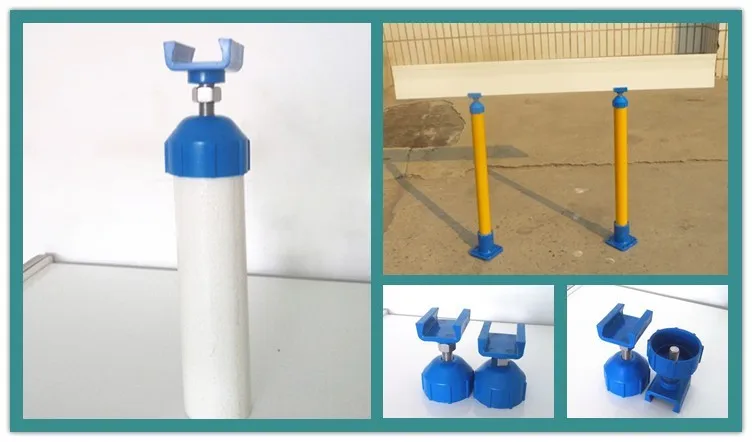

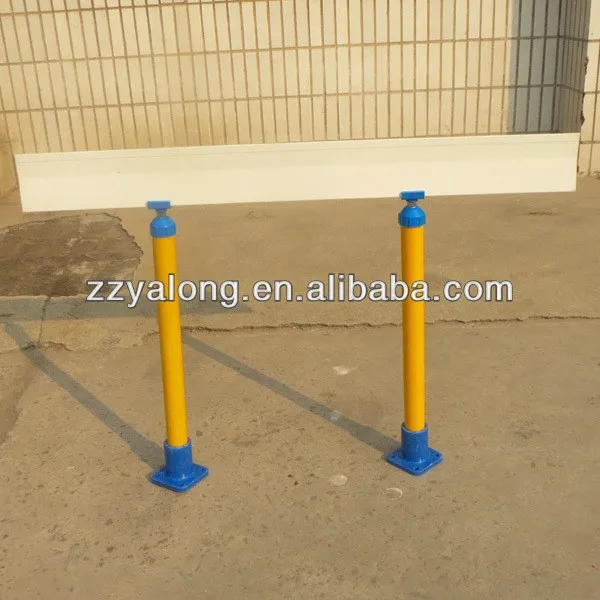

Bracket 02 (round shape, adjustable height)

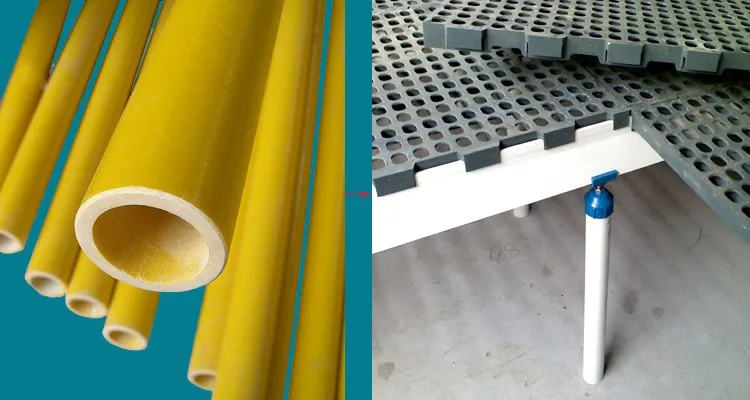

3. Fiberglass Round Tube (50*45mm)

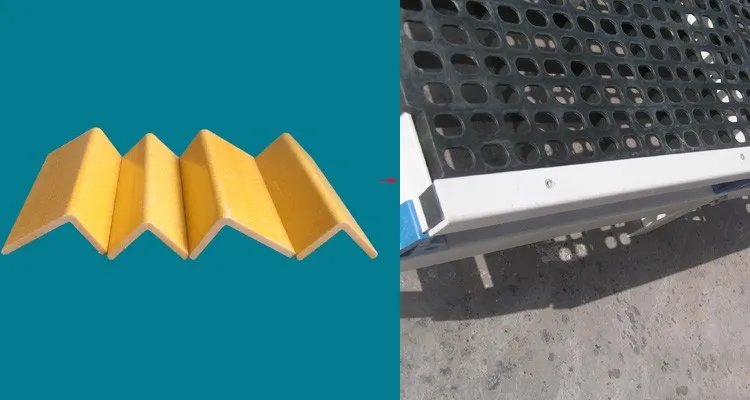

4. FRP Angle Beam (40*40*5mm, 60*40*5mm)

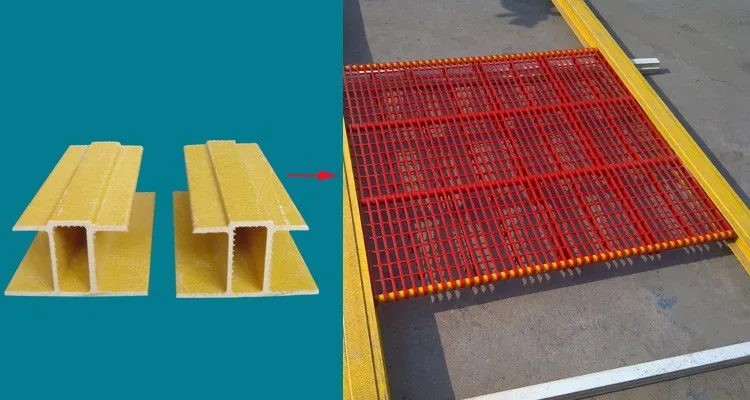

5. FRP I Support Beam for flooring (height 50mm, 53mm, 55mm)

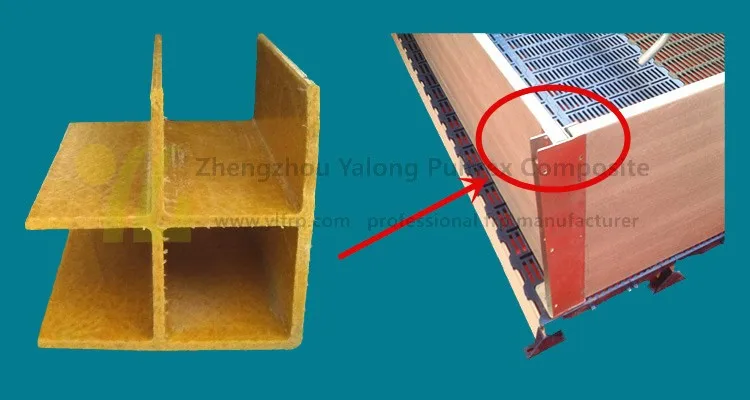

6. FRP Intersection Corner Angle Beam (68*68mm)

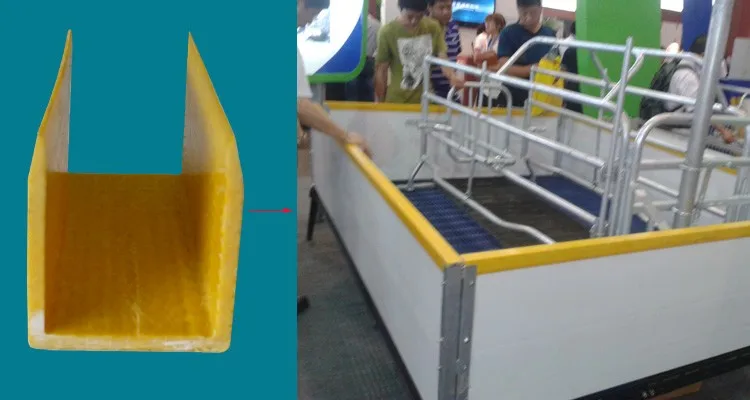

7. FRP U Channel Beam (Edge Protection)

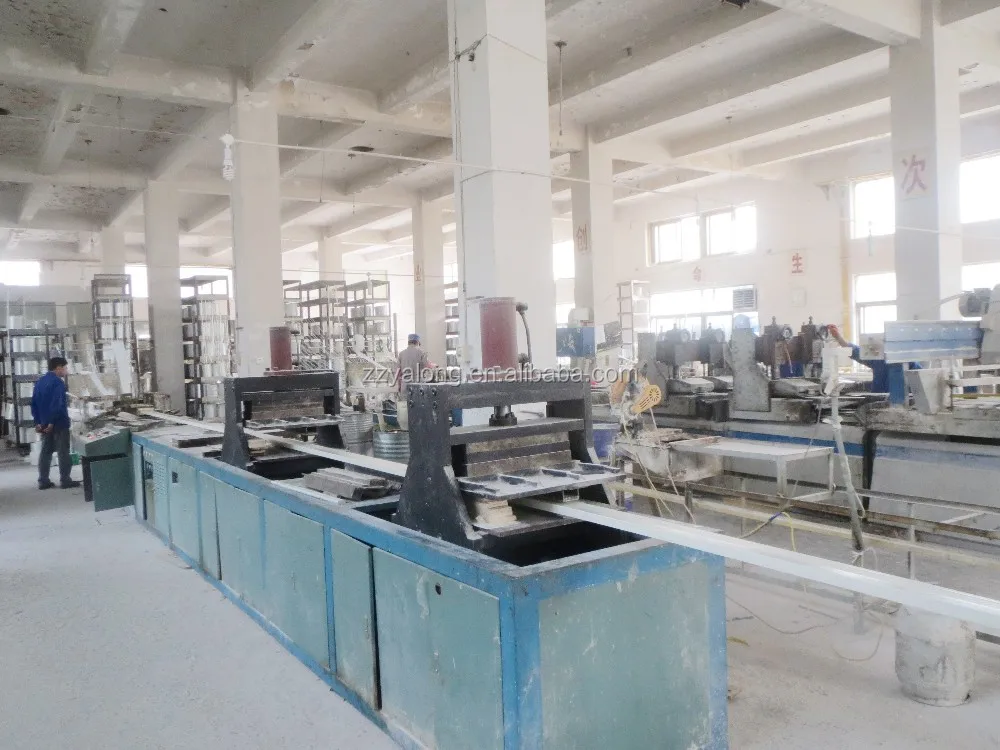

Fiberglass Pultrusion Technology
--Fiberglass Roving
--Dipped In Resin
--Preforming
--Pultrusion
--Cutting
--Products
Feature:
--with uniform cross section
--Formed continuously after being heated
The main raw material:

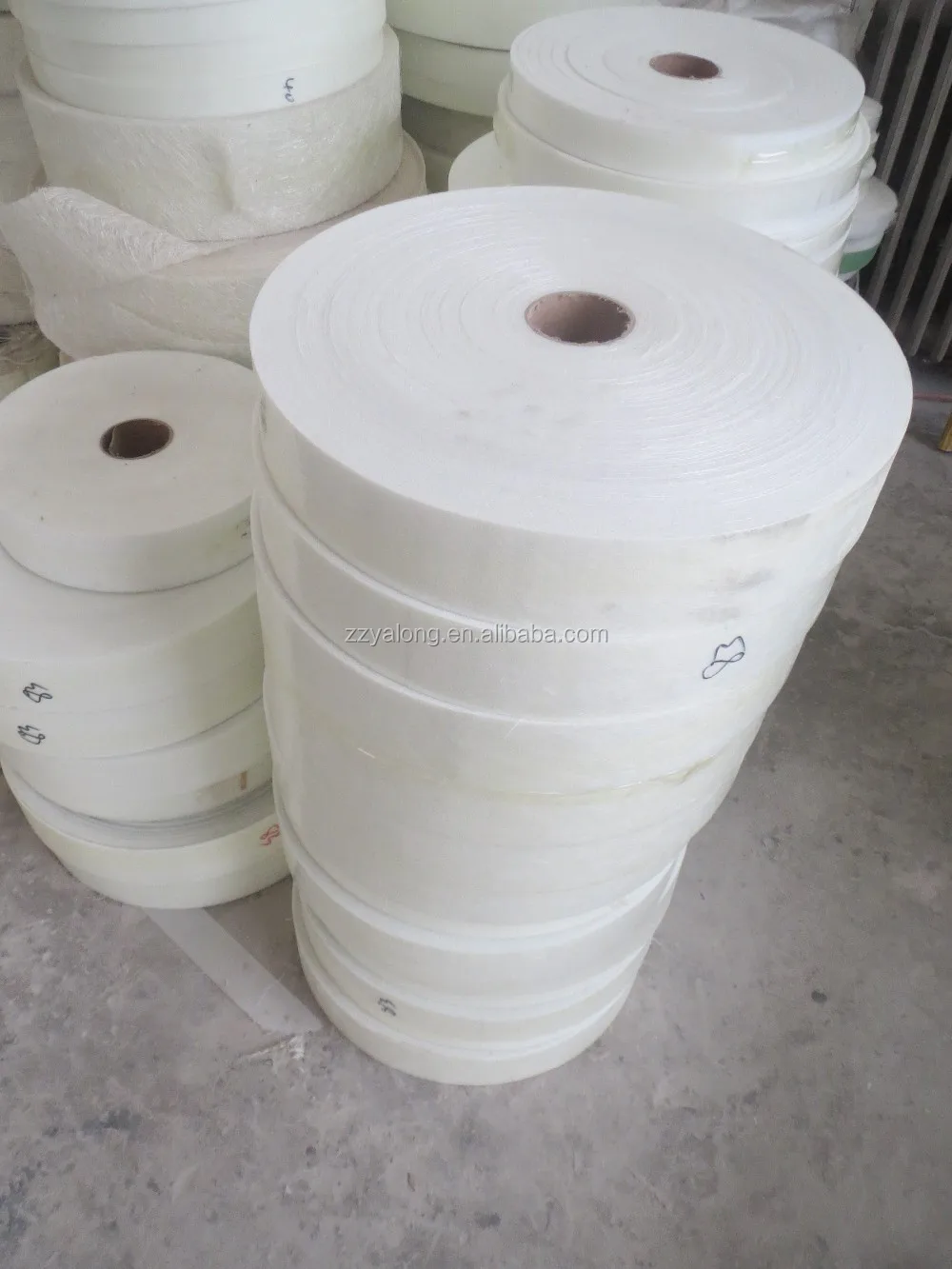

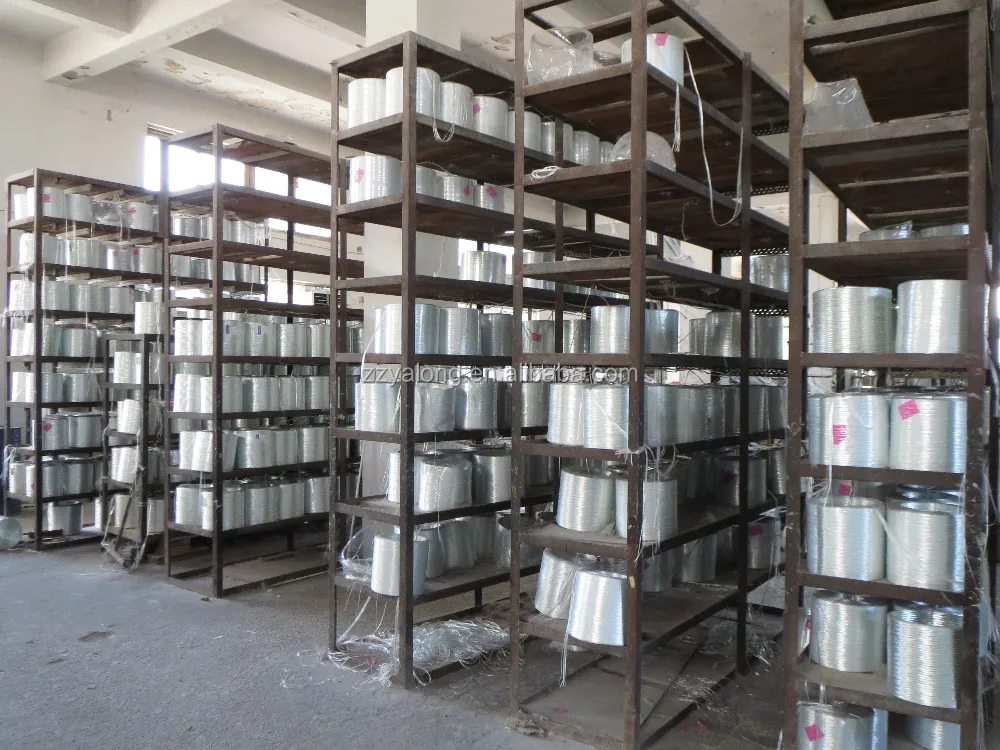

--Reinforced materials: fiberglass roving, continuous fiberglass mat, stitched fiberglass mat, surface veil.

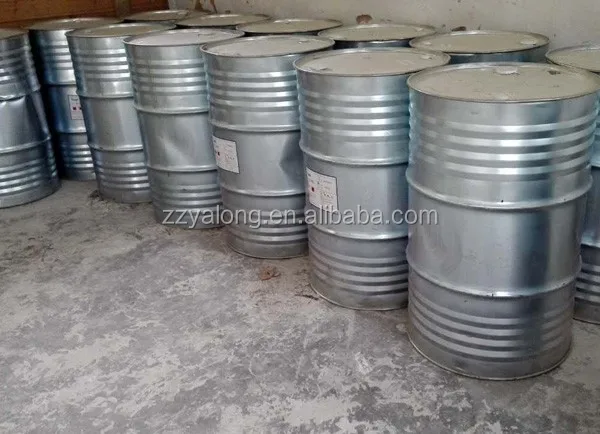

--Major matrix materials:unsaturated polyester resin, vinyl resin, phenolic resin.

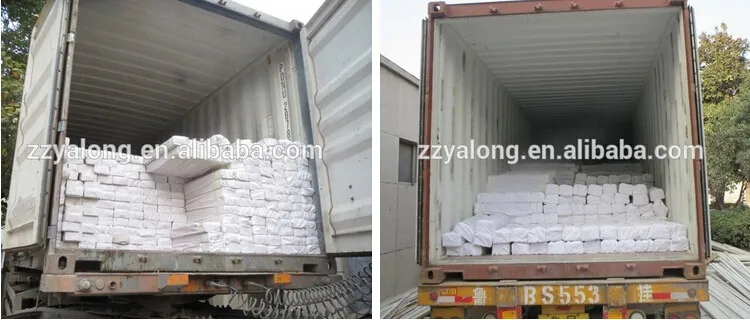

Packing & Delivery
Our Company

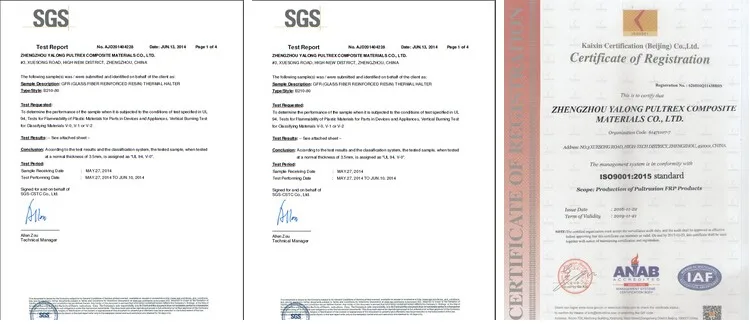

Certifications
Our Customer
Our Service
1. Your inquiries related to our products will be replied in 24 working hours.
2. Free samples offered in certain quantity and delivered in 3-7 days.
3. OEM service are provided, we can design and produce according to your needs.
4. Arrange shipping and custom declaration.
5. Colors are available on request.
Our regular colors include red, white, black, yellow, green, blue ect.
6. Unit length is also on your request, if it's easy for shipping.
7. Relevant products sourcing and management service.
8. Trial orders are acceptable.
9. CO, Form E, Form A can be supplied.
