Высокогибкая труба из нержавеющей стали
- Category: >>>
- Supplier: Hangzhou Duchuang Imp & Exp Co. Ltd.
Share on (1563085190):
Product Overview
Description

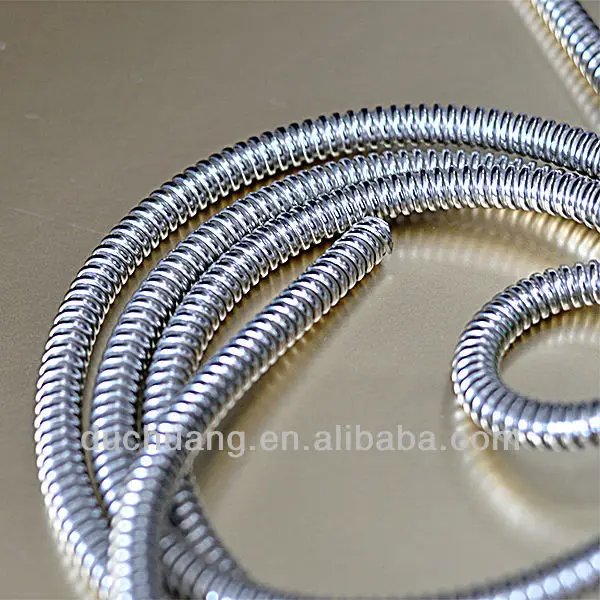

High Flexible Stainless Steel Pipe
Specifications
High Flexible Stainless Steel Pipe
FAQ
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008 idt ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, we do for some customer special size.
Q: How many days delivery the order?
A: Normally after deposit or L/C 20 days, depends your request.
Q: What about the payment?
A: We can accept L/C, T/T and trusted payment methods.
More question please by email, our service is solving your problem
Product Description
Features :
|
Specification:
Cat.# | Size | Internal Diameter Min. / Max. | External Diameter Min. / Max. | Min. Bend Radius | Coil Packing |
SJS001 | 3/16” | 4.75/5.38 | 7.37/7.87 | 19.05 | 200 |
SJS002 | 1/4” | 6.35/6.99 | 8.89/9.86 | 25.40 | 200 |
SJS003 | 5/16” | 7.92/8.56 | 11.10/11.86 | 38.10 | 100 |
SJS004 | 3-8" | 9.53/10.16 | 12.70/13.46 | 44.45 | 100 |
SJS005 | 7/16” | 11.10/11.73 | 14.27/15.04 | 47.63 | 100 |
SJS006 | 1/2" | 12.7/13.34 | 15.88/16.64 | 50.80 | 50 |
SJS007 | 5/8” | 15.88/16.51 | 19.05/19.81 | 57.15 | 50 |
SJS008 | 3/4" | 20.7/21.2 | 24.5/25.1 | 75 | 50 |
SJS009 | 1" | 26.0/26.60 | 30.4/31 | 100 | 50 |
SJS010 | 1¼" | 34.7/35.4 | 39.6/40.3 | 125 | 50 |
SJS011 | 1½" | 40.0/40.6 | 45.2/48.8 | 150 | 50 |
SJS012 | 2" | 51.3/51.9 | 56.5/57.1 | 175 | 25 |
SJS013 | 2½" | 63.0/63.6 | 70.2/70.8 | 200 | 25 |
SJS014 | 3" | 78.0/78.7 | 85.2/85.9 | 225 | 25 |
Packaging & Shipping

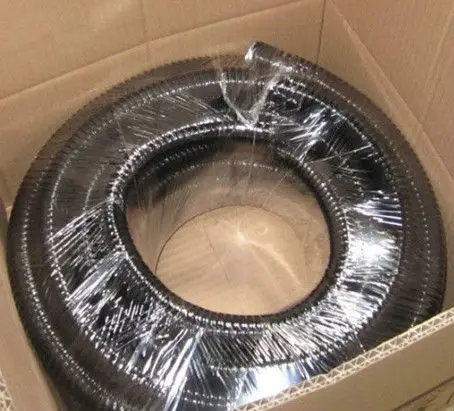

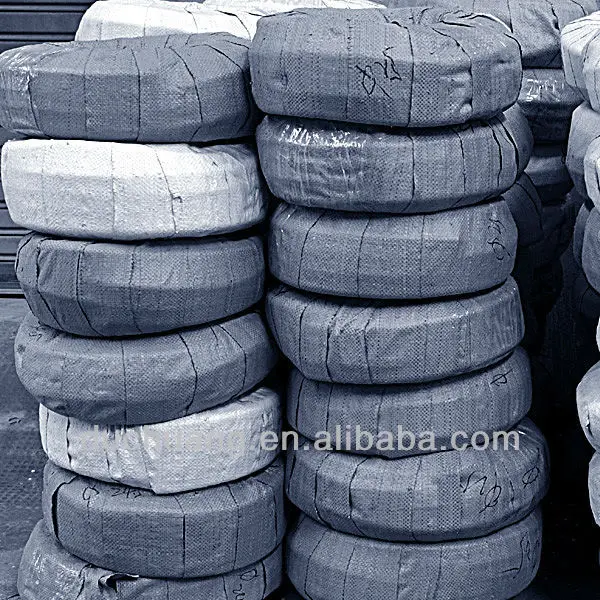

Packing details:

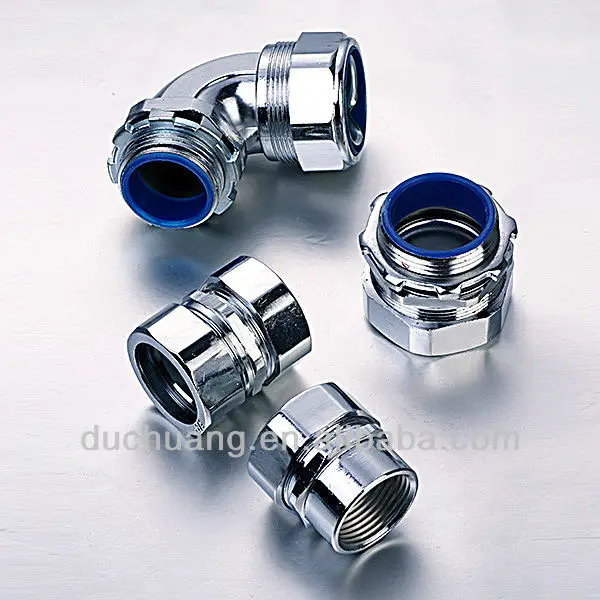

Fittings:
