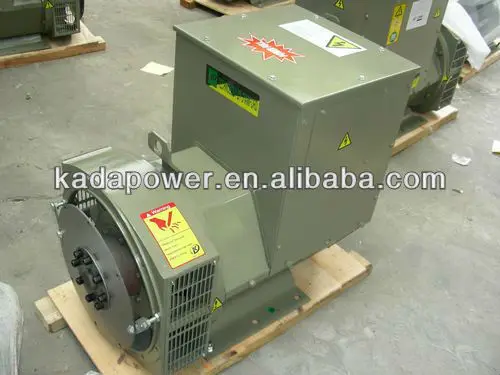

brushless generator 30kva for used diesel generators

Product Overview

Description



 brushless generator 30kva for used diesel generators



Feature:
- Brushless, 4 poles, rotation magnet.
IP21-23 NEMA enclosure is standard for all industrial alternators.
- The insulation system is Class H
Range of voltage regulation at no load:>±5%
Exciting method: Brushless Self-exciting
- Simple installation and maintenance, with easy access to terminals, rotating diodes.
- Wide range of flange adaptors and single bearing disc coupling or double bearing.
- Optional accessories available for easy paralleling with mains or other generators.
- AVR auto voltage regulator, auto exciter, auto adjustment.

















2.Brushless Generator







Features:



1).Advanced automatic voltage regulator conttrol for trouble-free operation under the most demaning condition



2).Easy paralleling with mains or other generators .Standard 2/3 pitch windings avoid excessive neutral currents. One slot sttor skewing further reduces harmonics for  diesel alternator 300kw is used in diesel generator



3).Dynamically balanced rotor,with sealed-for-life ball bearings and single or two-bearing construction.



4).Simple installation and maintenance with easy access to terminals,rotating diodes and coupling bolts.



5).Wide range of Flange adaptor and single bearing coupling disc for 30kva stamford alternator for 30kva stamford alternator  is used in diesel generator







3.MECHANICAL FEATURES







Enclosure



IP23(NEMA 1) is standard for all industrial and marine generators .







Shaft & Keys



All alternator rotors are dynamically balance to better than Bs6861 P.1,G2.5 for minimum vibration in operation .Two bearing generators are balanced with a half-key.



Terminal and terminal box



The 3Phase altenrators had 12 ends brought out to the terminal box .The terminals are put on the non drive end..The box is equipped with removable panels .



Voltage regulation



Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.8 to 1 and 3%s fluctuation of the speed of engines .Voltage is adjusted using a trimmer on the AVR .







4.ELECTRIC FEATURES







 Insulation:



The insulation system is class H



.All wound components are impregnated with materials and processes designed specifically to provide protection against the harsh environments encountered in generator applications. Resin based materials are selected and developed to provide the high build required for static windings and the high mechanical strength required for rotating components.







Winding and electric features;



Generator stator is wound to 2/3 pitch. This eliminates triplen (3^rd, 9^th,15^th…) harmonics on the voltage waveform and is found to be the optimum design for trouble-free supply of non-linear loads. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches, when in parallel with mains. A full connected damper winding reduces oscillations during paralleling. This winding, with 2/3 pitch and carefully selected pole and tooth designs, ensures very low waveform distortion.







Telephone interference



THF(as defined by BS4999 Part 40) is better than 2%. TIF(as defined by ASAC50.12) is better than 50.



Radio interference



The absence of brush-gear and the high quality AVR ensure low levels of interference with radio transmissions.RFI suppression may be supplied if required .



Damper Winding



The alternators incorporate a damper winding in order to ensure good parallel running with mains network and other machines. Inserted into the shoes of the poles are the bars of the damper winding which are connected together at each end of the poles to form a closed cage. This arrangement provides the alternator with excellent damping against the torsinal vibration that occurs during changes in load and when running in parallel.



Accessories & Option



Droop kit for sharing of reactive current during parallel operation



 Remote voltage potentiometer



 PT100 thermal protection embedded in stator windings



 Anti condensation heaters



 IP23 protection



 Special treatment for damp-saline or corrosive



 Environment



 PMG



 Control panel with LCD digital meter







5.Standard







GB755,PART3of BS5000,VDE0530,UTE5100,NEMA MG1-22,CEMA,IEC34-1,CSA22.2 and AS1359.







6 AC alternator Warranty and Service







Warranty Period







1.In respect of a.c. generators the Warranty Period is eleven months from the date when the goods have been notified as ready for despatch by us.







2.Service I



2.1    Within Product Quality Guarantee Period, if the product has quality problem as below, We will make good by repair, or at our option, by replacement.



2.11 Any fault that under proper use appears in the goods within the warranty period.







3.ServiceⅡ



3.1    With Installation, Service and Maintenance Manual



3.2    With Certificate of Conformity



3.3    With Connection Digram







4.Service Ⅲ



To affirm product quality problem within Product Quality Guarantee Period:



ease send the parts quality problem picture by the e-mail to us, our engineer will research it, to establish the solve project to the dealer,if these quality problems are true, we will supply the good quality parts to the dealer by the sea free of charge.

.

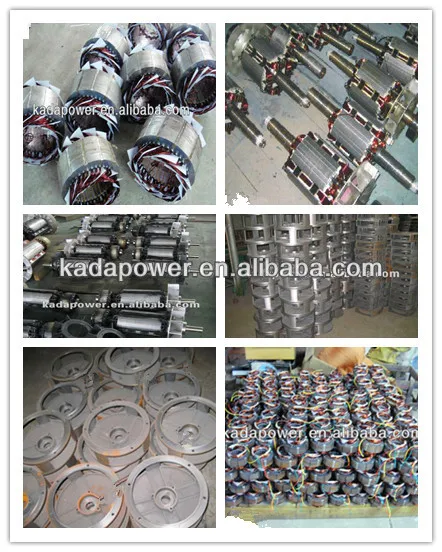

  alternator inside showing

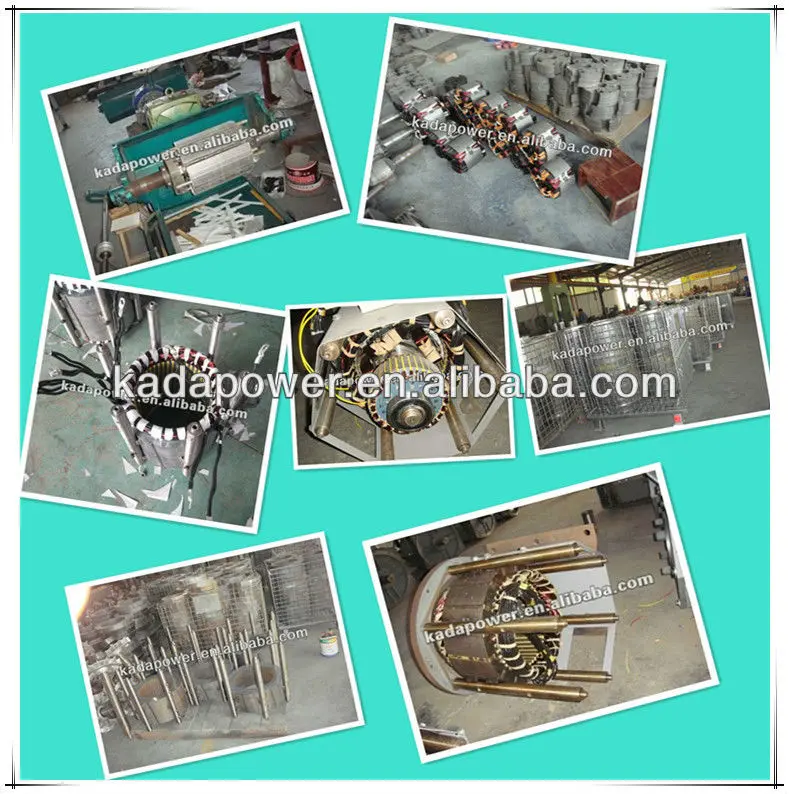

Process Equipments















our factory workshop

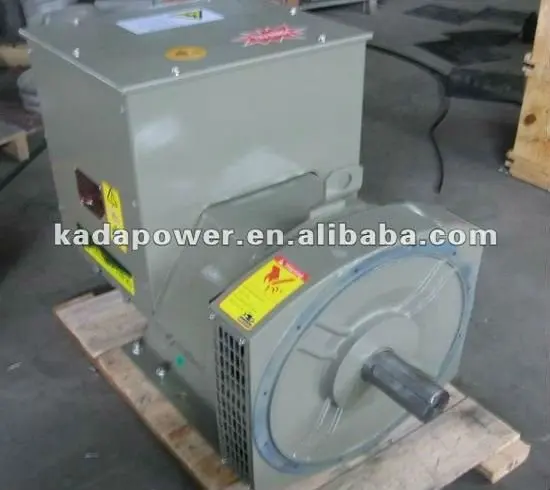

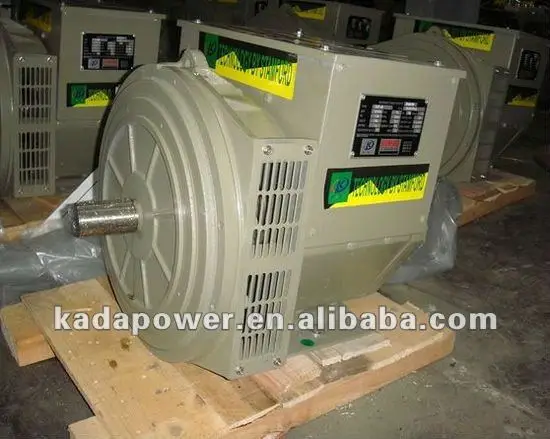

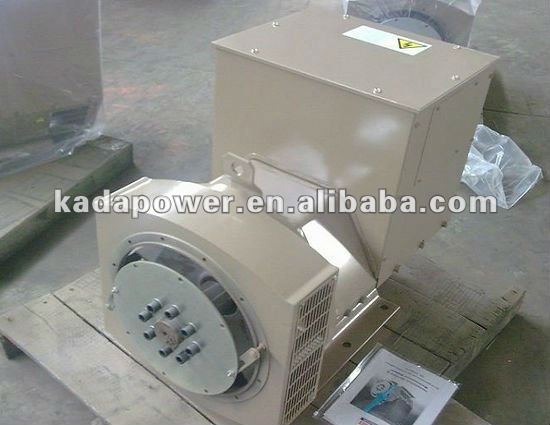

Alternator Similar products

































our alternator package

Guaranty:

Guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, our Boomaster will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials, except the damage



caused by customer's incorrect manmade operation. After expiration, our company will provides cost spare



parts maintenance for genset.
