Steel ball making machine, steel ball former, steel ball header

Product Overview

Description

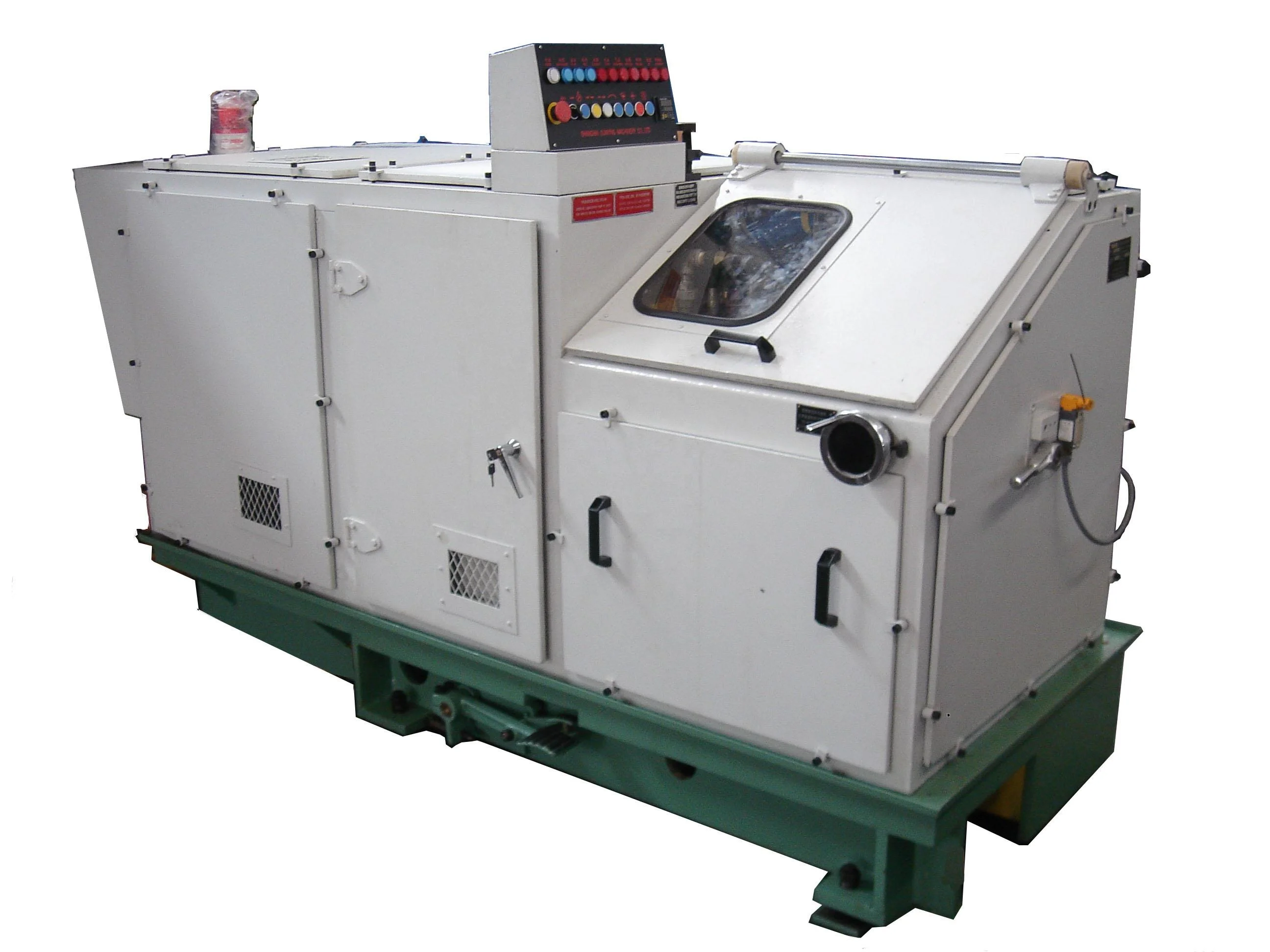

STEEL-BALL  MAKING MACHINE



This machine is specially designed for manufacturing ball- blanks. It applies the form of reasonable construction, reliable performance and easy adjustment.



Technical Specifications



Model	Z32-5	Z32-7.5	Z32-10	Z32-13	Z32-16
Ball size range to be processed (mm)	1.5-4.7	3.1-7.4	4.7-9.5	6.3-12.7	9.5-15.8
Rated Output (pcs/min.)	250	220	150	130	100
Motor power (kw)	1.1	2.2	5.5	7.5	15
Weight (kg)	600	1600	2500	3000	8660
Dimensions (L*W*H)(m)	1.3x0.81x1.075	1.8x1.05x1.22	2.19x1.3x1.35	2.5x1.8x1.35	4x2.54x2.57

The demostration video of the machine please check the following link:

//v.youku.com/v_show/id_XMTQ5Njc1Mzg2MA==.html?from=y1.7-1.2

And feel free to contact us for the password for viewing.

Advanced models with higher speed are available too, for more information, please check the ZS32 series steel ball making machines or contact us for proper recommendation.
