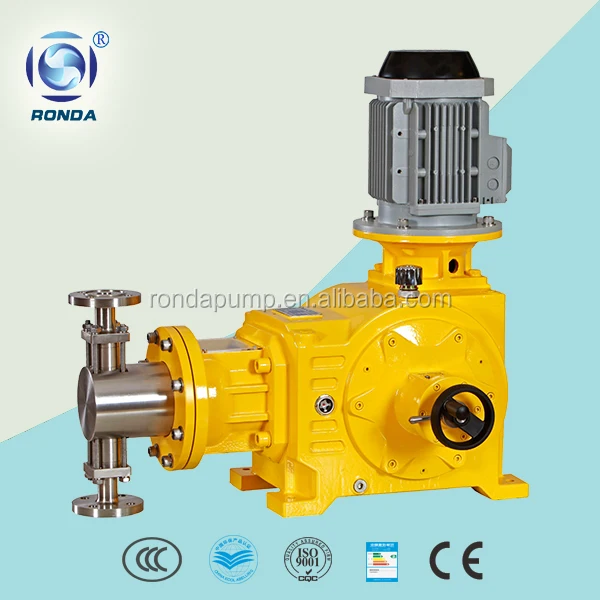

J D high pressure chemical plunger dosing pump

Product Overview

Description

J-D high pressure chemical plunger dosing pump



1. Introduction:

1. J-D high pressure chemical plunger dosing pump has installed an excellent inner adjustor assembly, which both lengthens the service life & reduces the noise.

2. Applying to medium with temperature -30~120°C(-86~248°F) and viscosity 0.3 ~ 800mm²/s.

3. Parts contact with medium are all made of stainless steel & fluorine material. Pump could also transfer medium with small solid.

4. Economic and small size, with small tolerance and excellent performance.

5. Wearable parts all have special treatment to guarantee the high quality.

6. Output flow is adjustable when pump running and accuracy can be less than ±1%.



2. Product details:

Working Principle:	Plunger, metering
Main applications:	Chemical, water, oil
Max.permissible fluid temperature:	120°C(248°F)
Casing parts material:	SS304, SS316, PTFE
Maximum frequency:	150(n/min)
Maximum drive rating:	4KW(5.4HP)
Maximum caliber:	40mm(1 1/2inch)
Maximum discharge-side pressure:	50MPa(500bar)
Flow rate range:	23-9000L/h(0.10-39.6US.GPM)
Maximum plunger diameter:	110mm(4 3/8inch)



3. Performance data:

Model	Capacity(L/h)			Pressure	Plunger diameter	Stroke	Frequency	Motor power	Caliber	Weight(kg)
	JD	2-JD	3-JD	(MPa)	(mm)	(mm)	(n/min)	(KW)	(mm)	JD	2-JD	3-JD
J-D/50	23	46	69	50	12	40	100	4	10	145	255	340
J-D/40	23	46	69	40	12			3
J-D/40	40	80	120	40	16			4
J-D/30	40	80	120	30	16			3
J-D/28	63	126	189	28	20			4
J-D/20	63	126	189	20	20			3
J-D/18	105	210	315	18	25			4	15	148	257	342
J-D/13	105	210	315	13	25			3
J-D/11	175	350	525	11	32			4
J-D/8	175	350	525	8	32			3
J-D/6.3	300	600	900	6.3	42			4
J-D/4.8	300	600	900	4.8	42			3
J-D/4.5	450	900	1350	4.5	50			4	20	150	260	352
J-D/3.5	450	900	1350	3.5	50			3
J-D/3.8	540	1080	1620	3.8	55			4
J-D/2.8	540	1080	1620	2.8	55			3
J-D/3.2	650	1300	1995	3.2	60			4
J-D/2.4	650	1300	1995	2.4	60			3
J-D/2.6	760	1520	2280	2.6	65			4
J-D/2.0	760	1520	2280	2	65			3
J-D/2.3	900	1800	2700	2.3	70			4	25	153	266	361
J-D/1.6	900	1800	2700	1.6	70			3
J-D/2.0	1050	2100	3150	2	75			4
J-D/1.4	1050	2100	3150	1.4	75			3
J-D/1.8	1200	2400	3600	1.8	80			4
J-D/1.2	1200	2400	3600	1.2	80			3
J-D/1.6	1350	2700	4050	1.6	85			4
J-D/1.1	1350	2700	4050	1.1	85			3
J-D/1.4	1500	3000	4500	1.4	90			4	32	160	272	369
J-D/1.0	1500	3000	4500	1	90			3
J-D/1.2	1680	3360	5040	1.2	95			4
J-D/0.8	1680	3360	5040	0.8	95			3
J-D/1.0	1850	3700	5550	1	100			4	40	175	291	380
J-D/0.8	2050	4100	6150	0.8	105			4
J-D/0.6	2250	4500	6750	0.6	110			4
J-D/1.0	2500	5000	7500	1	95			4	32	180	300	390
J-D/0.6	3000	6000	9000	0.6	105	40	150	4	40

Note: SS304 or SS316 material, 220V~415V 50/60Hz 3phase, explosion proof motor, frequency adjust motor, remote control, digital control all are available, please leave message if you need.

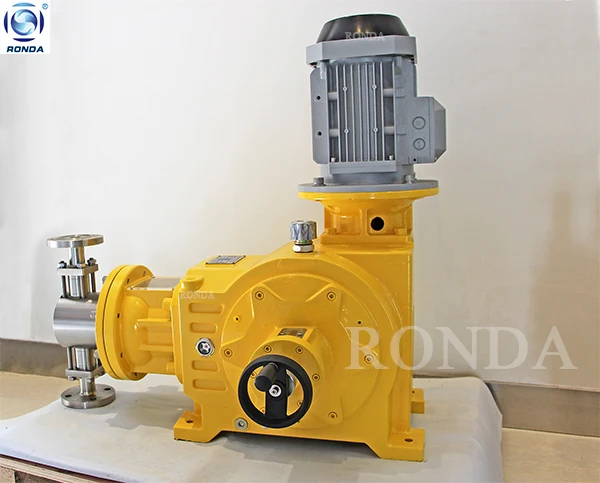

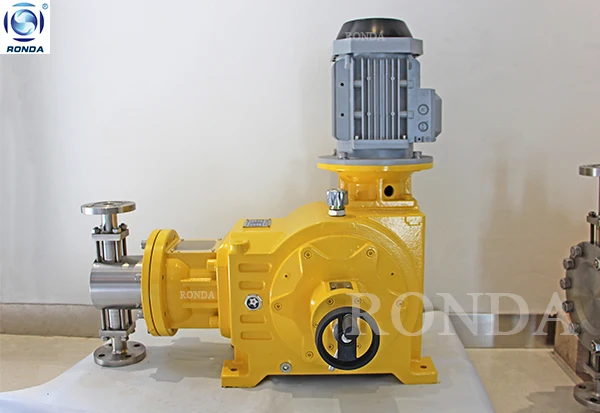

4. Pictures:

Excellent product made of carefully selected high-quality materials:
