2014 New Design Dimension Efficiency 10 mm pilot lamps

Product Overview

Description

 SAIPWELL,TO meet Your MAX.Demands!



The indicator lamp are used as indicating.accidental signals and other pilot signals and other pilot signal of instrument circuit in the areas of electric power,telecommunication, machinery,marine,textile,printing,mining etc.



Product details:



Technical data Operational temperature -25°C~+55°C Operational humidity 45~85%RH Contact resistance ≤50mΩ Insulation resistance ≥100mΩ Power-frequency withstand voltage 2000V AC Mechanical life No-illuminatted and illuminated pushbuttons 200,000 times 1200 times per hour   Maintained pushbuttons 100,000 times 1200 times per hour Electrical life AC-15 100,000 times (operate 300 times per hour) DC-13 50,000 times (operate 300 times per hour) Protection degree IP40 Operational travel 1.4~2.4mm

Rated values Rated insulation voltage Ui 250V Conventional thermal current Ith 5A Utilisation category Rated operational voltage Ue 24V 110V 220V AC-15 Rated operational current Le 2A 1A 0.5A DC-13 0.7A 0.2A 0.1A









Product adventages:



1.high brightness,long service life,low consumption



2.best price and efficient services



 3.Saipwell, as a professional manufacturer and supplier, is specialized in developing, producing and saling electric equipments fittings all over the world.



4.With high quality, best service, reasonable price, we enjoys a good reputation in America, Europe and Asia.

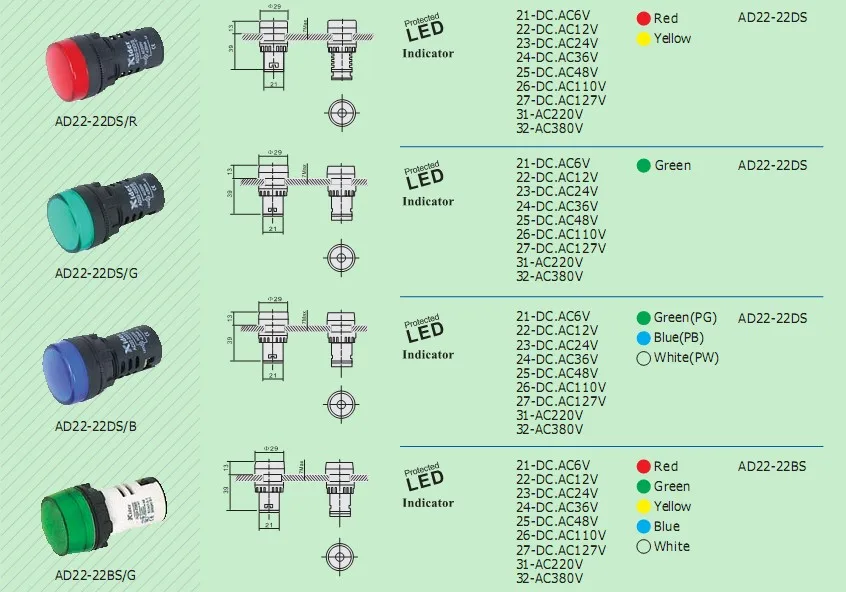

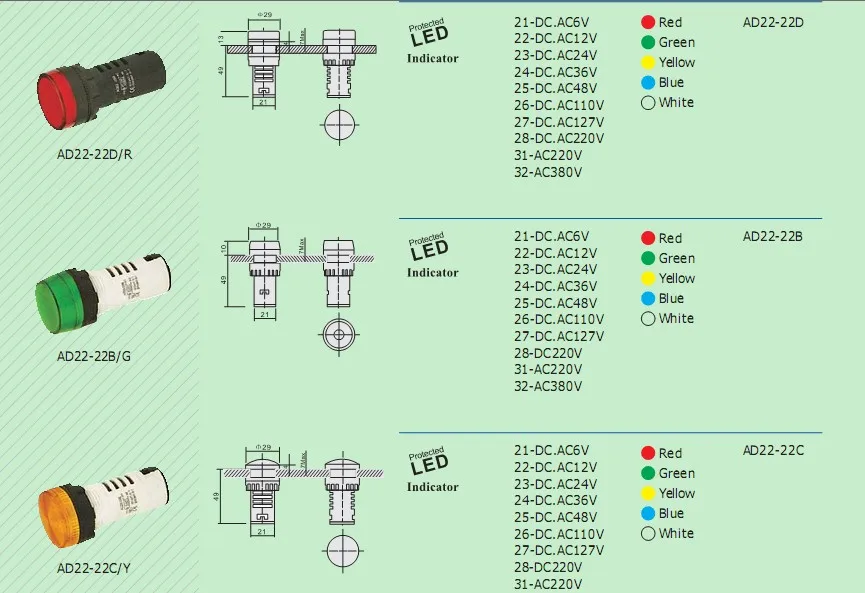

  Pictures for your reference :







Others (price,package and service)







1. The quoted price is always valid for 7 or 15 days due to the fluctuation of raw material cost.



  Please feel free to contact us for the catalogues or prices.



 2. Please kindly inform us which items you are interested & the best price will be provided you upon receipt of your new inquiry asap.



 3. Samples will be offered to you for our future cooperation.





If you are interested in our products,pls contact to me .







....
