automatic flipping tape sewing machine

Product Overview

Description



Main application and performance

By using the structure of moving mattress and fixing sewing head, Model FB5 tape edge  machine is an ideal mate equipment for automatic product line of mattress production, it could make the mattress move in or move out, corner and flip automatically; its unique abilities such as sewing head auto raising or lowering at the corner, speed auto slowdown at corner, sewing speed auto recovery after passing corner, adjustable sewing head tilting angle, adjustable sewing head lift, adjustable sewing speed, and adjustable conveyer speed, greatly increases the sewing quality.

Technical data:

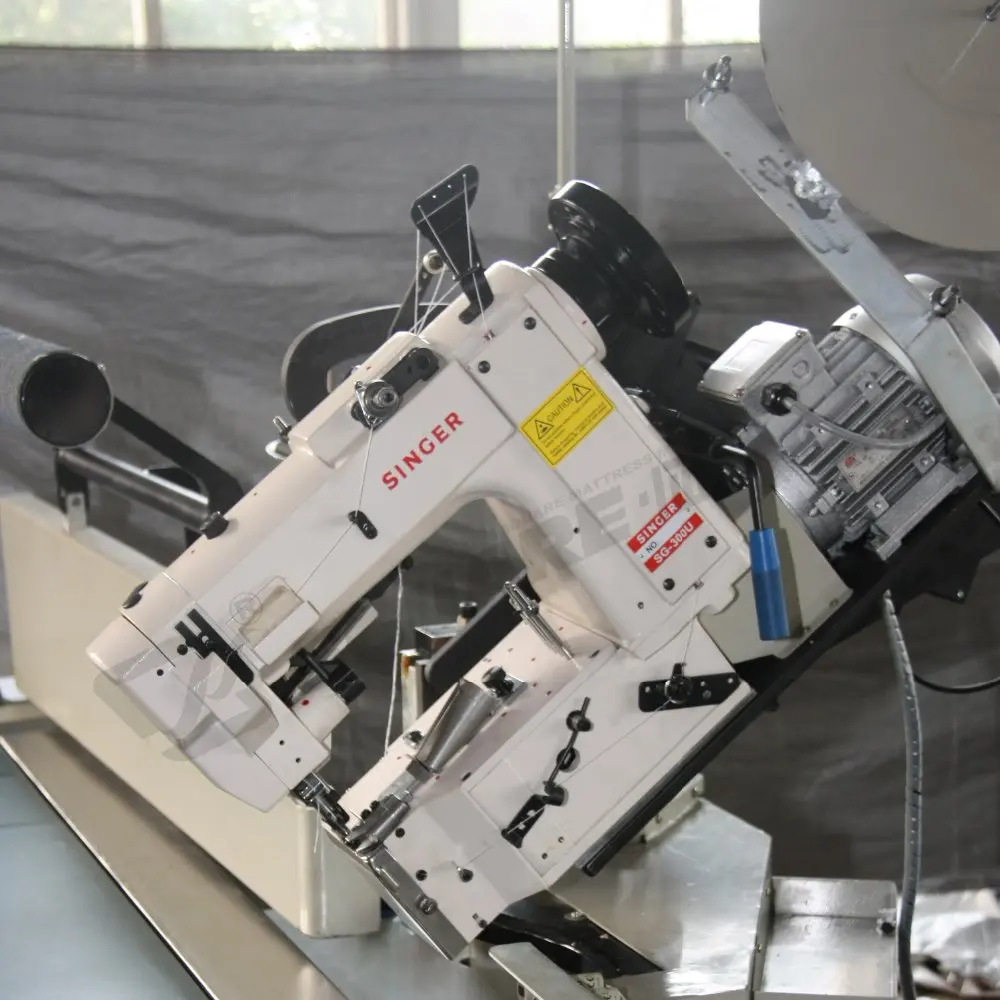

Sewing head type:	chain stitch
Sewing head lifting range:	0 - 240mm
Tilting angle of Sewing head:	25 - 65
Table conveyer belt speed:	10 - 14m/min
Available mattress thickness:	100 - 400mm
Production efficiency:	16 - 20 units/hour
Motor power:	3.2 KW
Air pressure:	0.6 - 0.8Mpa
Work table size:	L3750xW1980 mm



Voltage: Please pay attention to your country's voltage, China is 220v 1phase 50Hz / 380v 3phase 60Hz
