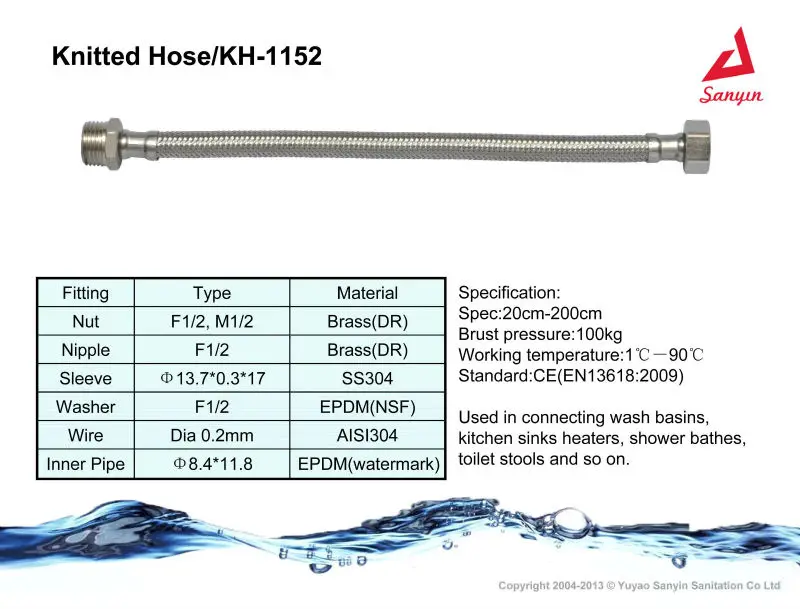

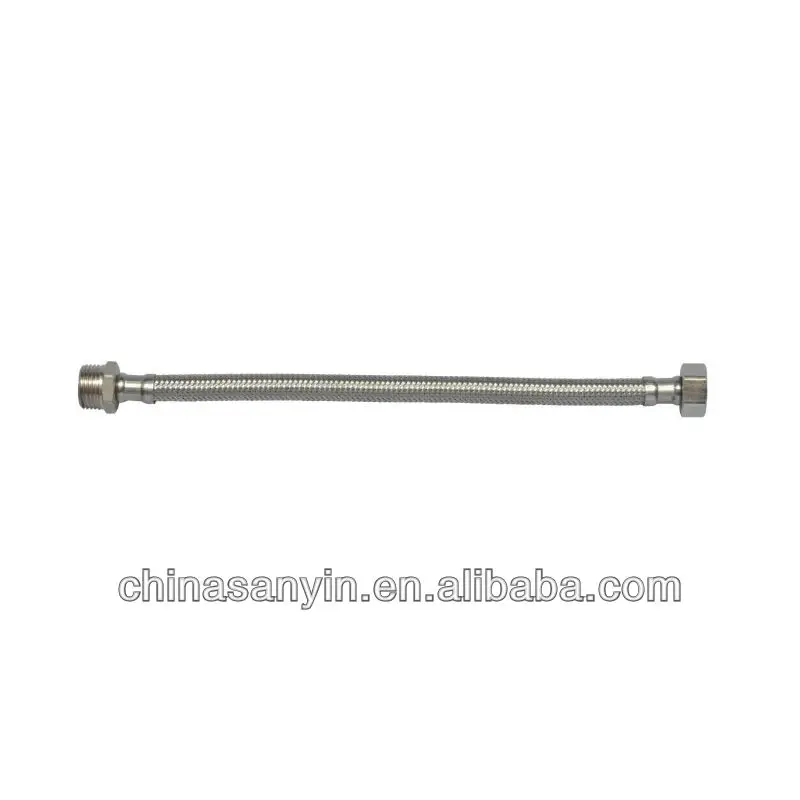

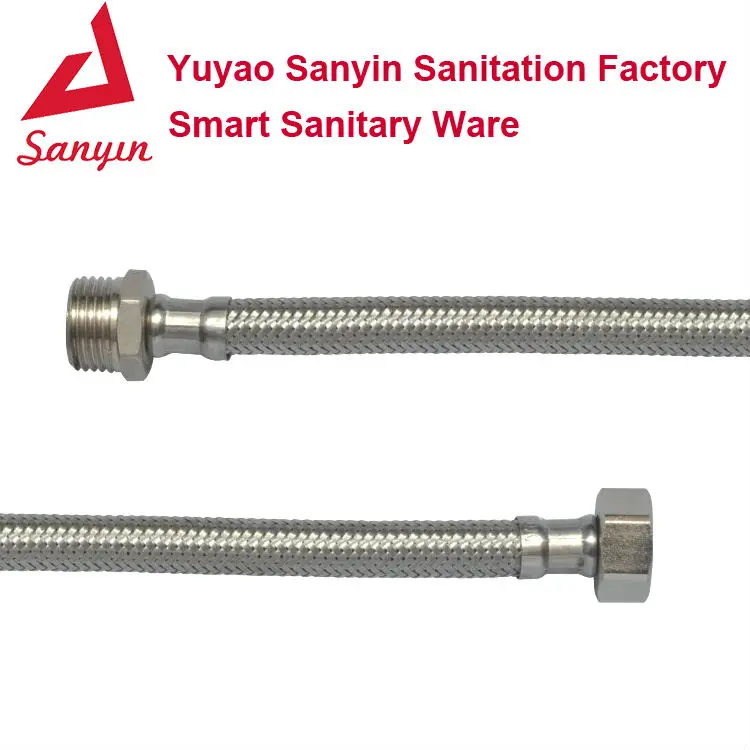

Flexible braided hose/knitted hose with stainless steel wire,aluminum wire or plastic wire(KH 1152)

Product Overview

Description

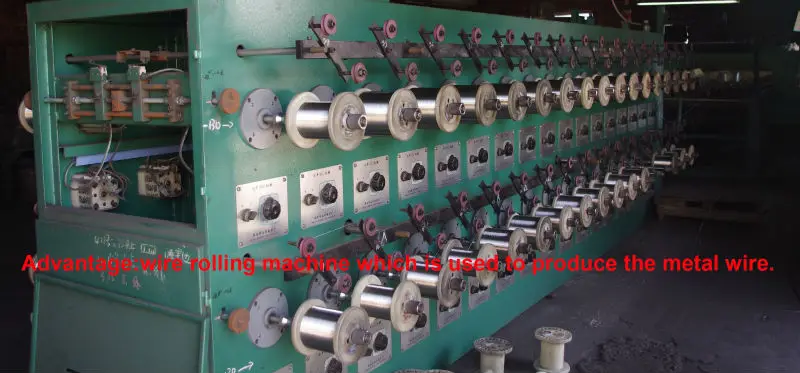

Sanyin is not only producing the complete product such as knitted hose,but also producing the stainless steel/aluminum wire which is used as main material in this product.

Sanyin can also do OEM according to your requests.

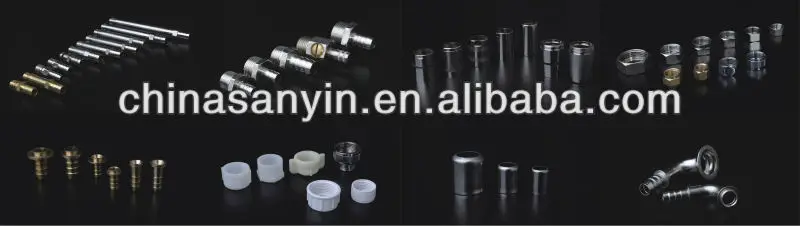

Fitting and Finishing:
Nut:Brass(DR) F1/2-Φ22.3x11x12.8
Nut:Brass(DR) M1/2-Φ8.4x31.8
Nipple:Brass(DR) F1/2-Φ8.4x22
Washer:EPDM(NSF) F1/2-Φ18x10.5x3
Sleeve:S.S304 Φ13.7x0.3x17
Inner Pipe:EPDM(Watermark) Φ8.4x11.8
Wire:AISI304 0.20mmDIA


Applications:
Suitable for connecting wash basins,kitchen sinks heaters,shower bathes
toilet stools and so on.

Technical information
Spec:20cm-200cm
Brust pressure:100kg
Working temperature:1°C-90°C
Standard:CE(EN13618:2009)
