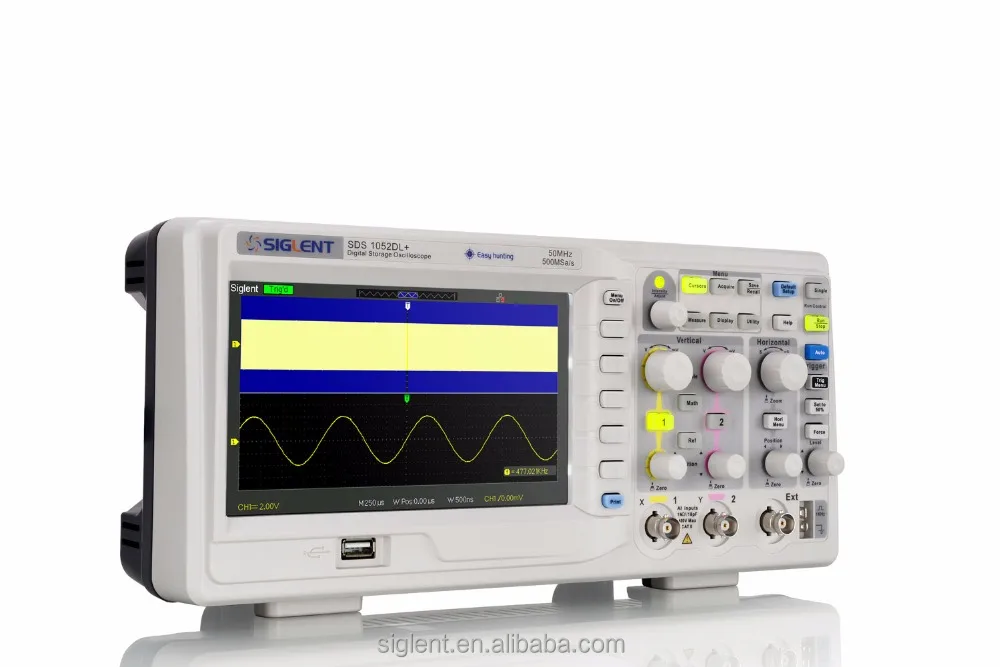

Siglent SDS1052DL , 50 MHz digital oscilloscope,

Product Overview

Description



SDS1000CML+/DL+ Series Digital Storage Oscilloscopes

Product Overview



SDS1000DL+/CML+ series is a dual-channel universal digital oscilloscope, available in 50 MHz, 100 MHz and 150 MHz bandwidth models. It includes a 2 Mpts memory depth that helps ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, the SDS1000CML+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.

Key Features



. 150 MHz, 100 MHz, 50 MHz bandwidth models

. Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s

. Memory Depth up to 2 Mpts

. Trigger types: Edge, Pulse, Video, Slope, Alternate

. Waveform math functions:+, -, *, /, FFT

. 6 digital frequency counter

. Supports Multi-language display and embedded online help

. Screensaver from 1 minute to 5 hours

. Digital filter and waveform recorder function

. Shortcut storage function key

. 7 inch TFT-LCD display with 800 * 480 resolution

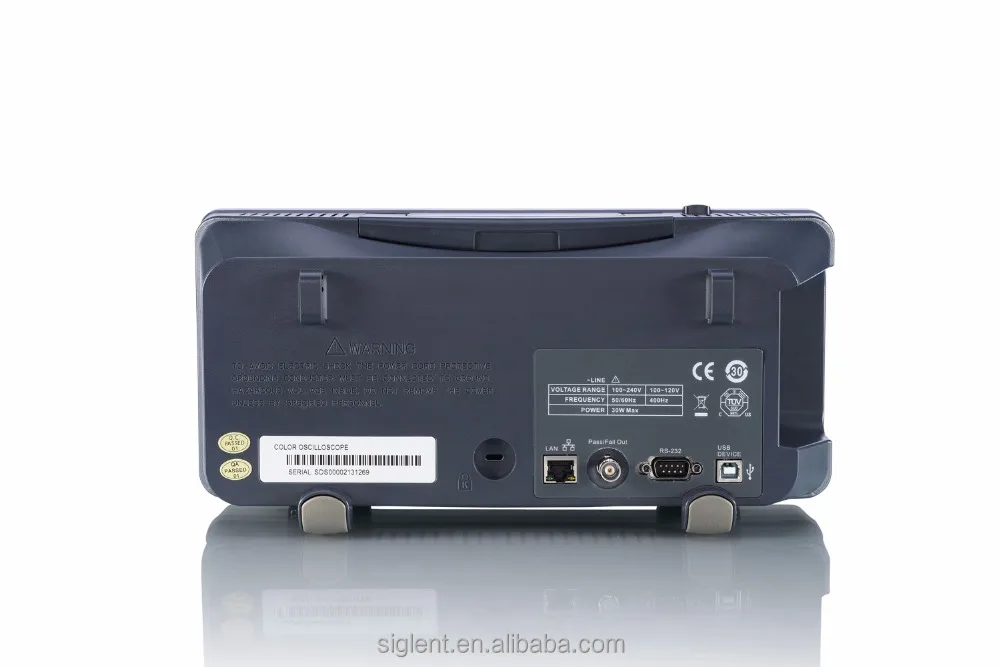

. Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail





Characteristics

Memory Depth up to 2 Mpts
Normal Memory (40 Kpts)	Long Memory (2 Mpts)
Using the long memory mode, users are able to use a higher sampling rate to capture more of the signal, and quickly zoom to focus on the area of interest.
32 parameters auto measurements and 5 parameters display	Zoom Function
The SDS1000DL+/CML+ support voltage, time and delay measurement types, with a total of 32 different parameters. The user is able to select five measurements to display on the screen. All measurement parameters can also be displayed simultaneously.	Zoom can extend a partial segment of the waveform, giving the user not only an overview of the whole signal but also a detailed view of the zoomed-in segment. The Zoom feature is a convenient way to locate a specific segment of a signal while zooming in to see the details
Pass/Fail Function	Math Function
With easy to generate user-defined test templates, the SDS1000DL+ / CML+ compares the current measured trace to the template mask trace making it suitable for long-term signal monitoring or automated production line testing.	SDS1000DL+/CML+ provides 5 kinds of math operation: +, -, *, /, FFT, supporting channel waveform and FFT waveform in either split display windows or both signals appearing on the full screen.
Digital Recorder
The digital recorder is able to record data in real-time and without any dead time. SDS1000DL+/CML+ supply 7 M of memory for the recorder and support a USB disk.	Replaying the data for user to observe and analyze.
Embedded Online Help	Abundant interfaces
Supports Multi-language display and embedded online help, familiarizes the user with all the functions of in a short time.	SDS1000DL+/CML+ support USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail





Ordering Information



Description	Model
50 MHz, 2CH, 500MSa/s (Max.) , 32 Kpts, 7 inch (800*480)LCD	SDS1052DL+
100 MHz, 2 CH, 1 GSa/s (Max.) , 2 Mpts, 7 inch (800*480) LCD	SDS1102CML+
150 MHz, 2 CH, 1 GSa/s (Max.) , 2 Mpts, 7 inch (800*480) LCD	SDS1152CML+
Standard Accessories
USB Cable -1
Quick Start -1
Certificate of Calibration -1
Passive Probe -2
Quality Certificate -1
Power Cord -1
CD (Included User Manual and EasyScopeX software) -1
Optional Accessories
Isolated Front End	ISFE
USB-GPIB Adapter	USB-GPIB Adapter
STB Demo board	STB
High Voltage Probe		HPB4010
Current Probe	CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/                                    CP5150/CP5500
Differential Probe		DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A
