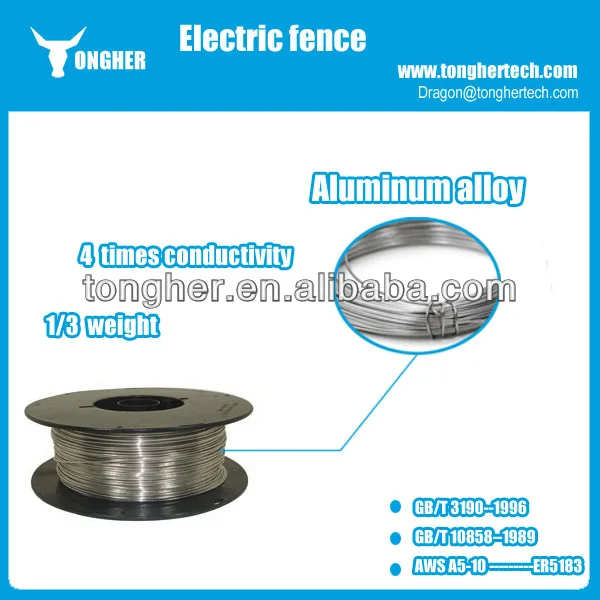

Aluminum alloy wire(TH-X20500),also called fence wire,is a conductor for transmission of power shock from the electric fence energizer,which is also a ideal conductor since its low resistance and anti-oxidated feature,making it a long lasting material for outdoor uses.

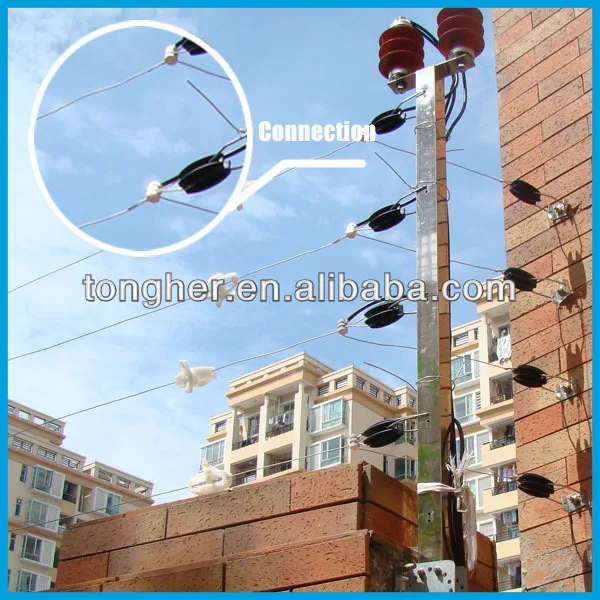

Aluminum alloy wire is widely used in electric fence system,acting as a conductor transferring the current from the energizer,which conducts electricity four times better than steel wire and one-third the weight of steel.
Material:
Al,Mg,Mn,Zn,etc.
Standard:
l GB/T 3190--1996
l GB/T 10858--1989
l AWS A5-10 ---------ER5183
Feature:
l 1.8mm,2.0mm and 2.5mm diameter
l Aluminum alloy
l Low resistance-<2.5Ω/100m
l Greater flexibility. Can be hand twisted and tied without the use of special tools
l Excellent joining with the same material
l Ideal for electric fence power shock transmission
Specification:
Item No.
Roll
Diameter
Pulling strength
Resistance rate
Tensile rate
TH-X18850
850m
1.8mm/17.5gauge
>296Mpa
<0.05388Ω.mm2/m
17%
TH-X20500
500m
2.0mm/14gauge
>296Mpa
<0.05388Ω.mm2/m
17%
TH-X25450
450m
2.5mm/12.5gauge
>296Mpa
<0.05388Ω.mm2/m
17%
Product Showcase:
Packaging & Shipping
Packing:
Dimension:29x29x11cm
Weight:6.5KG
Packed in cartons
3 pcs per carton
