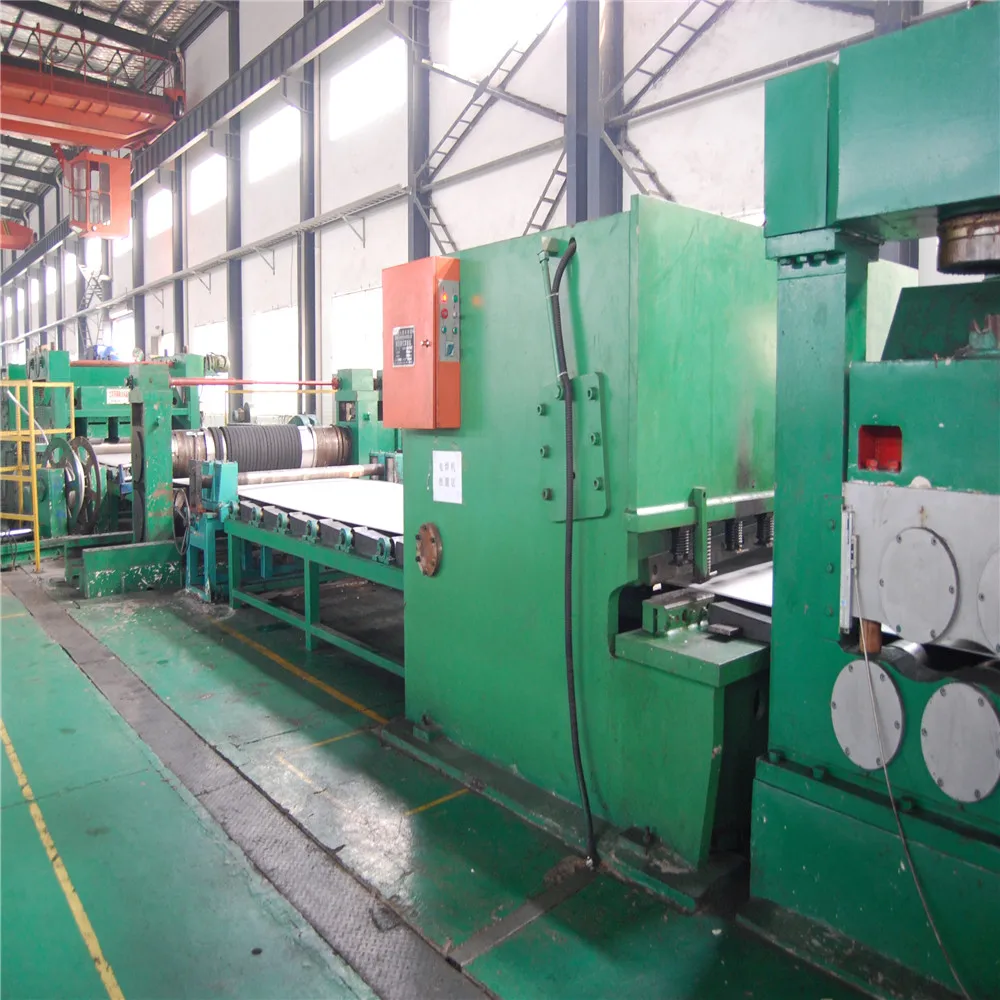

HJ1500 High Quality Coil Cutting to Length Line
Product Description

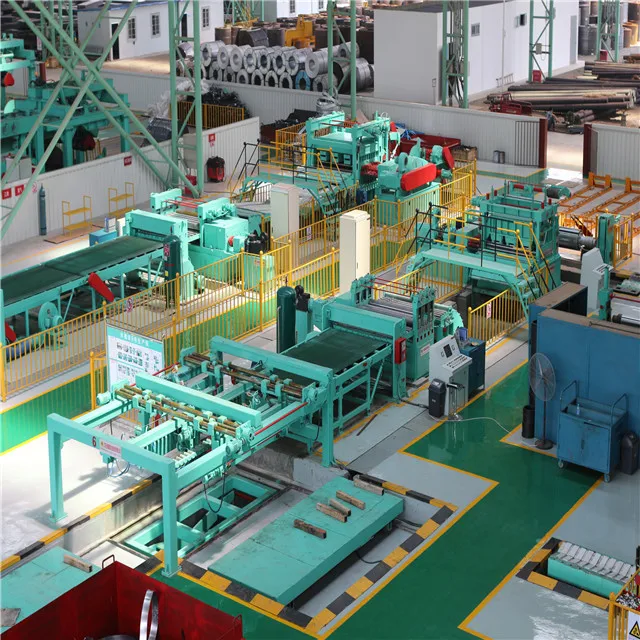

This Cut-to-Length line is used to uncoil the steel coil and cut it to certain length after flattening in the mode of stop-start.

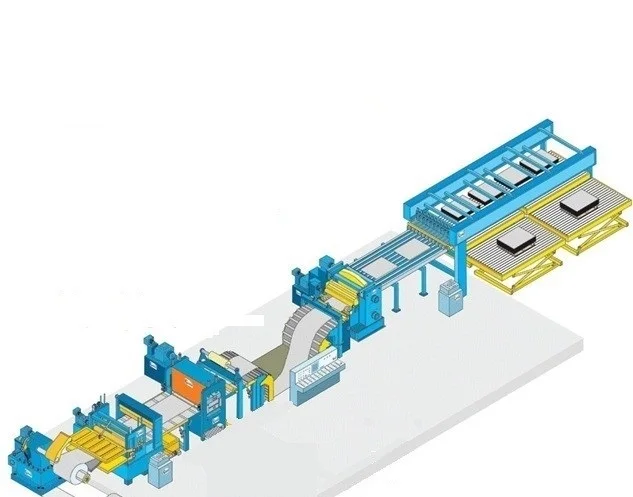

The technical flow of the production line:
Uncoiler→ shovel board device → Flattening →Accumulator→Centering device
→Fixed length and feeding device →cutting machine→convey table→ Precision
leveler→ sending roller→Stacking Frame
Raw material: | Black steel,blue steel, galvanized steel, cold-rolling steel, prepainted steel, pickling coil |
Thickness of steel strip: | 0.4~3.2mm |
Width of steel strip: | 800~1500mm |
Inner diameter of strip coil: | Φ508-Φ610mm |
Outer diameter of strip coil: | Φ1000-Φ1800mm |
Max quantity of strip coil: | 30 tons |
Cut Length: | 500~6000mm |
Cut Accuracy: | ±1.0mm |
Speed: | max 60m/min |
Input Power: | 380Volt, 3 phase, 4 lines, 50Hz. |
Feeding Direction: | Left side or right side |
Cutting line technical style: | Automatic fixed length and feeding feed length, fixed shear. |
COMPOSITION | 1. V-shape coil storage 2. Coil loading cart 3. Hydraulic double head uncoiler 4. Feeding conducting plate device 5. Pinch device 6. Fifteen-roll straightening machine quadruple style 7. Mid-bridge 8. Side guiding positioning device 9. Five-roll precise leveler 10. Pinch sizing device 11. Transverse shear 12. Delivery platform 13. Hydraulic loading lifting platform 14. Unloading stand 15. Unloading Car 16. Hydraulic and pneumatic system 17. Electric control system |
Product Usage
Related Products
About us
Shijiazhuang Teneng Electrical & Mechanical Equipment Co., Ltd is the professional manufacturer of the welded steel pipe production line, cold roll forming line, slitting line, cut-to-length line and the related auxiliary equipment. Teneng company is the modern enterprise which capable of research and development, production and sales. Teneng is a council member of China Roll Forming Association,a president member of Hebei Steel Tube Trade Association.Teneng machines are the most effective tube manufacturing equipment available in the world.In China, the well-known users are Hebei Jingye Group, SANY Group, China Shipbuilding Industry Corporation, Chongqing Changzheng Heavy Industry Co., Ltd etc.
