Solid woven belt
- Category: >>>
- Supplier: Zhejiang Three-V Imp. & Exp. Co. Ltd.
Share on (1568559577):
Product Overview
Description
Solid woven belt
Product Description
Applications & features:
- Especially suitable for material conveying at inflammable of underground coal mines.
- The fabric is high in strength, with low elongation, light carcass, shock resistant, anti-tear and good in trough ability.
PVC Solid Woven Conveyor Belt:
- Suitable for applications in dry conditions at a slope angle of no greater than 16 degrees.
- Cover thickness can be from 0.5 to 4 mm.

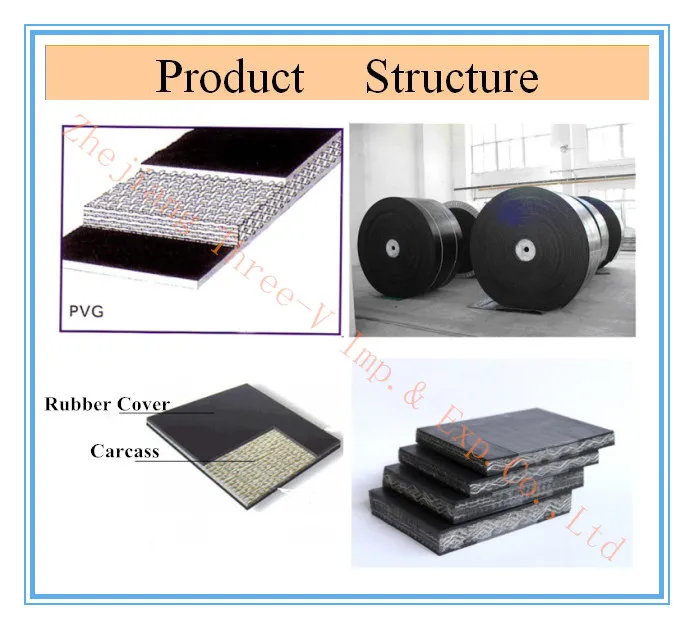

Nitrile Covered PVG type:
- Suitable for applications at a slope angle of less than 20 degrees, thickness can be 1 to 8 mm.
- Resistance to wetness, slip, low temperature and wear resistance of the belt.
Specification Availability:
| Type | 680S | 800S | 1000S | 1250S | 1400S | 1600S | 1800S | 2000S | 2500S | 3140S | 3400S | |
| Min Tesile Strength(N/m) | Warp | 680 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2000 | 2500 | 3140 | 3400 |
| Weft | 265 | 280 | 300 | 350 | 350 | 350 | - | - | - | - | - | |
| Min Elongation at Break(%) | Warp | 17 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Weft | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
| Recommended thickness(mm) | 7.5 | 8 | 8.5 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
| Recommended Cover Thickness(mm) | PVC | 1.5+1.5 | 1.5+1.5 | 1.5+1.5 | 2+1.5 | 2.5+1.5 | 2.5+1.5 | 3+2 | 3+2 | 3+2 | based on conveyor systems | |
| PVG | 1.5+1.5 | 1.5+1.5 | 1.5+1.5 | 2+1.5 | 2.5+1.5 | 2.5+1.5 | 3+2 | 3+2 | 3+2 | |||
Company Information
Having specialized in mechanical conveyor systems products for more than 20 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Imp&Exp Company,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
