EASCO Cable Way Channel PVC Extruded Slotted Grey Manufacturer Approved By UL94V0 Electric Panel Building

Product Overview

Description

EASCO Cable Way Channel PVC Extruded Slotted Grey Manufacturer Approved

UL94V0  CE  ISO9001 ISO14001

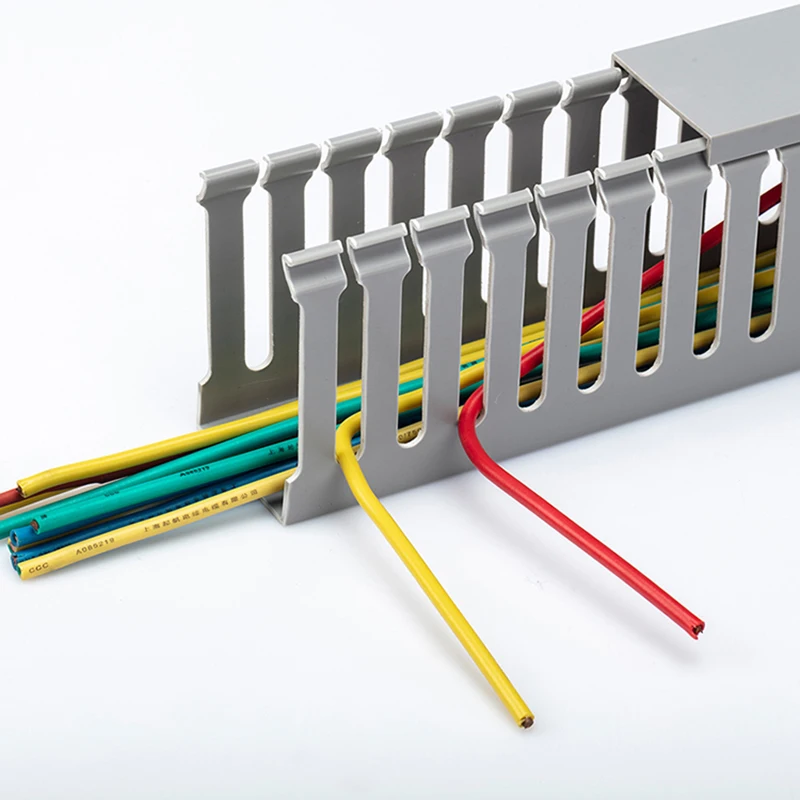

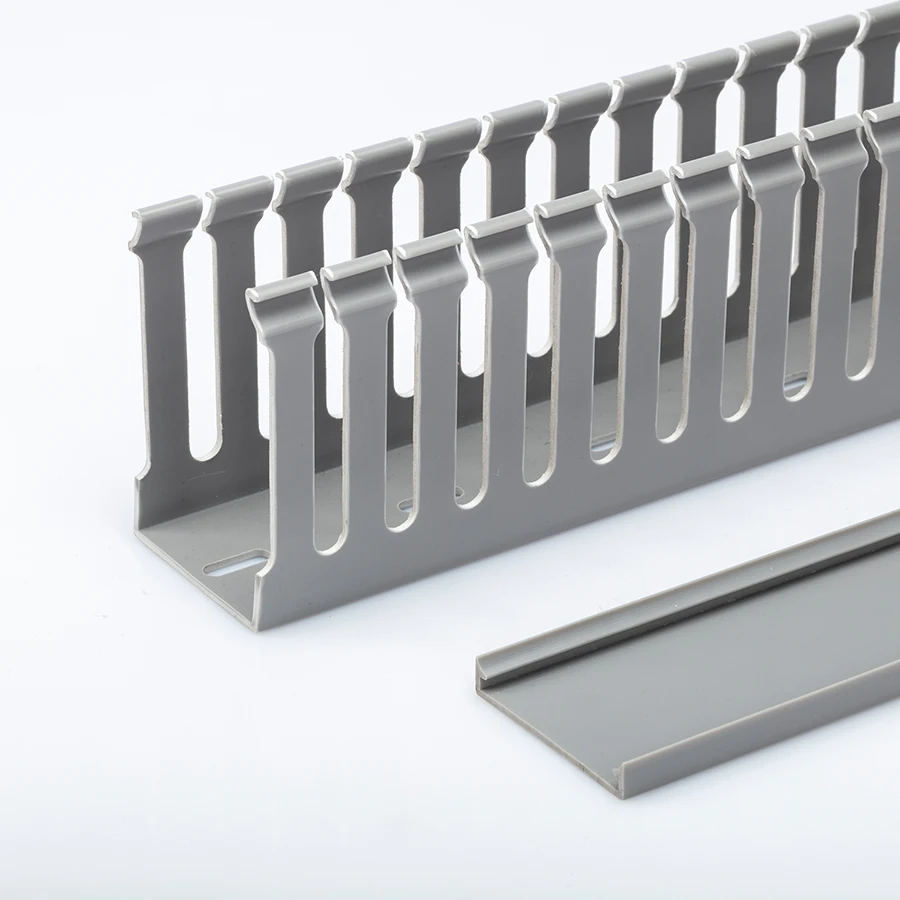

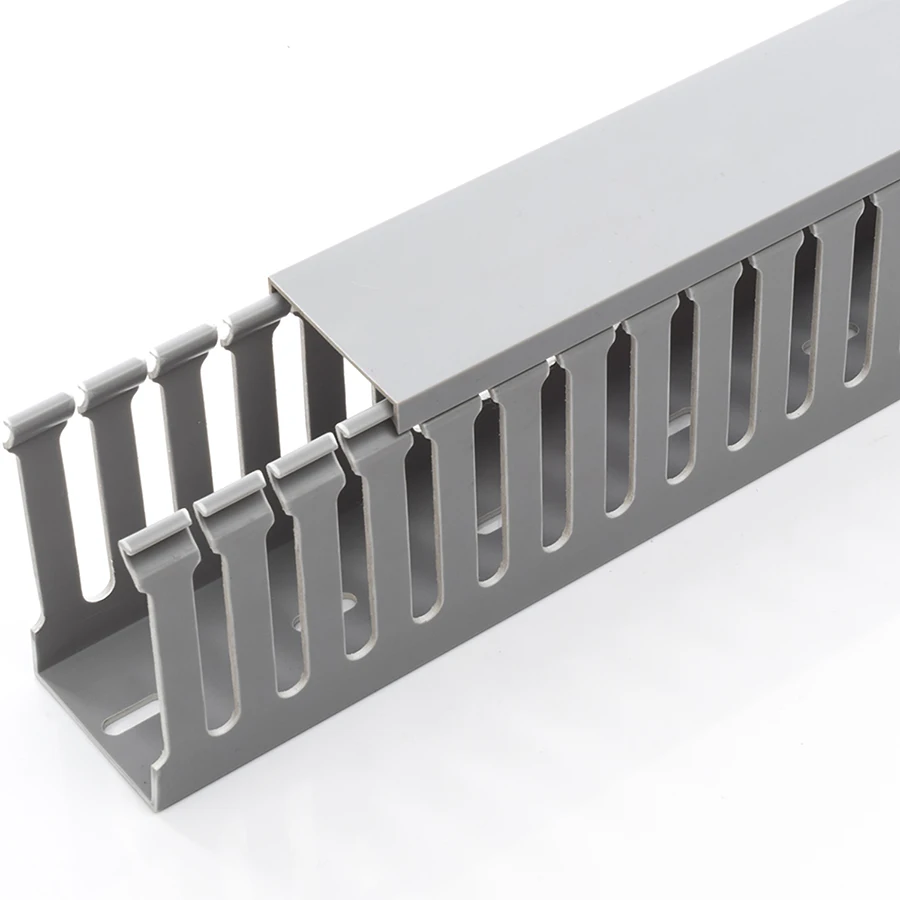

Aesthetics Open Slot Wiring Duct

Easy insertion and removal of wire and cable

mooth edges can protect your hands & wiring

insulation free from burrs or sharp edges without abrasion

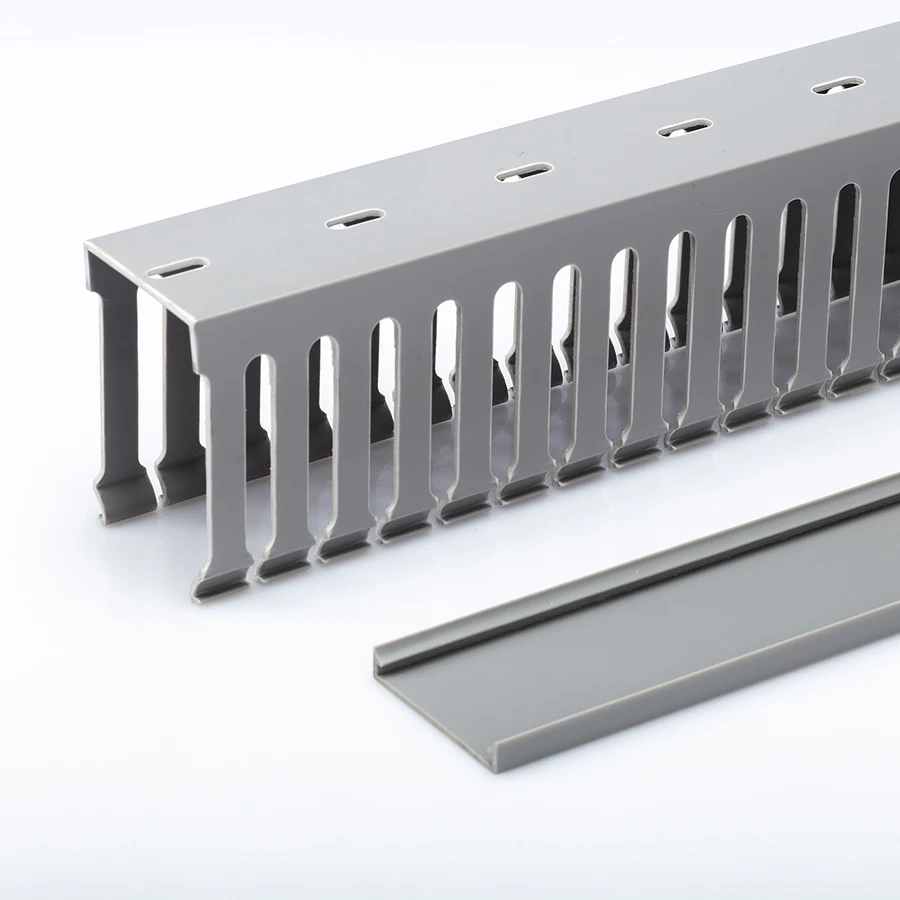

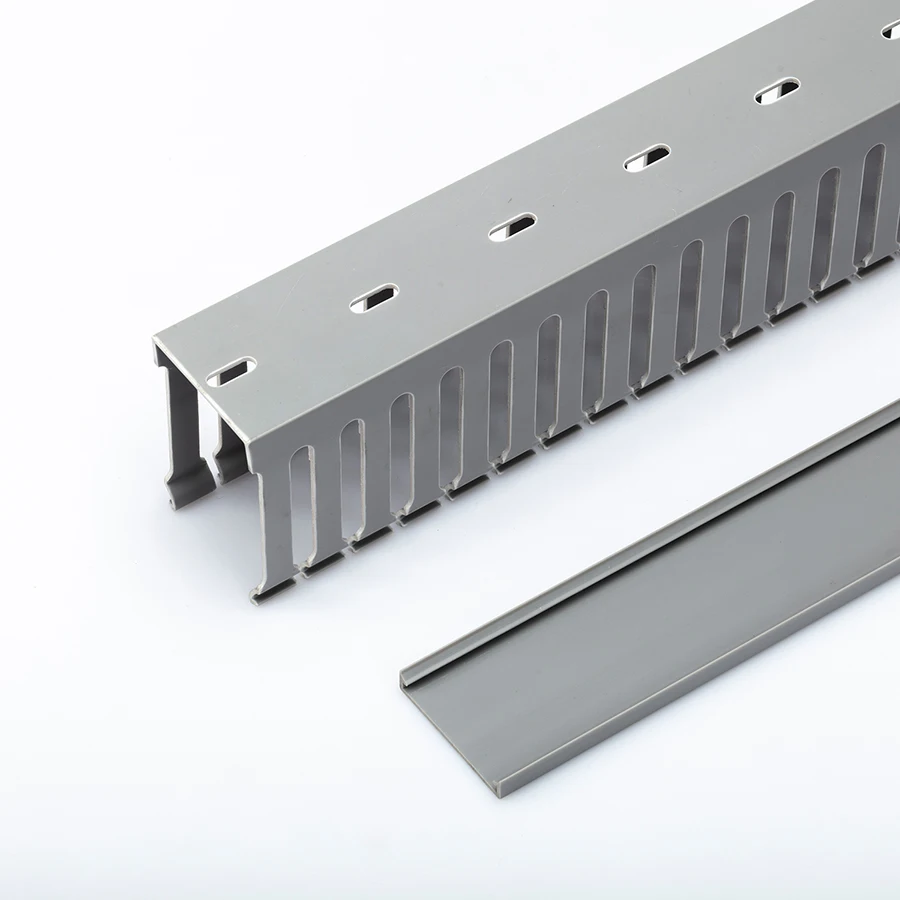

With mounting holes for easy mounting when installation

Unique design holds more wires than traditional wire ducts

Non-slip cover available for preventing cover slipping in vertical direction.

Article-No.	Item No.	Slot 4mm	Slot 6mm	Slot 8mm	WxHxL (mm)	Packing (pcs/pack)
1101-00001	PXC1525	S	-	L	15x25x2000mm	150
1101-00002	PXC2025	S	-	L	20x25x2000mm	116
1101-00003	PXC2525	S	-	L	25x25x2000mm	90
1101-00004	PXC3025	S	-	L	30x25x2000mm	60
1101-00005	PXC2030	S	M	-	20x30x2000mm	96
1101-00006	PXC2530	S	M	L	25x30x2000mm	72
1101-00007	PXC3030	S	M	L	30x30x2000mm	70
1101-00008	PXC3530	S	M	L	35x30x2000mm	56
1101-00009	PXC4030	S	M	L	40x30x2000mm	50
1101-00010	PXC3333	S	M	L	33x33x2000mm	56
1101-00011	PXC2535	S	M	-	25x35x2000mm	72
1101-00012	PXC3535	S	M	-	35x35x2000mm	50
1101-00013	PXC5035	S	M	-	50x35x2000mm	50
1101-00014	PXC2540	S	M	L	25x40x2000mm	58
1101-00015	PXC4040	S	M	L	40x40x2000mm	50
1101-00016	PXC6040	S	M	L	60x40x2000mm	40
1101-00017	PXC2545	S	M	L	25x45x2000mm	54
1101-00018	PXC3345	S	M	L	33x45x2000mm	42
1101-00019	PXC4545	S	M	L	45x45x2000mm	46
1101-00020	PXC6545	S	M	L	65x45x2000mm	36
1101-00021	PXC2550	S	M	L	25x50x2000mm	50
1101-00022	PXC3050	S	M	L	30x50x2000mm	60
1101-00023	PXC3550	S	M	L	35x50x2000mm	60
1101-00024	PXC4050	S	M	L	40x50x2000mm	50
1101-00025	PXC4550	S	M	L	45x50x2000mm	40
1101-00026	PXC5050	S	M	L	50x50x2000mm	40
1101-00027	PXC5550	S	M	L	55x50x2000mm	40
1101-00028	PXC6050	S	M	L	60x50x2000mm	34
1101-00029	PXC8050	S	M	L	80x50x2000mm	26
1101-00030	PXC10050	S	M	L	100x50x2000mm	20
1101-00031	PXC2560	S	M	L	25x60x2000mm	66
1101-00032	PXC3060	S	M	L	30x60x2000mm	60
1101-00033	PXC3560	S	M	L	35x60x2000mm	50
1101-00034	PXC4060	S	M	L	40x60x2000mm	42
1101-00035	PXC4560	S	M	L	45x60x2000mm	42
1101-00036	PXC5560	S	M	L	55x60x2000mm	36
1101-00037	PXC6060	S	M	L	60x60x2000mm	30
1101-00038	PXC8060	S	M	L	80x60x2000mm	22
1101-00039	PXC10060	S	M	L	100x60x2000mm	16
1101-00040	PXC7264	S	-	L	72x64x2000mm	24
1101-00041	PXC2565	S	-	L	25x65x2000mm	60
1101-00042	PXC3365	S	-	L	33x65x2000mm	54
1101-00043	PXC4565	S	-	L	45x65x2000mm	42
1101-00044	PXC6565	S	-	L	65x65x2000mm	30
1101-00045	PXC2580	S	-	L	25x80x2000mm	50
1101-00046	PXC3080	S	-	L	30x80x2000mm	40
1101-00047	PXC3580	S	-	L	35x80x2000mm	36
1101-00048	PXC4080	S	-	L	40x80x2000mm	28
1101-00049	PXC4580	S	-	L	45x80x2000mm	28
1101-00050	PXC5080	S	-	L	50x80x2000mm	24
1101-00051	PXC5580	S	-	L	55x80x2000mm	24
1101-00052	PXC6080	S	-	L	60x80x2000mm	20
1101-00053	PXC8080	S	-	L	80x80x2000mm	16
1101-00054	PXC10080	S	-	L	100x80x2000mm	12
1101-00055	PXC12080	S	-	L	120x80x2000mm	10
1101-00056	PXC14080	S	-	L	140x80x2000mm	8
1101-00057	PXC33100	S	-	L	33x100x2000mm	36
1101-00058	PXC40100	S	-	L	40x100x2000mm	28
1101-00059	PXC48100	S	-	L	48x100x2000mm	24
1101-00060	PXC50100	S	-	L	50x100x2000mm	24
1101-00061	PXC60100	S	-	L	60x100x2000mm	20
1101-00062	PXC70100	S	-	L	70x100x2000mm	16
1101-00063	PXC80100	S	-	L	80x100x2000mm	16
1101-00064	PXC100100	S	-	L	100x100x2000mm	12
1101-00065	PXC120100	S	-	L	120x100x2000mm	8
1101-00066	PXC160100	S	-	L	160x100x2000mm	6
