Media Tools YES T12 Information Trailer with Scissor Type Hydraulic Lifting Support System Mobile Trailer Advertise LED Display.
- Category: >>>
- Supplier: Leyard(Shanghai) Digital Technology Co. Ltd.
Share on (1569867651):
Product Overview
Description
Leading Manufacturer & Solution Provider of Mobile LED Advertising Vehicles

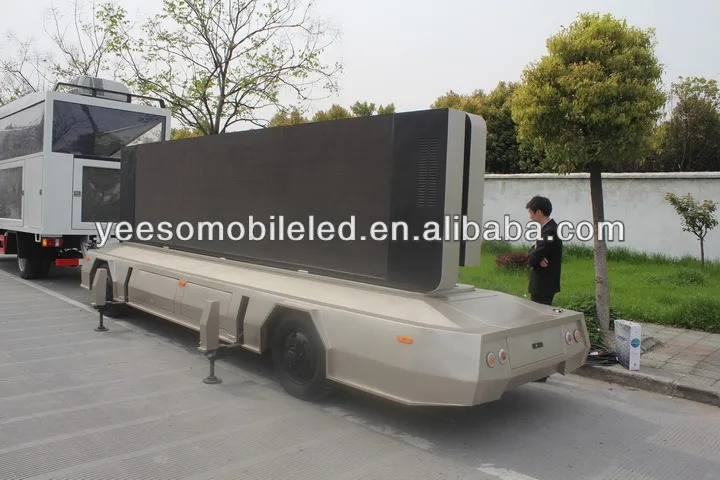

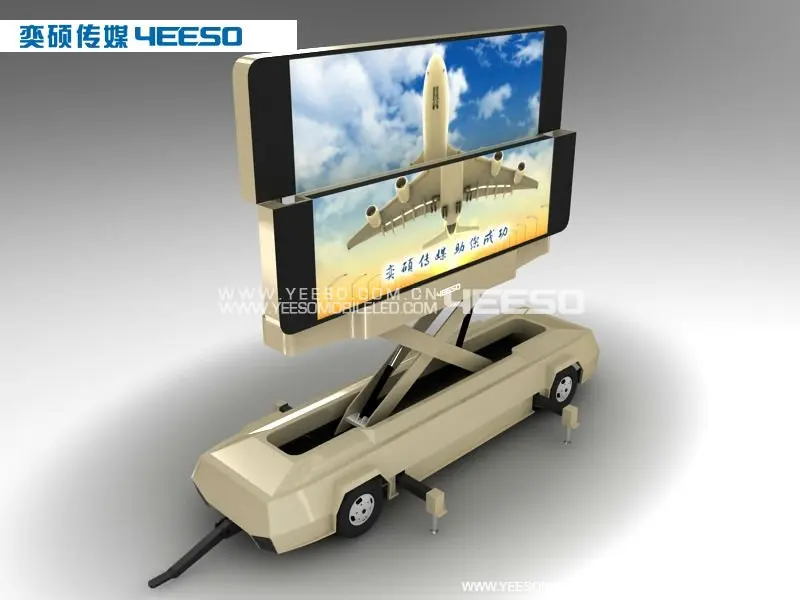

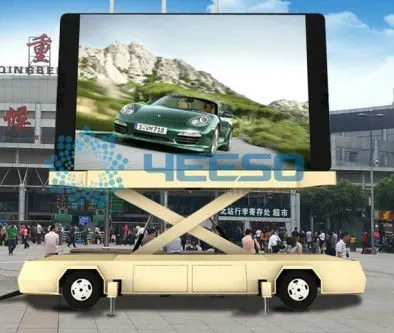

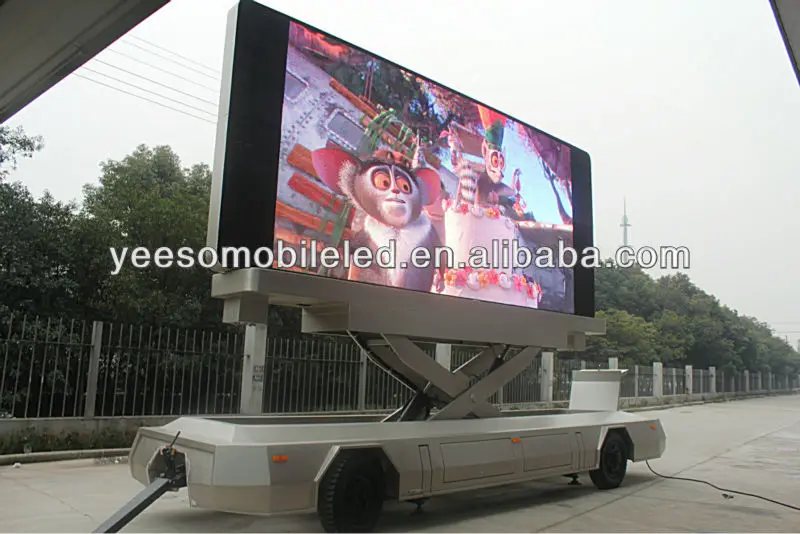

Media Tools YES-T12 Information Trailer with Scissor Type Hydraulic Lifting Support System Mobile Trailer Advertise LED Display:
1.It can be moved to anywhere as you like
2.Easy maintenance and operation
3.With screen lifting system
4.The Special design of appearance
5.It can be fit in 20"GP directly
Media Tools YES-T12 Information Trailer with Scissor Type Hydraulic Lifting Support System Mobile Trailer Advertise LED Display:
|
Model |
YES-T12 |
||||
|
Chassis |
|||||
|
Brand |
Yeeso |
External dimension |
6800mm×1920mm×2350mm |
||
|
Material |
16# manganese steel |
sheet metal structure |
1.2mm plate steel |
||
|
Tire |
650rubber tire |
Gross mass |
4750KG |
||
|
Brake |
Manual and Hit hydraulic brake |
minimum turning diameter |
<18000mm |
||
|

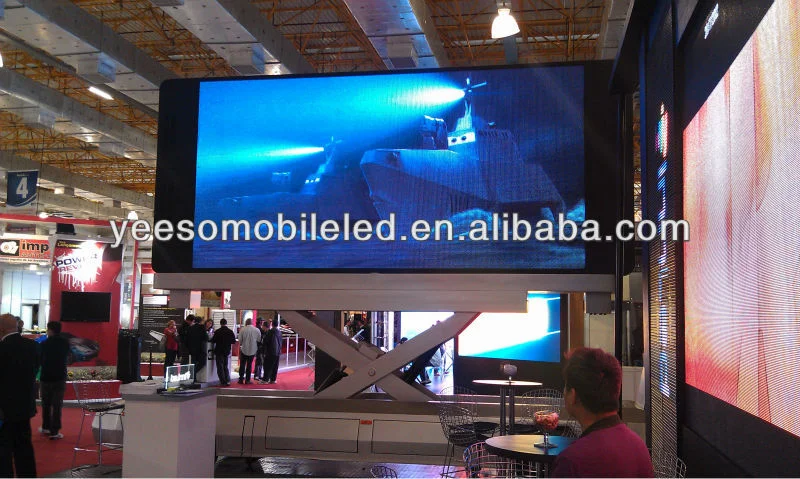

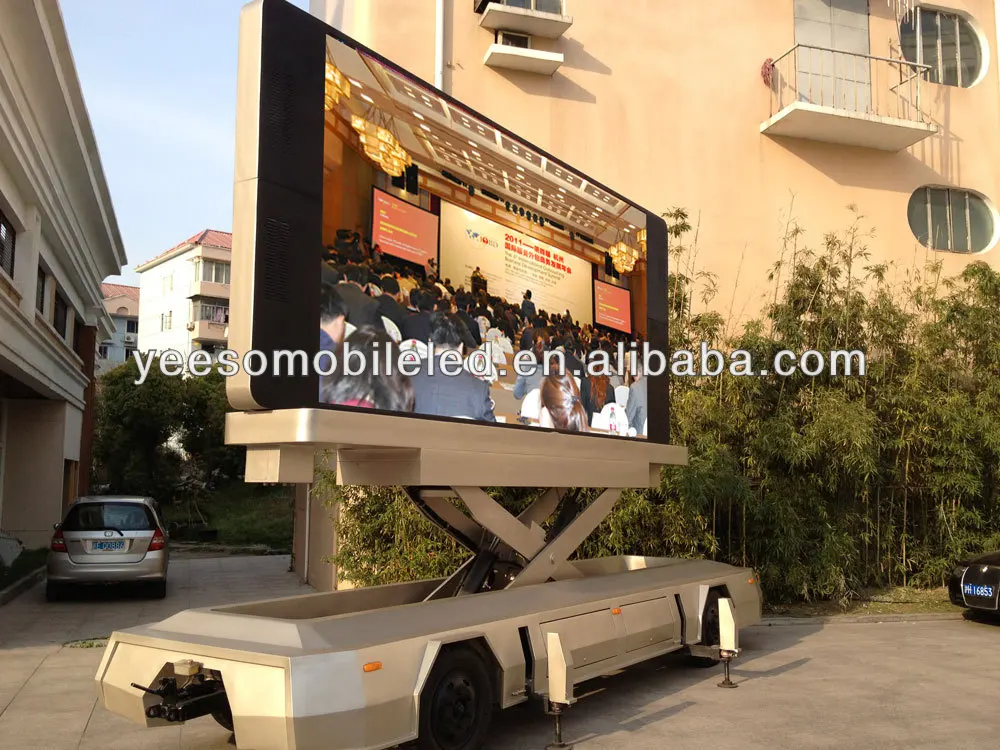

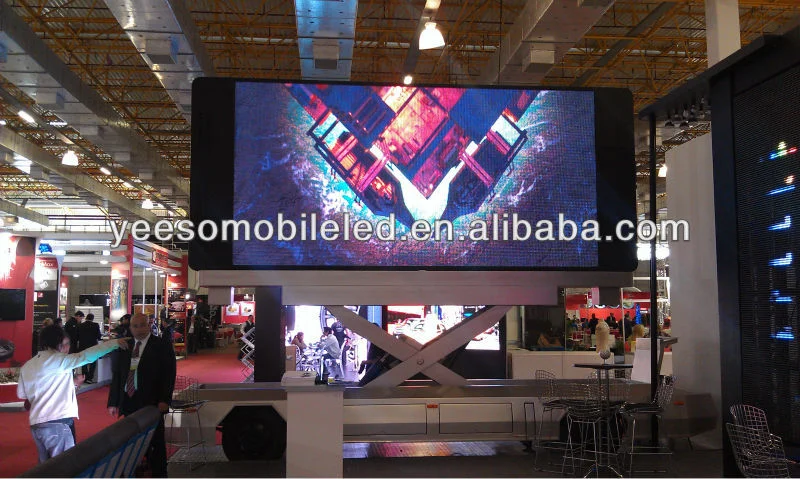

Scissor Type Hydraulic Lifting Platformand support system |
|||||
|
Hydraulic lift platform |
Lifting type: Scissor, Platform size: 3200mm×750mm×400mm Lifting height:2000mm,load bearing:5T |
||||
|
Supporting system
|
leading screw supporting legs system, Lifting height: 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up |
||||
|
LED screen |
|||||
|
Screen size |
4800mm×2400mm |
Module size |
160mm(W)×160mm(H) |
||
|
Chip |
R: GUANGLEI; G,B:SILAN |
Pixel pitch |
10 mm |
||
|
Brightness |
≥6000cd/m² |
Max power consumption |
1200W/sqm |
||
|
Average power consumption |
600W/m² |
Life span |
100,000hour |
||
|
Power supply |
|||||
|
Input voltage |
three-phase five-wire 380V |
Output voltage |
220V |
||
|
Electrical current |
50A |
Power consumption |
average:0.5wh/m² |
||
|
Multi-media control system |
|||||
|
Industrial PC |
Processor:Dual Core CPU; Display card: 512; Hard disk:320G; CD-ROM: DVD; Internal storage:2G |
||||
|
Monitor |
KVM 15-inch LCD display |
Power amplifier |
unilateral power output: 200W |
||
|
Speakers |
Max power consumption: 200W |
Control system of LED screen |
Linsn/ZHOGNQING (The patent technology of point by point correction) |
||
|
Press Release |
News conferences, product launches, channel investment activities, press appearances , etc |
|
Activities Road Show |
Promotions, public relations activities, product marketing, branding promotion, draft activities, live shows and other sales |
|
Live |
Sporting events, live events, concerts, etc. |
|
Parade Display |
Product buildings parade promotion, exhibitions, fairs, shows, etc |
|
Forum Lecture |
forums, conferences and seminars |
|
Celebration & Ceremony |
Real estate opening, anniversary celebration, the opening ceremony, festivals, ribbon-cutting ceremony, award ceremonies. |
|
Election |
promotion for election, policy promotion |
|
Other Applications |
Wedding live, auction, et |
Media Tools YES-T12 Information Trailer with Scissor Type Hydraulic Lifting Support System Mobile Trailer Advertise LED Display:
A stylish classic of mobile LED advertising vehicles! The outlook adopts a chassis of fashionable design which carries a LED display in IPhone shape to look luxury and fashionable. Its fashionable outlook and perfect functions have achieved a genuinely perfect fusion of art and mechanics and it will surely overturn your perception of traditional mobile LED advertising vehicles!
