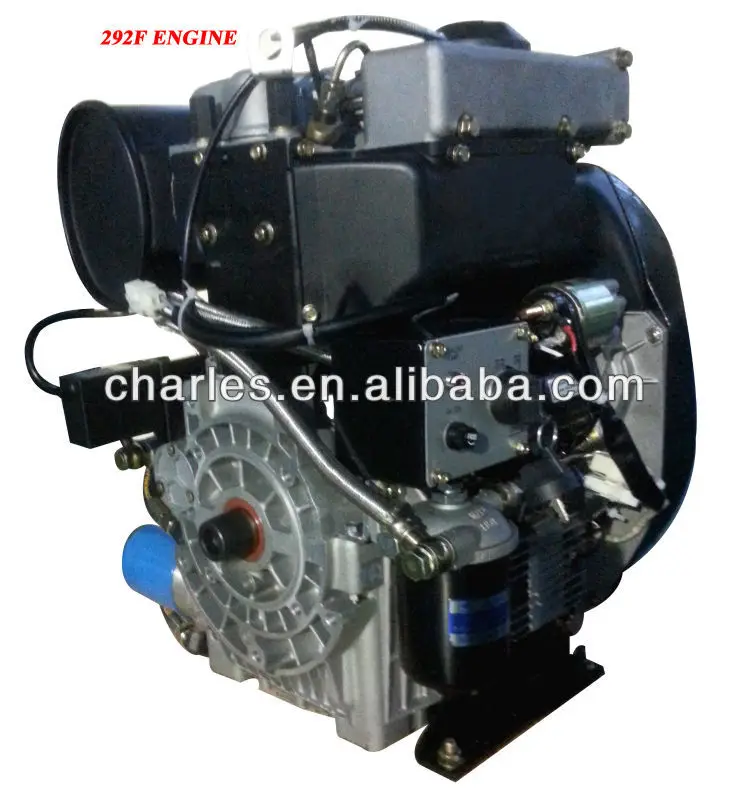

2 cylinder 4 stroke air cooled diesel engine 292F for generator

Product Overview

Description



Model	HM290F		HM292F
Type	2 Cylinder, 4 stroke, air cooled
Rated power(HP)	18	20	20	22
Rated speed(r/min)	3000	3600	3000	3600
Max torque(N.m/r/min)	55/2100		58/2200
Fuel consumption(g/kw.h)	≤270	≤ 280	≤270	≤280
Displacement(mL)	954		999
Bore*stroke	90*75		92*75
Lube oil  capacity(L)	3
Lubricating way	Forced & Splashing
Noise at 7 m(dB)	≤84
Starting way	electric
Rotation direction at output end	counter-clockwise
Net weight(kg)	85
Packing(mm)	582*461*587
