Woodworking Four Spindle Copy Milling Lathe Machine

Product Overview

Description

 We supply Woodworking Four Spindle Copy Milling Lathe Machine Model MFX1000S



Model	MFX1000S
Working length	20-1000mm
Max Working diameter	180mm
Number of working spindles	4
Rotary speed of milling cutter	3000r/min
Total power	8kw
Milling cutter Motor power	3kw*2
Feeding speed	0-20mm/round
Loading method	Manual
Overall dimensions	2300*1000*1300mm
Weight	1500kg
Voltage	380V 50hz 3Ph



Function:

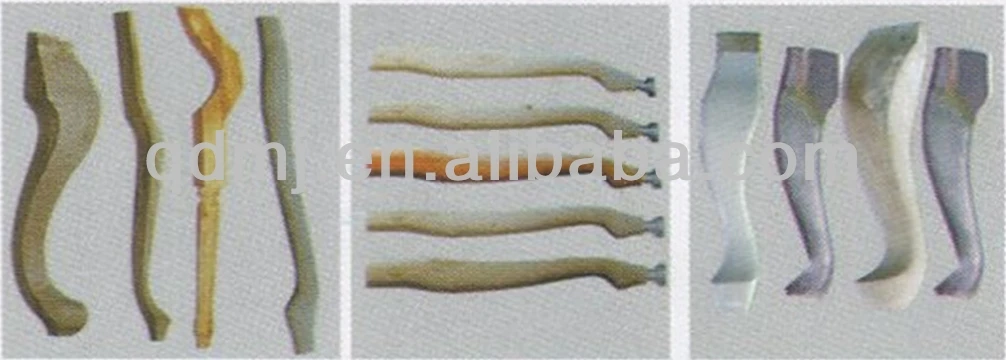

This machine is used to produce vase, stair railing, ball, chair and table leg, wood rod, curve and other heteromorphosis wood products.



Validity: 60 Days

Payment: 30% by T/T deposit in advance as down payment, balance by T/T before shipment, or L/C

Package: Plastic film packing and fit in container directly.

Delivery: About 30 days after receive the down payment.

Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
