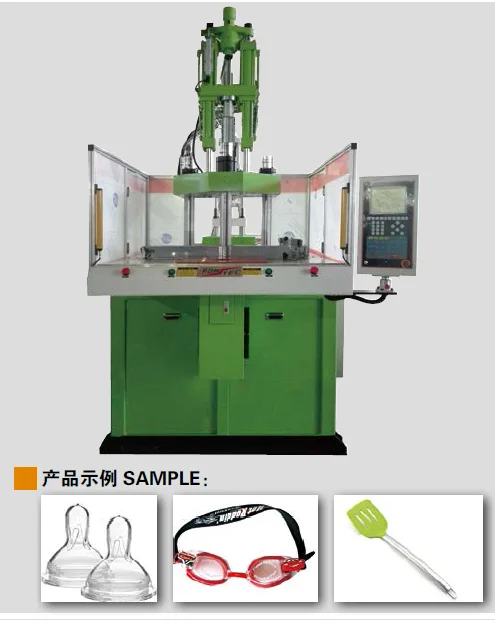

Liquid Silicone Rubber Injection Molding Machine for baby nipple bottle

Product Overview

Description

PHOTO:









SPECIFICATION

Injection Unit	Screw Diameter	mm	32	36	42
	Maximum Injection Pressure	kg/cm2	2051	1620	1190
	Injection Rate	cm3/sec	63	80	109
	Screw Stroke	mm	140
	Theoretical Shot Volume	cm3	113	143	194
Clamping Unit	Clamping Force	ton	60
	Demolding Force	ton	13.5
	Top Platen Size	mm	610 X 460
	Shuttle Table Size	mm	450 X 1000
	Shuttle Stroke	mm	500
	Mold Size	mm	460 X 310
	Minimum Mold Thickness	mm	200/300
	Opening Stroke	mm	250
	Open Daylight	mm	450/550
	Ejector Force	ton	2
	Ejector Stroke	mm	65
Others	Hydraulic System Pressure	kg/cm2	140
	Oil Tank Volume	L	245
	Electric Power	hp(kW)	10(7.5)
	Barrel Heating Power	kW	5.55
	Machine Weight (approx.)	ton	2.7
	Machine Dimensions (approx.)	m	1.9 X 1.8 X 2.9
