Chine Chern Precision Hydraulic Double Working Head Pipe Expanding Machine Automatic Tube Bending Forming Equipment from China

Product Overview

Description

Chine Chern Precision Hydraulic Double Working Head Pipe Expanding Machine Automatic Tube Bending Forming Equipment from China



Features:



1.PLC control, Hydraulic-cylinder driven ,Imported electronic parts

2.shrink the mouth,the flaring,blows the wave.

3. Movable pedal switch  ,There are 3 functions:  Automatic ,emergency stop,emergency stop and continue .More safe.

4.  We can customise the machine as per your requirement .

5.  Material:  Iron Pipe,Carbon Steel Pipe,Aluminum pipe and so on.

6. Process Shape: concave,  convex , Rectangle ,Suqare,V Shape and so on.



Parameters:



Model	JC-1-40	JC-1-50	JC-1-80	JC-2-40 Double-head
Max tube O.D	38×2.0t	50×2.0t	80×2.5t	40×2.0t
Work stroke(mm)	100	100	100	150
Motor power(kw)	4	4	5.5	7.5
Oil pressure(T)	5.2	9.5	21	21
Work speed(mm/sec)	100/3-4	100/3-4	100	100
Machine size(cm)	260×55×130	260×60×140	260×65×146	260×65×146
Machine weight(kg)	1100	1250	1500	1500

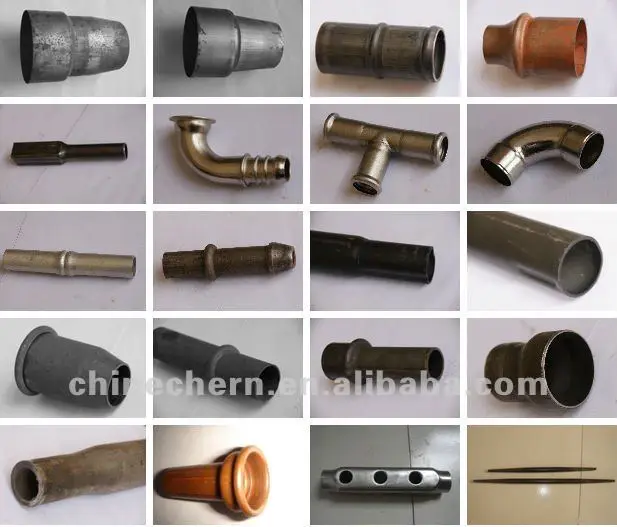

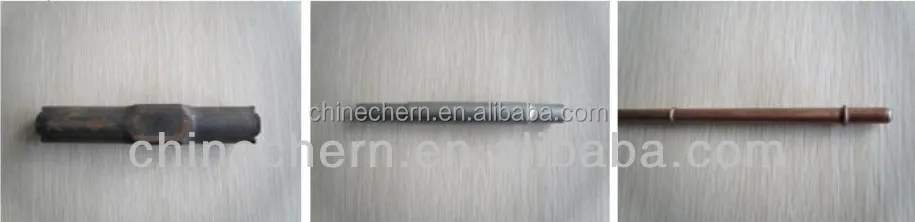

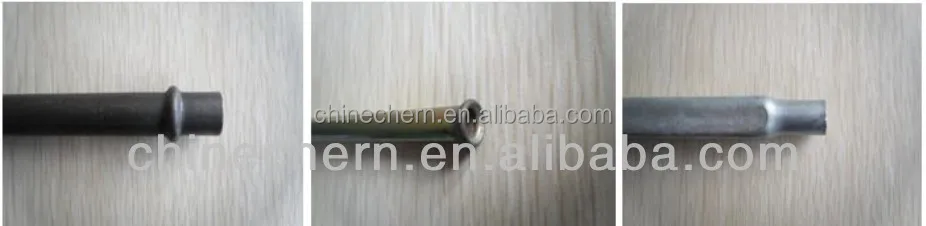

Machine expanding samples :

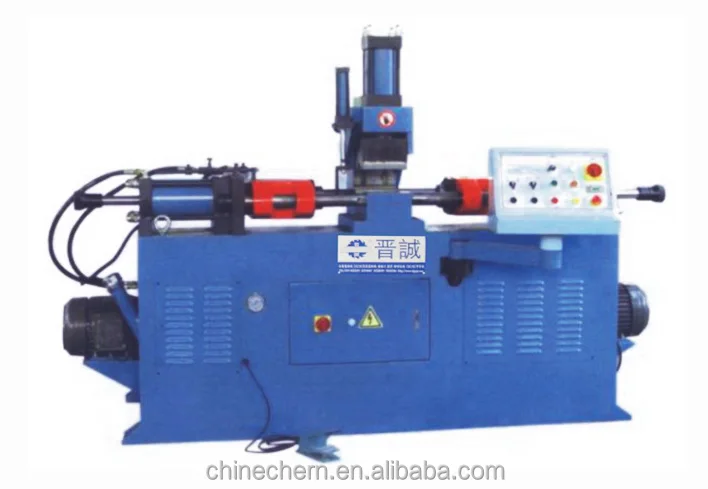

Machine Picture :







 Certificate :






 About Chine Chern :

with decades hard  work  and  accumulated  experiences,  We have  acquired  fourty  invention patent,Utility model and appearance patent.Meanwhile, We  have  passed  ISO9001:2008 quality system certificate, Government-issued  Guangdong  Province  private technology enterprises, high- tech  enterprises, private enterprises and other honors.



The products  include Super hard metal bar cold saw machine series, Chipless  metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process

Machine , all kinds of circular saw blade . Wide  Application  range  contains nautical aviation and aerospace industry, military industry, high-speed rail and rail transportation industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
