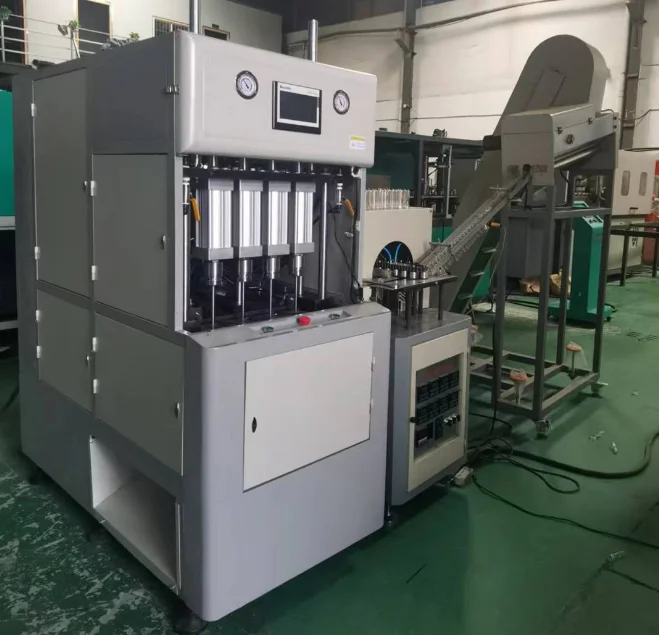

Semi Automatic 4 Cavity PET Bottle Blow Moulding Machine with Automatic Preform Loader

Product Overview

Description

Semi Automatic 4 Cavity PET Bottle Blow Moulding Machine with Automatic Preform Loader





Explanation:



1)CHEAP--Belonging to Semi-automatic class, HY-1is a low-risk investment for beverage plant planners.



2)EASY  --With simple and reliable structure, HY-1 is a totally no-training-need machine. Not only in operating, but also in maintenance, you can do it totally DIY.



3)SAFE  --With intensed safe design, INTERLOCK START BOTTON, HY-1 can give your operator total safe operating evironment.



 4)FAST  --If you have an operator and a HY-1 what can you do? The answer is: you can make



10,000 0.5L bottles in a day (10 hrs).



5)FREE  --We can offer you bottle design, from LOGO, to BOTTLE SHAPE, everything provided by us FREE! We also offer FREE air compressor EVEN!!! which usually cost over USD1,500/set !



6)PROFESSIONAL--We supply this machine about 600 sets per year on average to clients all round the world. We give the most professional after-sales service for life-long time.





Specification:



Model	BM-S4	Data
Container	Product material	PET
	Product volume range	50-2000 ml
	Product neck diameter range	18-40 mm
	Product body diameter (Max)	125 mm
	Product body height (Max)	420 mm
	Theoretical Output (on 500ml basis)	1000-2000 pcs/hr
Mold	Mold cavity quantity	4
	Max mold plate size (L*W)	360*390 mm
	Max mold thickness	200 mm
	Mold opening stroke	160 mm
	Mold clamping force	56 KN
Main Machine	Air pressure for movement use	0.8-1.0 Mpa
	Air pressure for blowing use	2.0-3.0 Mpa
	Power type (Adjustable)	220v, 50Hz
	Rated power	1 KW
	Dimension (L*W*H)	1600*600*1610 mm
	Weight	500 kg
Heater	Heating type	Infrared light
	Power type (Adjustable)	380v, 50Hz
	Rated power	14 KW
	Dimension (L*W*H)	1870*630*1450 mm
	Weight	260 kg
Air Compressor	Exhausting capacity	1.0 m3/min
	Rated pressure	3.0 Mpa
	Air storage tank	0.32 m3
	Power type (Adjustable)	220v, 50Hz
	Rated power	11 KW
	Dimension1 (L*W*H)	1850*850*1450 mm
	Weight	600 kg

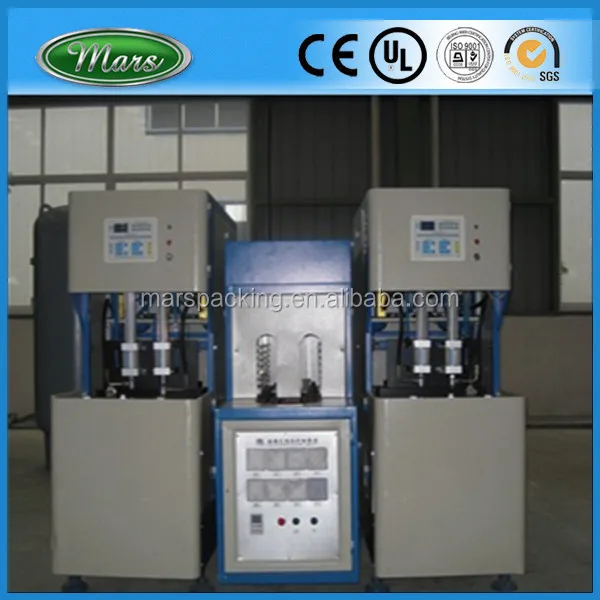

Product show
