There are three different models with different production capacity.
Mdoel
JG-JSW65
JG-JSW90D
JG-JSW75
Voltage
380V
Heating Power
35KW
38kw
50kw
screw diameter
Φ65×2mm
Φ90mm
Φ75×2mm
L/D ratio
30:1
28:1
30:1
screw speed
5-60r/min
5-80r/min
5-60r/min
motor power
22×2kw
45kw
37×2kw
heating power kw
35kw
38kw
50kw
width of product
1000-1500 mm
1000-1800 mm
1200-2000 mm
intstalled capacity (approx)
100kw
150kw
160kw
Dimension(L×W×H) (approx)
16×2.6×39(m)
17×2.8×3.2(m )
20×3.2×3.2(m )
Product Features

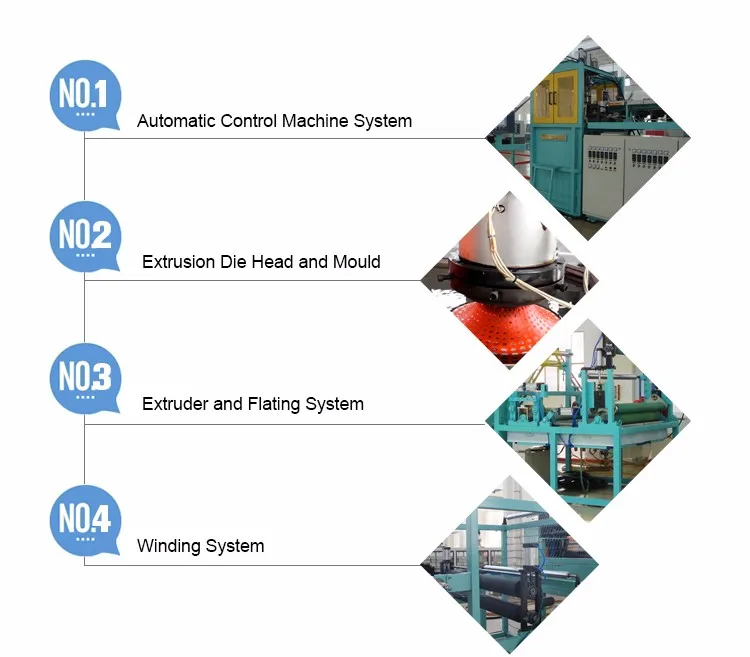

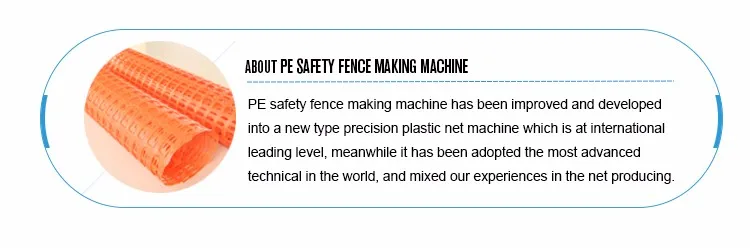

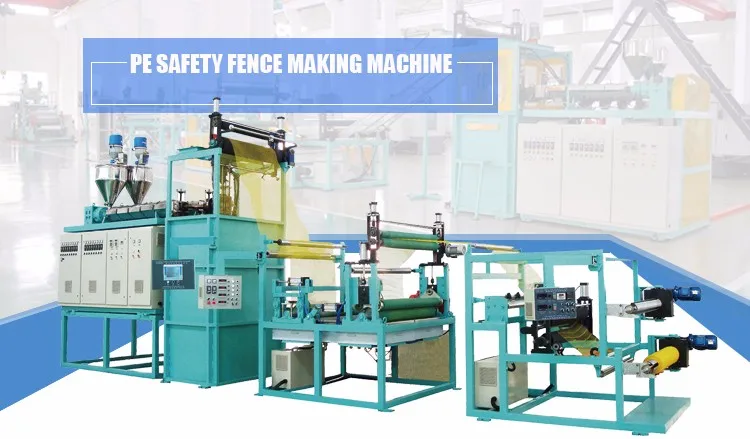

This machine is a special equipment to produce plastic PE fence net by rotating die head with PE material as the main raw material, net out of our machine has features of equality, beautiful and smooth, thus the usage is rapidly enlarging. After being thermal stretched lengthways, it will become safety fence.Its mechanical property will be improved obviously. Thus it has been widely used in construction, roadbed protection, top grade warning fence, ski field fence and so on.
Product Application

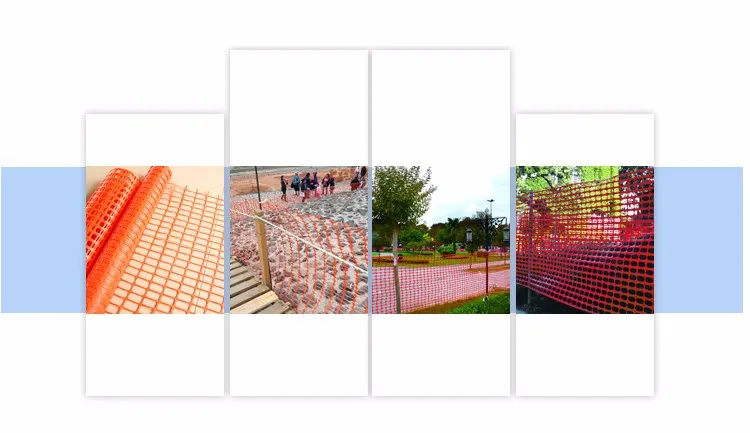

PE Plastic Fence features equality, beautiful and smooth, is mainly used as safety fence during construction work, underground cable construction work, warning fence, ski field fence and so on.

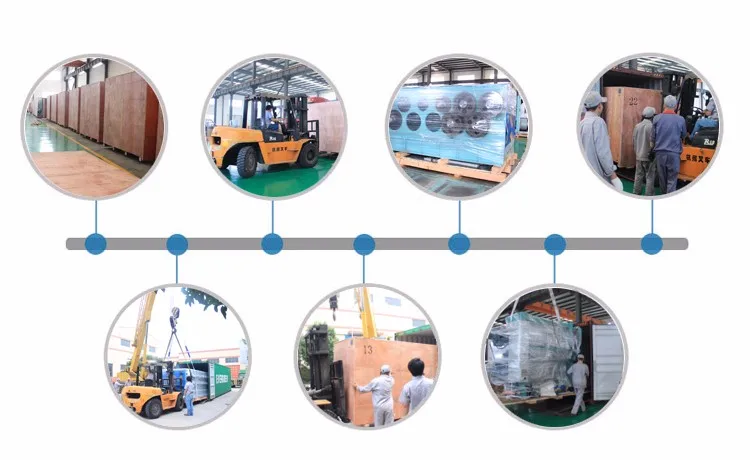

Packing & Delivery
We have the ability experience to pack all the machines suitable for shipment.

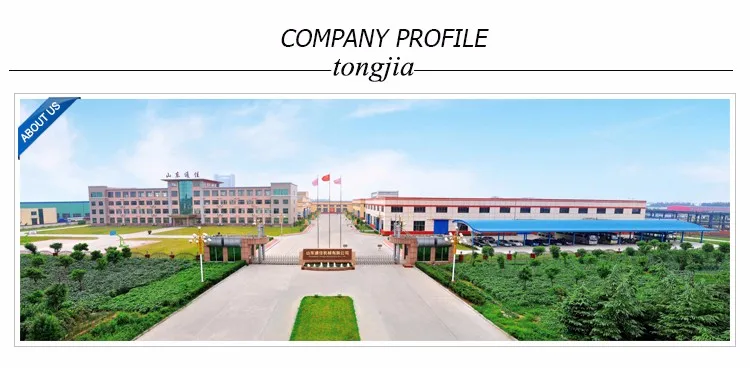

About Company

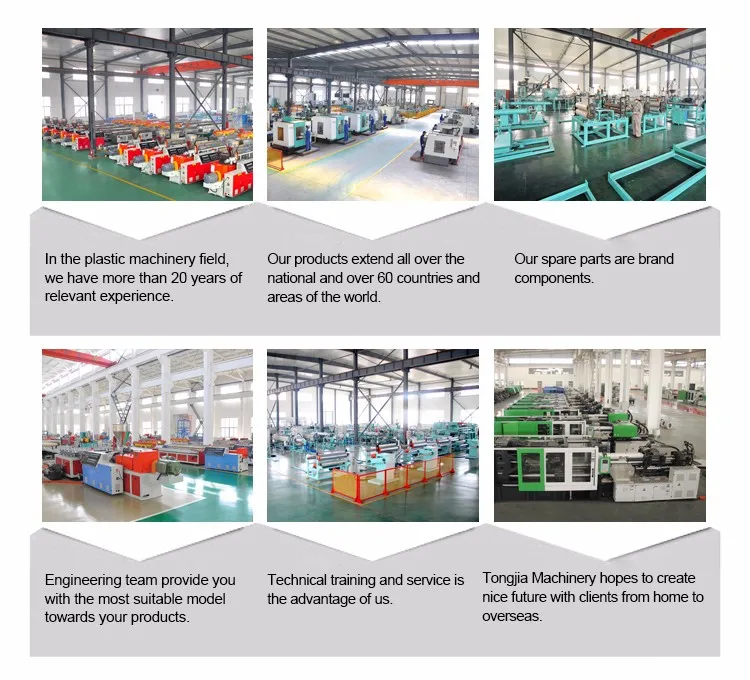

Our factory was founded in 1953 and we are market-leader in this line in china.
1.Any inquires will be replied in the first time.
2.High quality products, competitive price, fast lead time.
3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.
4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
5.Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.
