| Modle | Needle Cylinder | Main Product | No.of needles and needle selections | Technical specification |

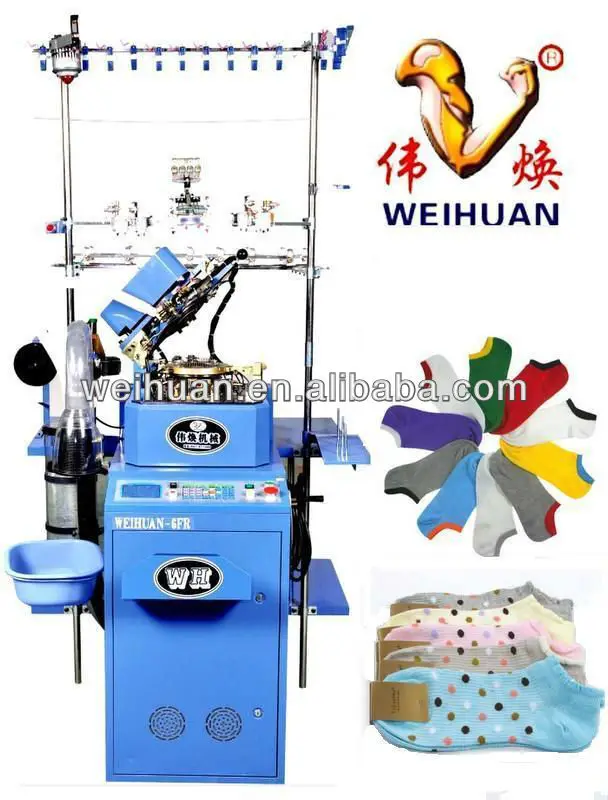

| WH-6F-A | 3 1/2inch plain and pile double uses sock mahine | Cotton socks | 56-220N 6 Needle selection | Maximum speed plain:320RPM 13 adding yarn shutttle eight pneumatic shuttles in yarn line.automatic yarn in |
| WH-6F-A | Naked spandex socks | 56-220N 6 Needle selection |
| WH-6F-A | Copy double cylinder rsingle rib socks | 56-200N 6 Needle selection |
| WH-6F-A | Looping five-toes socks | 56-168N 6 Needle selection |
| WH-6F-A | A moulding boat socks Three-dimensional socks | 168-200N 6 Needle selection |
Funtion introduction
1.one feeder into yarn
2.Elestic shuttle(can buy two) knit different colors
3.Six colors in one line,there are 13 colors in the socks pattern
4.High heel,big heel,small heel,180 degree against sock mouth,two colors for sock heels,soks toes,can knit 3D socks
5.Taking the double shovel-needle technology,when knitting the heel and toe,the angle is adjusted by computer In this way,can improve the efficiency,overcome the shortcoming of sigle Shovel—needIe
6.The maximum horizontal stroke pulls is 39cm
