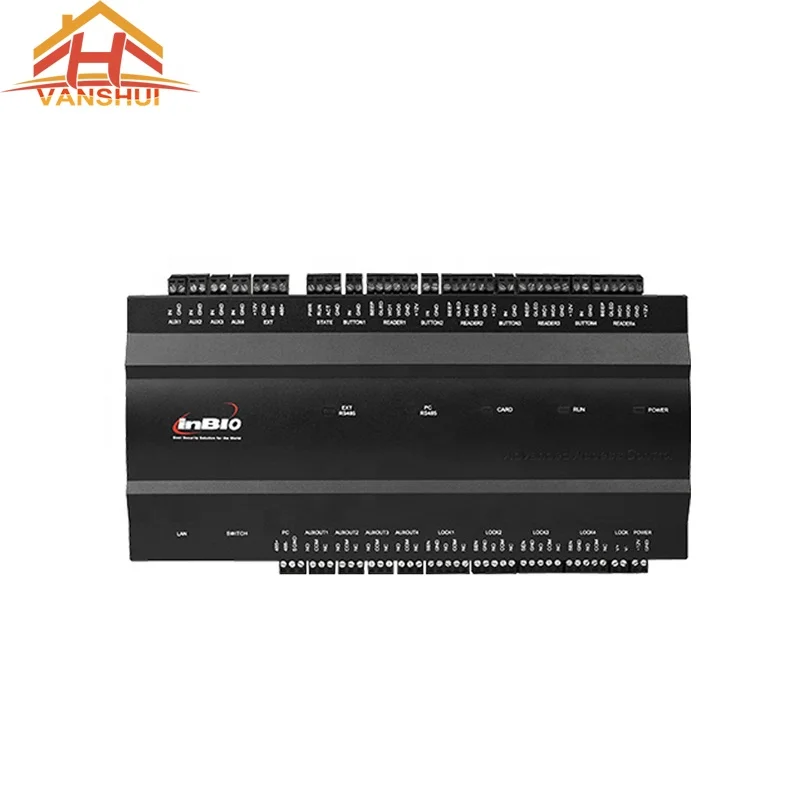

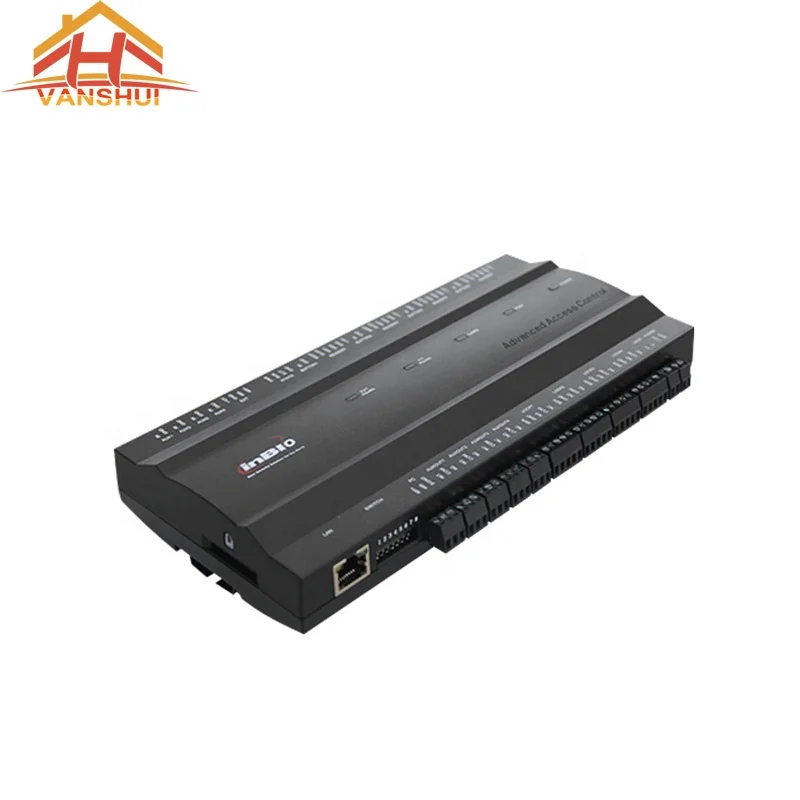

inBIO460 Biometric fingerprint access control 4 door access controller with Power Adapter Box
- Category: >>>
- Supplier: Vanshui Enterprise Company Limited
Share on (1576165861):
Product Overview
Description
Product Description
Access Systems are built on flexible, open technology to provide management, real-time monitoring, and control of your access control system-all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. The inBio460 versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The inBio460 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
Basic Features
Multiple hardware protection measure
There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
Integration with Other Security Systems
The inBio 460 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
Supports different wiegand reader
Wiegand format, and can connect to different reader, including ID card reader and MF card reader
Input/Output Ports to Control Doors
Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
Variety of Communication Function
Using either serial or TCP/IP communication, it provides reliable network system
B/S structure software
It is easy to manage the system by browser from client PC. There is no need to install software on each client.
Normal open after first punch card can be setup
Real-time Monitoring of Door status
Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.

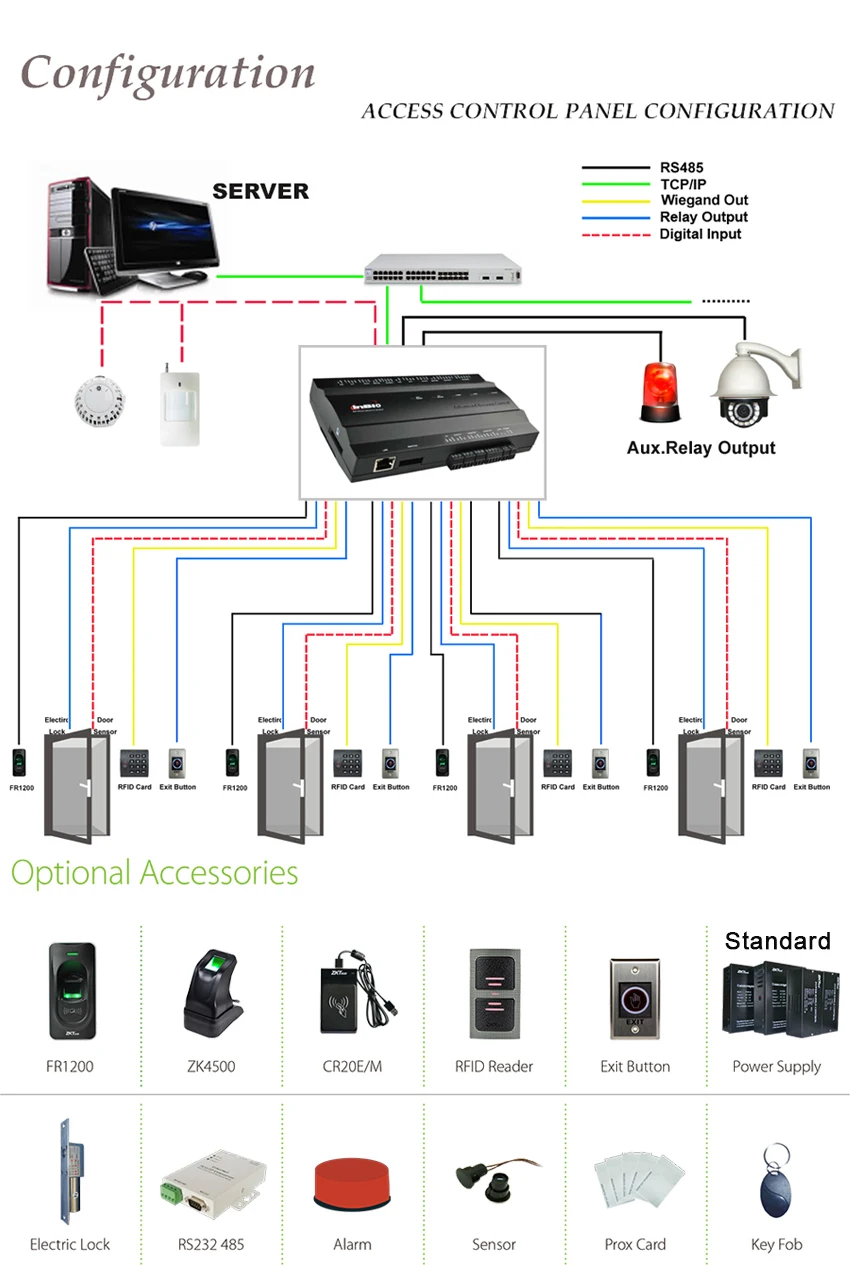

Simple Access Control System Configuration
Interlock function
Link different doors with special logic that one door is Open, others should be closed.
Multi-card operation
This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
Anti-Passback
Duress Mode
The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
Specification
Model | inBIO460 with BOX |
3,000 | |
Support Card Capacity | 30,000 |
Support Transaction Capacity | 100,000 |
Communication | TCP/IP, RS-485 |
CPU | 32 bit 400MHz CPU |
RAM | 32M bit |
Flash Memory | 128M bit |
Number of doors controller | 4 Doors |
Number of Inputs | 12(4 Exit Device,4 Door Status, 4 AUX) |
Number of Outputs | 8 (4-Form C Relay for Lock and 4 Form C Relay for Aux Output) |
Numbers of readers supported | 12(8 RS-485 Reader, 4 26-bit wiegand reader) |
Types of readers supported | 26-bit Wiegand and RS485 FR Series Reader |
Power | DC 9.6V-14.4V, Rated Max.1A |
Operating Temp. | 0-45℃ |
Operating Humidity | 20% to 80% relative humidity non-condensing |
LED Indicator | Yes, LED indication for communication, power, status and punch card |
Package Dimension(mm) | 400*350*125(with power supply and metal cabinet),5KG |
Software | ACCESS 3.5 |
Order Itmes
Model | Description | USD |
inBIO460 | Four Doors Access Control Panel System | 190 |

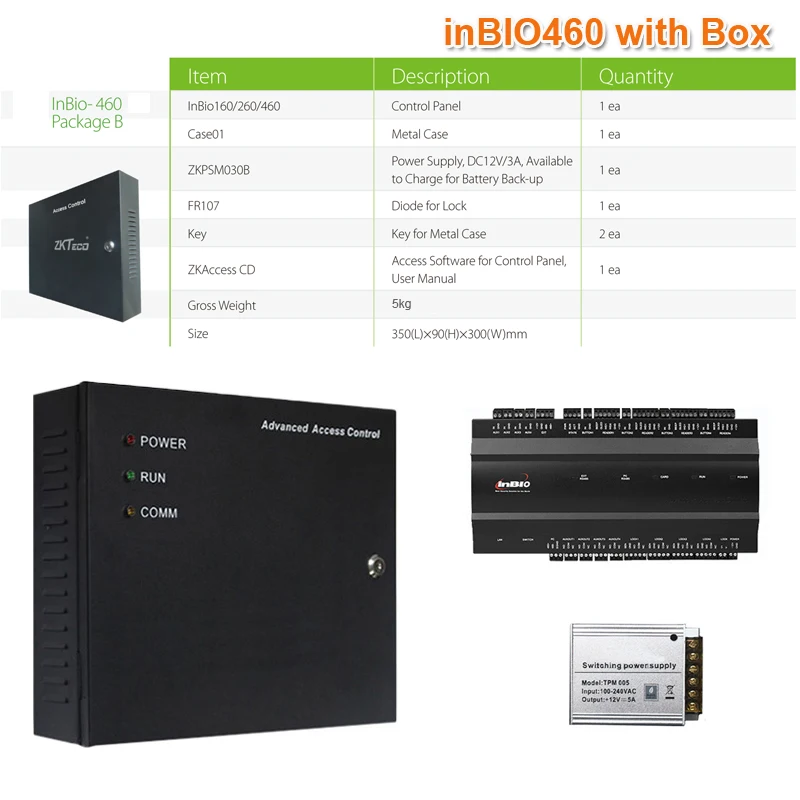

inBIO460 with Box | Four Doors Access Control Panel System with Power adapter Box | 220 |

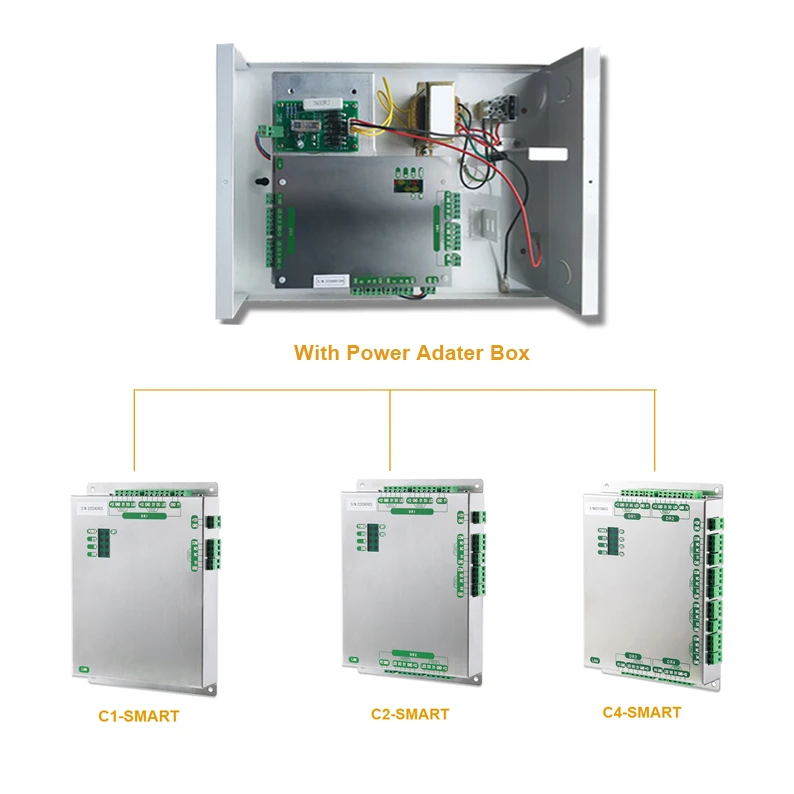

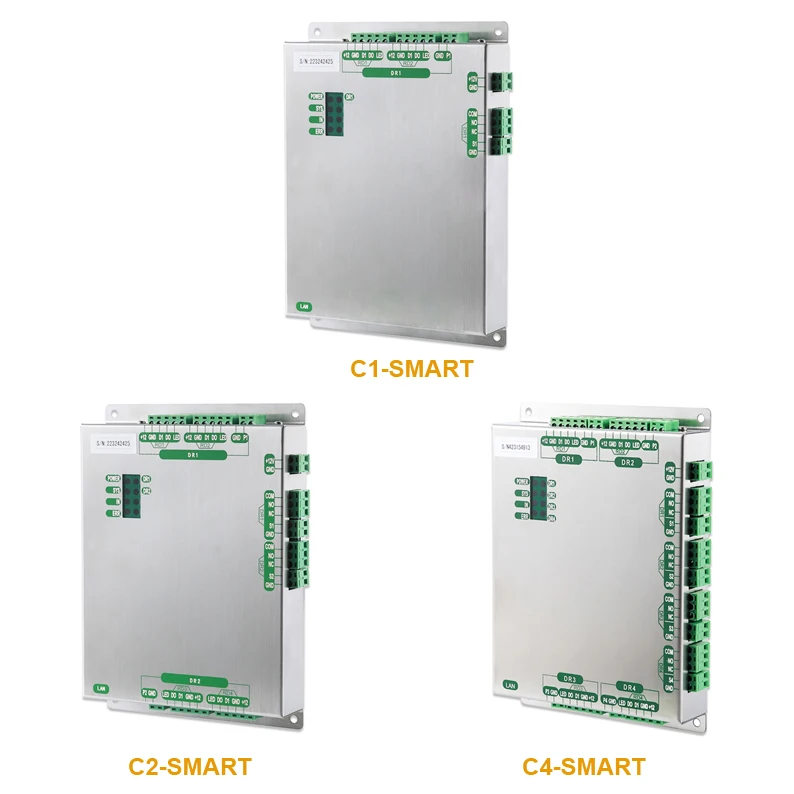

Access Control Panel
 | Model: C1-SMART
Model: C2-SMART
Model: C4-SMART |
 | Model: C1-SMART with Box
Model: C2-SMART with Box
Model: C4-SMART with Box |

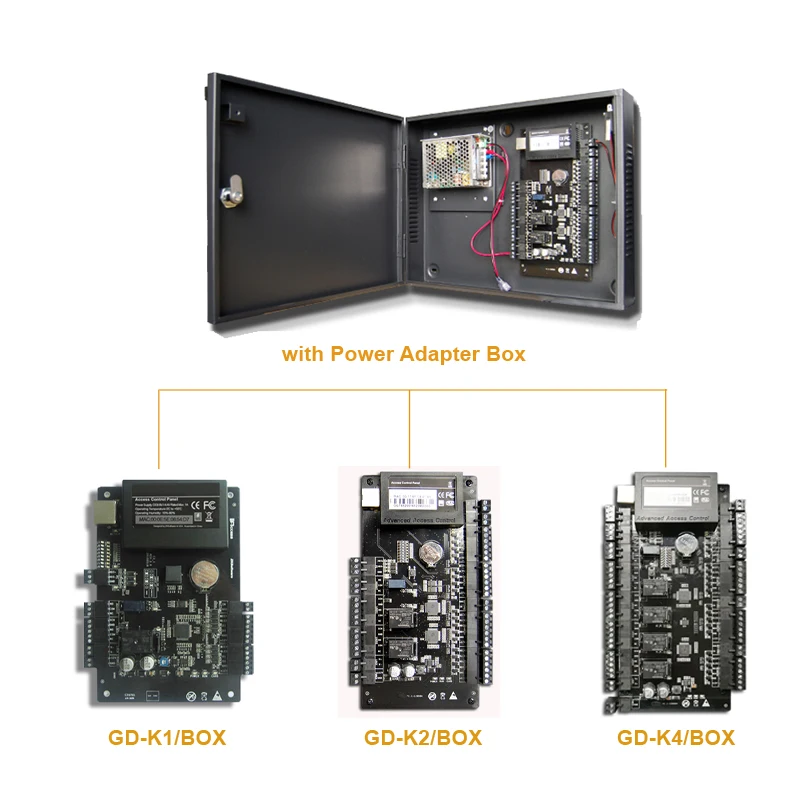

 | Model: GD-K1 with Box
Model: GD-K2 with Box
Model: GD-K4 with Box |
 |

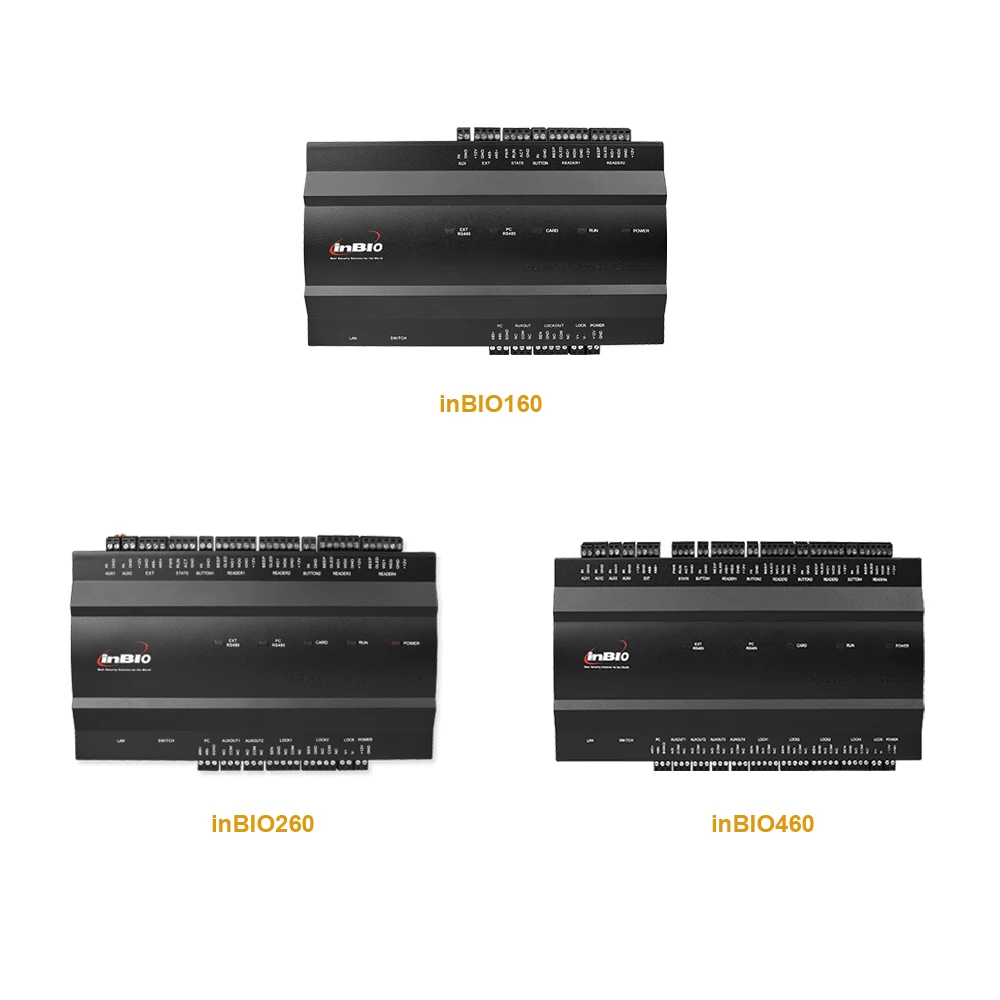

Model: inBIO160
Model: inBIO260
Model: inBIO460
|

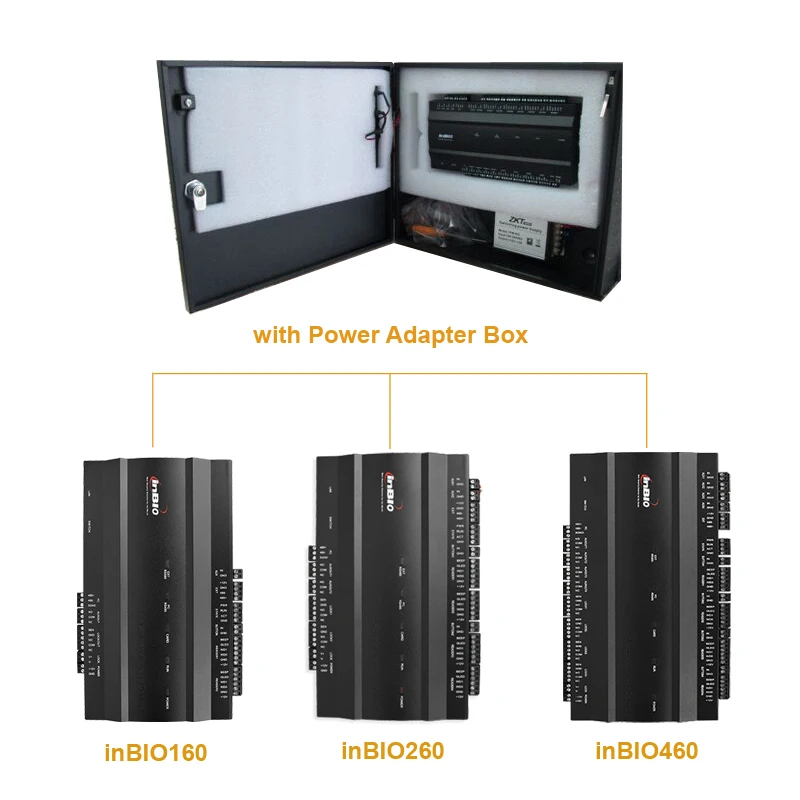

 | Model: inBIO160 with Box
