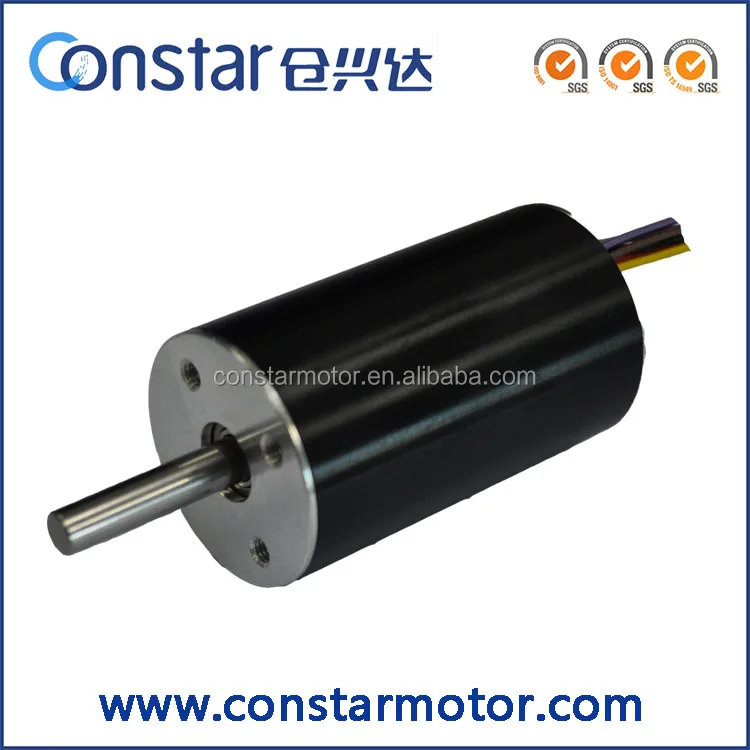

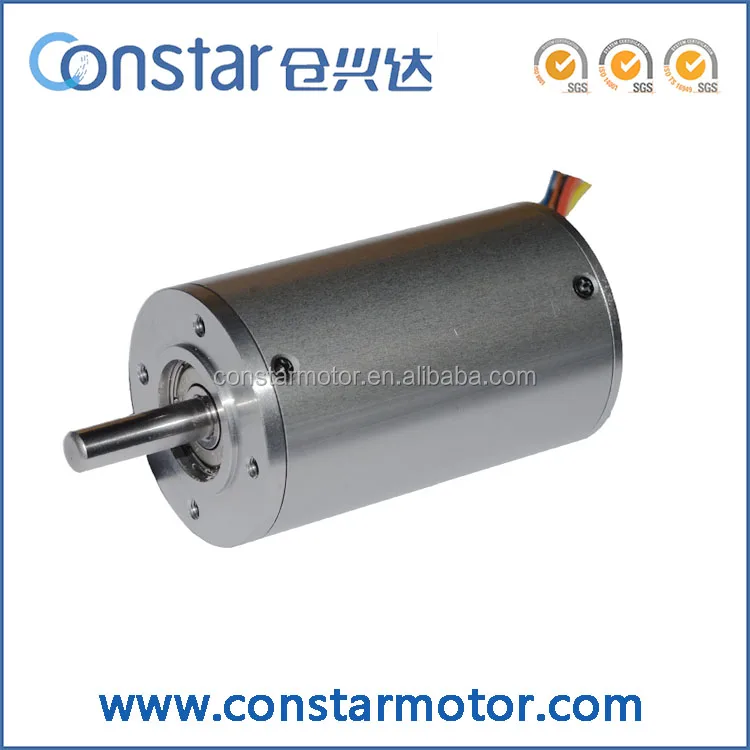

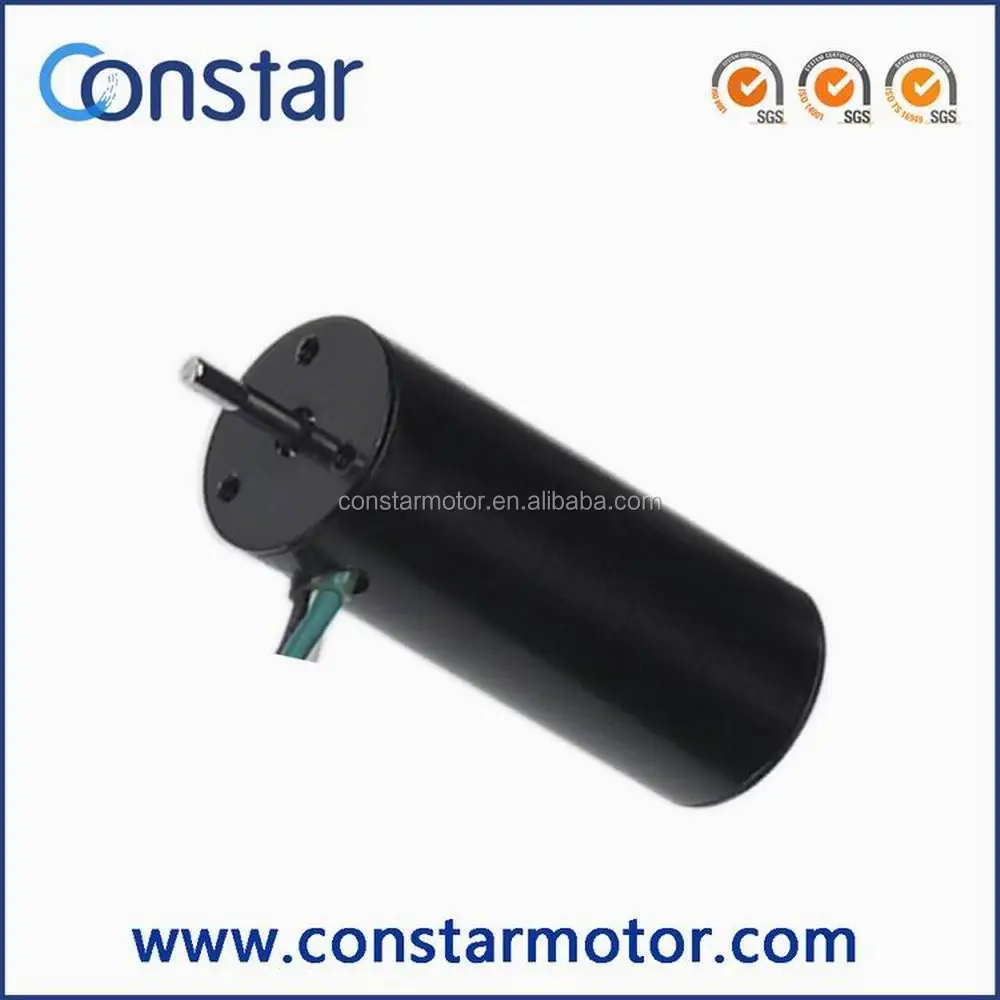

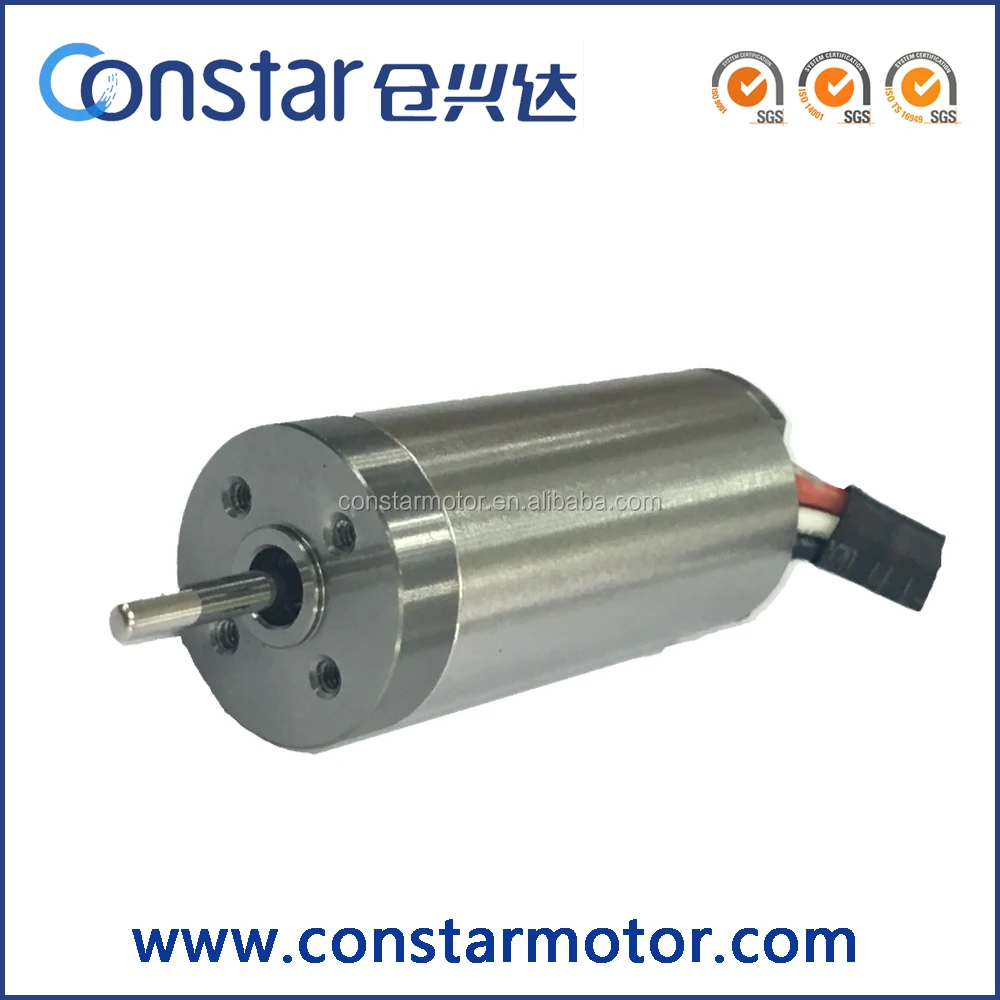

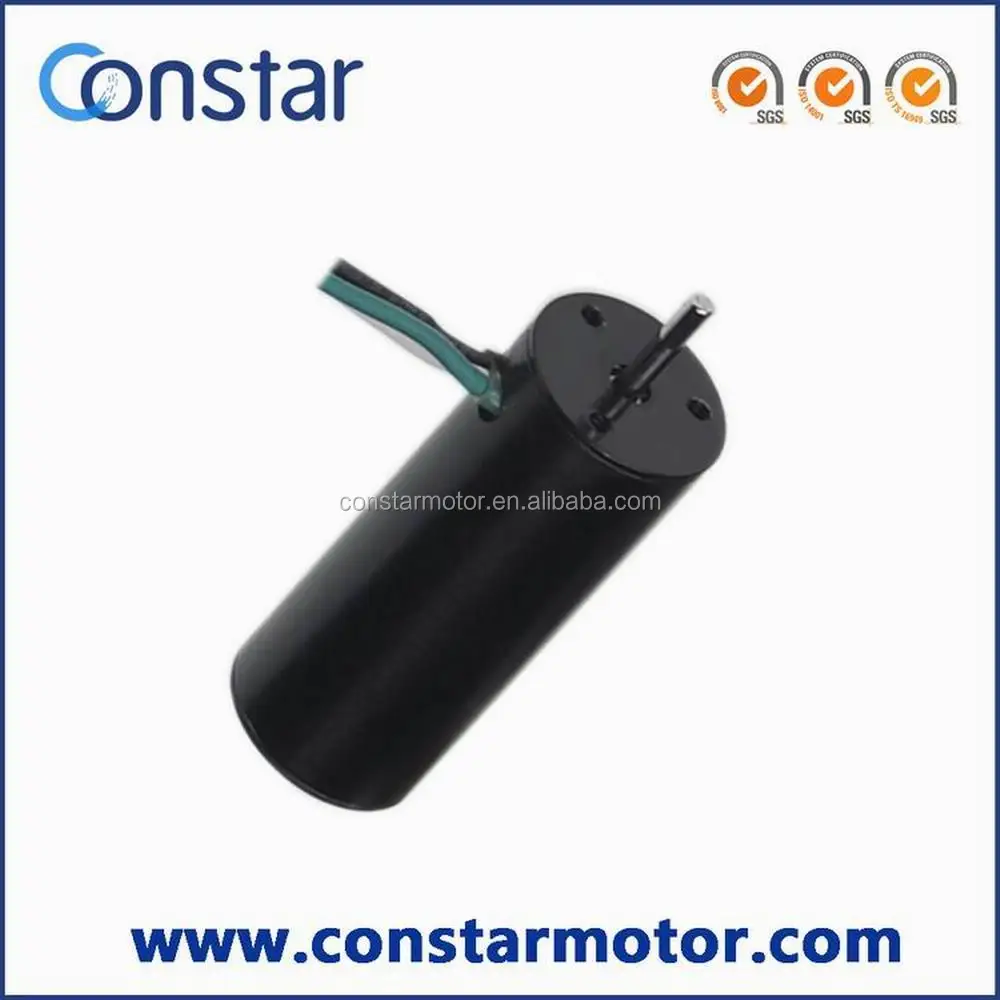

12V 13mm low price medical coreless dc brushless motor
- Category: >>>
- Supplier: Constar Micromotor Co. Ltd.
Share on (1576536573):
Product Overview
Description
12V 13mm low price medical coreless dc brushless motor
 | |||
| CONSTAR MICROMOTOR | |||
 |  |  |  |
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
Applications
Precision driving field in medical equipment, industrial automation, etc
Specifications
| -1-12.0 | |||
| 1 | Voltage | V | 12 |
| 2 | Terminal resistance | Ω | 7.5 |
| 3 | No-load speed | rpm | 25000 |
| 4 | No-load current | A | 0.1 |
| 5 | Nominal torque | mNm | 2.6 |
| 6 | Nominal speed | rpm | 14800 |
| 7 | Nominal current | A | 0.72 |
| 8 | Max. output power | W | 4.2 |
| 9 | Max. efficiency | % | 56.0 |
| 10 | Back-EMF constant | mV/rpm | 0.45 |
| 11 | Torque constant | mNm/A | 4.3 |
| 12 | KV Value | rpm/V | 2100 |
| 13 | Speed/torque gradient | rpm/mNm | 3900 |
| 14 | Rotor inertia | gcm2 | 0.18 |
| 15 | Weight | g | 15 |
Options
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Hall sensor, Encoder, Driver

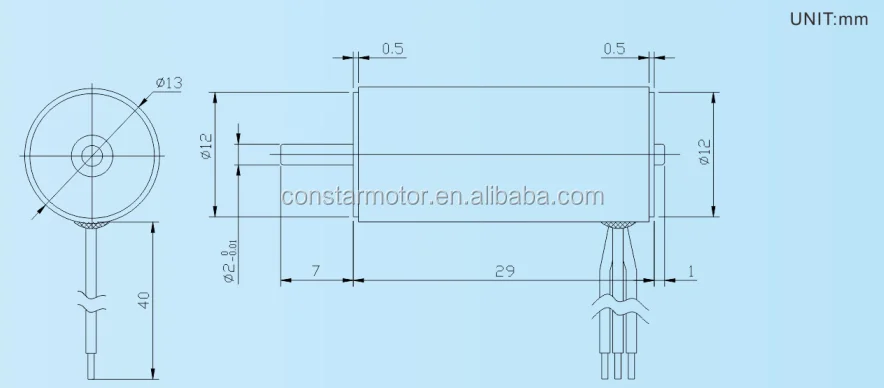

Outline Drawing

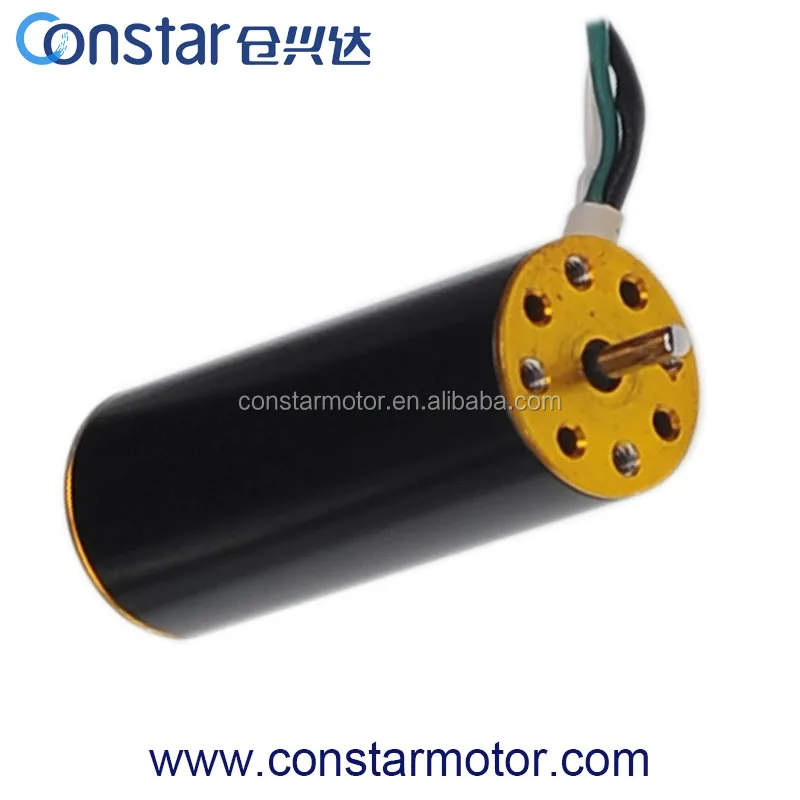

Product Show

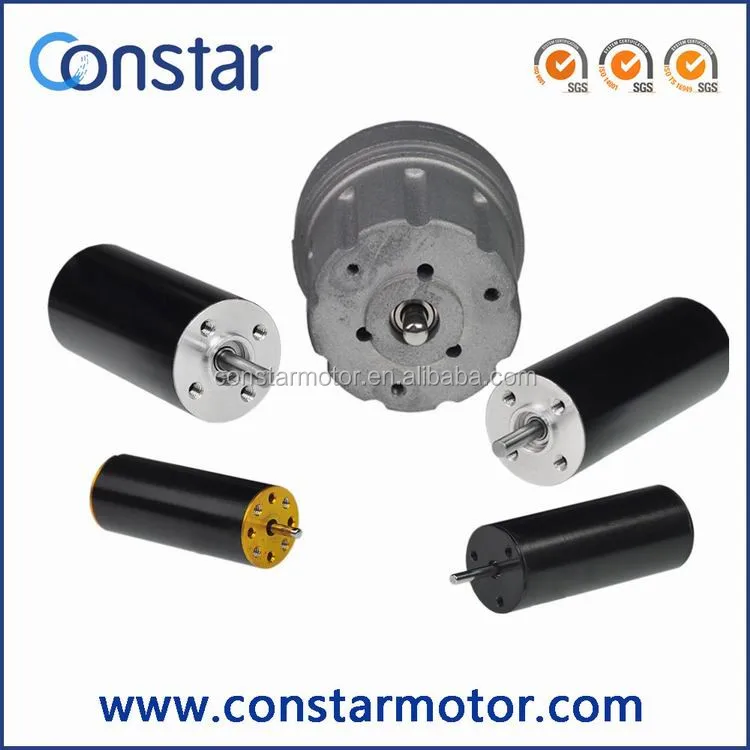

Other Item
| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1215ZWWN | Φ12*15 | 3.6 | 35000 | 300 | 9720 | 0.93 |
| Φ12*15 | 4.5 | 14500 | 100 | 3220 | 2.62 | |
| Φ12*15 | 7.4 | 42500 | 200 | 5470 | 1.55 | |
| 1220ZWWN | Φ12*20 | 5 | 17500 | 210 | 3500 | 2.5 |
| Φ12*20 | 6 | 17200 | 150 | 2900 | 3.0 | |
| Φ12*20 | 7.4 | 23000 | 100 | 3100 | 2.9 | |
| 1230ZWWN | Φ12*30 | 3.7 | 18000 | 230 | 4860 | 1.9 |
| Φ12*30 | 9 | 18000 | 150 | 2000 | 4.6 | |
| Φ12*30 | 12 | 11500 | 50 | 960 | 9.6 | |
| 1329ZWWN | Φ13*29 | 12 | 25000 | 100 | 2100 | 4.3 |
| 1635ZWWN | Φ16*35 | 12 | 45000 | 350 | 3750 | 2.5 |
| 2030ZWWN | Φ20*30 | 12 | 43300 | 370 | 3600 | 2.6 |
| Φ20*30 | 12 | 7000 | 100 | 580 | 14.9 | |
| Φ20*30 | 12 | 9200 | 250 | 770 | 11 | |
| 2040ZWWN | Φ20*40 | 9 | 6700 | 200 | 745 | 12.1 |
| Φ20*40 | 12 | 15000 | 250 | 1250 | 7.5 | |
| Φ20*40 | 12 | 8000 | 360 | 670 | 13.4 | |
| 2050ZWWN | Φ20*50 | 12 | 6000 | 160 | 500 | 18 |
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
