Cable wire plastic flexible cnc insulation track chain

Product Overview

Description

Cable wire plastic flexible cnc insulation track chain







INTRODUCE

1.Material of track chain:PA66

2.Working temperature of track chain:-40°c---+80°c

3.Construction of track chain: Bridge,Semi-closed,Fully enclosed for choose

•  a. the apprearance of the track chain looks like the crawler of a tank consisting of certain number of joint.the joints of crawler are freely turned round.
•  b. the same series of track chain has same inner height and same pitch but the inner width and bend radius can be made per different specifications.
•  c. All lid of the TMY20 and above can be opened for installing wires into conveniently.
•  d.Reinforced each part of track chain TMY20 and above



4.Has long service life track chain and anti-friction. repetitive motion times is more than million times.

5.Great carrying capacity track chain, bend only one side

6.Small noise ,when it is moving,noise is very very small.





Structure type : three types to meet your needs





FITTING of track chain: high quality ensuring the safely use



 Specification  sheet of track chain

Model	Inside Diameter           (height* width)	Outside Diameter              (height *width)	Bending Radius (R)	Pitch(mm)	Structure
TMY7	7*7	10*13	18/28		Bridge,All-in-One
TMY10	10*10	15*16	18/28/38		Bridge,All-in-One
	10*15	16*23	18/28/38	20
	10*20	16*28	28/38
TMY15	15*18	23*26	28/38		Bridge,All-in-One
	15*20	23*28	28/38	20	Semi-closed,Side open
TMY18	18*18	24*30	28/38/48		Bridge,Side open
	18*25	24*36
	18*37	24*43		34
TMY20	20*25	25.5*36.7	28/38/55		Bridge,Side open
	20*52	25.5*62.1
	20*25	35*40	55/75/100	47	Piecen,Reinforced,Bridge/Fully enclosed
	20*38	35*55
	20*50	35*65
	20*60	35*75
	20*75	35*90
	20*100	35*115
TMY25	25*25	40*40	55/75/125/150/175/200	47	Piecen,Reinforced,Bridge/Fully enclosed
	25*38	40*55
	25*50	40*65
	25*60	40*75
	25*75	40*90
	25*100	40*115
TMY30	30*25	40*40	55/75/125/150/175/200	47	Piecen,Reinforced,Bridge/Fully enclosed
	30*38	40*55
	30*50	40*65
	30*60	40*75
	30*75	40*90
	30*100	40*115
TMY35	35*50	55*75	75/100/125/150/200	66.5	Piecen,Reinforced,Bridge/Fully enclosed
	35*60	55*85
	35*75	55*100
	35*100	55*125
	35*125	55*150
	35*150	55*175
	35*175	55*200
	35*200	55*225
TMY45	45*50	65*75	100/125/150/200	81	Piecen,Reinforced,Bridge/Fully enclosed
	45*60	65*85
	45*75	65*100
	45*100	65*125
	45*125	65*150
	45*150	65*175
	45*175	65*200
	45*200	65*225
TMY55	55*50	75*80	100/125/150/200/250/300	81	Piecen,Reinforced,Bridge/Fully enclosed
	55*60	75*90
	55*75	75*105
	55*100	75*130
	55*125	75*155
	55*150	75*180
	55*175	75*205
	55*200	75*230
TMY65	65*50	85*82	100/125/150/200/250/300	81	Piecen,Reinforced,Bridge/Fully enclosed
	65*60	85*92
	65*75	85*107
	65*100	85*132
	65*125	85*157
	65*150	85*182
	65*175	85*207
	65*200	85*232
TMY80	80*75	106*120	150/200/250/300	101	Piecen,Reinforced,Bridge/Fully enclosed
	80*100	106*145
	80*125	106*170
	80*150	106*195
	80*175	106*220
	80*200	106*245
	80*250	106*295
	80*300	106*345





 Application:

 track chain  has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machines, injection molding machines, mechanical hands, overweight transportation equipment, automated warehouses.









Message in need when place an order:



1.inside diameter

2.outside diameter.

3.bending radius

3.structure type

4.quantity

5.port.



About us:



  Business Type :manufacturer, trading company

  Location : Guangdong,China (Mainland)

  Year established:2002

  Main customers:Mid  East,  Eastern Asia

  Main market: Mid East,Western Europe,Africa,Eastern Europe,South America

  Company certification:ISO 9001:2008;SGS

  Delivery On time .



DPM-16^th China Dongguan International Plastic , Packing & Rubber Exhibition



• ♣   ISO9001:2008,SGS,UL94

• ♣   Specialise in this field for 10 years.

• ♣   We are professional manufacturer.

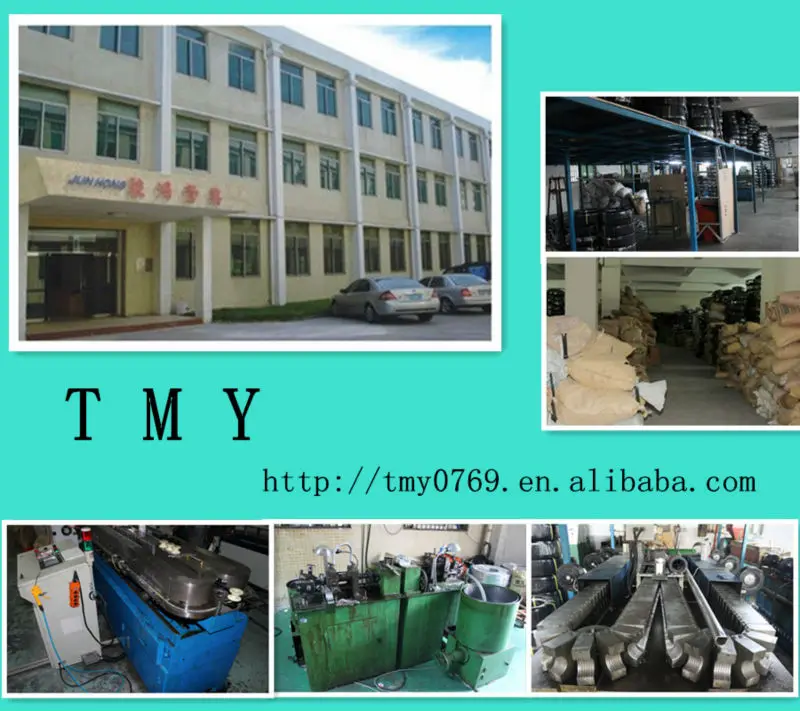

• ♣   More than 5000 square meters factory.
