Squarelocked flexible metal emt conduit for electrical wire
1.Material:Galvanized steel strip(squared locked)
2. Temperature range: Max to 200°C
3. Color: Silver grey
4.Protection degree: IP40
FEATURES:
1. High flexibility, excellent bend ability, smooth inside structure makes it easy to go thread.
2. Temperature-resistant, resistant to chips
APPLICATIONS:
Various machine tools and machines, elevators, chemical industry. Cable protection in brainpower buildings threading, security system, exterior illumination, and workshop building., etc
MARKS:
Pipes only for wires and cables,no other usages such as for water,gas,food,etc.
More details pls contact us or visit our website.
SEPCIFICATIONS:
** PVC coated / S.S overbraided type are available **
| Item No. | Size | I.D | O.D | Packing | Weight | Volume | ||
| Min | Max | Min | Max | Meter/Roll | ||||
| AT707 | 1/4'' | 7.7 | 8 | 11 | 11.8 | 100 | 0.15 | 0.8 |
| AT707 | 5/16'' | 9.7 | 10 | 12.8 | 13.5 | 100 | 0.18 | 0.9 |
| AT707 | 3/8'' | 12.3 | 12.8 | 15.3 | 15.8 | 50 | 0.26 | 0.83 |
| AT707 | 1/2'' | 15.8 | 16.3 | 18.8 | 19.3 | 50 | 0.29 | 1.24 |
| AT707 | 3/4'' | 20.8 | 21.3 | 23.8 | 24.3 | 30 | 0.42 | 2.16 |
| AT707 | 1'' | 26.3 | 27 | 29.3 | 29.8 | 30 | 0.47 | 3.19 |
| AT707 | 1-1/4'' | 34.8 | 35.5 | 38.8 | 39.3 | 20 | 0.74 | 2.56 |
| AT707 | 1-1/2'' | 39.8 | 40.5 | 43.8 | 44.3 | 20 | 0.89 | 3.09 |
| AT707 | 2'' | 50.8 | 51.5 | 54.8 | 55.3 | 10 | 1.05 | 3.58 |
| AT707 | 2-1/2'' | 63.5 | 64.3 | 67.8 | 68.3 | 10 | 1.45 | 3.04 |
| AT707 | 3'' | 78.6 | 79.3 | 82.8 | 83.3 | 10 | 1.74 | 4.43 |
| AT707 | 4'' | 100.6 | 101.6 | 105 | 106 | 5 | 2.13 | 7.25 |

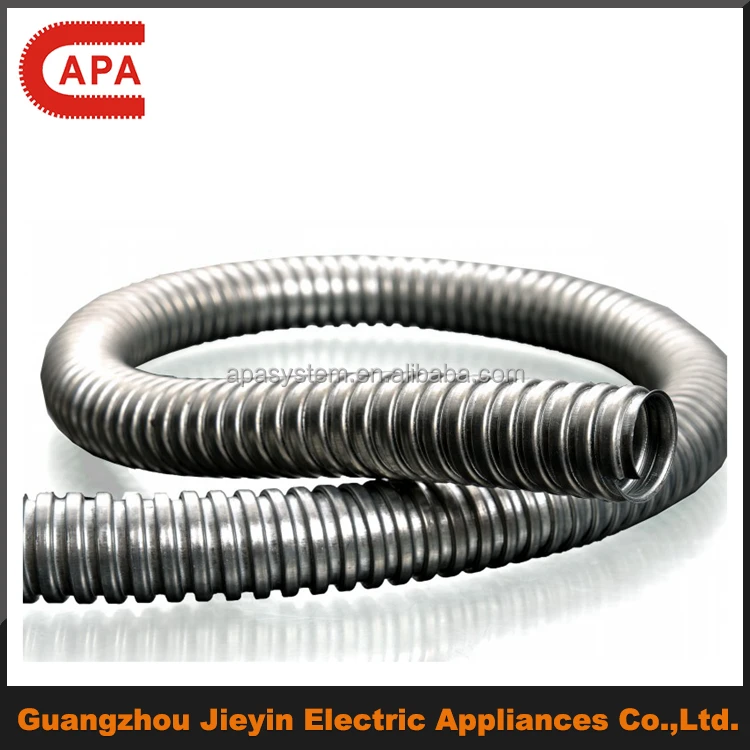

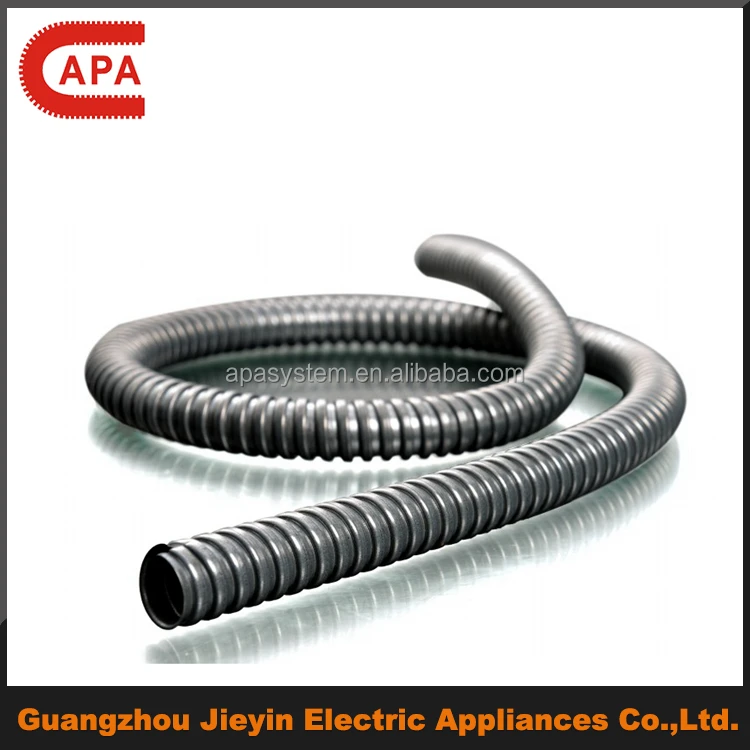

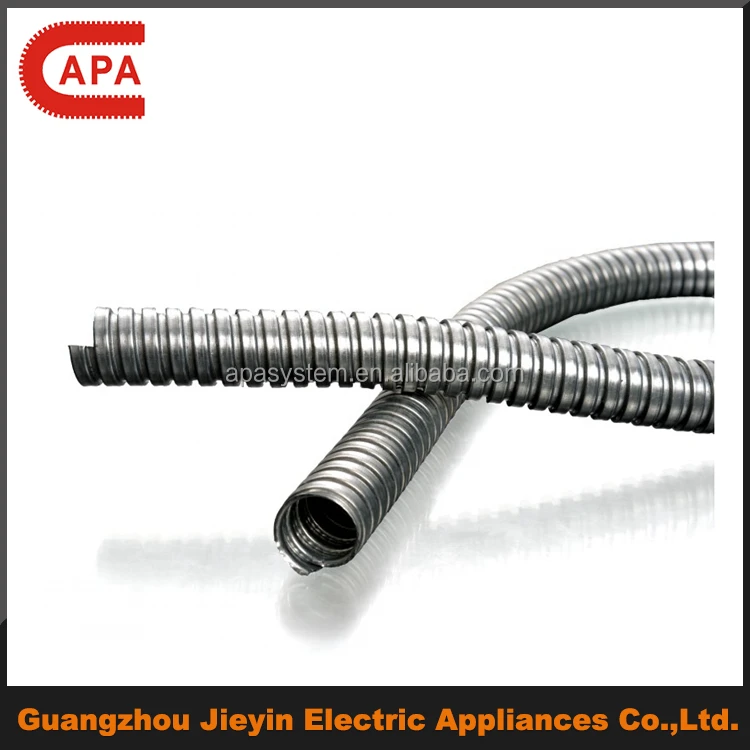

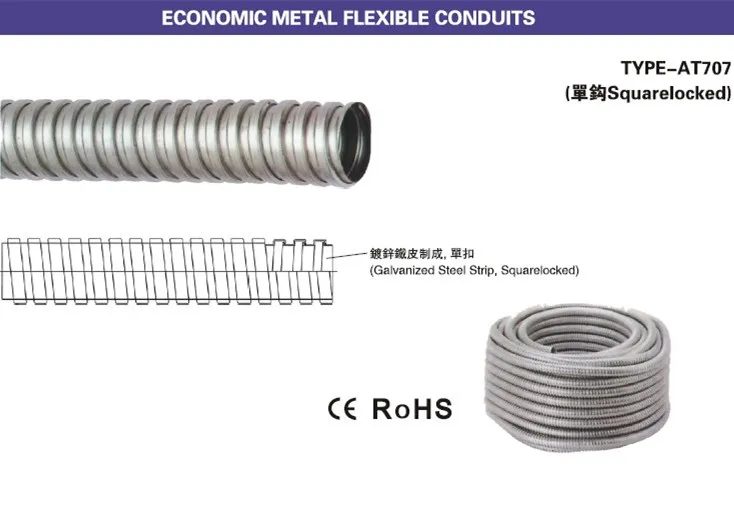

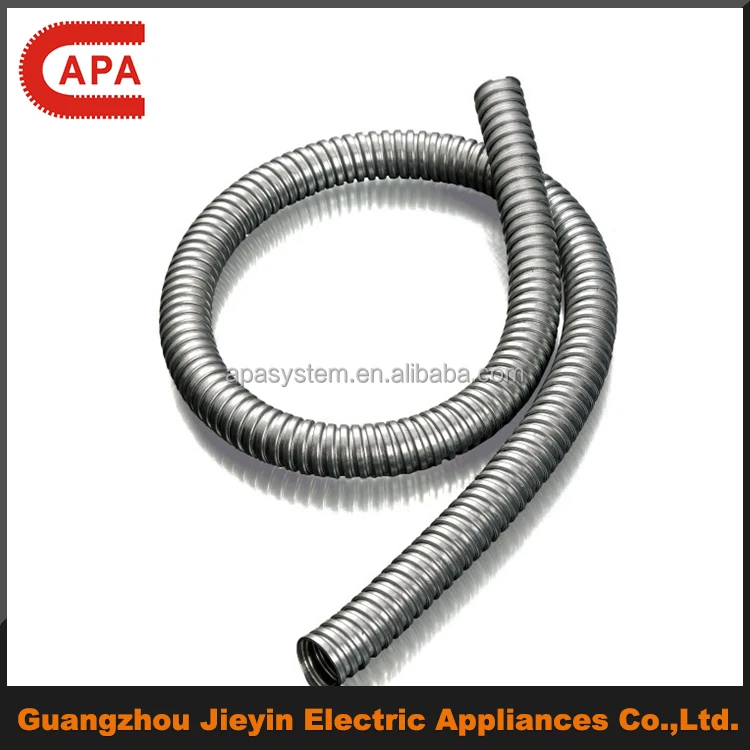

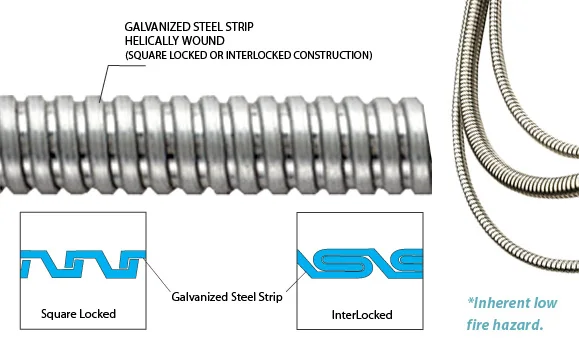

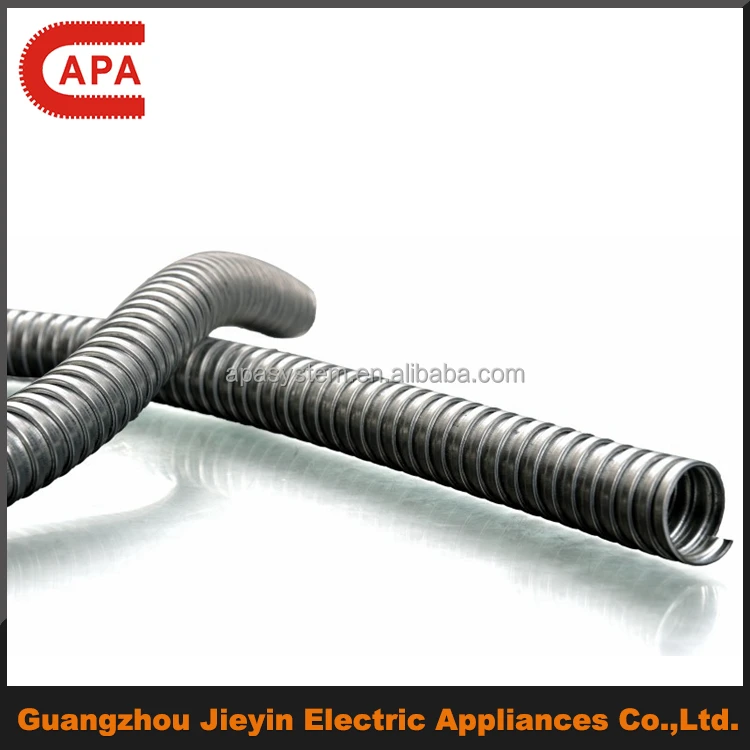

PRODUCT PICTURES:
