shot blasting impeller head/blastwheel abrator with Japan sinto technology
- Category: >>>
- Supplier: Qingdao Binhai Jincheng Foundry Machinery Co. Ltd.
Share on (1578820856):
Product Overview
Description

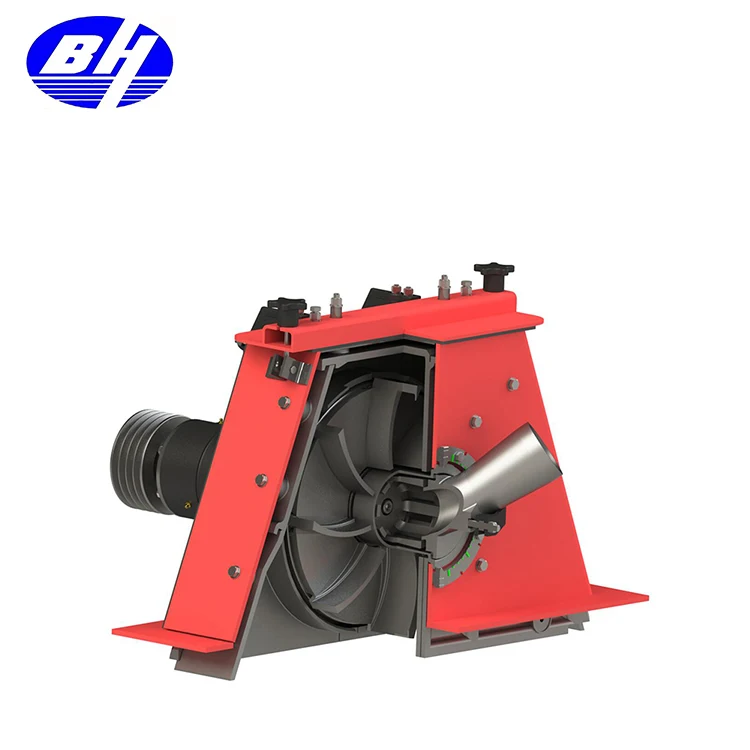

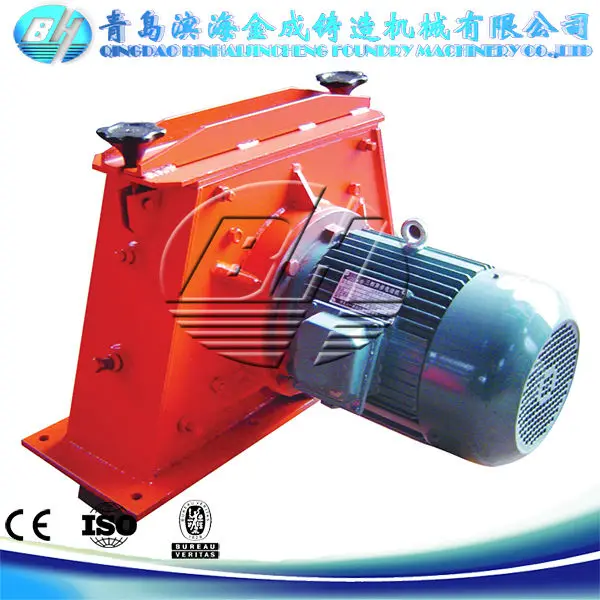

Shot Blasting Abrator Blastwheel/Impeller Head
SHOT BLASTING MACHINE SPARE PARTS
Buy the Best Replacement Parts for all types of Shot Blasting Machinery from us. We offer
spares for all international brand manufactured by us in our most modern alloy foundry.

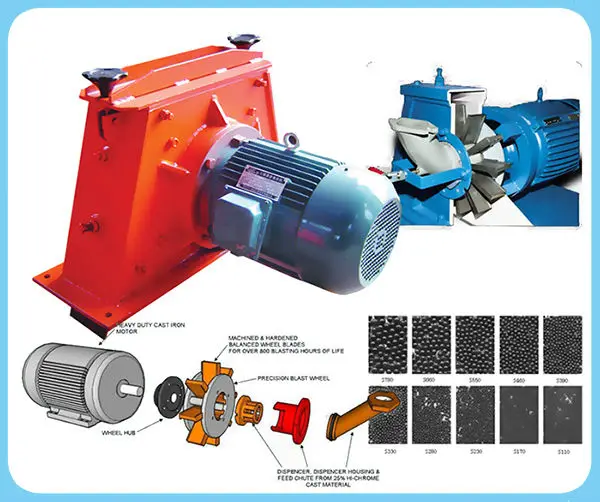

The HQ03 series of blast wheels have the following type:
¯ HQ034I,II,III A (5.5,7.5,11,15,18.5KW) direct centrifugal blast wheels
¯ HQ034I,II,III B(11,15,18.5KW) belt driven centrifugal blast wheels
¯ HQ035I,II (18.5,22KW) belt driven centrifugal blast wheels
¯ HQ036I,II (22,30KW) belt driven curve blade centrifugal blast wheels
The general technical index
Model | Diameter. of the blade size (mm) | The width of the blade (mm) | The speed of the impeller (r/min) | Shot velocity (m/s) | Shot amount (kg/min) | Motor type | Motor power KW | Belt QTY | BladeQTY |
HQ034 | 380 | 62 | 2900 | 63 | 100 | C180M | 5.5 | 8 | |
HQ034I | 400 | 80 | 2930 | 73 | 120 | C180M | 7.5 | 8 | |
HQ034II A | 420 | 80 | 2930 | 74 | 180 | C180M | 11 | 8 | |
HQ034III A | 420 | 80 | 2930 | 74 | 250 | C180M | 15 | 8 | |
HQ034III A | 420 | 80 | 2930 | 74 | 320 | C180M | 18.5 | 8 | |
HQ034II B | 420 | 80 | 2930 | 74 | 180 | C180M | 11 | 6 | 8 |
HQ034III B | 420 | 80 | 2930 | 74 | 250 | C180M | 15 | 6 | 8 |
HQ034III B | 420 | 80 | 2930 | 76 | 320 | C180M | 18.5 | 6 | 8 |
HQ035I | 450 | 100 | 2940 | 78 | 320 | C180M | 18.5 | 6 | 8 |
HQ035II | 450 | 100 | 2940 | 78 | 350 | C180M | 22 | 4 | 8 |
HQ036I | 492 | 100 | 2600 | 78 | 350 | C180M | 22 | 4 | 8 |
HQ036II | 492 | 100 | 2600 | 78 | 360 | C180M | 30 | 4 | 8 |
We can accept OEM according to the cleaning requirements of workpiece.

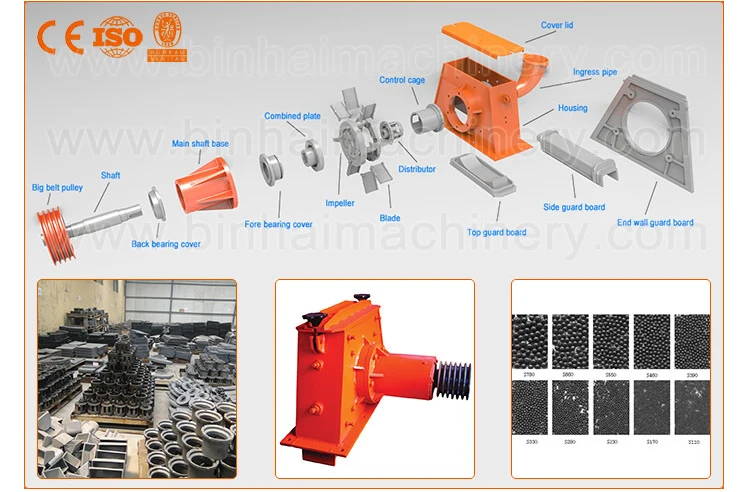

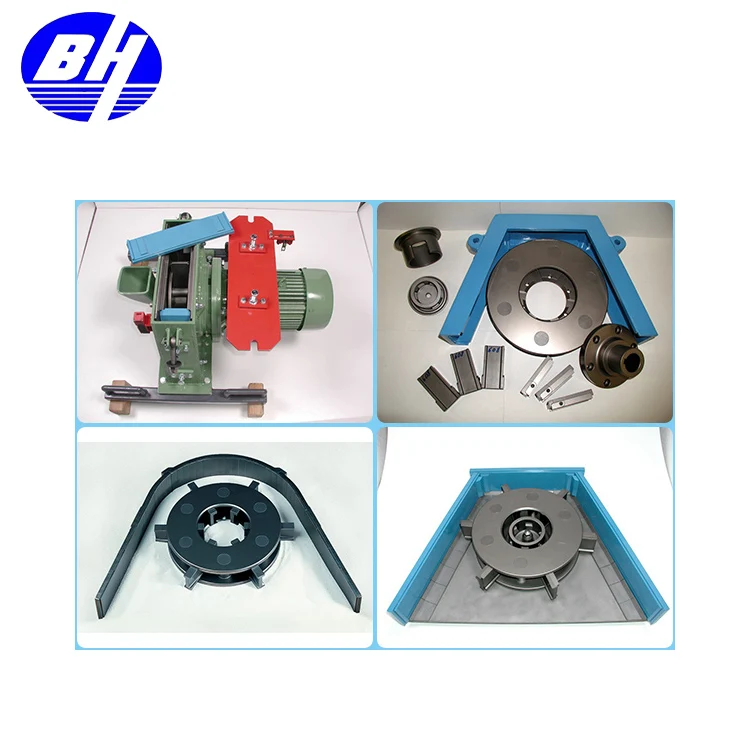

name | Material | Life |
blades | High chromium Precision casting | ≥800h |
control cage,distributor | High chromium Precision casting | ≥1000h |

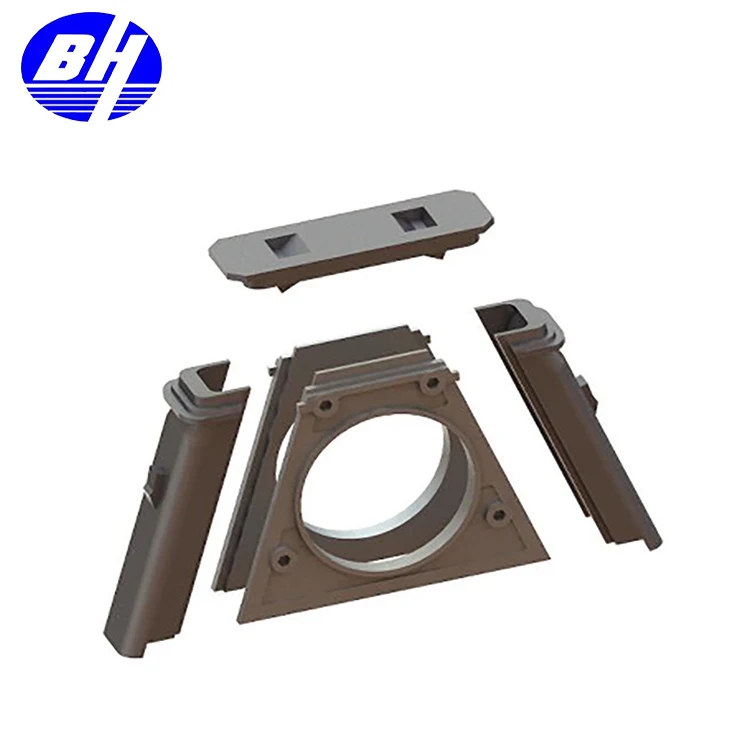

protection plate | High chromium | ≥1500h |
side plate | High chromium | ≥2500h |
impeller | 40Crquenching | ≥2500h |

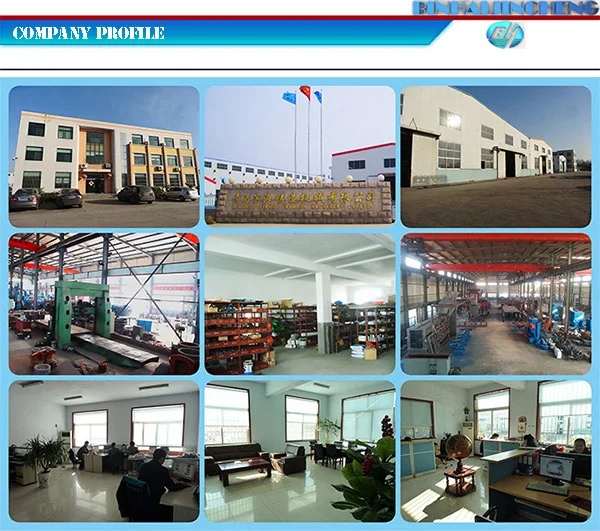

Qingdao Binhai Jincheng Foundry Machinery Co.,Ltd
have more than 30 year experience in foundry machine industry. We have 10 skillfull technical engineers and more than 100 experienced workers. Our products occupy 30% of China local market with good reputation.
Our company focus on design, research, develop and produce shot blasting machines,sand blasting rooms, sand processing equipments, environmental protection equipment, etc. Regarding of shot blasting machines, we have roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type, and some special big shot blasting equipment for cleaning the wire roll coil and stainless steel roll. All machines are professionally designed by our highly-experienced engineers with Auto CAD & Solidworks. OEM & ODM service is available.
1. 20 years experience with 11 professional engineers
2. CE,BV,ISO certificate
3. one year warranty for machine and spare parts
4. considerate after-sale service and Technial Assistance
5. world class shot blasting machine
6. OEM
7. Quick delivery/good quality/ competitive price
8. Binhai Jincheng is your Win-win partner
9.Free charges for installing,training and debugging.
Payment item
1.T/T,30% deposit, 70% before shipment
2.L/C irrevocable LC at sight
3.100% western union in advance
MOQ
1 SET
Delivery time
1.Depond on the machine, 30 days usually.
Binhai Jincheng Factory
With Good Self-confidence of Our Products Quality & After-sale Service, We Warmly Welcome Friends from Oversea to be Our Distributors ! We supply all life long technical supporting !
