oil pressure pipe cutting beveling machine

Product Overview

Description

oil pressure pipe cutting beveling machine



Characteristics:

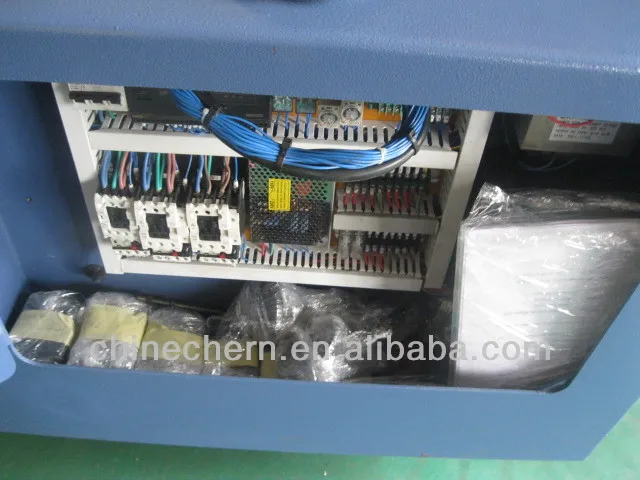

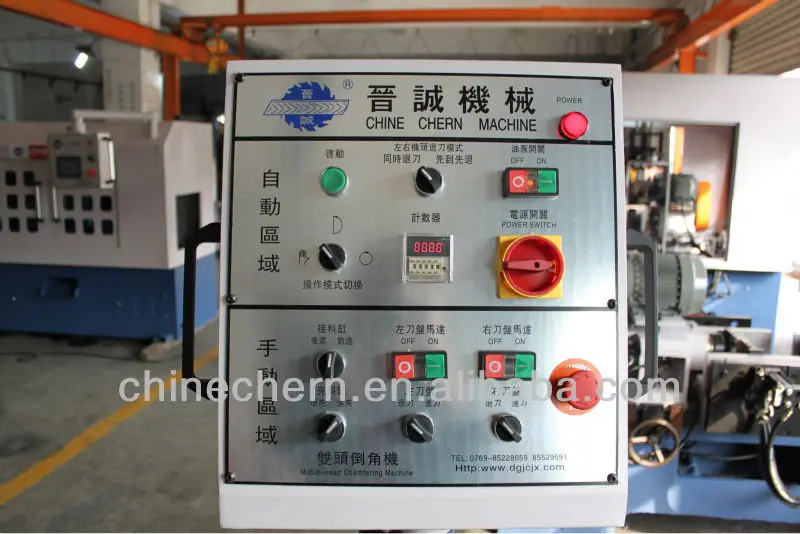

1. Japan Mitsubishi PLC Control ,It is simple to operate and maintain.



2.Manual feeding, Automatic clamping the pipe/bar; also can choose the feeding equipment



3. Automatic advance of tool, Fully hydraulic clamping and chamfering ,All can be controlled by oil cylinder .



4.It is suitable for chamfering steel pipe,Iron pipe,stainless steel pipe,aluminium pipe ,





Also can chamfer threaded rod





5. Chamfering angle can be changed by change the blades;

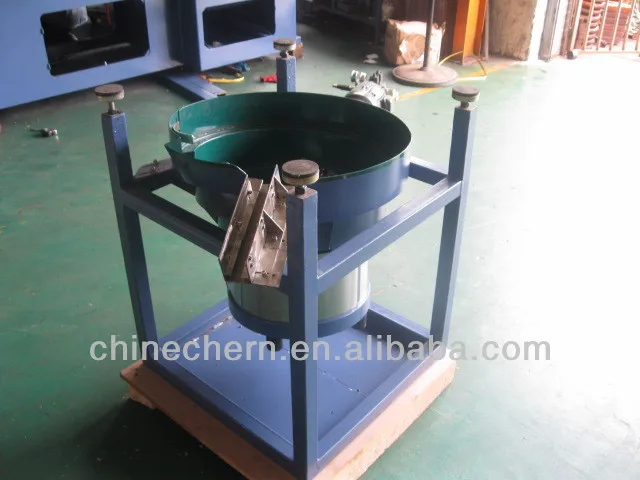

6. Automatic feeding of pipe can be controlled by ATF & Vibration Disk Plate





7. Smooth and uniform bevel edge by specific cutterhead,knife holder and blade

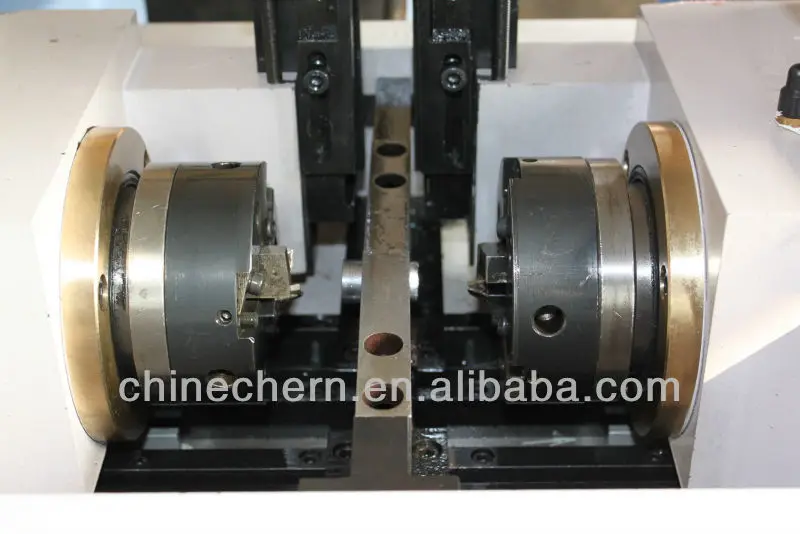

8. Interior and exterior angle chamfering of pipe end and tube end,and the milling of the



end face can be finished at a single time .



9. It adopts the variety of strap wheel to transform several rotating speed and guarantee the longest use life of blade according to different metal blade;



10. The pipe chamfering machine is easy to adjust slowness of speed to reach perfect process.



11. The special design of gripper die and blade surface makes sure that the processed object and centre line of blade surface maintain still;



12. The pipe chamfering machine is easy to adjust slowness of speed to reach perfect process.







Parameters:











Model	NC-85A-300
Host motor	3HP/4P*2
Pipe diameter	¢6-80mm
Length of pipe	25mm-300mm
Cutterhead	Standard cutterhead
Blade	Tungsten carbide throw-away blade
Hydraulic motor	0.75KW/20Lite pump,Work pressure 20-30KGS
Standard fittings	1.one set clamp 2.one set cutter and one set blade
Special fittings	1.clamps of different sizes.2,special cutter 3.automatic feeding system
Machine weight	2300kg
Machine Dimension	2100mm×1670mm×1660mm

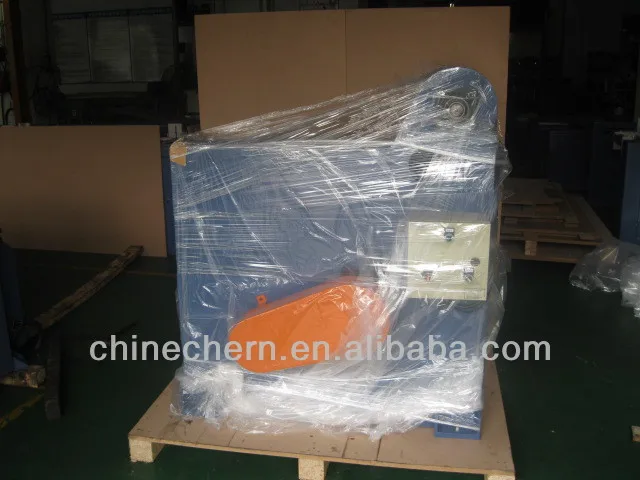

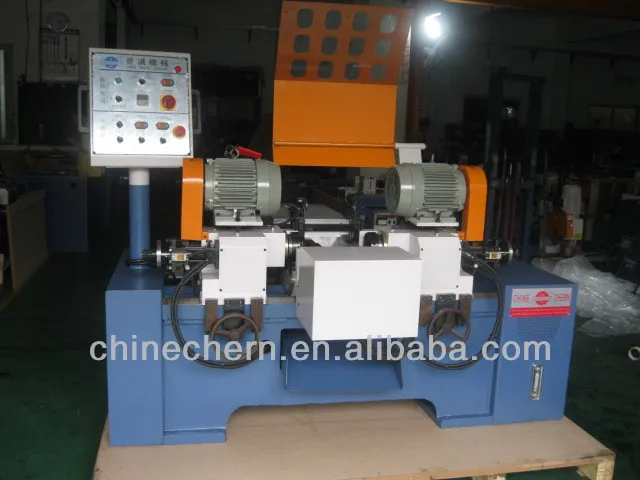

Machine Photo  & Package:

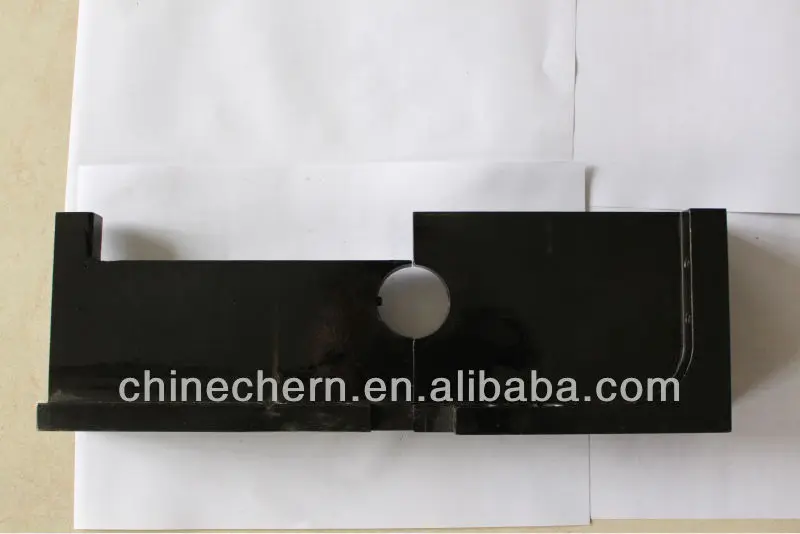

Spare Parts:

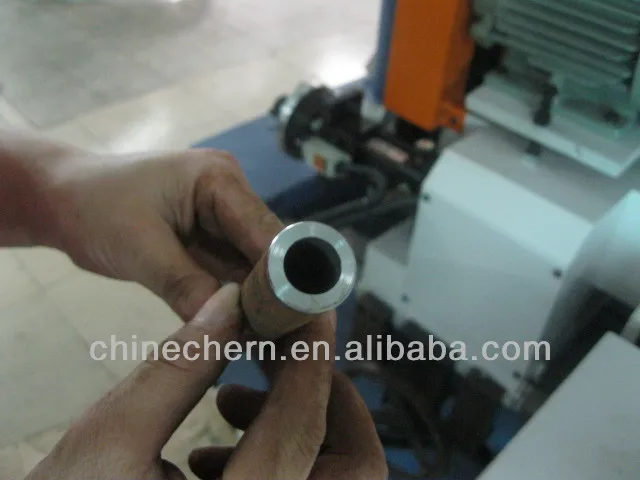

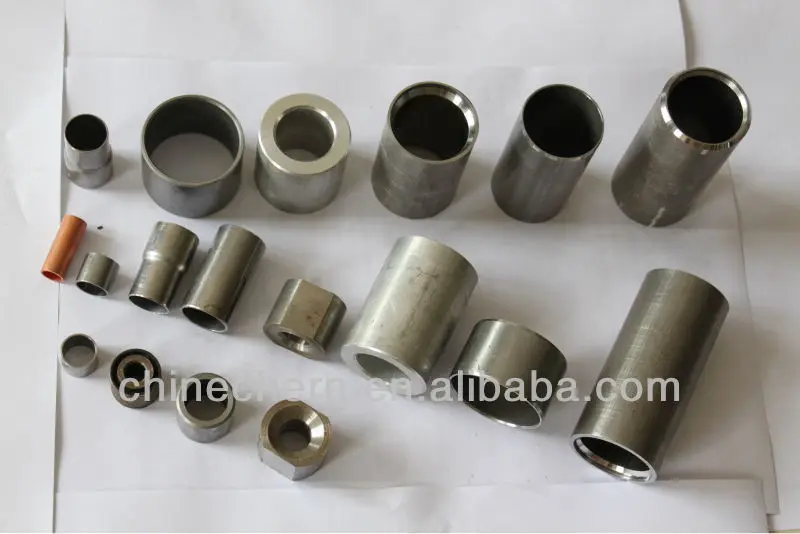

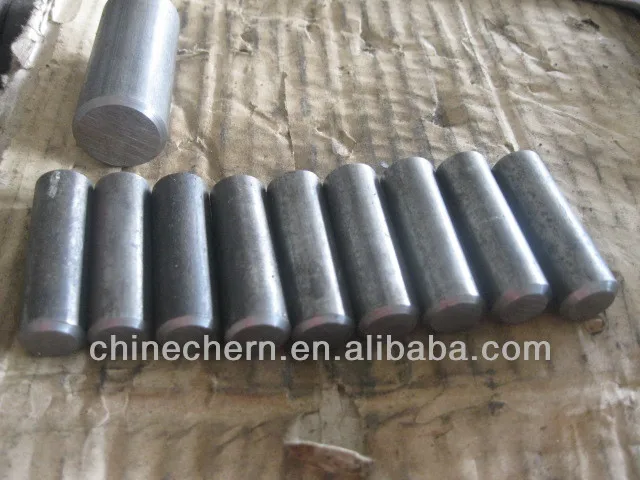

 Samples :
