Product Overview

Description



Garage Door Openers for Automatic Family

EIKIA-B600N/EIKIA-B800N





Specification:



Item	EIKIA-B600	EIKIA-B800
Opener Power	100W	120W
Standard Force	600N	800N
Apply door area	7 Square meter	12 Square meter
Rail Length	3300mm	3900mm
Remote Frequency	433.92MHZ	433.92MHZ
Remote Distance	25-35m	25-35m



Function Sketch:

1,Convenient for debugging and using, with a high degree of automation

2,With Double-channel and humanized design of the remote control, self lock of the keys, operate sensitive and save, the remote distance applicable to more than 25M.

3,Automatic power check function, read the running power automatic and it will stop automatically if obstructed during the process of rising and falling.

4,Flexible starting and stopping technique.

5,Electronic limit device, which can be memory and restore automatically.

6,Door opener can be self locked in case of power failure.

7,Safety and low voltage of lighting.

8,The function to connect with hand switch as the interface of photoelectron switch.

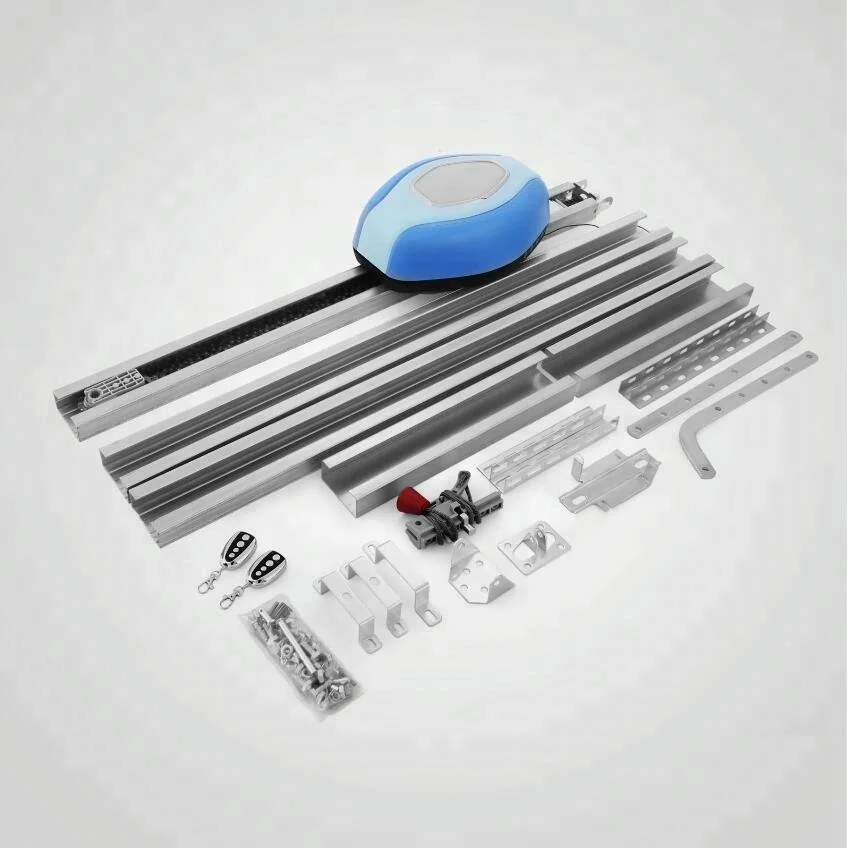

Suit Accessories

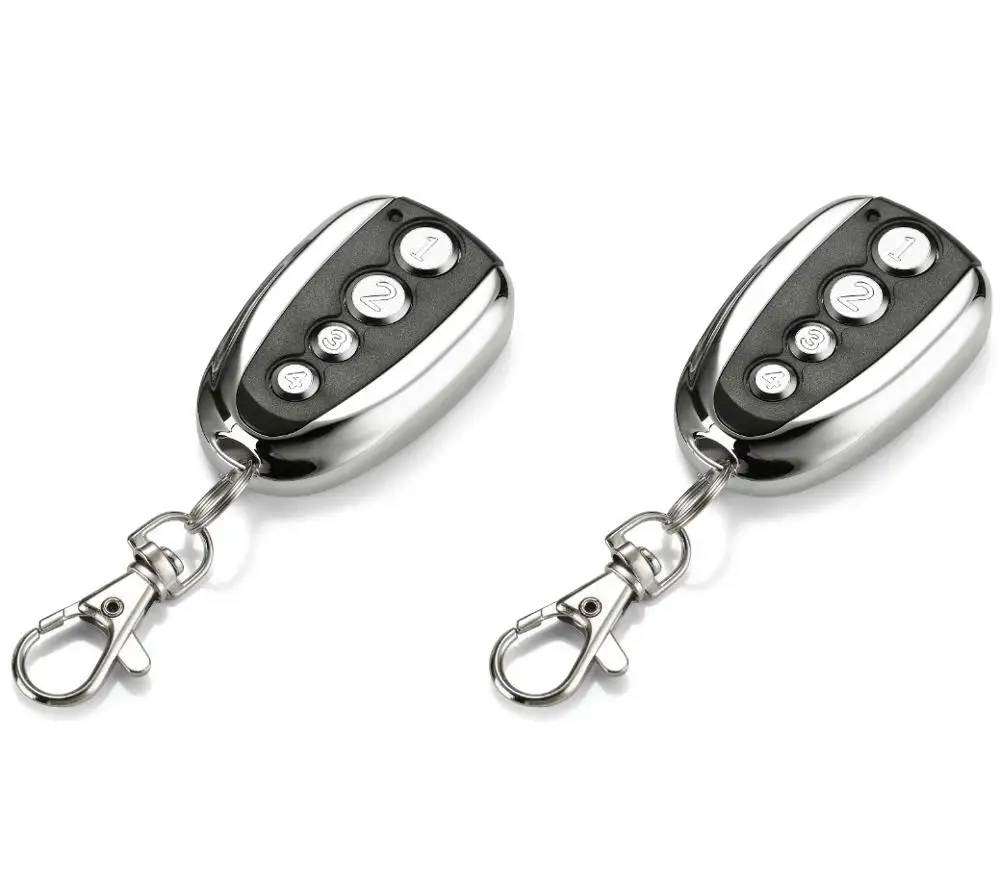

1,Remote Controls



There are two pcs for one set, and the style as follows:





2,Chain or Belt Rails

The length of Rail can be customized





3, Curve Knife



4,Accessories Bag

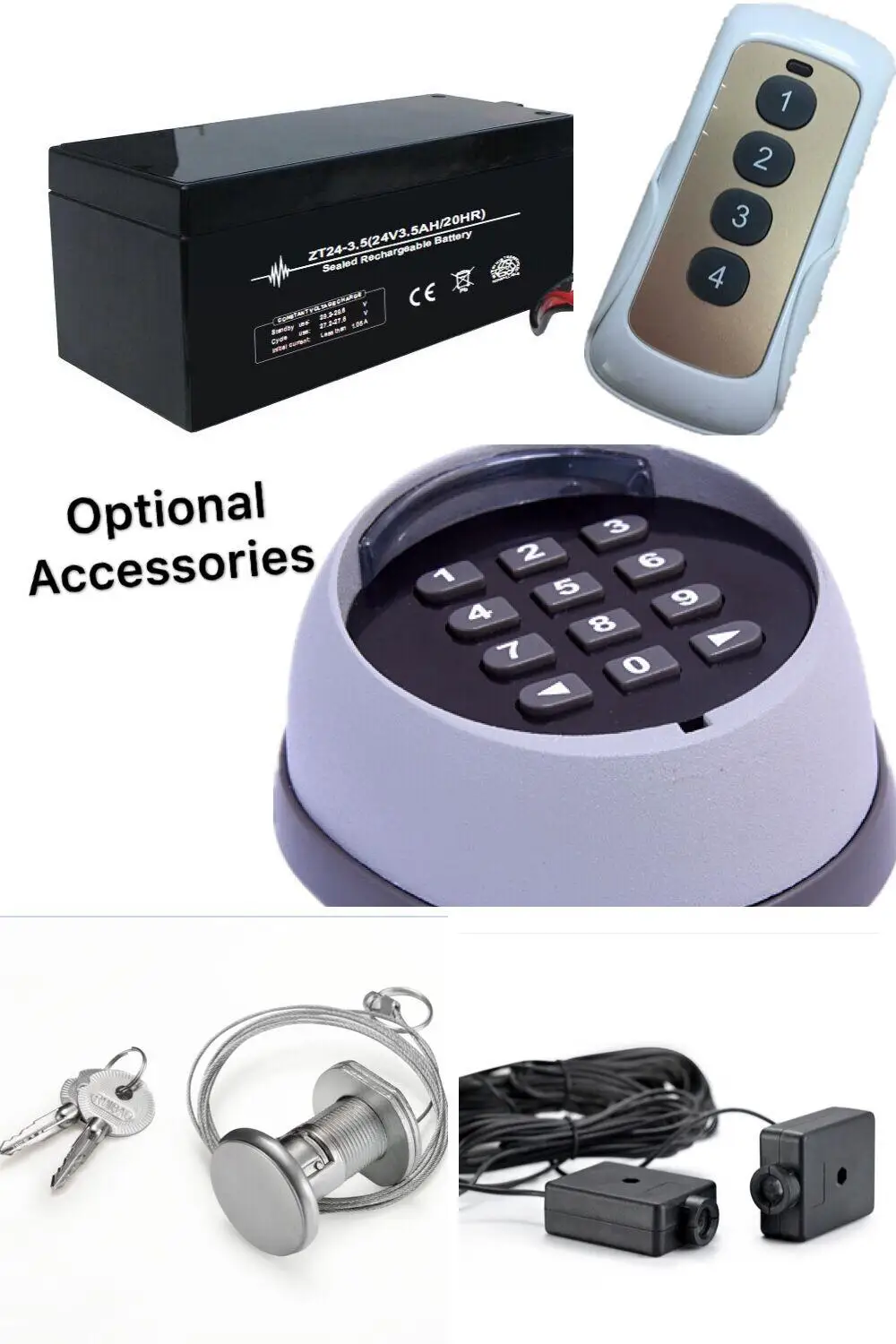

Selectable Accessories

1, Photocell



Voltage: DC24V +/-20%



Current:100mA



Temperature: -40°C~65°C



Distance:10m



2, Back-up Battery



Power: 12V 1.3Ah



Long cycle life, High discharge reach UL certificated



3,External Receiver

Power input : 12-24AC/DC

Relay contact rated: 2A/12V DC,  2A/220V AC



4,Coded Lock



5,  Emergency Lock



Production Line keep High capacity

All Machines need to burn-in 12hours before packed





Project Show
