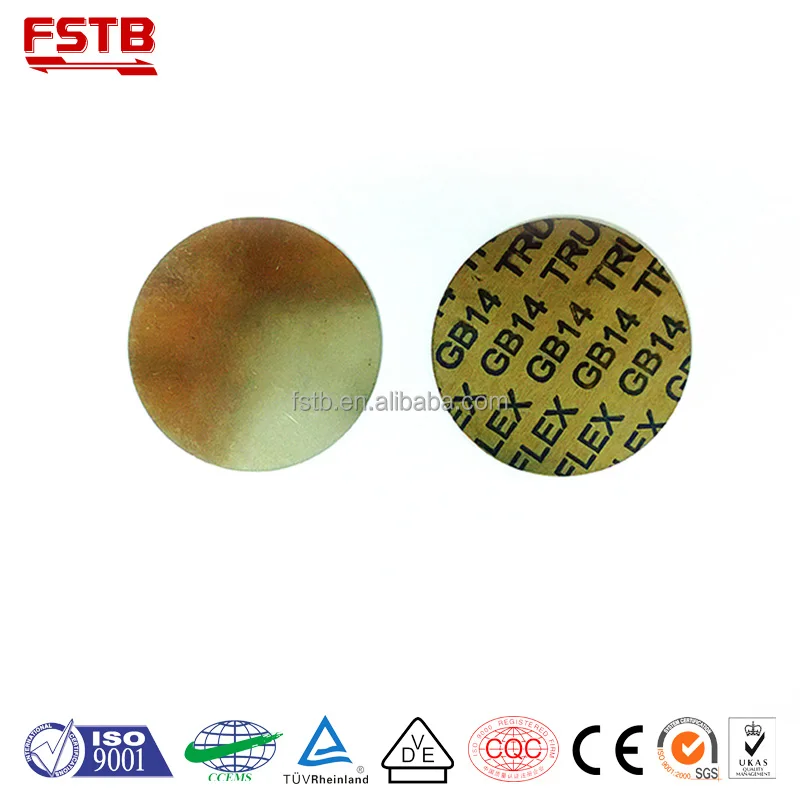

The snap action bimetal disc electric iron automatic thermal switch for Steam iron parts
Product Description
Advantage:
With the precise produce equiptment and many years' experiences in producing bimetal disc,our disc production is with high precision, reliable and simply action,the long life can be over 100,000 times.
Descript:
The snap action bimetal disc is be made by the bimetal material sensing deformation characteristics and steps of shaping.It is widely used in types of home appliances such as kettle, coffee maker, dispenser and steam iron and so on.
Parameters:
OFF temp. range:
0°C~300°C
ON temp. range:
-35°C~240°C
Tolerence:
min ±1°C
Life:
>100,000 times
Heating resistance:
action temp.+100°C
Differential:
10°C~300°C
Other parameters:
supply antirust type specification and disc with different shapes.
Appliance:
It can be used in snap-action thermostat as action disc and sensing temperature switch disc.
Diameter range:
10.2mm~30mm
