3CX10000A7 electronics
- Category: Electronic Accessories & Supplies >>>
- Supplier: Beijing,Jenerator,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
The electronics 3CX10000A7 is a forced air cooled in anode, ceramic-metal power triode containing a thoriated tungsten cathode which is designed for mainly used in AF or RF applications as a zero grid bias amplifier in class B.The tube get a simply circuit as operation with zero gird bias since eliminating the bias supply. In addition, grouded-gird operation is attractive since a power gain as high as twenty times can be obtained.
7.5 V | |
Filament Current | 99 A |
Amplification Factor | 200 |
Interelectrode Capacitance (Grouded Grid) |
|
Cin | 59 pF |
Cout | 36 pF |
Cak | 0.2 pF |
Maximum Operaitng Frequency | 160MHz |
Operation Position | Vertical |
Cooling | Forced Air |
Maximum Anode Core and Seal Temperature | 250 |
Maximum Height | 222.25 mm |
Maximum Diameter | 179.10 mm |
Net Weight | 5.44 kg |
Packaging & Shipping

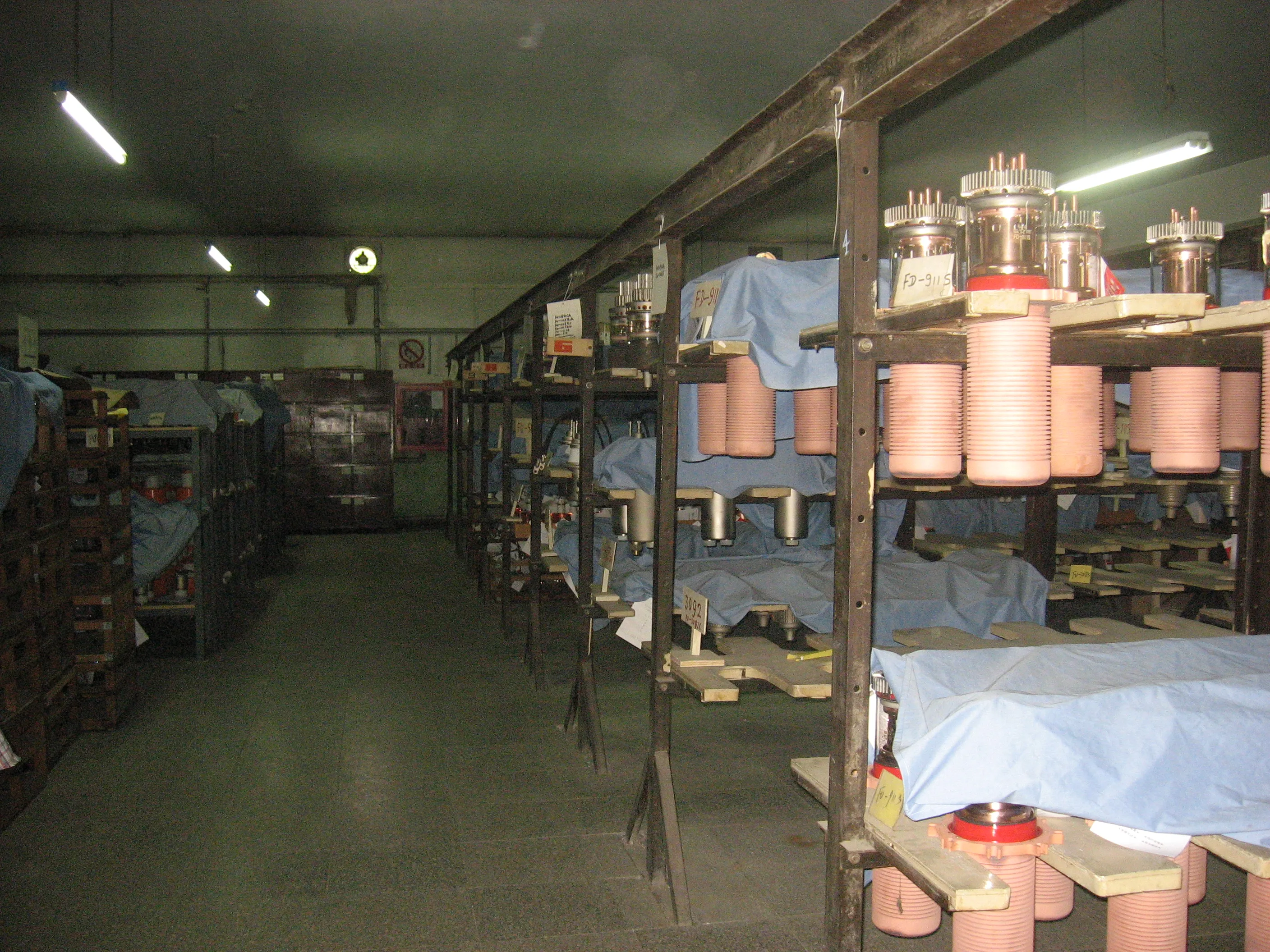

Company Information
We Beijing Jenerator Electronic Co., Ltd. is one of the biggest Electron tubes exporter in China since 2006. Located in Beijing City. Customer first, best quality and reasonable price are some of our concepts.
Our products are sold well all over the whole country, exported In enormous quantities to the following regions as South and North America, Europe and the Middle East, Asia. Our company mainly develops and provides ultra-high frequency electron tubes, industrial high frequency and ceramic tubes, capacitors, resitors, and OEM magnetrons, etc.
These products are applied in fields of heating, broadcasting, TV, communication, navigation, electricity, metallurgy, mining, chemical industry and high frequency industry extensively. We have made contributions for the national satellite launching, Beijing electron-positron collier, and the most advanced project of guided missile.
Many types of the goods have been produced for decades.
They are so mature and stable now.
