Siglent SHS1062, 60MHz, Isolated handheld oscilloscopes

Product Overview

Description

Siglent SHS1102, 100MHz, handheld oscilloscope



Features and Benefits

• Integrated oscilloscope, multimeter and recorder functions


• 5.7 inches(320*234) TFT-LCD, 2 channels and 2Mpts memory depth


• Max. 200MHz bandwidth, 50GSa/s equivalent sampling rate


• With 6000 dots display resolution Multimeter


• Support Scope TrendPlot, Meter TrendPlot and Scope Record


• 32 automatic measurements, 3 cursor measure modes


• 4 digital filter modes: Low pass, High pass, Band pass, Band limit


• Standard configuration interface: USB Host, USB Device


• Support PC remote control and PictBridge print



Specification



Oscilloscope Specification
Model		SHS1062			SHS1102
bandwidth		60MHz			100MHz
Rise time		≤5.8ns			≤3.5ns
Real Time Sample Rate		1GS/s
Equivalent Sample Rate		50GS/s
Vertical Sensitivity		5mV~100V/div
Time Base Scale		5ns~50s/div			2.5ns~50s/div
		Scan:100ms~50s/div
Memory  Depth		2Mpts
Triggering		Edge,Pulse,Video,Alternative,Slope
Vertical Resolution		8 Bit
Hardware Counter		6 Digital Triggering Frequency Counter
Port		USB Device,USB Host
Math Operation		+,-,*,/,FFT
Display		Color TFT-LCD,320×234 Display
Multimeter Specification
Maximum Resolution	6000
Ltem	Range			Accuracy
DC Voltage	60mV - 1000V			±1%±5digit
AC Voltage	60mV –750V			±1%±5digit
DC Current	60mV -10A			±1%±5digit
AC Current	60mV -10A			±1%±5digit
Capacitance	40.00nF			±3%±10digit
	400.0nF-400.0uF			±4%±5digit
Resistance	600Ω - 60MΩ			±1%±5digit
On off Test	<50Ω
Diode	0V~2.0V
Trend Port	1.6M Points
Recoder	7M Points
Measuring Mode	Manual/Auto
Isolation Level
Max input Voltage
Input by input port directly			300V CAT II
Input by 10:1 probe			1000V CAT III,600V CATIII
The Max input voltage of Multimeter			DC 1000V,AC 750V
Max float voltage
The float voltage between Oscilloscope BNC and ground			1000V CAT III,600V CATIII
The float voltage between each channel			1000V CAT III,600V CATIII
The float voltage between Multimeter and ground			1000V CAT III,300V CATIII
General Feature
Display	Color TFT-LCD,320×240 Display
Power Supply	With battery or apply DC adapter to get power from outside
Power Source	Built-in rechargeable lithium battery:7.4V 4400mAh,Battery Last3.5 hours;
	With DC adapter:100-240V 50/60Hz output 8.5V 2.8A output.
Weight	1.5Kg
Size	259×163×53mm
Accessory	Two Passive probes, Power cable, DC adapter, Multimeter Pen

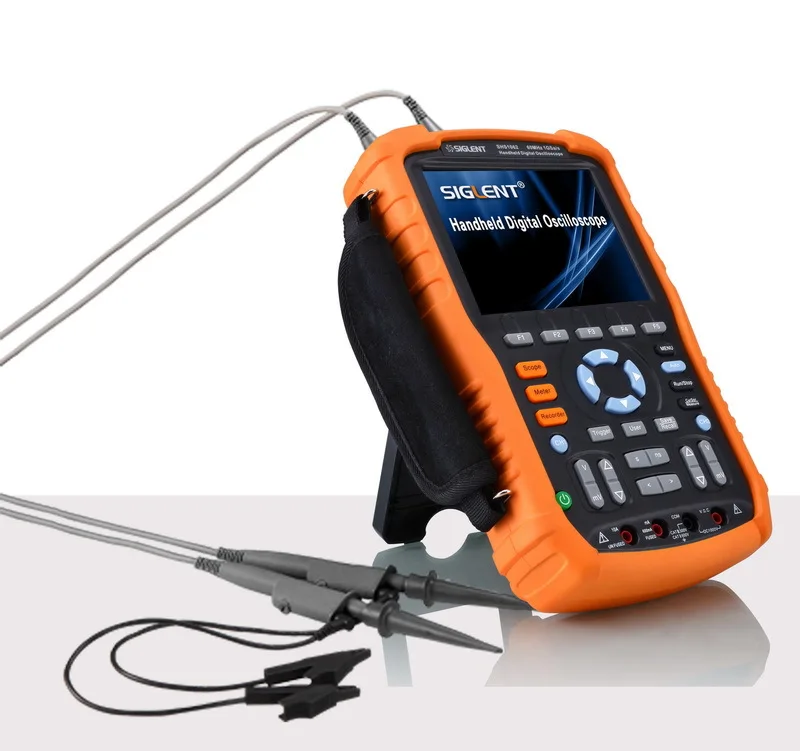

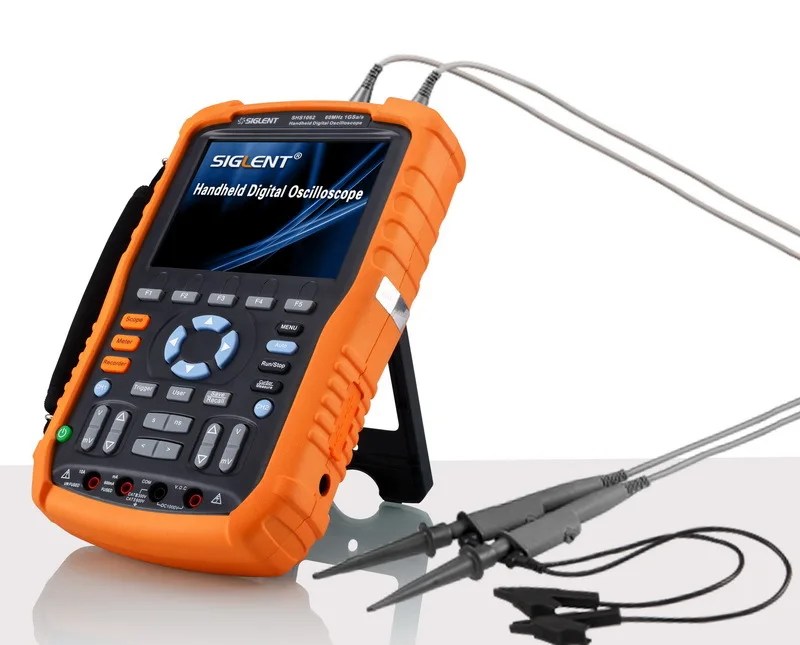

Product View:

Compare with Fluke190 Series



Specification	SHS1000	Fluke 190 (2-Channel)
Bandwidth	SHS1062: 60MHz	Fluke192: 60MHz
	SHS1102: 100MHz	Fluke196: 100MHz
		Fluke199: 200MHz
Real-time sample rate	1 GS/s	Fluke192: 500MS/s
		Fluke196: 1GS/s
		Fluke199: 2.5GS/s
Depth Memory	2MKpts	<20kpts
Number of Channels	2	2
Independently floating isolated inputs	Up to 1000 V CAT II/600 V CAT III between inputs, references and ground	Up to 1000 V CAT II/600 V CAT III between inputs, references and ground
Timebase range	SHS1062: 5 ns - 50s/div	Fluke192:10 ns - 2 min/div
	SHS1102: 2.5 ns - 50s/div	Fluke196:5 ns - 2 min/div
		Fluke199:5 ns - 2 min/div
Input sensitivity	5 mV-100 V/div	5 mV-100 V/div
Trigger types	edge,pulse,video,alternative,slope,Single Shot,Normal,Auto	Automatic,Edge,External,Video,Pulse Width
Maximum record length	Trend Plot:1.4M points Recoder:6M points	Trend Plot:13500 points Record :27500 points
Memory	Screen + Setup: 30 Recording: 2	Screen + Setup: 20 Recording: 2
Display	5.7" Color TFT-LCD, 320×234	144 mm,320 x 240 Display
Waveform Compare	Waveform reference with automatic Pass/Fail testing
Oscilloscope Trend Plot	800	13500
Meter Mode
Max.Resolution	6000	5000
DMM Testing Modes	Voltage, Current, Resistance, Capacitance,Diode & Continuity	Voltage,Resistance,Diode&Continuity, Temperature
Max. Input Voltage	AC:750V DC:1000	AC:1100V DC:1100
Max. Input Current	AC:10A DC:10A	Not supported
Resistance	600Ω-60MΩ	500Ω-30MΩ
Multimeter Trend Plot	1.6Mpts	2.75MPts



Siglent Technologies---The leading manufacturer of oscilloscopes by shipments in China.



Quality Management System Certification

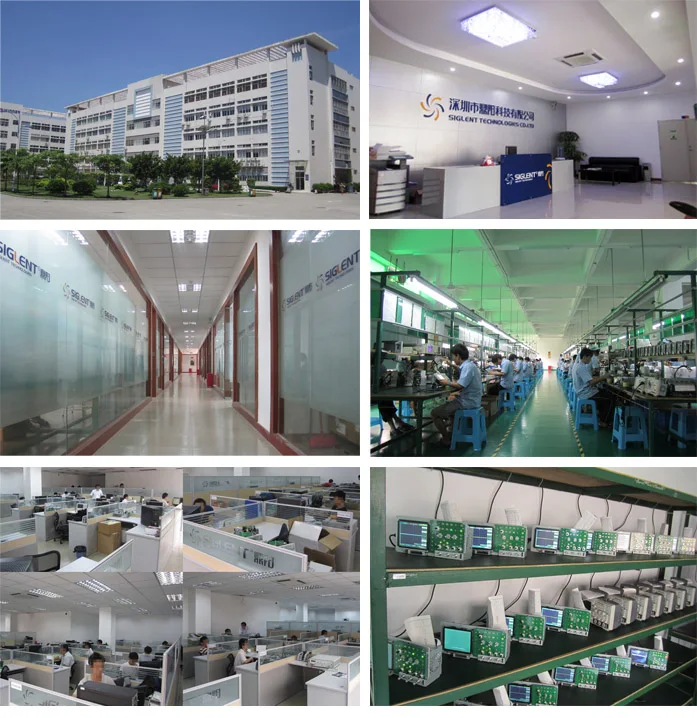

Comfortable Office Environment
